Diagnostic system: reading out fault memory and activating systems

Subsequent work for body repairs

1425

50 55 19 Removing and installing wing - as of MY
2005

- Preliminary work
- Removing the wing
- Installing the wing
- Subsequent work

Preliminary work

Preliminary work

1. Disconnect battery. → 271000  Work instructions after disconnecting the battery

2. Remove wheel. → 440519 Removing and installing wheel - removing

3. Remove front wheel housing liner. → 505619 Removing and installing front wheel housing

liner - chapter on "Removing" [997110 997111 997120 997121 997310 997311 997320
997321]→ 505619 Removing and installing front wheel housing liner - chapter on
"Removing" [997621]→ 505619 Removing and installing front wheel housing liner - chapter
on "Removing" [997410 997411 997430 997431 997610 997611 997620]

4. Remove the front apron. → 631519 Removing and installing front apron - chapter on "Removing"

5. Remove headlights. → 941519 Removing and installing headlights - removing

6. Remove headlight mounting. → 941419 Removing and installing headlight mounting - removing

7. Remove airbag sensor. → 695119 Removing and installing airbag sensor - removing

Note

Only when removing the right wing.

8. Remove filler flap. → 553719 Removing and installing filler flap - chapter on "Removing"

Note

Only when removing the right wing.

9. Remove carbon canister. → 202519 Removing and installing carbon canister - chapter on "Removing"

Note

Only when removing the left wing.

10. Install reservoir for windscreen washer system. → 926019 Removing and installing reservoir for

windscreen washer system - chapter on "Removing"

1426

Removing the wing

Removing fuel tank cap

Installation Location:

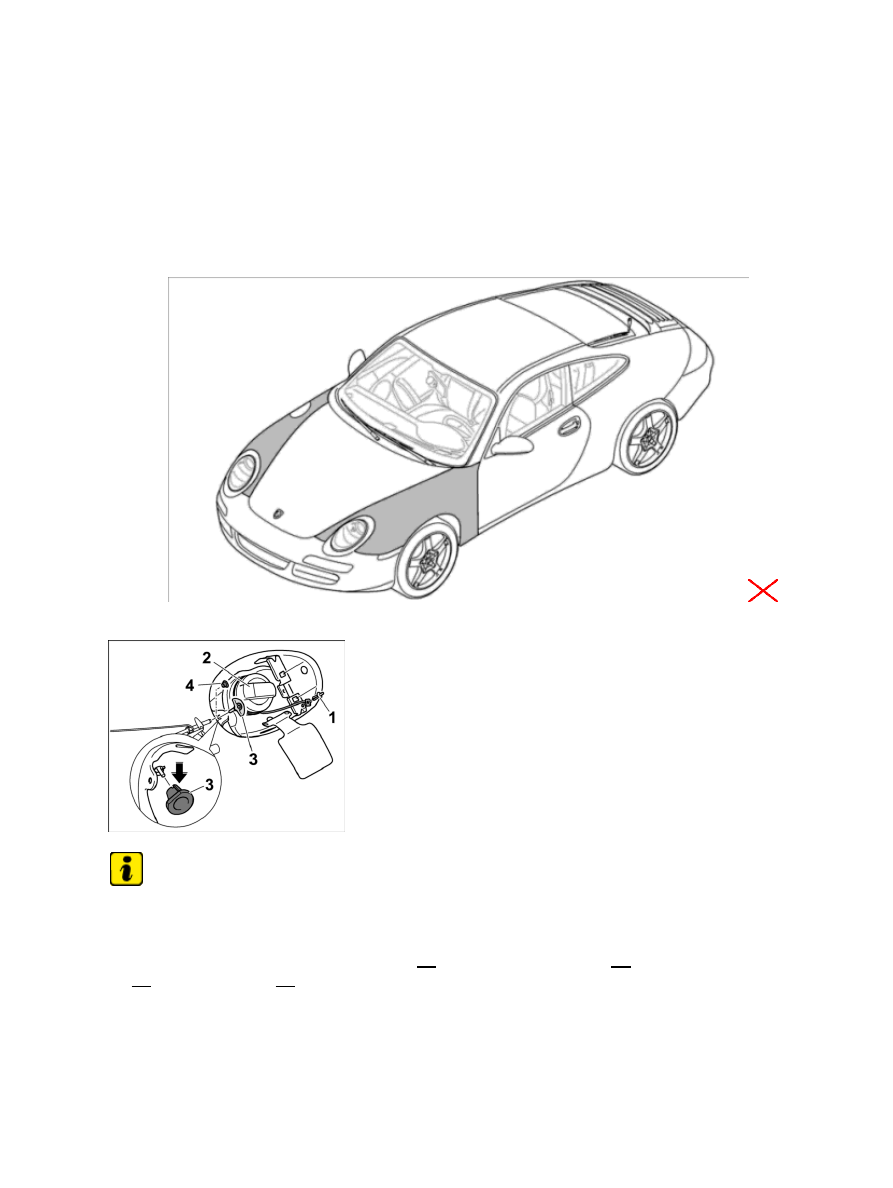

Main illustration for removing and installing wing

Removing fuel tank cap

Note

The following points apply only to the right wing.

•

1. Press out plastic pin in centre of rivet head -1- and remove fuel tank cap -2- . Then unclip rubber stop

-3-

 and rubber sleeve -4- .

Diagnostic system: reading out fault memory and activating systems

 Removing the wing

1427

Releasing tank filler neck

Installation Location:

Main illustration for removing and installing wing

Releasing tank filler neck

Note

The following points apply only to the right wing.

•

1. Press locking tabs of sleeve -A- and unclip -5- .

2. Unscrew fastening screw -6- of tank filler neck -7- .

3. Remove angled pipe -8- . To do this, press apart locking tabs -B- of plastic clip -9- and remove.

Releasing bottom of wing

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Releasing tank filler neck

1428
