Porshe 911 (997). Manual - part 318

Main illustration for removing and installing wing

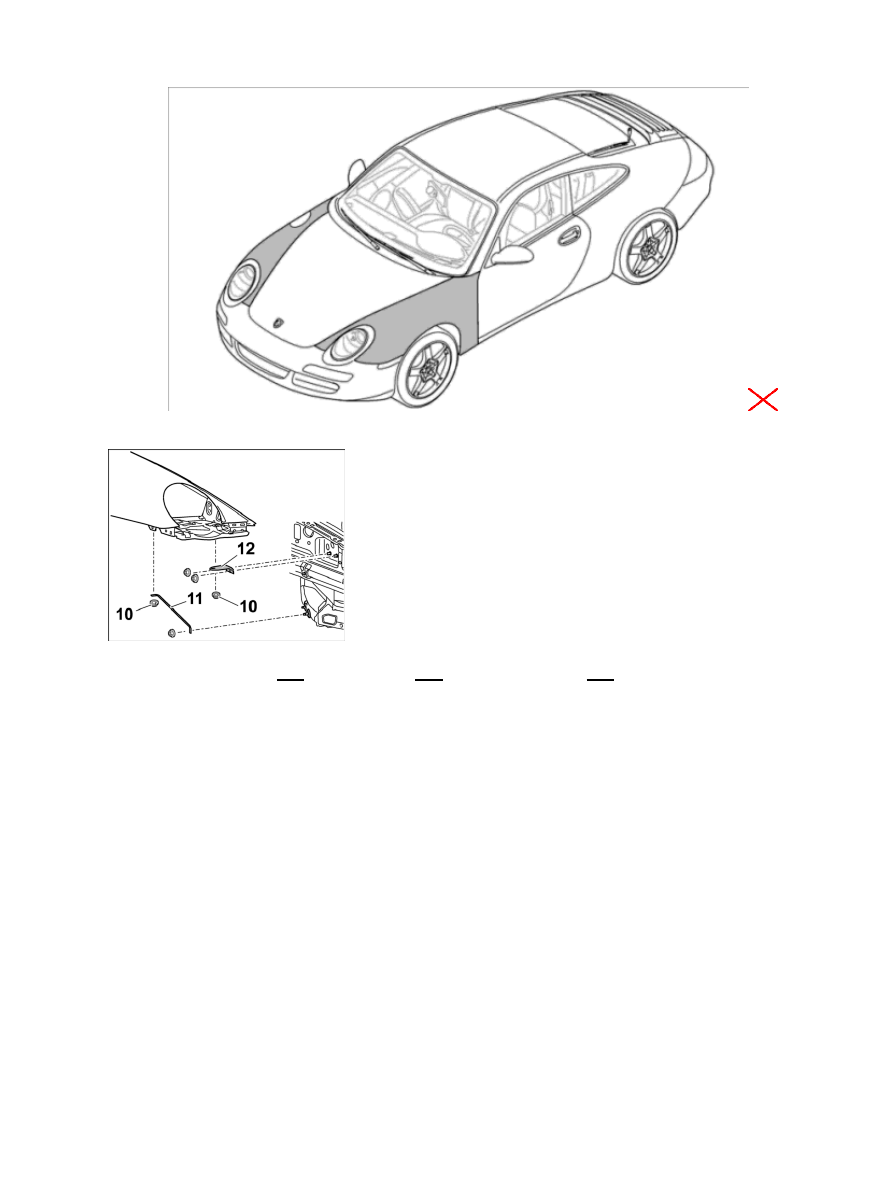

Releasing bottom of wing

1. Release fastening nut -10- from wing strut -11- and unscrew bracket -12- .

Releasing top of wing

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Releasing bottom of wing

1429

Main illustration for removing and installing wing

Releasing top of wing

1. Undo fastening screws -13- on top flange.

Removing retaining strip

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Releasing top of wing

1430

Main illustration for removing and installing wing

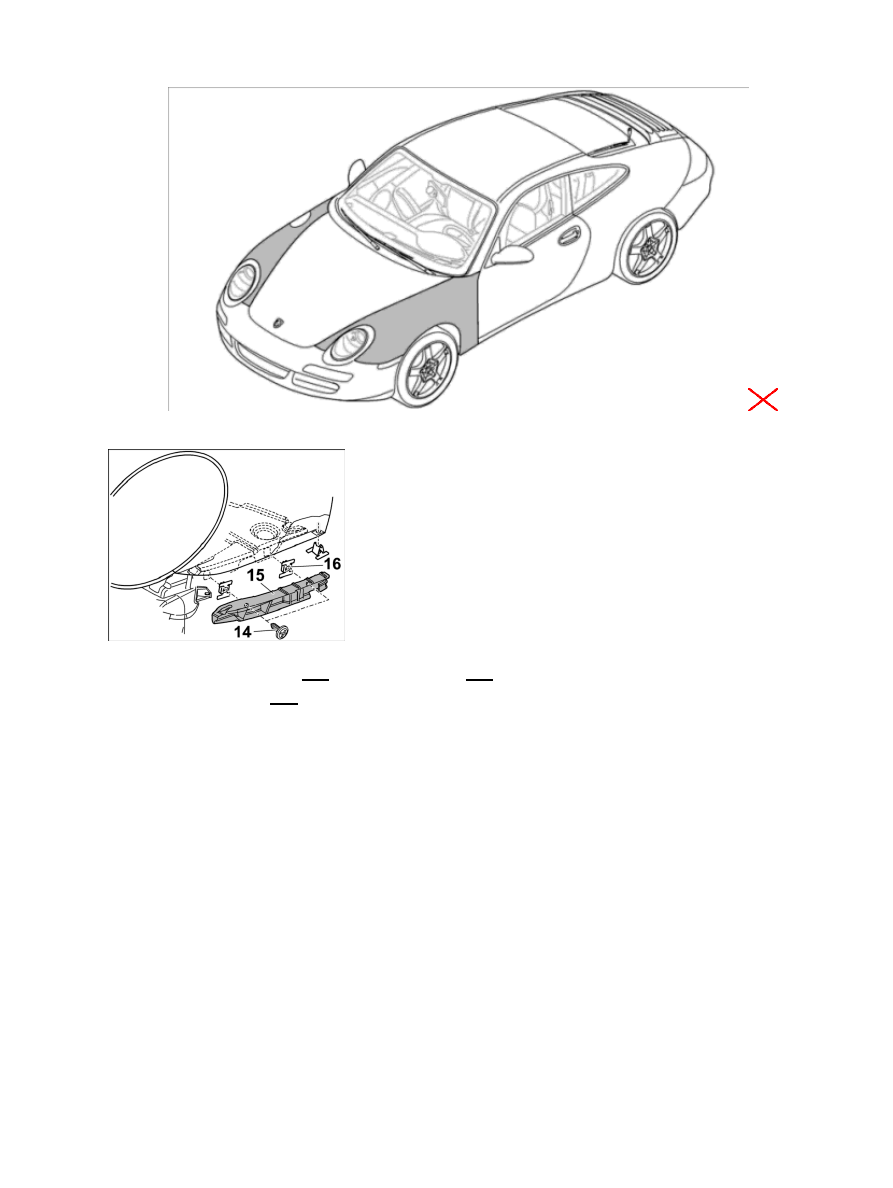

Removing retaining strip

1. Unscrew fastening screw -14- from retaining strip -15- and remove retaining strip.

2. Unclip fastening nut -16- .

Removing protective film

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing retaining strip

1431

Main illustration for removing and installing wing

Removing protective film

1. Remove protective film -17-

Releasing wing from A-pillar

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing protective film

1432
