Porshe 911 (997). Manual - part 316

Drill holes (Ø = 7 mm) on the fastening flange in area -A- for plug welding using inert
gas.

1.2. Punch holes (Ø = 7 mm) on the fastening flange in areas -B- and -C- for plug welding using inert

gas.

Cleaning the welding areas

2. Cleaning the welding

areas

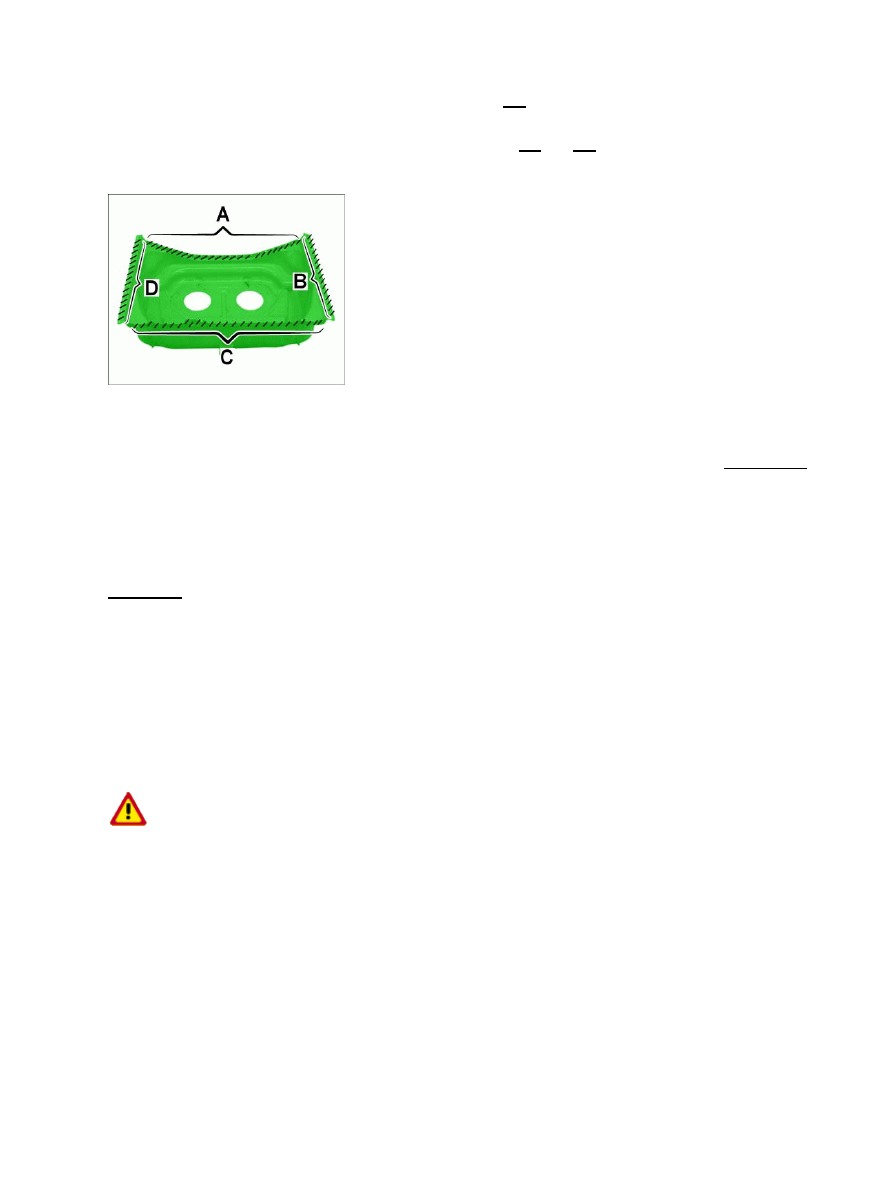

2.1. Grind both sides of the connecting flanges of the floor front section in the marked areas -A, B, C, D-

until bare using a rotary brush.

3. Coat spot-weld flange areas with zinc powder paint.

3.1. Coat all spot-weld flange areas with zinc powder

paint.

Installing front floor panel

Danger of injury when welding

DANGER

Risk of fatal injury from high voltage during electric welding!

Danger of explosion and fire when welding in the area of highly inflammable materials.

•

Irritation to respiratory tracts from toxic zinc oxide emitted when welding galvanised steel!

•

Danger of injury from unintentional triggering of pyrotechnical safety components!

•

Danger of injury from weld spatters and UV light when welding!

•

→ Do not perform welding work in a damp environment or on wet ground; there is a risk of fatal

injury from the voltage being conducted through the human body. Persons with heart pacemakers
should not perform welding work. Use insulating underlays.

→ Remove highly flammable materials from the work area; if necessary, remove units with

fuel-carrying parts and protect work areas in the vehicle that are at risk of catching fire using
fire-proof covers.

Diagnostic system: reading out fault memory and activating systems

Adjusting floor front section and preparing for installation

1421

→ Ventilate the work area well.

→ Remove smoke gases with a suitable extraction system (refer to Workshop Equipment Manual).

→ Wear suitable protective equipment, such as protective clothing, gloves, a welding shield and, if

necessary, a protective mask.

→ For welding work, always disconnect both terminals on the battery. In the case of welding work in

the immediate vicinity of the control modules for pyrotechnical safety systems, remove the control
modules before beginning work.

→ In addition, the guidelines of the welding equipment manufacturer and the legal accident

prevention regulations and those of the mutual indemnity association (BGV D1) must be observed.

Installing floor front section

1. Fit the floor front section to the

body.

1.1. Place the floor front section against the body and secure to the straightening

set.

Welding in floor front section

Note

Determine the position of the new part and secure with tensioning clamps.
When butt welding body sheet panels with a sheet thickness of > 1.5 mm, there must be a welding slit
width s = 1 x sheet thickness to guarantee the required welding quality (welding through).

2. Weld in floor front section.

2.1. Plug-weld the floor front section in area -A- to the right side member using inert

gas.

Diagnostic system: reading out fault memory and activating systems

Danger of injury when welding

1422

Welding in floor front section

3. Weld in floor front section.

3.1. Plug-weld the floor front section in area -A- to the left side member using inert

gas.

Welding in floor front section

4. Weld in floor front section.

4.1. Plug-weld the floor front section in areas -A- and -B- to the front panel using inert gas.

Welding in floor front section

5. Weld in floor front section.

5.1. Resistance spot-weld floor front section in area -A- to the front closing panel.

Subsequent work

Subsequent work for body repairs

1. Remove vehicle from the alignment bench.

2. Clean welded joints and sheetmetal flanges with a wire brush.

3. Prime flange areas with 2K

primer.

4. Restore standard sealing with body sealant.

→ 5  Seam sealing

Diagnostic system: reading out fault memory and activating systems

Installing floor front section

1423

5. Restore standard undersealing with underbody sealant.

→ 5  Underbody protection

6. Paint repair area and adjacent surfaces, if necessary.

7. Install removed accessories in the repair area.

8. Apply cavity preservation.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.
