Porshe 911 (997). Manual - part 215

- Notes
- Filling capacities
- Preliminary work
- Removing ATF filter
- Installing ATF filter
- Subsequent work

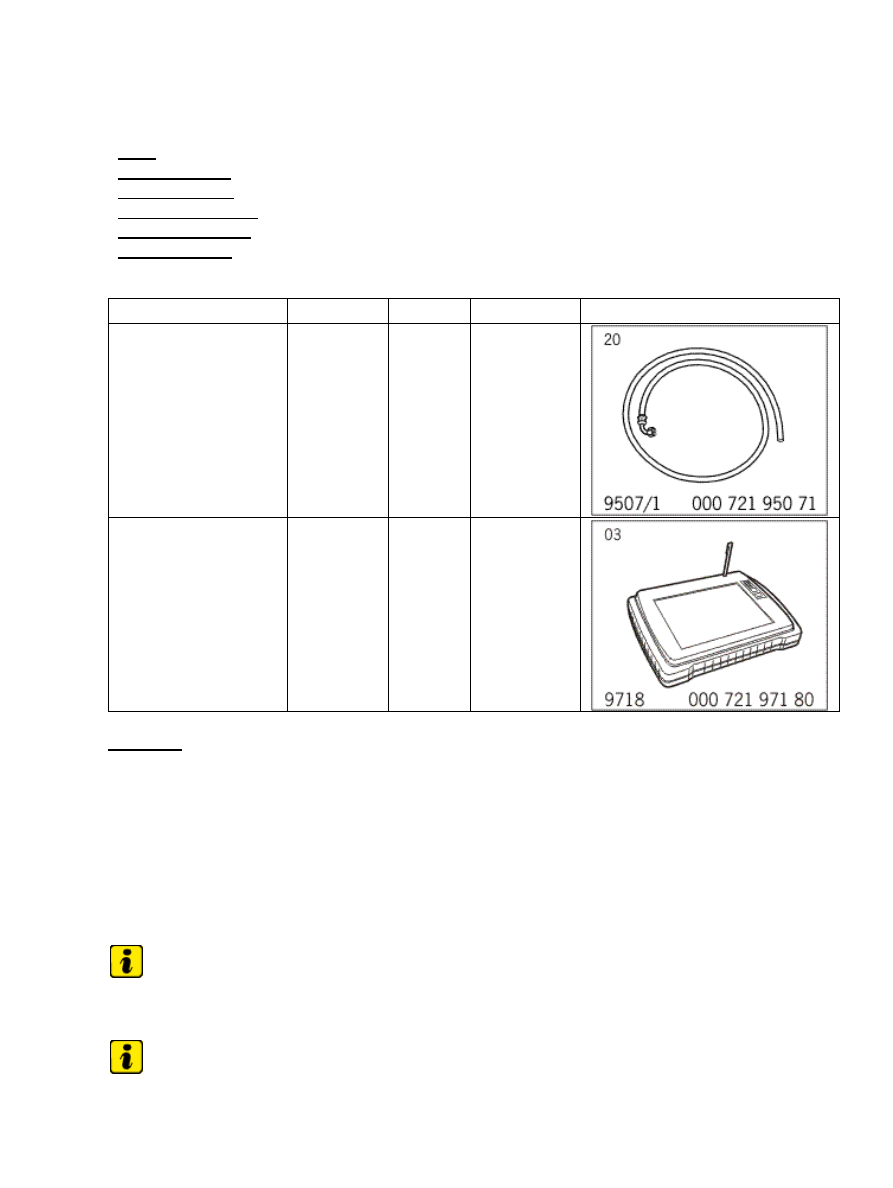

Tools

Designation

Type

Number

Explanation

Screw connection hose

special tool

95071

PIWIS Tester

special tool

97180

Notes

Notes

Note

Fill only with ATF approved by Porsche. See Spare Parts Catalogue.

Note

Hot vehicles should cool down before beginning the activity.

1017

Note

Vehicle must be horizontal in order to be filled and checked.

Filling capacities

Filling capacities

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Automatic transmission

total capacity

9 litre

Automatic transmission

change quantity

4.5 litre

Preliminary work

Preliminary work

1. Raise the vehicle at the prescribed jacking points. →   Lifting the vehicle

2. Remove the underbody panels. → 519419 Removing and installing rear trim - removing

3. Place oil collection pan under the transmission.

Draining ATF

ATTENTION

Transmission cannot be filled, or only insufficiently with ATF.

→ Do not start engine

→ Do not tow vehicle

Diagnostic system: reading out fault memory and activating systems

Notes

1018

ATF - ATF drain screw

WARNING

Danger of scalding and chemical burns from hot ATF

→ Allow ATF to cool down

→ Wear personal protective gear (goggles, gloves)

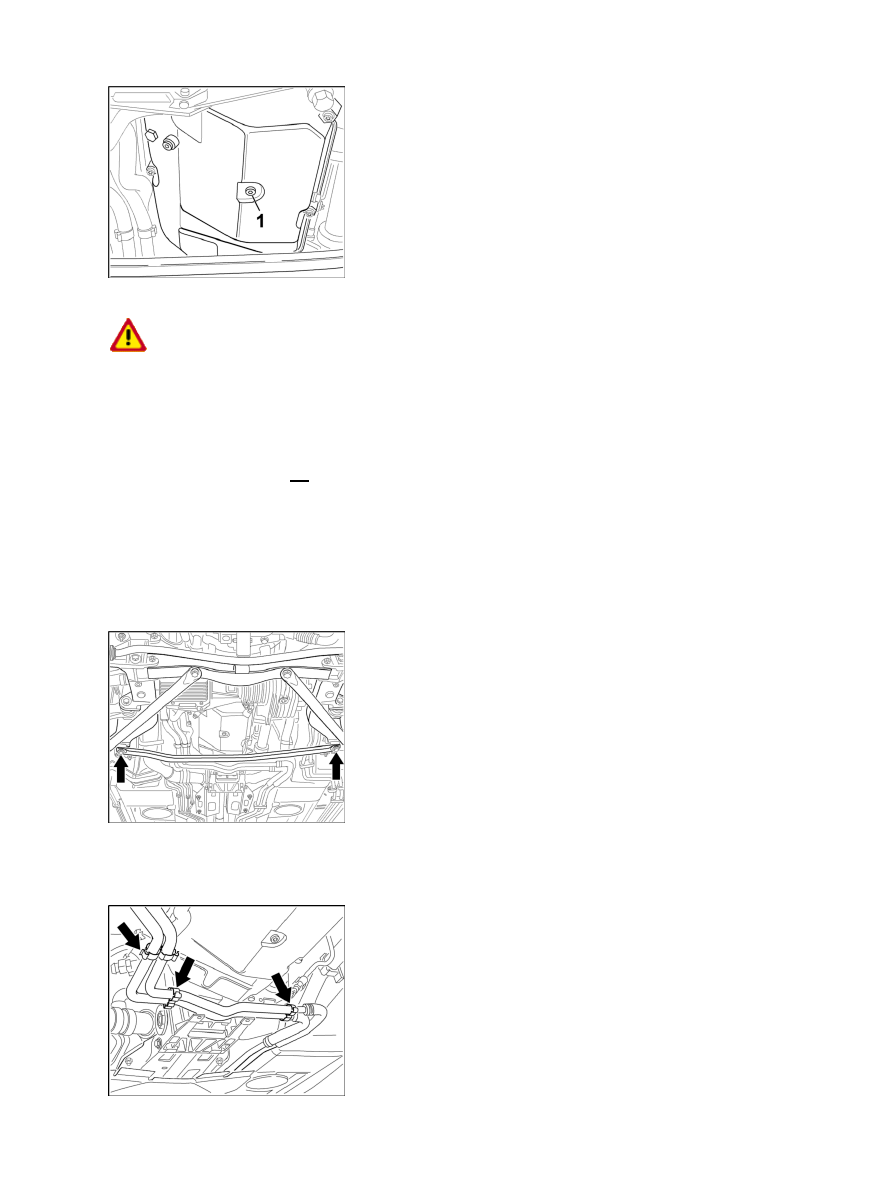

1. Unscrew the drain plug -1- and drain the ATF.

2. Replace sealing ring for drain plug and tighten screw. → Tightening torque: 22 (16 ftlb.) Nm .

Removing ATF pan

Cross member

1. Remove cross member.

Diagnostic system: reading out fault memory and activating systems

Draining ATF

1019

Bracket for coolant lines

2. Disengage coolant lines at the fastening points.

Electric plug

3. Remove electric plug.

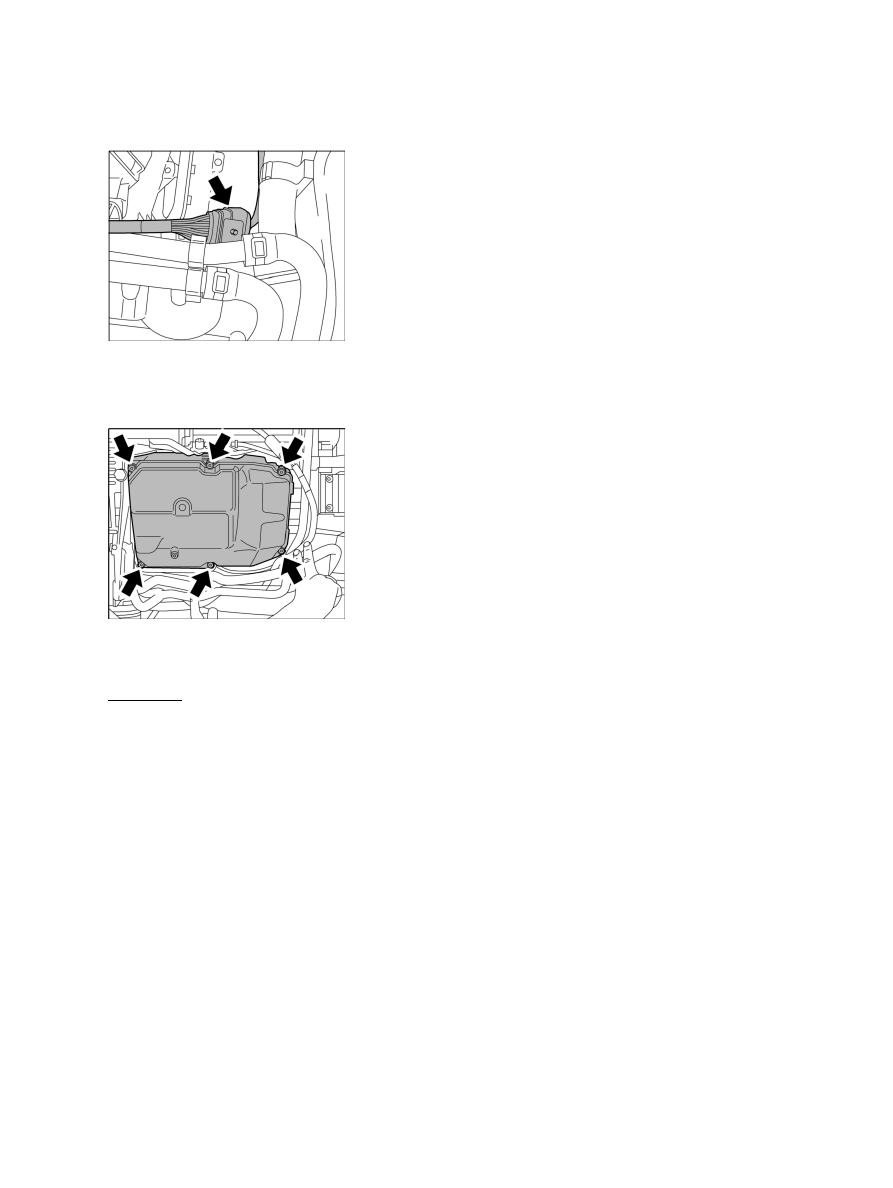

4. Disengage cable and vacuum line from the retaining clips of the ATF pan.

Removing ATF pan

5. Loosen screws crosswise and remove ATF pan.

Removing ATF filter

Removing ATF filter

Diagnostic system: reading out fault memory and activating systems

Removing ATF pan
