Porshe 911 (997). Manual - part 213





Note

Hot vehicles should cool down before beginning the activity.

Note

Vehicle must be horizontal in order to be filled and checked.

Technical values

Filling capacities

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Automatic transmission

total capacity

9 litre

Automatic transmission

change quantity

4.5 litre

Preliminary work

Preliminary work

1. Raise the vehicle at the prescribed jacking points. →   Lifting the vehicle

2. Remove the underbody panels. → 519419 Removing and installing rear trim - removing

3. Place oil collection pan under the transmission.

Draining ATF

ATTENTION

Transmission cannot be filled, or only insufficiently with ATF.

Diagnostic system: reading out fault memory and activating systems

Notes

1009

→ Do not start engine

→ Do not tow vehicle

ATF - ATF drain screw

WARNING

Danger of scalding and chemical burns from hot ATF

→ Allow ATF to cool down

→ Wear personal protective gear (goggles, gloves)

1. Unscrew the drain plug -1- and drain the ATF.

2. Replace sealing ring for drain plug and tighten screw. → Tightening torque: 22 (16 ftlb.) Nm .

Removing ATF pan

Removing ATF pan

Cross member

Diagnostic system: reading out fault memory and activating systems

Draining ATF

1010

1. Remove cross member.

Bracket for coolant lines

2. Disengage coolant lines at the fastening points.

Electric plug

3. Remove electric plug.

4. Disengage cable and vacuum line from the retaining clips of the ATF pan.

Removing ATF pan

5. Loosen screws crosswise and remove ATF pan.

Installing ATF pan

Diagnostic system: reading out fault memory and activating systems

Removing ATF pan

1011

Installing ATF pan

1. Clean ATF pan and place on transmission with new seal.

2. Screw in screws and tighten them crosswise. → Tightening torque: 8 (6 ftlb.) Nm

3. Engage cable and vacuum line in the retaining clips of the ATF

pan.

4. Fit electric plugs.

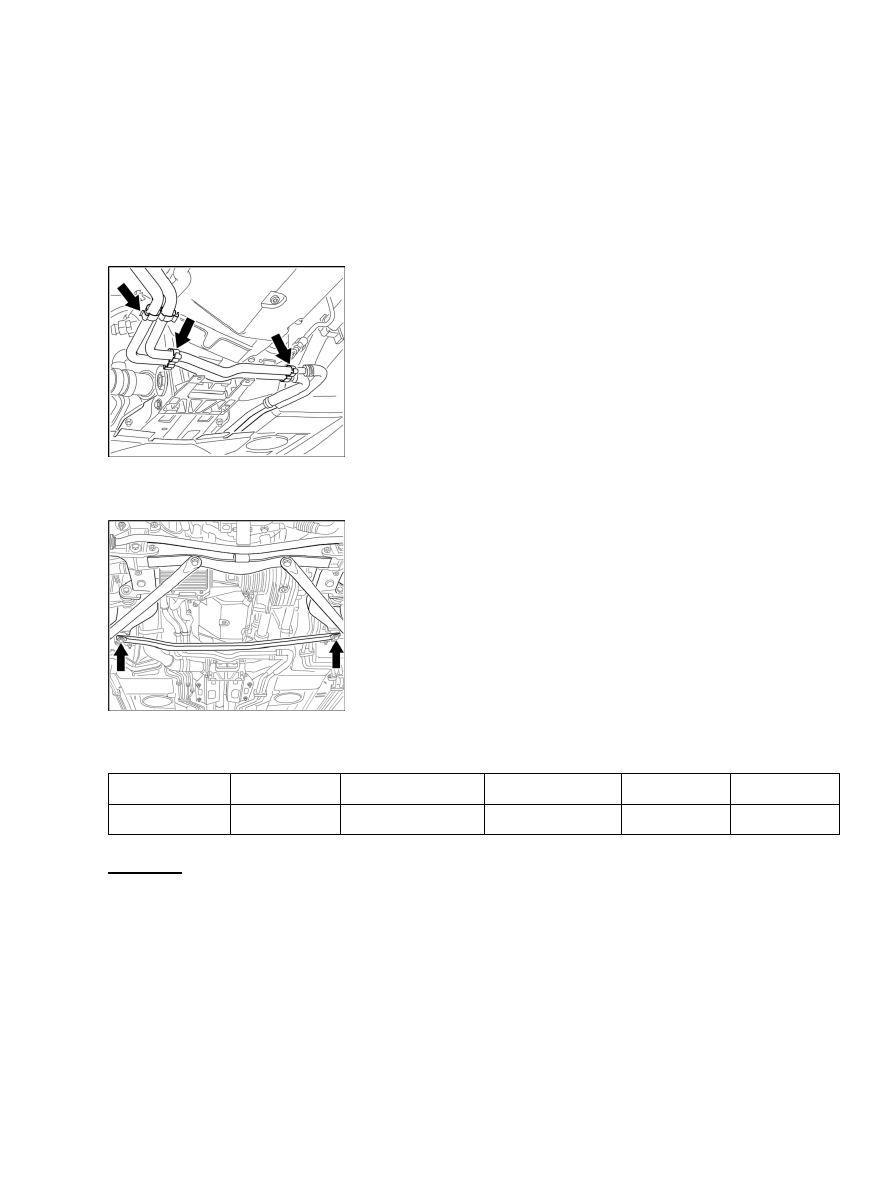

Bracket for the coolant lines

5. Engage the coolant lines at the fastening points.

Cross member

6. Install cross member.

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Cross member

Tightening torque

65 (48 ftlb.) Nm

Reworking

Topping up ATF

Diagnostic system: reading out fault memory and activating systems

Installing ATF pan

1012
