Removing three-phase generator from the engine.

3. Lift the right generator over the bracket on the engine -A- , then pull forwards and down -B- and

raise clear of the engine from the rear -C- .

Disconnecting electrical connections

4. Release and unplug the electrical connector -A- .

5. Unscrew fastening nut -B- for the B+ lead -4- and remove the B+ lead.

Installing three-phase generator

Installing three-phase generator

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing three-phase generator

809

Installation position

Connecting electrical connections

1. Place the three-phase generator on the engine and fit the B+ lead -4- , tightening with the fastening

nut -B- . → Tightening torque: 11 ftlb.

2. Press in the electric plug until it clicks into place.

Positioning three-phase generator on the engine

3.

Diagnostic system: reading out fault memory and activating systems

Installing three-phase generator

810

Insert the three-phase generator into the engine area -C- , then push upwards -B- and lift over the bracket
-A-

 .

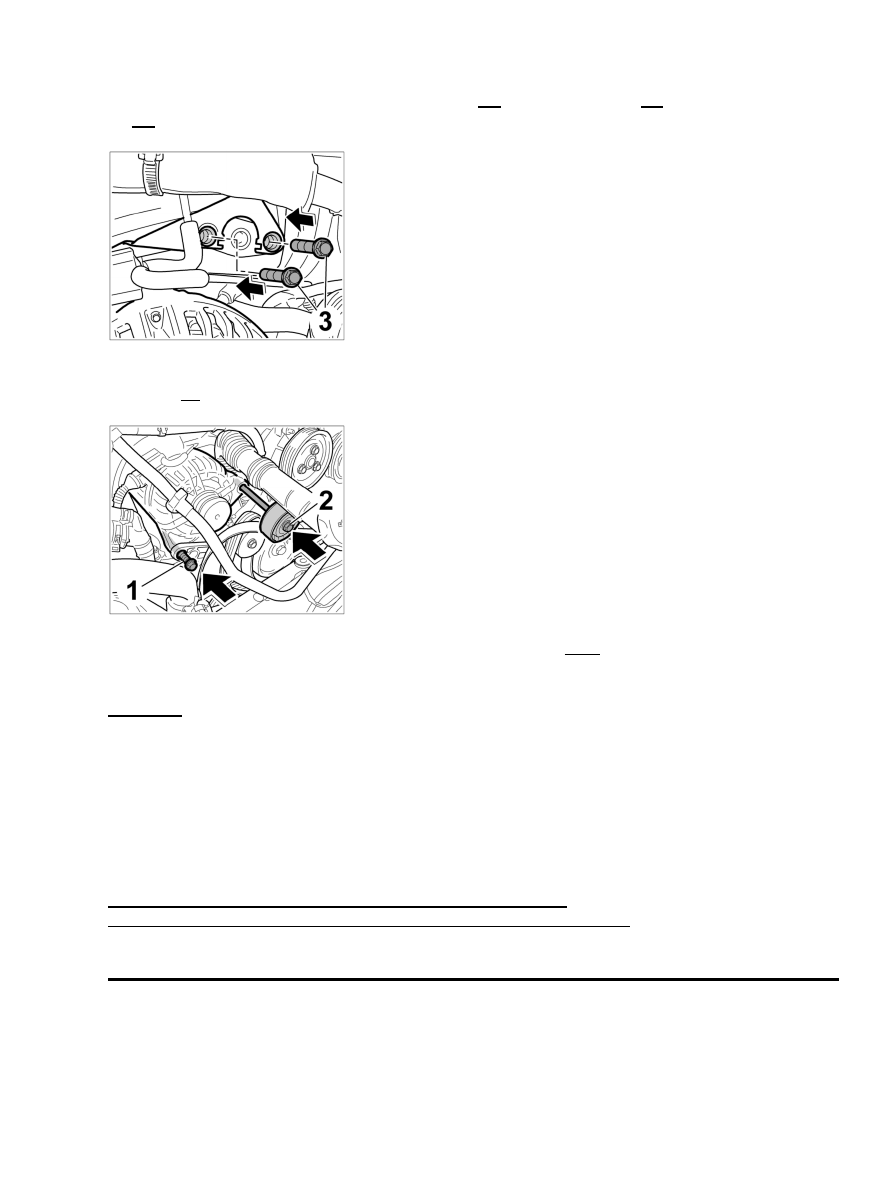

Screwing down vacuum modulator

4. Position vacuum modulator over the three-phase generator and screw it down with the fastening

screws -3- . → Tightening torque: 6.5 ftlb.

Screwing down fastening screws

5. Screw down three-phase generator with the two fastening screws -1, 2- . → Tightening torque: 34

ftlb. → Tightening torque: 34 ftlb.

Subsequent work

Subsequent work - three-phase generator

→ 137819 Removing and installing drive belt - chapter on "installing"
→ 242519 Removing and installing air cleaner housing - chapter on "installing"
Connect battery. → 271000  Work instructions after disconnecting the battery

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

Diagnostic system: reading out fault memory and activating systems

 Subsequent work

811

C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C45, C46, C98, C99
