Porshe 911 (997). Manual - part 160

27 06 19 Removing and installing battery - as of MY
2005

- Removing battery
- Installing battery
- Subsequent work

Removing battery

Removing battery

Note

For vehicles with a Vehicle Tracking System (VTS), please read the → 906323  Vehicle Tracking System
(VTS) TI!

The battery is located at the front in the radiator tank.
Observe the warning notes and safety regulations for lead-acid batteries. →   Safety instructions for handling
batteries

Battery cover

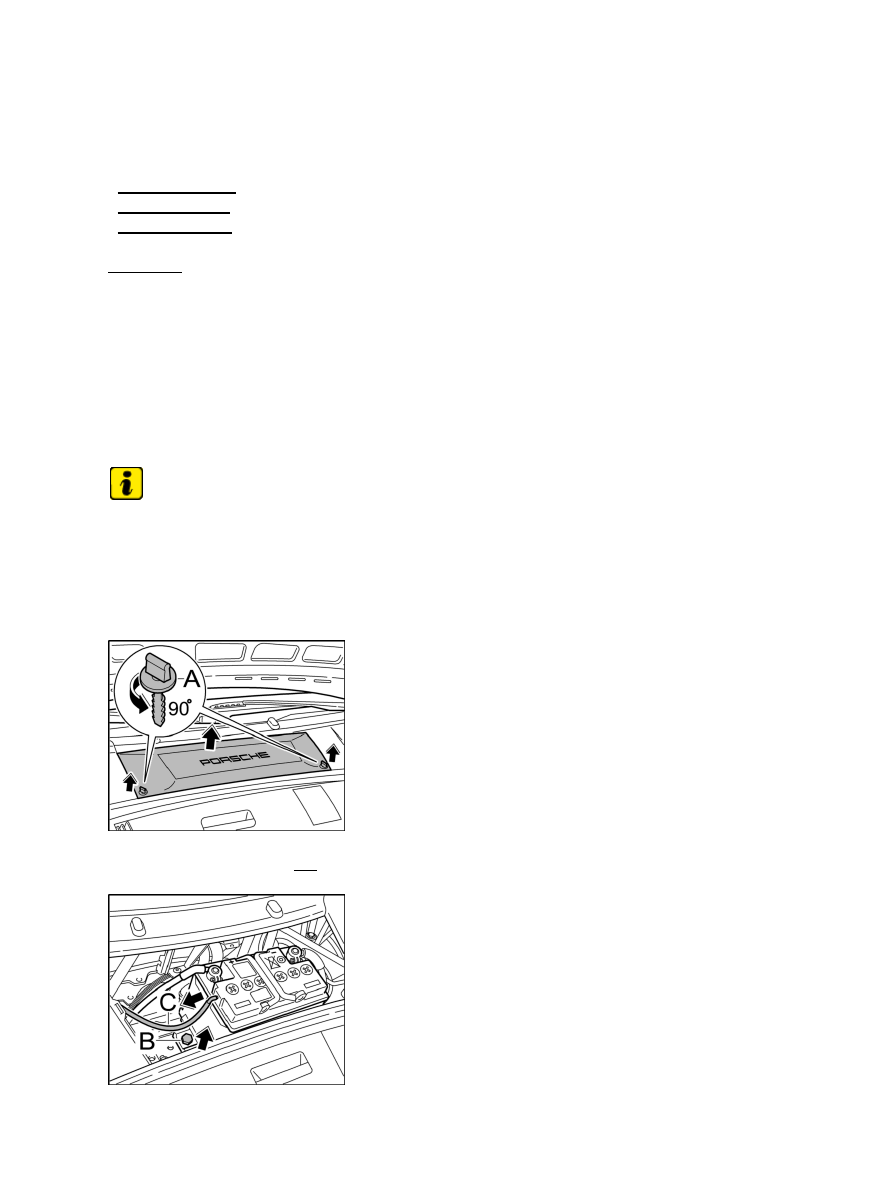

1. Open the turn-lock caps -A- of the battery cover and take off the plastic lid.

797

Disconnecting battery

WARNING

Risk of explosion, injury, short circuit and damage to the generator and electronic control units.

Risk of acid burns as a result of emerging acid.

•

→ Do not disconnect battery with engine running.

→ Switch off all loads and remove ignition key.

→ Disconnect and reconnect battery with extreme caution. Risk of short circuit and explosion.

→ Do not tilt battery when removing it. Risk of acid burns as a result of emerging acid.

→ Do not rub the battery with a dry cloth. Risk of explosion as a result of static charge.

2. First disconnect the negative then the positive leads from the

battery.

3. Pull the vent hose -C- away from the

battery.

4. Unscrew the fastening screw for the battery mount -B- and remove the battery mount.

WARNING

Risk of explosion, injury, short circuit and damage to the generator and electronic control units.

Risk of acid burns as a result of emerging acid.

•

→ Do not disconnect battery with engine running.

→ Switch off all loads and remove ignition key.

→ Disconnect and reconnect battery with extreme caution. Risk of short circuit and explosion.

→ Do not tilt battery when removing it. Risk of acid burns as a result of emerging acid.

→ Do not rub the battery with a dry cloth. Risk of explosion as a result of static charge.

5. Risk of contact with corrosive fluid Remove battery from battery case by the folding handles, if at all

possible without tilting it.

Installing battery

Installing battery

Make sure that the vent hose is in good condition. If the hose is deformed or damaged, replace it.

WARNING

Risk of explosion, injury, short circuit and damage to the generator and electronic control units.

Diagnostic system: reading out fault memory and activating systems

Removing battery

798

Risk of acid burns as a result of emerging acid.

•

→ Do not disconnect battery with engine running.

→ Switch off all loads and remove ignition key.

→ Disconnect and reconnect battery with extreme caution. Risk of short circuit and explosion.

→ Do not tilt battery when removing it. Risk of acid burns as a result of emerging acid.

→ Do not rub the battery with a dry cloth. Risk of explosion as a result of static charge.

1. Risk of contact with corrosive fluid! Position the battery in the battery case below the stops, if at all

possible without tilting it.

Battery mount

2. Position the battery mount and tighten with the fastening screw -B- . → M8: 23 (17 ftlb.) Nm

3. Insert the vent hose for the battery.

4. Risk of short circuit! First connect the positive cable then the negative cable. → M6: 5 (3.5 ftlb.) Nm

Battery cover

5. Position the battery cover and secure using the two twist locks -A- . → 271219 Removing and

installing battery cover - section on "Reworking"

Subsequent work

Diagnostic system: reading out fault memory and activating systems

Installing battery

799

Subsequent work - battery

→   Work instructions after disconnecting the battery

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
