Porshe 911 (997). Manual - part 121

Carbon canister for RoW

2. Connect plug-in couplings to the underside of the canister and clip in the lines. Screw in collar nut

M6 on the holder and tighten. → Tightening torque: 7.5 ftlb.

Installing carbon canister - USA Version

View of plug-in couplings

Plug-in couplings in the vehicle

1. Insert canister and connect the plug-in couplings which must engage audibly.

Carbon canister for USA

Diagnostic system: reading out fault memory and activating systems

Installing carbon canister - RoW Version

641

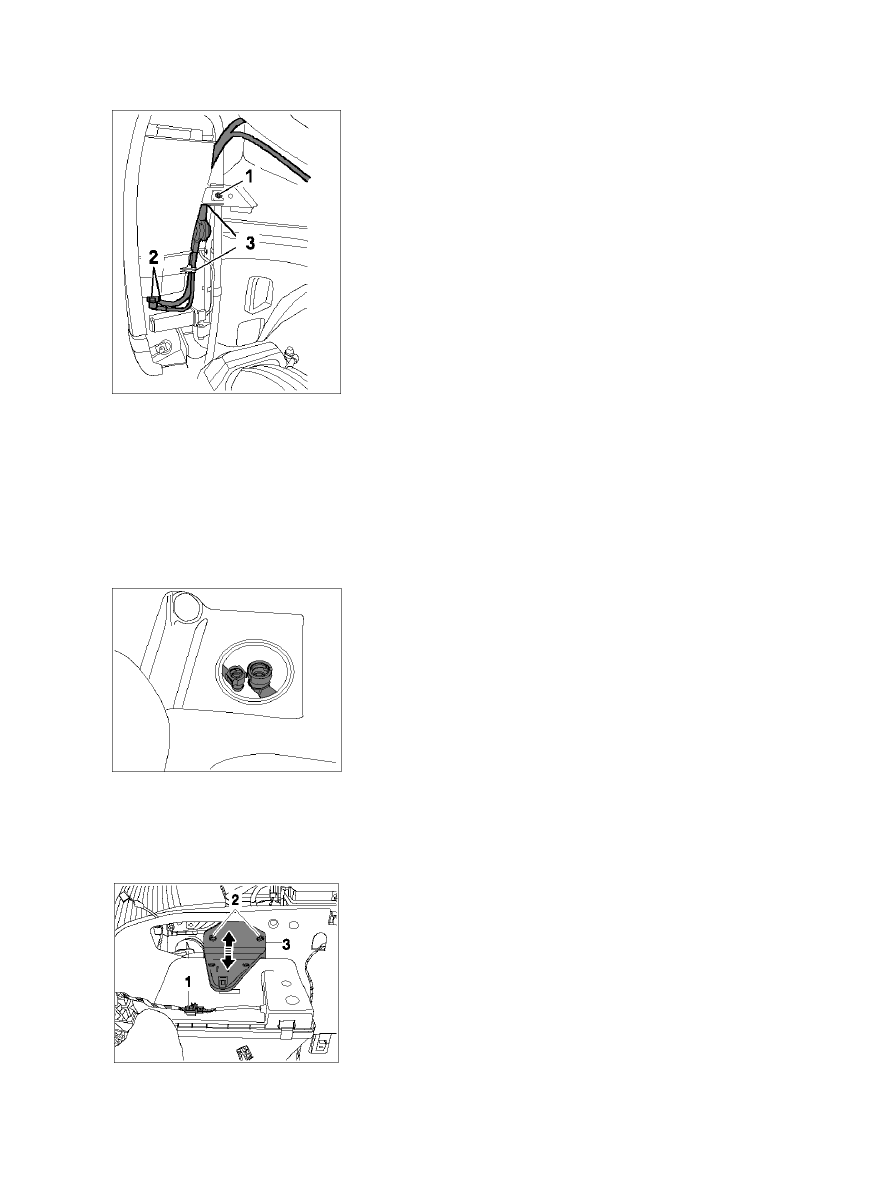

2. Slide plastic holder for the canister -3- into the guide and fix to the plenum panel. Screw in two

Torx screws M6 -2- and tighten. → Tightening torque: 7.5 ftlb.

3. Connect cable plug and clip into the cable guide on the canister -1- .

Subsequent work for carbon canister

Subsequent work for carbon canister

1. USA version: Disconnect cable plug from CD

changer.

CD changer support at plenum panel

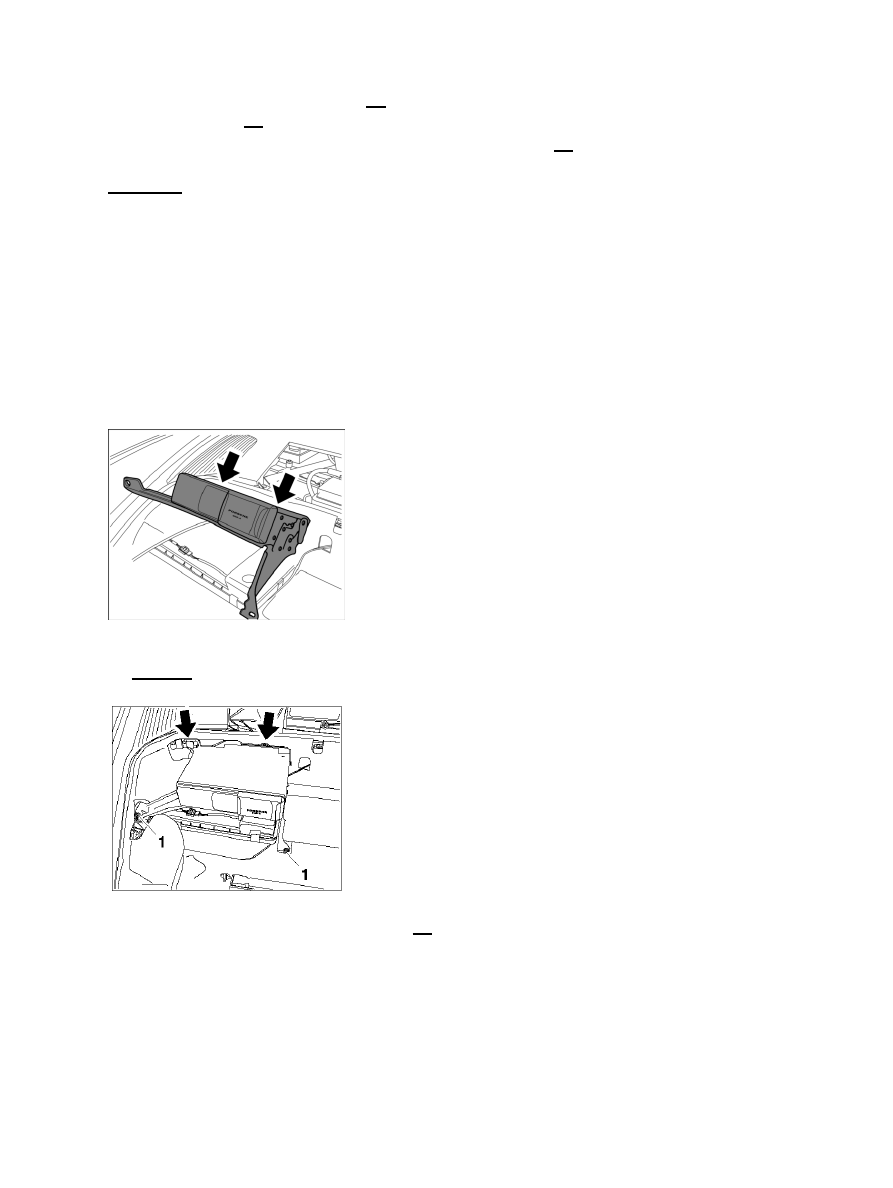

2. Engage support together with CD changer on the plenum panel by means of the retaining clips

-arrows-

 .

CD changer support for USA

3. Screw in and tighten fastening screws M6 -1- for CD changer support. → Tightening torque: 7.5 ftlb.

Diagnostic system: reading out fault memory and activating systems

Installing carbon canister - USA Version

642

Luggage-compartment cover

4. Install luggage-compartment lining -2- by screwing in the eight sheetmetal screws -1- → 703019

Removing and installing luggage-compartment cover - chapter on "Installing" [997110 997111 997120
997121 997310 997311 997320 997321]→ 703019 23 Removing and installing luggage-compartment
cover - chapter on "Installing" [997410 997411 997430 997431 997610 997611 997620 997621].

5. RoW Version: Remove rear part of right front wheel housing liner → 505619 Removing and

installing front wheel housing liner - chapter on "Removing"  [997110 997111 997120 997121
997310 997311 997320 997321]→ 505619 Removing and installing front wheel housing liner -
chapter on "Removing"  [997621]→ 505619 Removing and installing front wheel housing liner -
chapter on "Removing"  [997410 997411 997430 997431 997610 997611 997620].

6. Fit right front wheel using socket-wrench insert 300. → 440519 Removing and installing wheel - chapter

on "Installing".

7. Connect ground strap to battery → 271000  Work instructions after disconnecting the

battery.
