- Preliminary work for carbon canister
- Removing carbon canister
- Installing carbon canister
- Subsequent work for carbon canister

Tools

Designation

Type

Number

Explanation

socket-wrench insert

special tool

300

Preliminary work for carbon canister

Preliminary work for carbon canister

1. Disconnect ground strap from battery → 271000  Work instructions after disconnecting the

battery.

Luggage-compartment cover

2. USA version: Remove luggage-compartment lining -2- by unscrewing the eight sheetmetal screws -1-

→ 703019 Removing and installing luggage-compartment cover - chapter on "Removing" [997110 997111
997120 997121 997310 997311 997320 997321]→ 703019 21 Removing and installing
luggage-compartment cover - chapter on "Removing" [997410 997411 997430 997431 997610 997611
997620 997621].

637

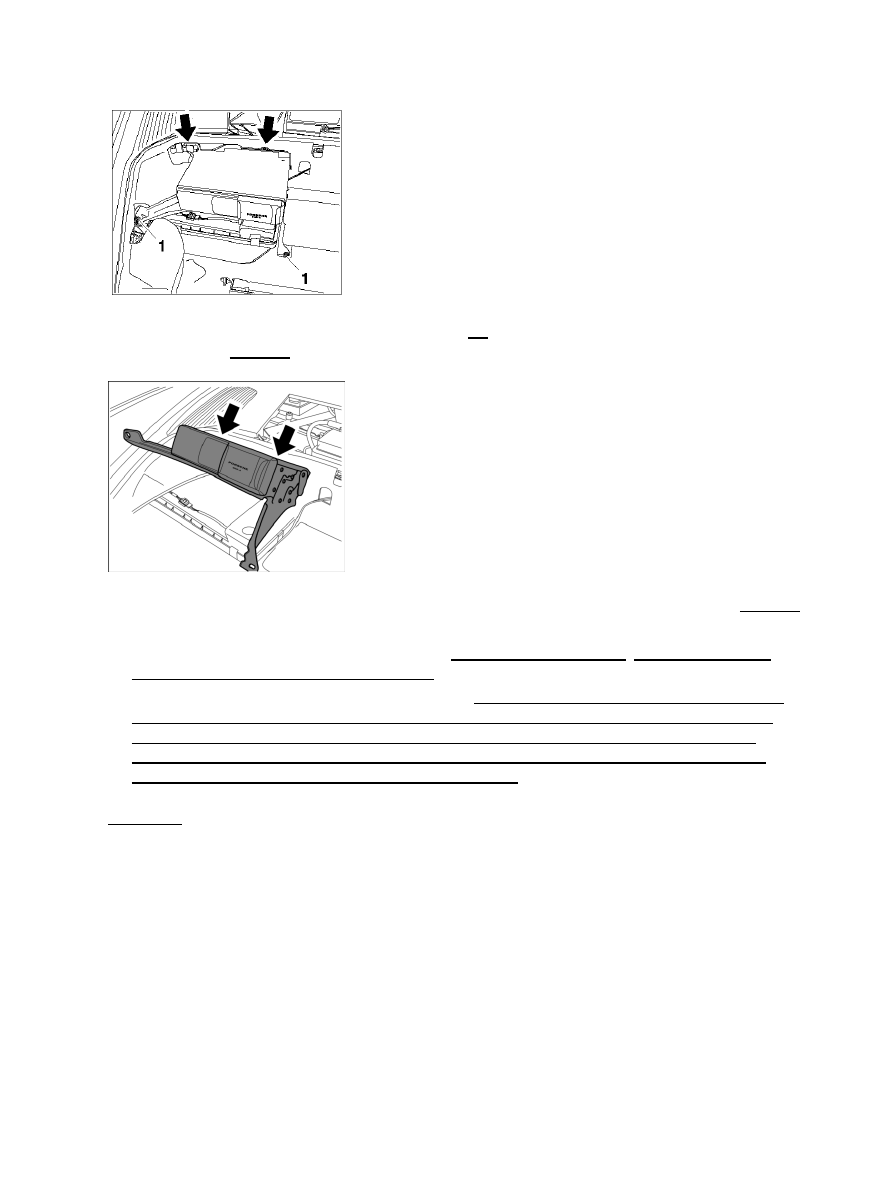

CD changer support for USA

3. Unscrew fastening screws for CD changer support -1- . The support is also fixed on the body side by two

retaining clips -arrows- .

CD changer support at plenum panel

4. Lift up support together with CD changer and disengage retaining clips at the plenum panel -arrows- .

5. Disconnect cable plug to CD changer.

6. RoW Version: Remove right front wheel using socket-wrench insert 300. → 440519 Removing

and installing wheel - chapter on "Removing".

7. Remove rear part of right front wheel housing liner → 505619 Removing and installing front wheel

housing liner - chapter on "Removing"  [997110 997111 997120 997121 997310 997311 997320
997321]→ 505619 Removing and installing front wheel housing liner - chapter on "Removing"
 [997621]→ 505619 Removing and installing front wheel housing liner - chapter on "Removing"
 [997410 997411 997430 997431 997610 997611 997620].

Removing carbon canister

Removing carbon canister - RoW Version

Diagnostic system: reading out fault memory and activating systems

Preliminary work for carbon canister

638

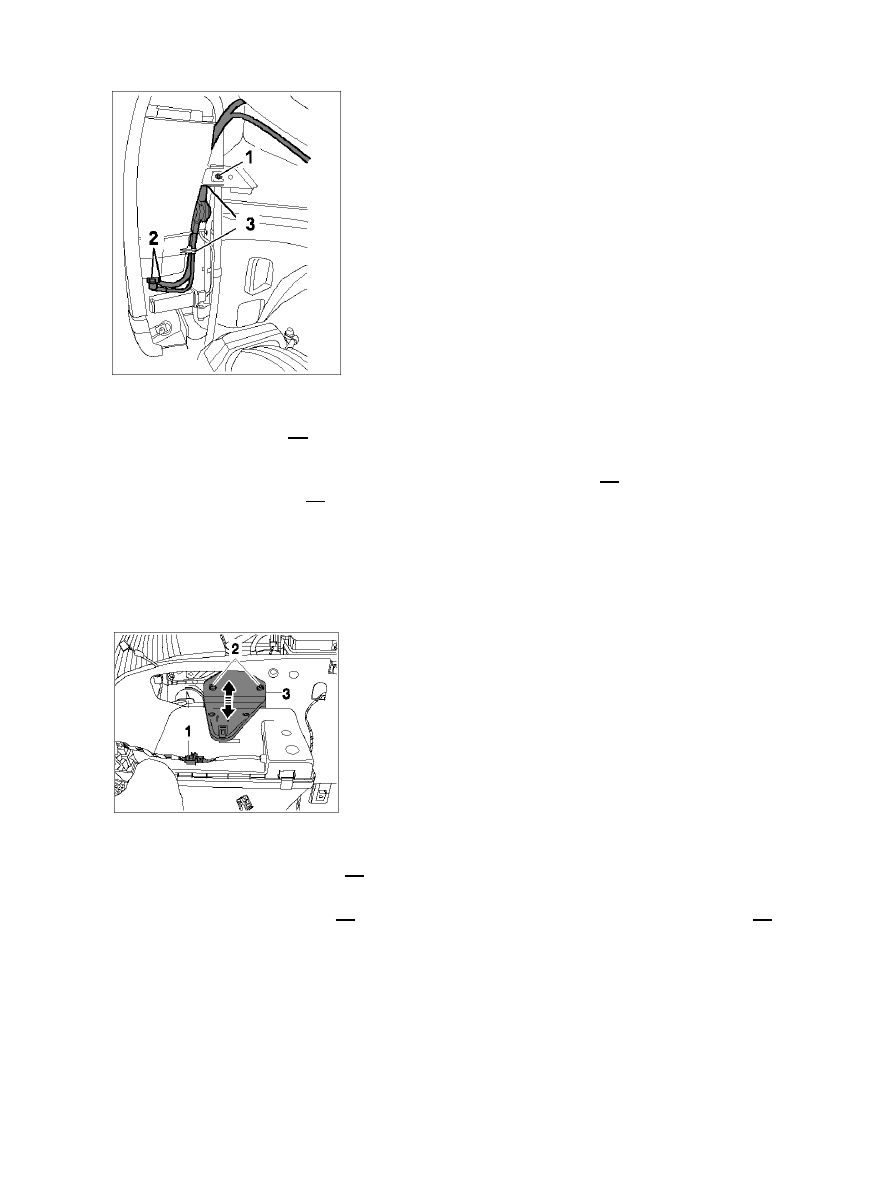

Carbon canister for RoW

1. Unscrew collar nut M6 -1- . Carefully pull carbon canister out of body mounting points in direction

of travel.

2. Release and remove plug-in couplings on the underside of the canister -2- . Unclip lines from the

mountings on the canister -3- .

Removing carbon canister - USA Version

Carbon canister for USA

1. Unclip cable plug from canister -1- and then

disconnect.

2. Unscrew two Torx screws M6 -2- from plastic holder for the carbon canister and press holder -3- from

guide in direction of travel.

Diagnostic system: reading out fault memory and activating systems

Removing carbon canister - RoW Version

639

Small plug-in coupling

3. Lift carbon canister, release the small plug-in coupling -2- and pull it down and off.

Large plug-in coupling

4. Lift carbon canister, release the large plug-in coupling -1- and pull it down and

off.

Installing carbon canister

Installing carbon canister - RoW Version

Body mounting point for RoW canister

1. Wet rubber sleeves with water. Press canister into the body bores -1- .

Diagnostic system: reading out fault memory and activating systems

Removing carbon canister - USA Version
