Porshe 911 (997). Manual - part 1141

Tail light to outer side panel

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Tail light to outer side panel

Gap dimension A

4 mm

+/-1.5 mm

Tail light to outer side panel

Gap dimension B

3.5 mm

+/-2 mm

Tail light to centre side panel

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Tail light to centre side
panel

Gap dimension
A

3 mm

+/-0.8 mm

Tail light to centre side
panel

Tail light only
lowered

Gap dimension
B

0.8 mm

-1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4721

Rear apron to tail light

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Rear apron to tail light

Gap dimension A

4 mm

+/-1.5 mm

Tail light to rear lid

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

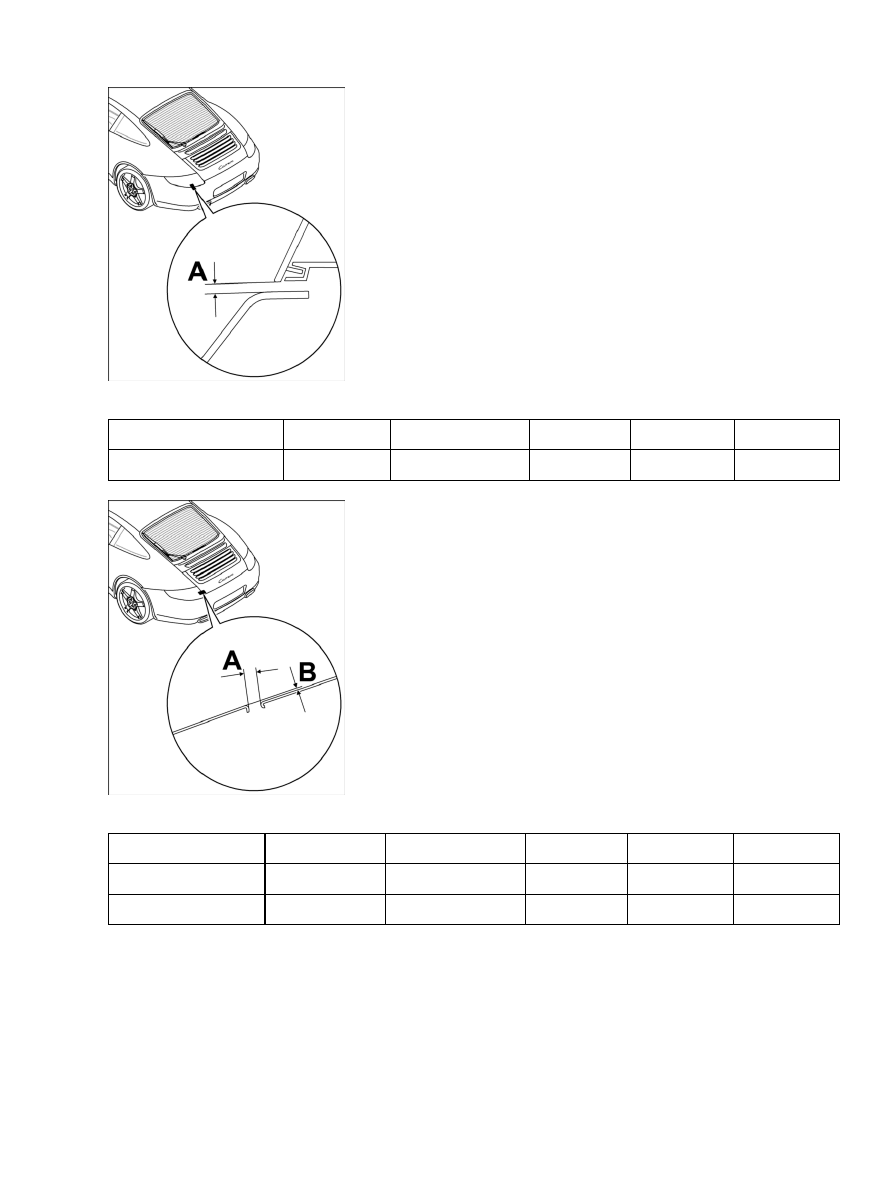

Tail light to rear lid

Determine gap

Gap dimension A

4.9 mm

+/-1 mm

Tail light to rear lid

Only lowered

Gap dimension B

0.4 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4722

Tail light to rear lid

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Tail light to rear lid

Determine gap

Gap dimension A

4.5 mm

+/-1 mm

Tail light to rear lid

Only lowered

Gap dimension B

1.8 mm

Rear lid to rear spoiler

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Rear lid to rear spoiler

Gap dimension A

4 mm

+/-1.5 mm

Rear lid to rear spoiler

Only lowered

Gap dimension B

1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4723

Rear lid to spoiler top section

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Rear lid to spoiler top
section

Rear lid only lowered
(max. 1 mm)

Gap dimension
A

3.5 mm

Rear lid to spoiler top section

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Rear lid to spoiler top
section

Rear lid only lowered
(max. 1 mm)

Gap dimension
A

3.5 mm

+/-0.5 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4724
