Porshe 911 (997). Manual - part 1139

Wing to front lid

Location

Explanation

Type

Basic value Tolerance 1 Tolerance

2

Wing to front lid

Determine left and right gap Gap dimension A

4 mm

+1 mm

Wing to front lid

Only lowered

Gap dimension B

0.5 mm

Filler flap to wing

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Filler flap to wing

All the way round

Gap dimension A

3.5 mm

+/-0.5 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body front

4713

Front apron to side direction indicator

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance

2

Front apron to side direction
indicator

Gap dimension
A

1.5 mm

Wing to side direction indicator

Gap dimension
B

0.5 mm

+0.5 mm

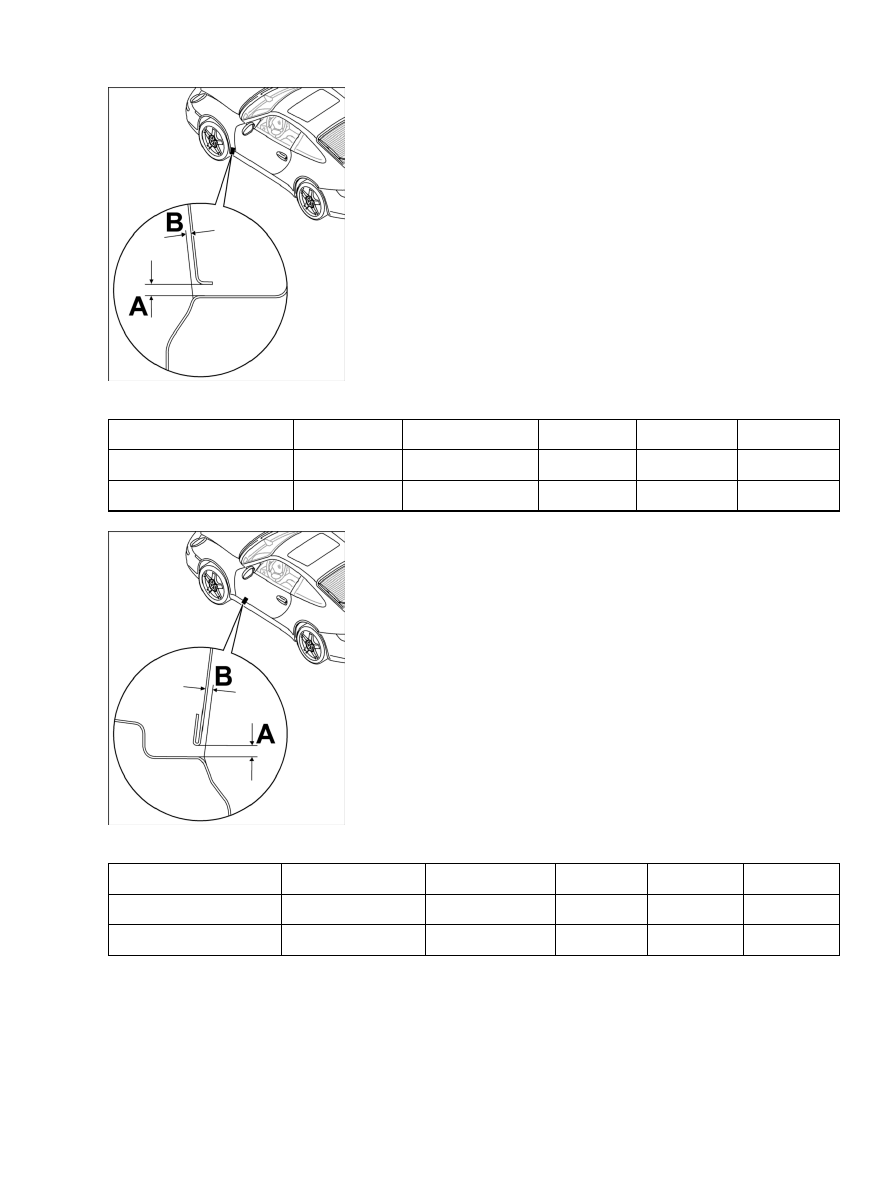

Wing to outer side panel

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance

2

Wing to outer side
panel

Even transition from front
to rear

Gap dimension
A

4.5 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body front

4714

Diagram - body centre gap dimensions

Gap dimensions, body centre

Note

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap
specifications.

•

Given a clearance in the opening that is too great or too small, the movable body or the accessories
must be centred accordingly.

•

Ensure that the gaps do not taper or do not narrow at local points.

•

The given values are guidelines which should be observed as far as possible.

•

The guidelines apply to repair and assembly work.

•

Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

•

Door to wing

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Door to wing

Gap dimension A

4 mm

+/-0.5 mm

Diagnostic system: reading out fault memory and activating systems

 Diagram - body centre gap dimensions

4715

Wing to outer side panel

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Wing to outer side panel

Gap dimension A

4.5 mm

+/-1 mm

Wing to outer side panel

Only lowered

Gap dimension B

2 mm

Door to outer side panel

Location

Explanation

Type

Basic value Tolerance 1 Tolerance 2

Door to outer side panel

Gap dimension A

4.5 mm

+/-1 mm

Door to outer side panel Doors only lowered Gap dimension B

2 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body centre

4716
