Porshe 911 (997). Manual - part 1142

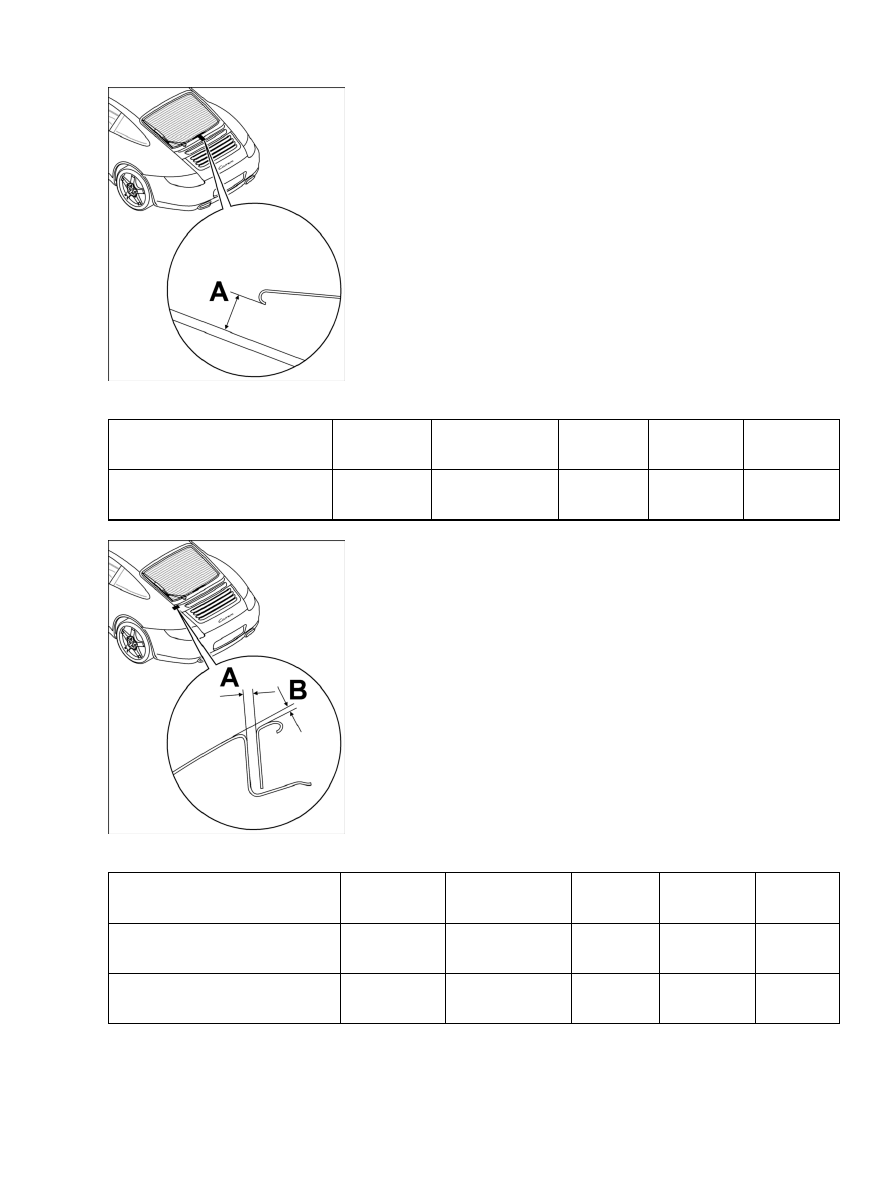

Rear centre panel to spoiler top section

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Rear centre panel to
spoiler top section

Rear lid only lowered (max.
+1 mm, - 3 mm)

Gap
dimension A

4 mm

+/-1.5 mm

Rear window to outer roof panel

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance 2

Rear window to outer roof
panel

Only lowered Gap dimension A

2 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4725

Rear centre panel to rear window

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance 2

Rear centre panel to rear
window

Gap dimension A

15.5 mm

Rear centre panel to outer side panel

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance

2

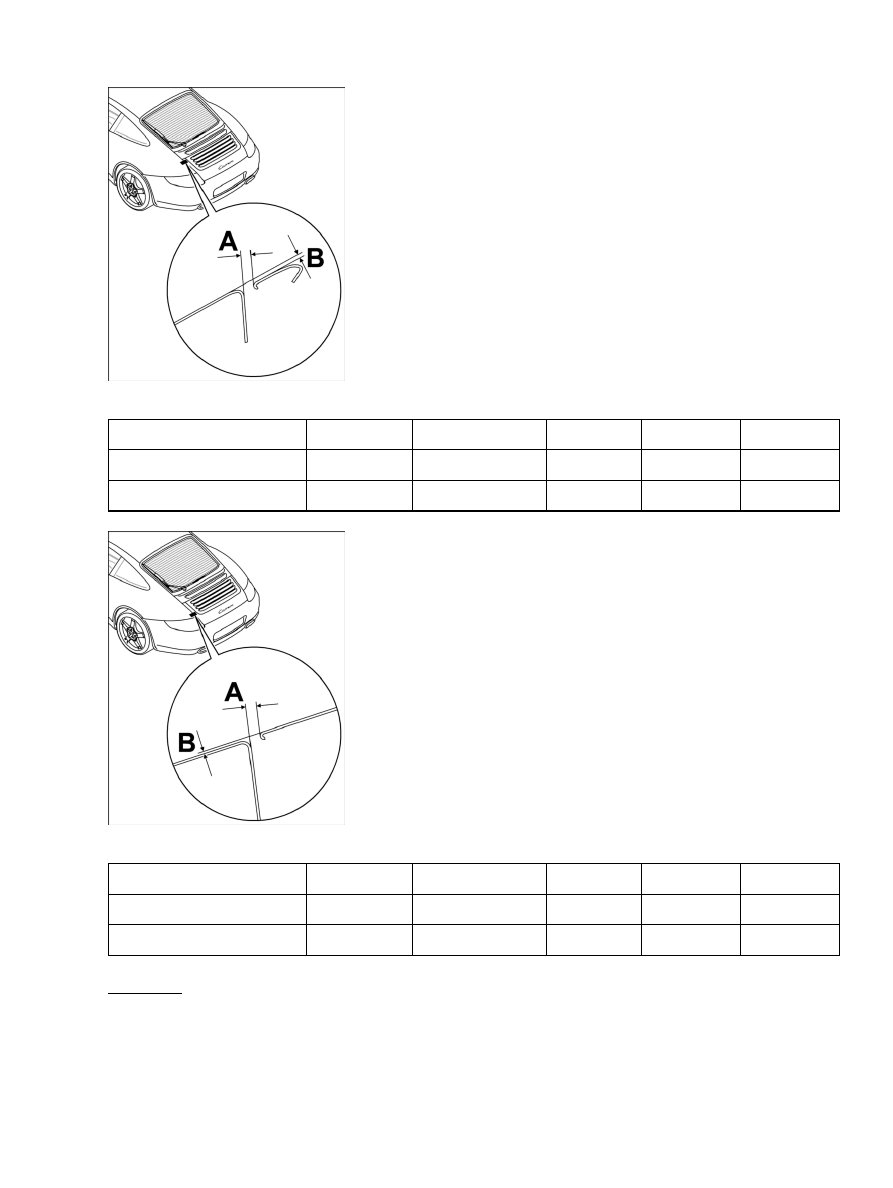

Rear centre panel to outer side
panel

Gap dimension
A

4 mm

+/-1 mm

Rear centre panel to outer side
panel

Only lowered

Gap dimension
B

1.9 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4726

Rear centre panel to rear lid

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Rear centre panel to rear lid

Gap dimension A

4 mm

+/-1.5 mm

Outer side panel to rear centre panel lid

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Outer side section to rear centre
panel

Gap dimension
A

4 mm

+/-1 mm

Rear centre panel to outer side
panel

Only lowered Gap dimension

B

1.7 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4727

Outer side panel to rear lid

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Outer side panel to rear lid

Gap dimension A

4 mm

+/-1 mm

Outer side panel to rear lid

Only lowered

Gap dimension B

1.7 mm

+/-1 mm

Outer side panel to rear lid

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Outer side panel to rear lid

Gap dimension A

4.2 mm

+/-1 mm

Outer side panel to rear lid

Only lowered

Gap dimension B

0.3 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4728
