Porshe 911 (997). Manual - part 1113

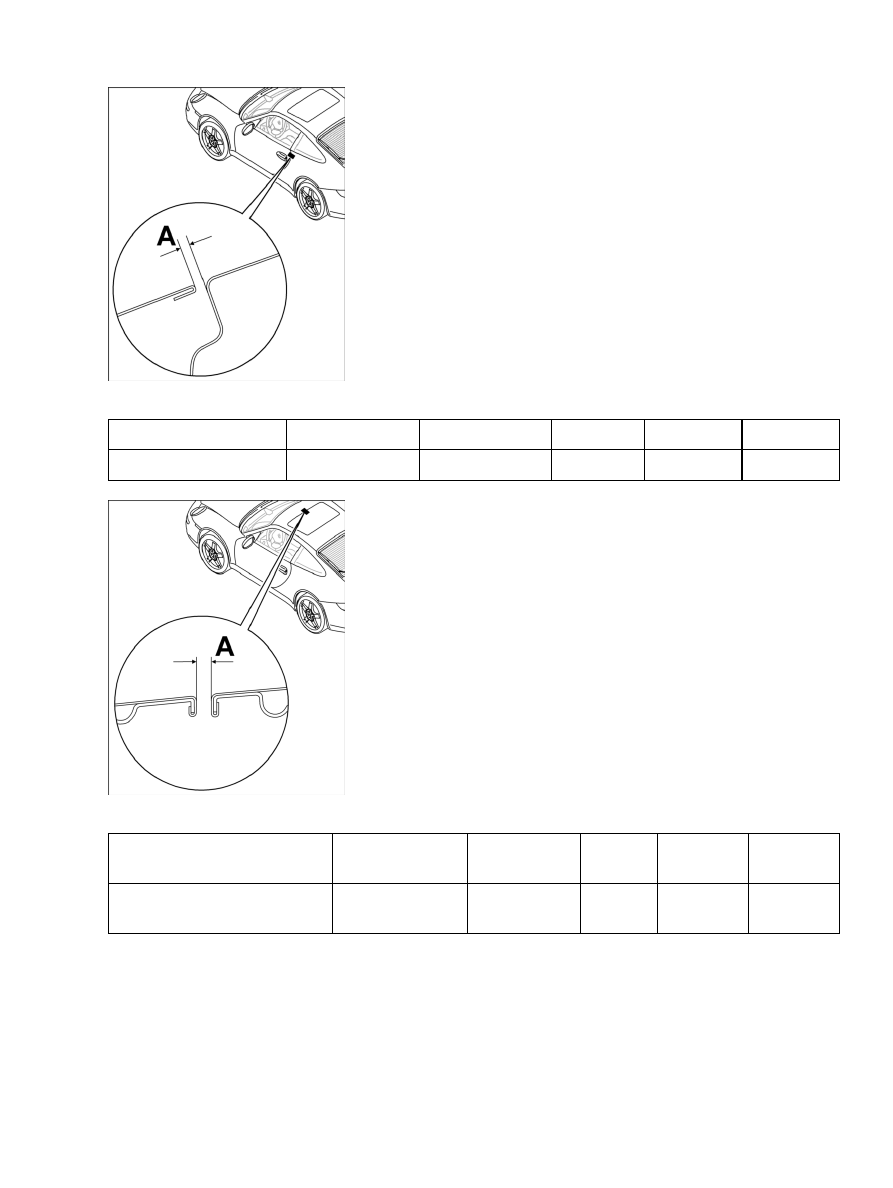

Door to outer side panel

Location

Explanation

Type

Basic value Tolerance 1 Tolerance 2

Door to outer side panel

Doors only raised

Gap dimension A

4 mm

+/-0.8 mm

Sliding-roof panel at front to outer roof panel

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Sliding roof panel at front to
outer roof panel

Only lowered at
front

Gap dimension
A

5 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body centre

4609

Sliding roof panel at rear to outer roof panel

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Sliding roof panel at rear to
outer roof panel

Only raised at
rear

Gap dimension
A

6 mm

Roof joint strip to outer roof panel

Location

Explanation

Type

Basic value Tolerance 1 Tolerance

2

Roof joint strip to outer roof
panel

Gap dimension A

2 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body centre

4610

Windscreen to windscreen frame

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance 2

Windscreen to windscreen
frame

Only lowered Gap dimension

A

2 mm

Cowl panel frame to wing

Location

Explanation

Type

Basic value Tolerance 1 Tolerance

2

Cowl panel frame to
wing

Continuous
transition

Gap dimension A

3 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body centre

4611

Door window to side window

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Door window to side
window

Door window lowered by
max. 1 mm

Gap dimension
A

7 mm

+/-1 mm

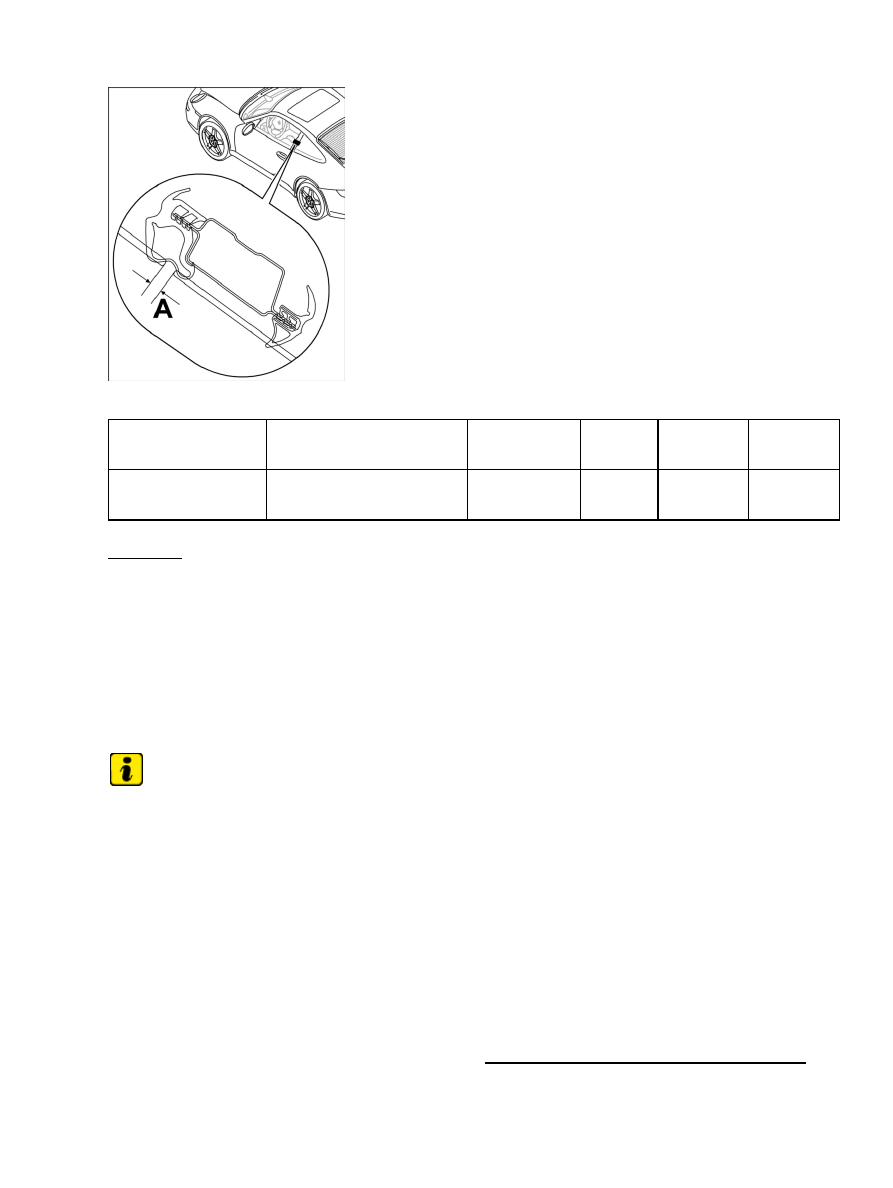

Diagram - body rear gap dimensions

Gap dimensions, body rear

Note

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap
specifications.

•

Given a clearance in the opening that is too great or too small, the movable body or the accessories
must be centred accordingly.

•

Ensure that the gaps do not taper or do not narrow at local points.

•

The given values are guidelines which should be observed as far as possible.

•

The guidelines apply to repair and assembly work.

•

Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

•

Diagnostic system: reading out fault memory and activating systems

 Diagram - body rear gap dimensions

4612
