Porshe 911 (997). Manual - part 1111





- Diagram - body front gap dimensions
- Diagram - body centre gap dimensions
- Diagram - body rear gap dimensions
- Diagram - Cabriolet gap dimensions

Tools

Designation

Type

Number Explanation

Star gauges for body gap
dimensions

commercially
available tool

NR.127-1

Diagram - body front gap dimensions

Gap dimensions, body front

Note

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap
specifications.

•

Given a clearance in the opening that is too great or too small, the movable body or the accessories
must be centred accordingly.

•

Ensure that the gaps do not taper or do not narrow at local points.

•

The given values are guidelines which should be observed as far as possible.

•

The guidelines apply to repair and assembly work.

•

Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

•

4601

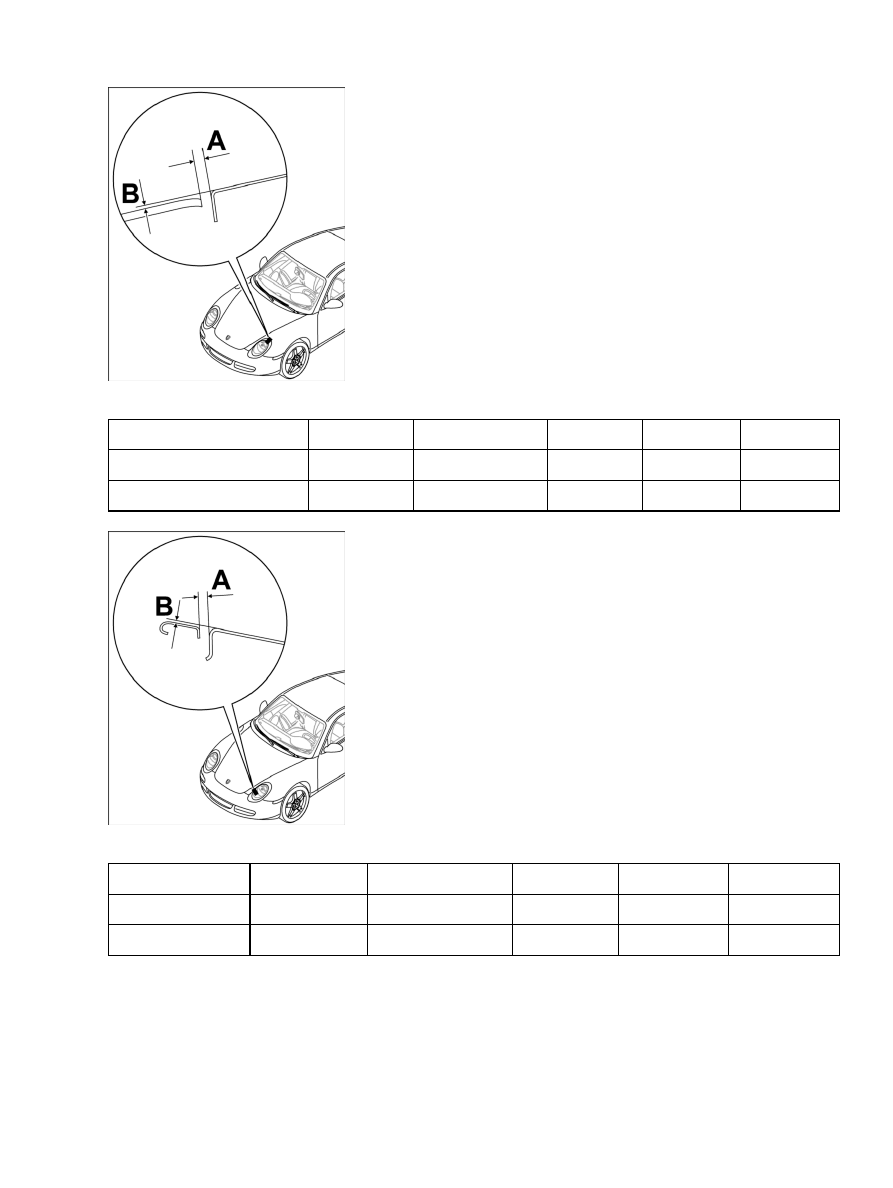

Front lid to front apron

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Front lid to front apron

Gap dimension A

4.5 mm

+/-1 mm

Front lid to front apron

Lid only lowered

Gap dimension B

2 mm

Main headlight to inner wing

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance

2

Main headlight to inner
wing

Determine left and right
gap

Gap dimension
A

4.5 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body front

4602

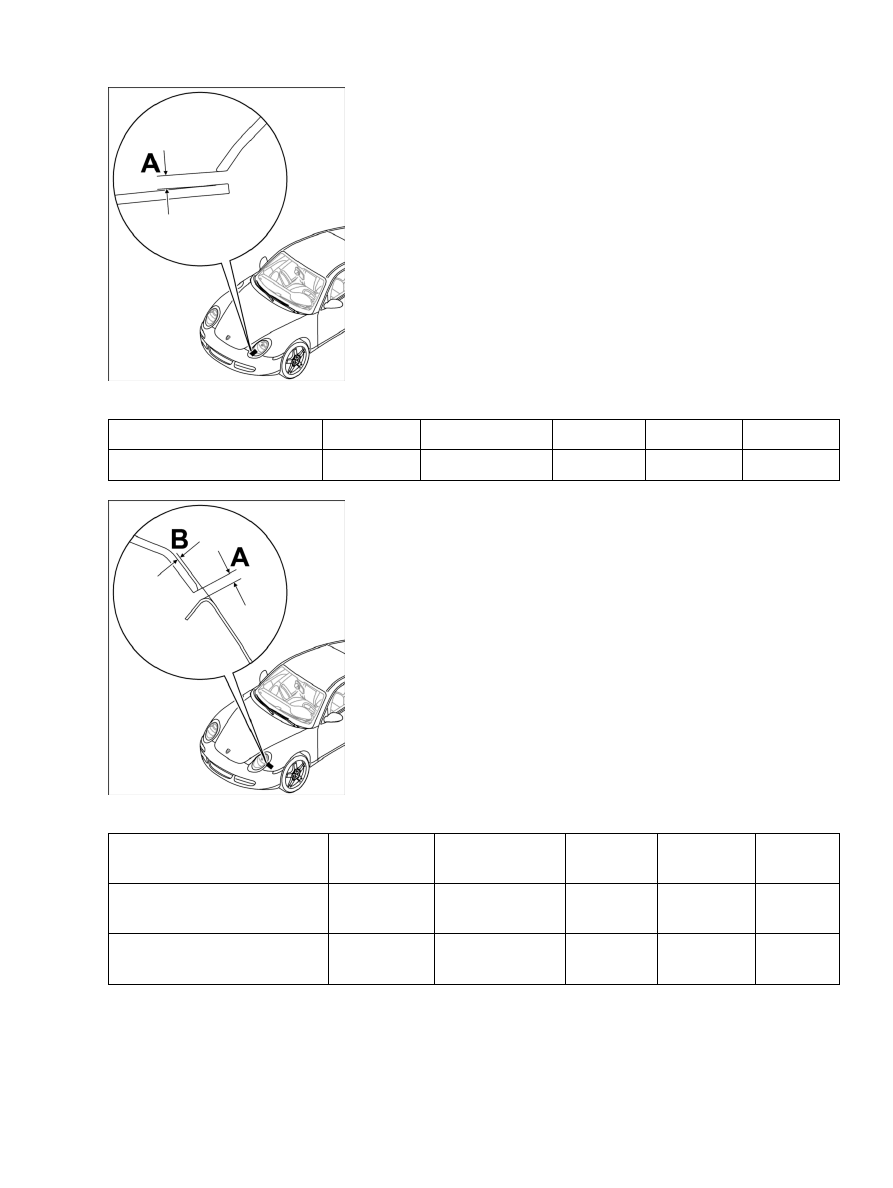

Main headlight to front apron

Location

Explanation

Type

Basic value Tolerance 1 Tolerance 2

Main headlight to front apron

Gap dimension A

4 mm

+/-1.5 mm

Main headlight to external wing

Location

Explanation

Type

Basic value Tolerance 1 Tolerance

2

Main headlight to external
wing

Gap dimension A

4 mm

+1 mm

Main headlight to external
wing

Only lowered

Gap dimension B

1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body front

4603

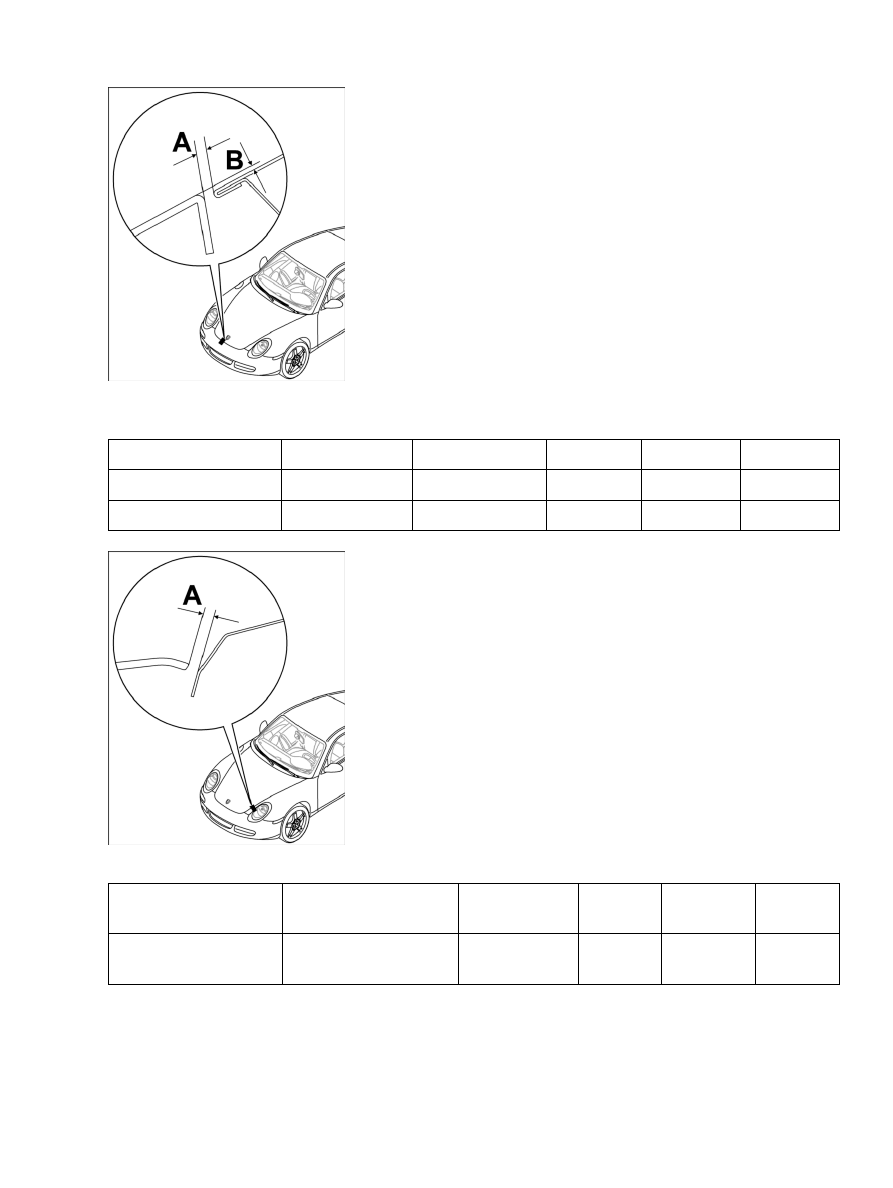

Main headlight to top wing

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Main headlight to top wing

Gap dimension A

4 mm

+/-1 mm

Main headlight to top wing

Only lowered

Gap dimension B

1 mm

Front lid to wing

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Front lid to wing

Gap dimension A

4 mm

+/-1 mm

Front lid to wing

Only lowered

Gap dimension B

0.5 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body front

4604
