Remove binding band from main wire harness until the sheathing of the positive cable -3- can be
removed -Arrow A- .

2.3. Unscrew B+ line from battery. → 270619 Removing and installing battery - chapter on "Removing"

2.4. Release and pull off B+ line from power distributor → 978919 Removing and installing power distributor

- chapter on "Removing"

2.5. Remove B+ line for battery.

Remove B+ line from power distributor to transmission connection point

Installation Location:

Installation position of wire harness for battery wiring

3

- B+ line from power distributor to transmission connection point

4

- Connection point of B+ box on transmission

Diagnostic system: reading out fault memory and activating systems

Remove B+ line from power distributor to transmission connection point

4389

Unclipping B+ line from heater/air-conditioning unit

1. Unclip B+ line -3- from heater/air-conditioning unit.

1.1. Unclip B+ line at tie-wrap from heater/air-conditioning unit.

1.2. Disconnect B+ line from main wire harness. To do this, remove the tie-wrap and the binding

band.

Fastening of B+ line at unit carrier.

2. Unclip B+ line -3- at unit carrier.

2.1. Unclip B+ line at retaining clip -arrow- from unit

carrier.

2.2. Pull B+ line through unit carrier.

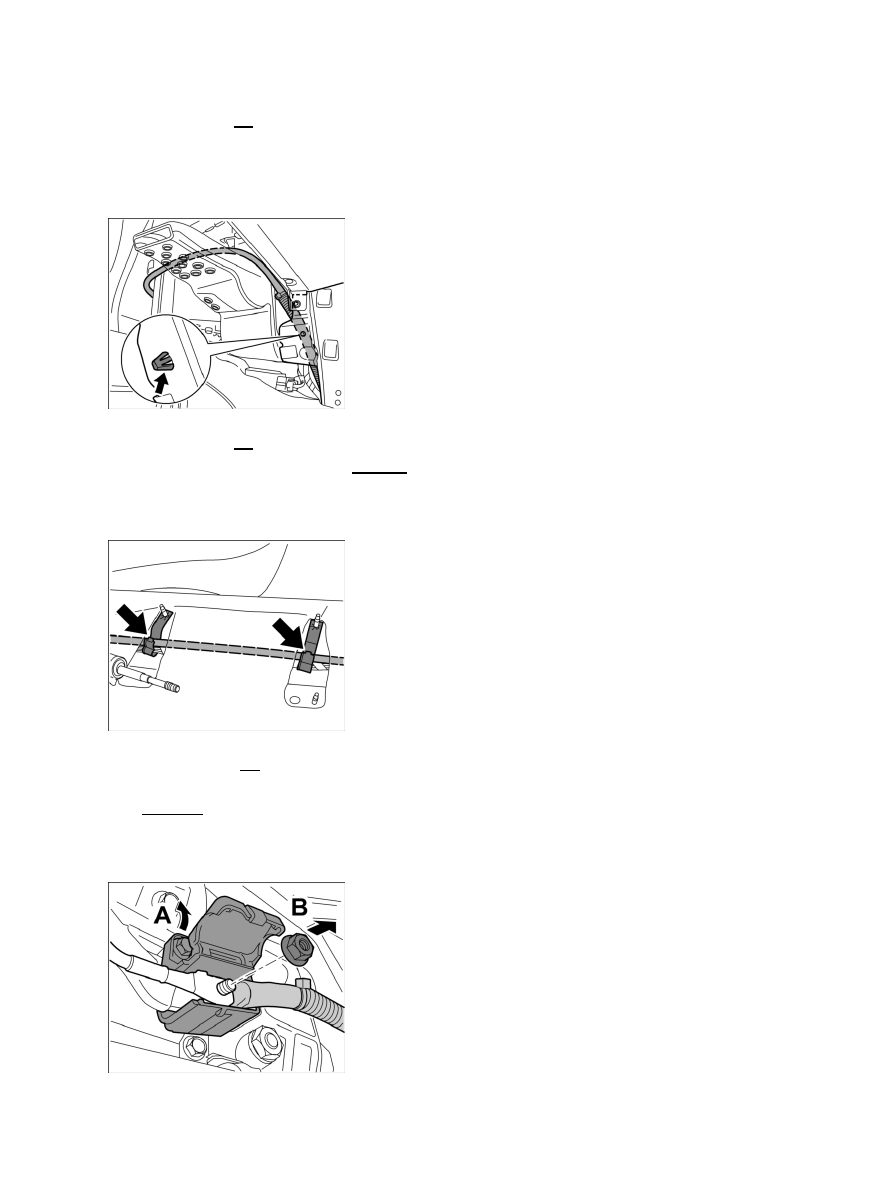

Fastening of B+ line at centre tunnel

3. Loosen B+ lead -3- at centre tunnel.

3.1. Pull B+ line out of the two holders

-arrows-

 .

3.2. Push B+ line under the carpet away from the direction of

travel.

Unscrewing B+ line at box for B+ line

Diagnostic system: reading out fault memory and activating systems

Remove B+ line from power distributor to transmission connection point

4390

4. Unscrew B+ line -3- at box for B+

line.

4.1. Open box for B+ line at transmission -Arrow A- , unscrew fastening nut -Arrow B- and remove the B+

line.

Note

For vehicles with manual transmission.

Unclipping B+ line from transmission bracket

5. Unclip B+ line -3- from transmission bracket.

5.1. Open holder -Arrow A- and remove B+ line -Arrow B- .

Note

For vehicles with automatic transmission.

Transmission bracket

6. Remove transmission bracket.

6.1. Support automatic transmission with transmission jack WE1082.

6.2. Unscrew the four fastening screws and the two fastening nuts.

6.3. Remove transmission bracket.

Note

For vehicles with automatic transmission.

Diagnostic system: reading out fault memory and activating systems

Remove B+ line from power distributor to transmission connection point

4391

Unscrewing guide tube of B+ line

7. Unscrew guide tube of B+ line -3- from

body.

7.1. Unscrew fastening screw and fastening nut on guide tube of B+ line.

Removing B+ line

8. Remove B+ line -3- .

8.1. Remove grommet -Arrow A- .

8.2. Remove B+ line from grommet -Arrow

B-

 .

8.3. Pull B+ line out of the vehicle interior and remove -Arrow C-

.

Removing B+ line from starter to transmission connection point

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing B+ line from starter to transmission connection point

4392
