2. Cut wire harness for PASM at -b- and remove

it.

3. Cut through the fabric tape at -c- and expose the remaining PASM wires.

Installing wire harness for PASM

Installing wire harness for front PASM

Routing and connecting wire harness for rear PASM

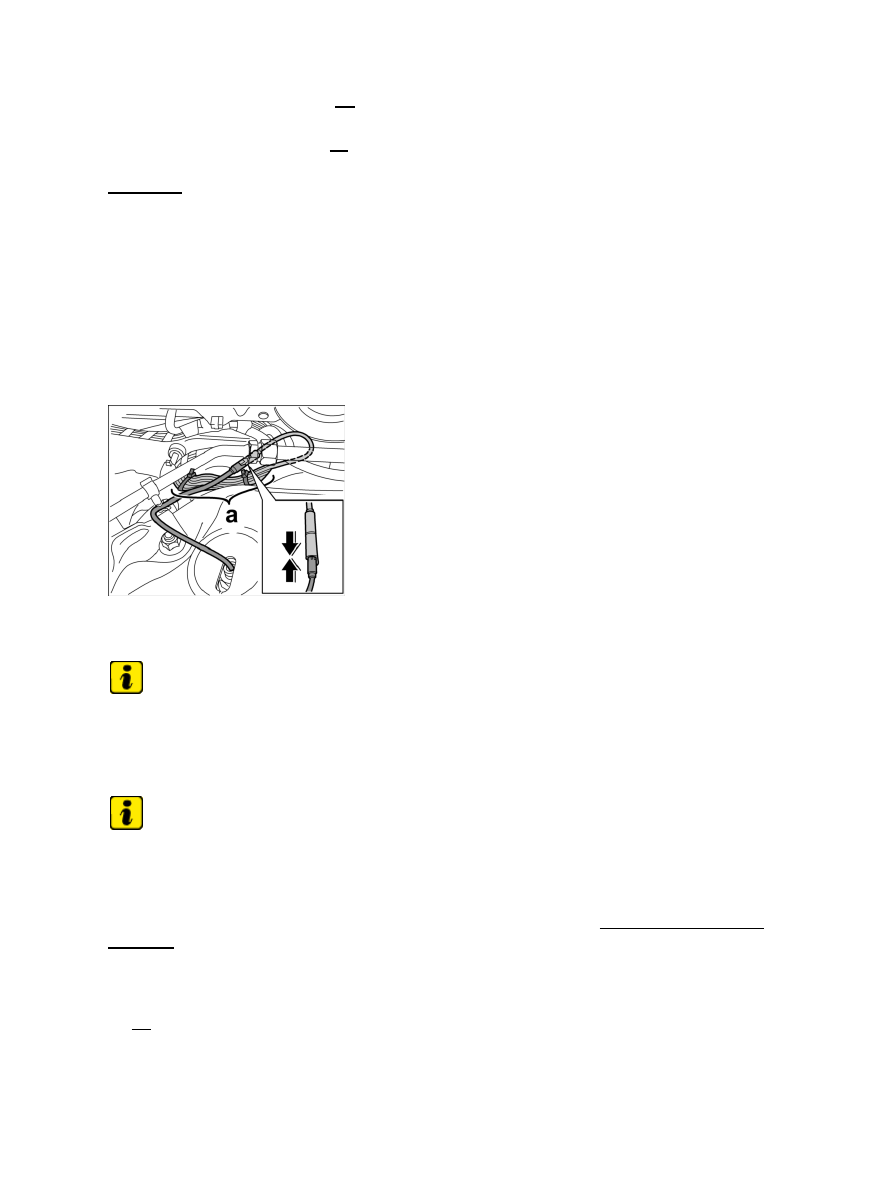

1. Press the PASM plug connection together until it clicks into place.

Note

Select a place for the joint where there is enough space to join all the lines present.
Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in
the area of the joint.

Note

The electric lines are located in the plenum panel and are thus exposed to the highest demands.
The greatest care must be used in the individual work steps for stripping insulation from, crimping, and
shrinking/insulating the electric lines.
The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be
complied with and observed. The procedures are described in detail in the repair kit for harnesses
NR.155-1

.

Crimping samples are to be prepared before beginning work.

2. Crimp the lines at

-a-

 .

2.1. Cut off lines in different lengths (due to the shrink-fit connections).

2.2. Slide shrink-fit hoses onto the lines.

Diagnostic system: reading out fault memory and activating systems

Removing wire harness for rear PASM

4381

2.3. Strip 10 mm of insulation off the lines.

2.4. Crimp the lines using crimping sleeves and the manual crimping pliers from the repair kit for wire

harnesses NR.155-1

.

2.5. Slide the shrink-fit hoses over the crimp connections and carefully shrink them using the hot-air

blower with special nozzle

 (recommended accessories for the repair kit for wire harnesses) so

that they are watertight.

2.6. Wrap commercially available PVC tape all around the area of the connection

points.

3. Secure the repaired area -a- to the main wire harness with tie-wraps.

Installing wire harness for rear PASM

Note

Select a place for the joint where there is enough space to join all the lines present.
Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in
the area of the joint.

Note

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and
shrinking/insulating the electric lines.
The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be
complied with and observed. The procedures are described in detail in the repair kit for wire harnesses
NR.155-1

.

Crimping samples are to be prepared before beginning work.

Routing and connecting wire harness for rear PASM

1. Press the PASM plug connection together until it clicks into place.

Note

Select a place for the joint where there is enough space to join all the lines present.
Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in
the area of the joint.

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for front PASM

4382

Note

The electric lines are located in the plenum panel and are thus exposed to the highest demands.
The greatest care must be used in the individual work steps for stripping insulation from, crimping, and
shrinking/insulating the electric lines.
The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be
complied with and observed. The procedures are described in detail in the repair kit for harnesses
NR.155-1

.

Crimping samples are to be prepared before beginning work.

2. Crimp the lines at

-a-

 .

2.1. Cut off lines in different lengths (due to the shrink-fit connections).

2.2. Slide shrink-fit hoses onto the lines.

2.3. Strip 10 mm of insulation off the lines.

2.4. Crimp the lines using crimping sleeves and the manual crimping pliers from the repair kit for wire

harnesses NR.155-1

.

2.5. Slide the shrink-fit hoses over the crimp connections and carefully shrink them using the hot-air

blower with special nozzle

 (recommended accessories for the repair kit for wire harnesses) so

that they are watertight.

2.6. Wrap commercially available PVC tape all around the area of the connection

points.

3. Secure the repaired area -a- to the main wire harness with tie-wraps.

Subsequent work

Subsequent work for wire harness for front PASM

1. Install plenum panel cover. → 852219 Removing and installing cover - section on "Installing"

2. Carry out work instructions after disconnecting the battery. → 2706IN Work instructions after

disconnecting the battery

Subsequent work for wire harness for rear PASM

1. Fit carpet over the motor.

1.1. Lay the carpet over the motor and secure with the plastic clips.

2. Move convertible top from service position. → 6101IN IN - convertible top service position

3. Carry out work instructions after disconnecting the battery. → 2706IN Work instructions after

disconnecting the battery

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for rear PASM

4383

997310, 997311, 997320, 997321, 997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.
