Diagnostic system: reading out fault memory and activating systems

Subsequent work for wire harness for rear PASM

4377

97 37 55 Replacing wire harness for PASM - as of MY
2005

- Preliminary work
- Removing wire harness for PASM
- Installing wire harness for PASM
- Subsequent work

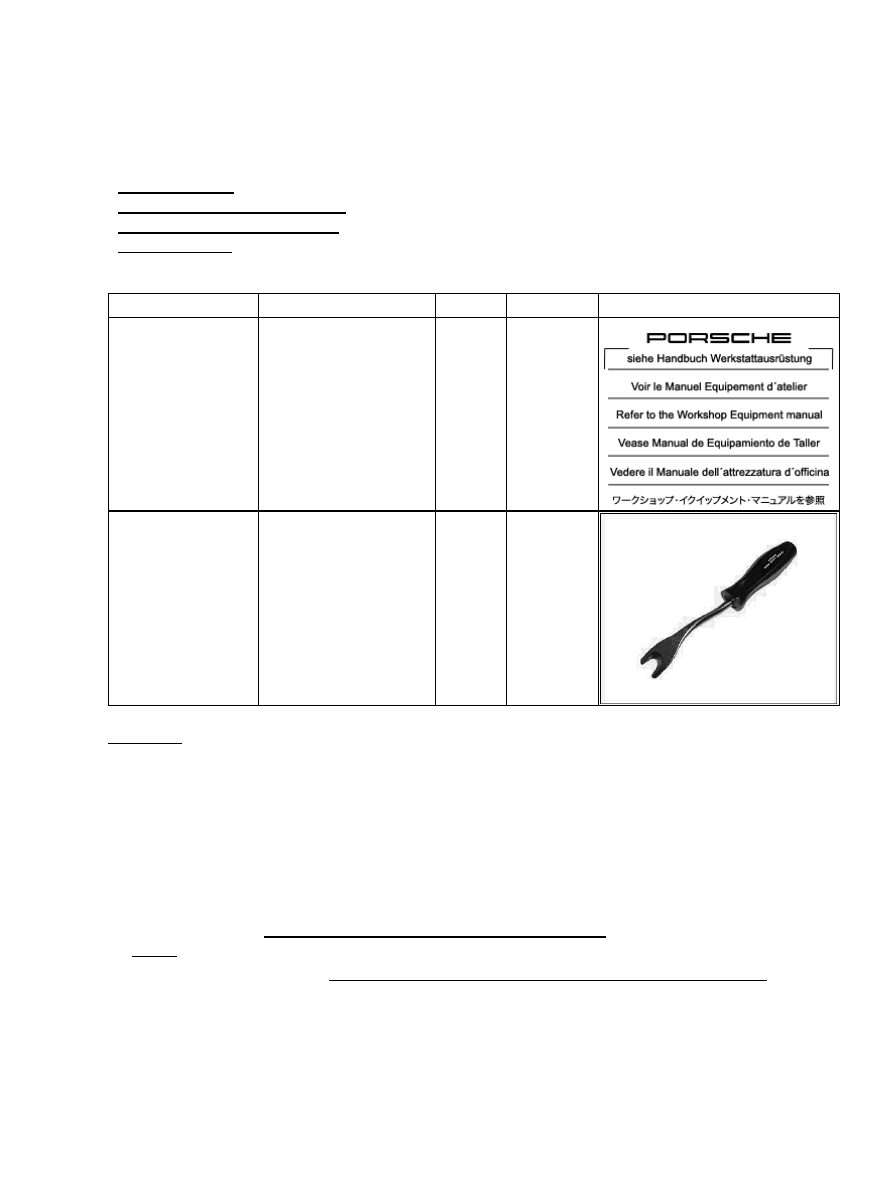

Tools

Designation

Type

Number Explanation

repair kit for
harnesses

commercially available
tool

NR.155-1

removal tool,
universal

commercially available
tool

NR.21

Preliminary work

Preliminary work for wire harness for front PASM

1. Disconnect battery. → 2706IN Work instructions after disconnecting the

battery

2. Remove plenum panel cover. → 852219 Removing and installing cover - section on "Removing"

4378

Preliminary work for wire harness for rear PASM

1. Disconnect battery. → 2706IN Work instructions after disconnecting the

battery

2. Move convertible top to service position. → 6101IN IN -Convertible top in service position

3. Removing cover over the motor

3.1. To loosen the carpet, pull out the plastic clips with the removal tool, universal NR.21 and remove the

carpet.

Removing wire harness for PASM

Removing wire harness for front PASM

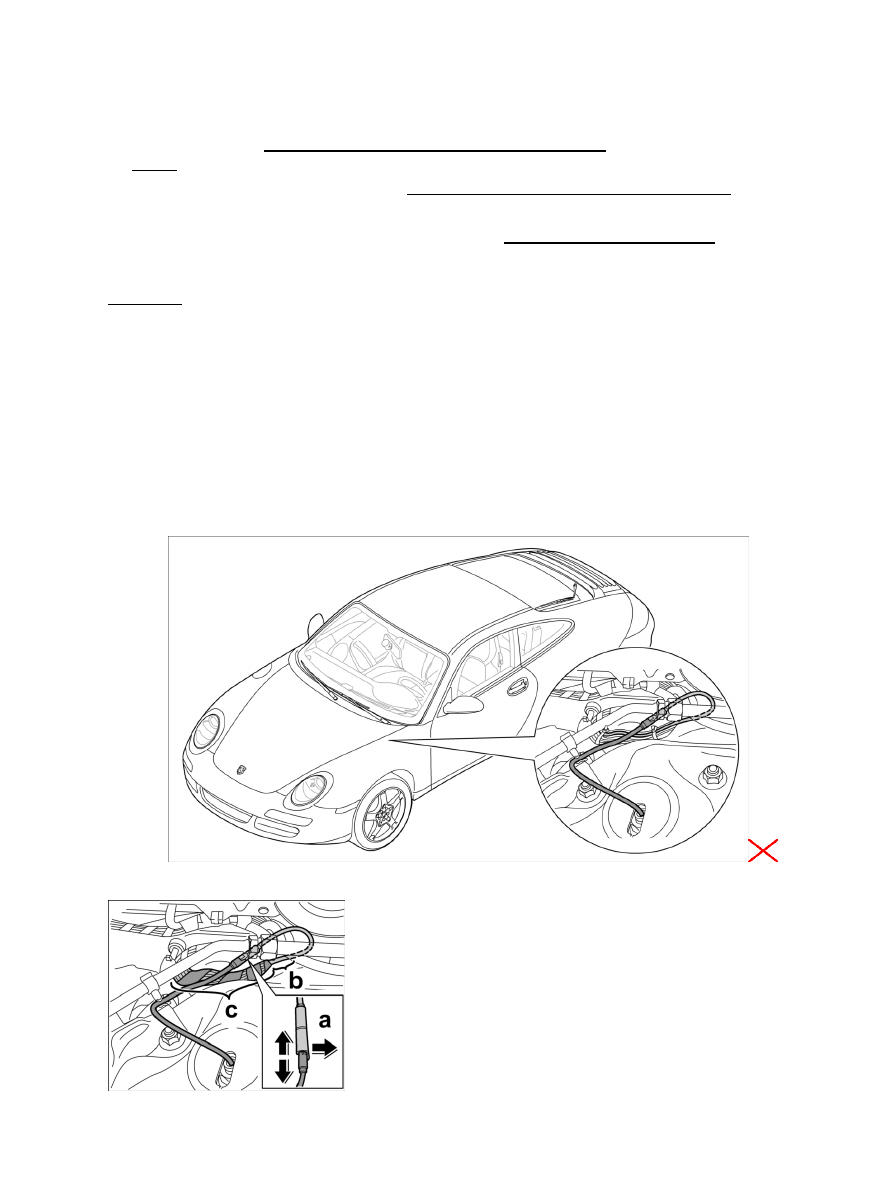

Installation Location:

Installation position of wire harness for front PASM, shown on the 911

Diagnostic system: reading out fault memory and activating systems

Preliminary work for wire harness for rear PASM

4379

Exposing wire harness for front PASM

1. Unlock PASM plug connection -Arrow a- and disconnect it.

Note

When cutting the PASM wire harness, make sure there is enough length of cable left to join to the new lines.

2. Cut wire harness for PASM at -b- and remove

it.

3. Cut through the fabric tape at -c- and expose the remaining PASM wires.

Removing wire harness for rear PASM

Installation Location:

Installation position of wire harness for rear PASM

Exposing wire harness for rear PASM

1. Unlock PASM plug connection -Arrow a- and disconnect it.

Note

When cutting the PASM wire harness, make sure there is enough length of cable left to join to the new lines.

Diagnostic system: reading out fault memory and activating systems

Removing wire harness for front PASM
