Porshe 911 (997). Manual - part 1054





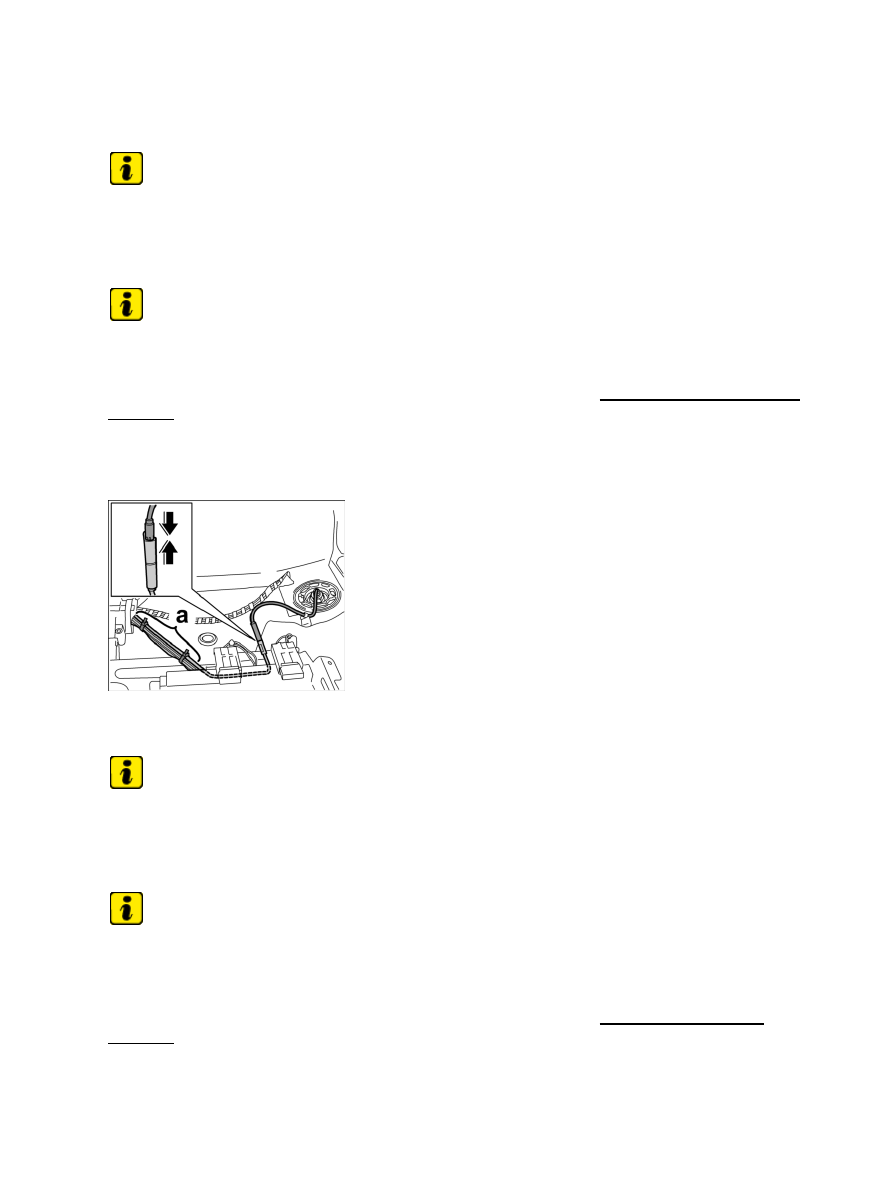

Installing wire harness for front PASM

Routing and connecting wire harness for rear PASM

1. Press the PASM plug connection together until it clicks into place.

Note

Select a place for the joint where there is enough space to join all the lines present.
Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in
the area of the joint.

Note

The electric lines are located in the plenum panel and are thus exposed to the highest demands.
The greatest care must be used in the individual work steps for stripping insulation from, crimping, and
shrinking/insulating the electric lines.
The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be
complied with and observed. The procedures are described in detail in the repair kit for harnesses
NR.155-1

.

Crimping samples are to be prepared before beginning work.

2. Crimp the lines at

-a-

 .

2.1. Cut off lines in different lengths (due to the shrink-fit connections).

2.2. Slide shrink-fit hoses onto the lines.

2.3. Strip 10 mm of insulation off the lines.

2.4. Crimp the lines using crimping sleeves and the manual crimping pliers from the repair kit for wire

harnesses NR.155-1

.

2.5. Slide the shrink-fit hoses over the crimp connections and carefully shrink them using the hot-air

blower with special nozzle

 (recommended accessories for the repair kit for wire harnesses) so

that they are watertight.

2.6. Wrap commercially available PVC tape all around the area of the connection

points.

3. Secure the repaired area -a- to the main wire harness with tie-wraps.

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for front PASM

4373

Installing wire harness for rear PASM

Note

Select a place for the joint where there is enough space to join all the lines present.
Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in
the area of the joint.

Note

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and
shrinking/insulating the electric lines.
The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be
complied with and observed. The procedures are described in detail in the repair kit for wire harnesses
NR.155-1

.

Crimping samples are to be prepared before beginning work.

Routing and connecting wire harness for rear PASM

1. Press the PASM plug connection together until it clicks into place.

Note

Select a place for the joint where there is enough space to join all the lines present.
Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in
the area of the joint.

Note

The electric lines are located in the plenum panel and are thus exposed to the highest demands.
The greatest care must be used in the individual work steps for stripping insulation from, crimping, and
shrinking/insulating the electric lines.
The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be
complied with and observed. The procedures are described in detail in the repair kit for harnesses
NR.155-1

.

Crimping samples are to be prepared before beginning work.

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for rear PASM

4374

2. Crimp the lines at

-a-

 .

2.1. Cut off lines in different lengths (due to the shrink-fit connections).

2.2. Slide shrink-fit hoses onto the lines.

2.3. Strip 10 mm of insulation off the lines.

2.4. Crimp the lines using crimping sleeves and the manual crimping pliers from the repair kit for wire

harnesses NR.155-1

.

2.5. Slide the shrink-fit hoses over the crimp connections and carefully shrink them using the hot-air

blower with special nozzle

 (recommended accessories for the repair kit for wire harnesses) so

that they are watertight.

2.6. Wrap commercially available PVC tape all around the area of the connection

points.

3. Secure the repaired area -a- to the main wire harness with tie-wraps.

Subsequent work

Subsequent work for wire harness for front PASM

1. Install plenum panel cover. → 852219 Removing and installing cover - section on "Installing"

2. Carry out work instructions after disconnecting the battery. → 2706IN Work instructions after

disconnecting the battery

Subsequent work for wire harness for rear PASM

1. Fit carpet lining behind the backrest.

2. Install subwoofer for BOSE sound system (I No. 680). → 913619 Removing and installing subwoofer -

section on "Installing"

3. Carry out work instructions after disconnecting the battery. → 2706IN Work instructions after

disconnecting the battery

997110, 997111, 997120, 997121, 997410, 997411, 997430, 997431

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Diagnostic system: reading out fault memory and activating systems

 Subsequent work

4375

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

Diagnostic system: reading out fault memory and activating systems

Subsequent work for wire harness for rear PASM

4376
