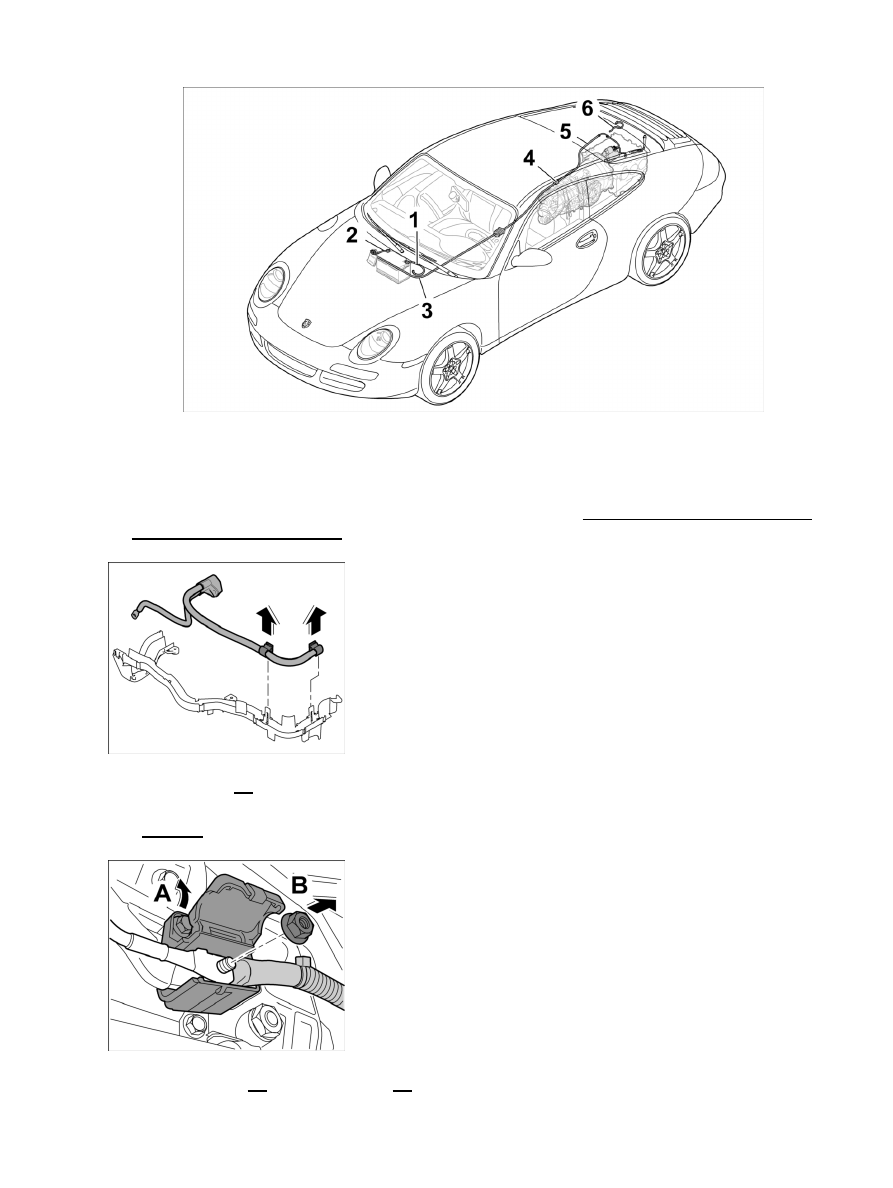

Installation position of wire harness for battery wiring

4

- Connection point of B+ box on transmission

5

- B+ line from starter to transmission connection point

1. Screw off fastening nut on starter lead at terminal 30 and remove it. → 276019 Removing and installing

starter - chapter on "Removing"

Unclipping B+ line to starter at cable duct

2. Unclip B+ line -5- at cable duct for engine wire harness.

2.1. Unclip B+ line at cable duct

-arrows-

 .

Unscrewing B+ line at box for B+ line

3. Unscrew B+ line -5- at box for B+ line -4- .

Diagnostic system: reading out fault memory and activating systems

Removing B+ line from starter to transmission connection point

4393

3.1. Open box for B+ line at transmission -Arrow A- , unscrew fastening nut -Arrow B- and remove the B+

line.

Note

For vehicles with manual transmission.

4. Remove cable duct of B+ line -5- at manual transmission. → 343519 Removing and installing transmission

- chapter on "Removing" [997410 997411 997430 997431 997610 997611 997620 997621]→ 343519
Removing and installing transmission - chapter on "Removing" [997110 997111 997120 997121 997310
997311 997320 997321]

Note

For vehicles with automatic transmission.

5. Remove cable duct of B+ line -5- at automatic transmission.→ 373527 Removing and mounting automatic

transmission - chapter on "Mounting" [997110 997111 997120 997121 997310 997311 997320
997321]→ 373527 27 Removing and mounting automatic transmission - chapter on "Mounting" [997410
997411 997430 997431 997610 997611 997620 997621]

6. Remove B+ line -5- .

Removing engine ground strap

Installation Location:

Installation position of wire harness for battery wiring

6

- Engine ground strap

Diagnostic system: reading out fault memory and activating systems

Removing engine ground strap

4394

Fastening engine ground strap

1. Remove engine ground strap -6- .

1.1. Unscrew fastening screws on engine, fastening nut on body, and remove ground

strap.

Installing wire harness for battery wiring

Installing ground strap and B+ line of battery

Installation Location:

Installation position of wire harness for battery wiring

1

- Ground strap for battery

2

- B+ lead for battery

Diagnostic system: reading out fault memory and activating systems

 Installing wire harness for battery wiring

4395

Ground strap from battery to body

1. Install ground strap for battery -1- .

1.1. Screw down battery ground strap on the body with the fastening nut. → Tightening torque: 5 (3.5 ftlb.)

Nm

2. Install B+ line for battery -2- .

2.1. Push the B+ line of the battery onto the mounting point at the power distributor as far as the stop. Check

that the B+ line sits firmly. → 978919 Removing and installing power distributor - chapter on "Installing"

2.2. Screw B+ line tightly to battery. → Tightening torque: 5 (3.5 ftlb.) Nm → 270619 Removing and

installing battery - chapter on "Removing"

Note

The electric lines are located in the plenum panel and are thus exposed to the highest demands.
The greatest care must be used in the individual work steps for stripping insulation from, crimping, and
shrinking/insulating the electric lines.
The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be
complied with and observed. The procedures are described in detail in the repair kit for harnesses
NR.155-1

.

Crimping samples are to be prepared before beginning work.

Trimming the positive cable.

3. Crimp the positive cable.

3.1. Trim the new positive cable -4- to the -dimension X = approx. 20 cm- and strip the

insulation.

Diagnostic system: reading out fault memory and activating systems

Installing ground strap and B+ line of battery
