Snowmobile Polaris Rush (2010 year). Manual - part 11

45

THE PERFECT FIT

Rear Suspension Adjustments

Rider weight, riding style, trail conditions, and vehicle speed all affect

suspension action.
Each rear suspension can be adjusted to suit rider preference and deliver

excellent performance for a given set of conditions. However, all sus-

pension designs and adjustments involve a compromise, or trade-off.

For example, a suspension set up for snowcross racing would provide a

very stiff ride on the trail. A suspension set up for trail riding would bot-

tom out harshly on a snowcross course.
Additional adjustments should be made after initial setup. Make adjust-

ments to one area at a time so you can evaluate the change. For further

assistance, see your dealer.

Suspension Performance Tips

• Rider weight usually determines the position at which the spring pre-

load should be set. However, this may vary with riding style. With a

little experimentation, each rider can find a preferred set-up.

• In deep snow, a new rail slide will offer improved performance over

worn rail slide. It can also improve top speed.

• When riding on ice or hard-packed snow, adding a set of bogie wheels

to the rail may enhance the snowmobile's performance. Bogie wheel

kits are available from your dealer.

Track Tension

Track adjustment is critical for proper handling. Always maintain cor-

rect tension and alignment. Refer to the track tension maintenance sec-

tion beginning on page 100.

46

THE PERFECT FIT

Rear Suspension Adjustments

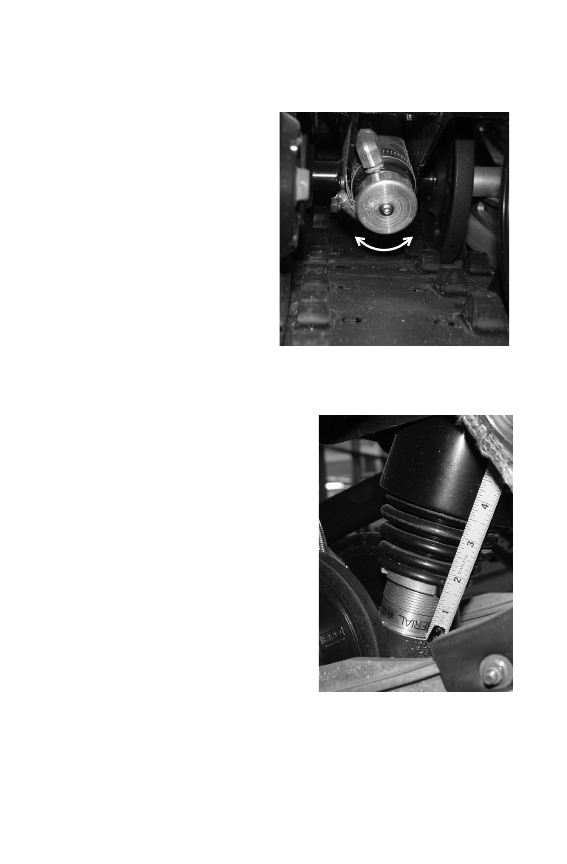

Front Track Shock Compression Damping

Make adjustments to the shock

clicker to control bottoming. Make

the adjustments in 2-click incre-

ments, then test ride. Repeat the

adjustment until the desired result

is achieved.

TIP: Initially, heavier riders may want to

set the shock clickers 2-4 clicks

higher than lighter riders.

The standard clicker setting is 2

clicks from the softest position.
• Turn the clicker clockwise for a

stiffer ride.

• Turn the clicker counter-clock-

wise for a softer ride.

Front Track Shock Spring Preload

Increasing spring preload will decrease

ski-to-ground pressure. Decreasing

spring preload will increase ski-to-

ground pressure.
The initial preload setting is 1 1/4 inches

(3.2 cm) from body end to retainer. To

change shock spring preload, grasp the

spring retainer and rotate it.
Increasing the spring preload too much

may adversely affect the handling of the

snowmobile and the performance of the

suspension.
When decreasing preload, make sure at

least two turns of preload are holding the

spring between the retainer on the top of

the shock and the threaded spring preload

adjuster nut on the shock body. Failure to do so could cause the retainer

to fall off when the suspension is fully extended.

TIP: Other spring options are available. Please see your Polaris dealer.

Stiffer

Softer

47

THE PERFECT FIT

Rear Suspension Adjustments

Rear Shock Spring Preload Settings

Make adjustments to the rear shock spring to tune vehicle balance.

Increasing preload will increase ski pressure and result in less weight

transfer and flatter cornering and more precise steering response.

Decreasing preload will decrease ski pressure and result in more weight

transfer, or less weight on the skis when accelerating.
Turn the spring retainer up to one turn from the initial setting, then test

ride. Repeat the adjustment in one-turn increments until the desired

result is achieved.
Increasing the spring preload too much may adversely affect the han-

dling of the snowmobile and the performance of the suspension.
When decreasing preload, make sure at least two turns of preload are

holding the spring between the retainer on the top of the shock and the

threaded spring preload adjuster nut on the shock body. Failure to do so

could cause the retainer to fall off when the suspension is fully

extended.

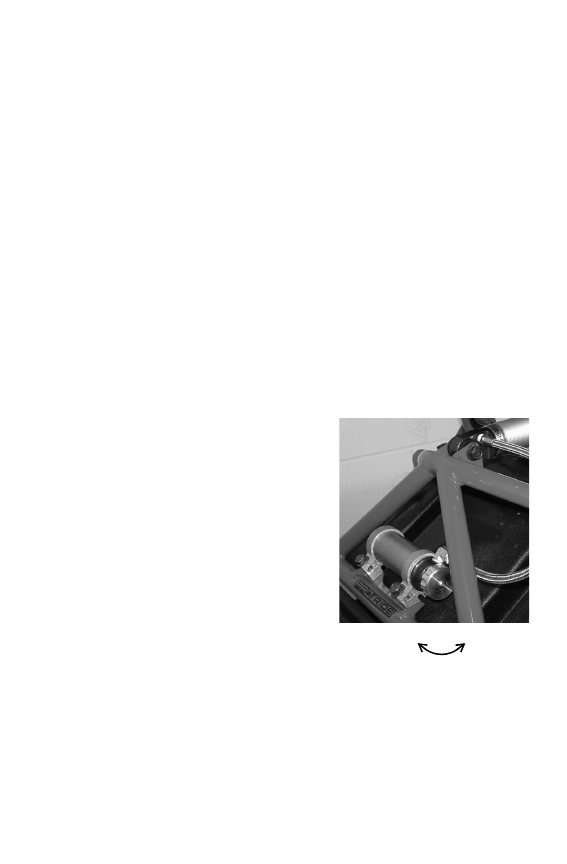

Rear Shock Clicker

Make adjustments to the shock clicker

to control bottoming, chatter and gen-

eral riding comfort. Make the adjust-

ments in 2-click increments, then test

ride. Repeat the adjustment until the

desired result is achieved.

TIP: Initially, heavier riders may want to set

the shock clickers 2-4 clicks higher than

lighter riders.

The standard clicker setting is 4 clicks

from the softest position.
• Turn the clicker clockwise for a

stiffer ride.

• Turn the clicker counter-clockwise

for a softer ride.

Stiffer

Softer

48

THE PERFECT FIT

Handlebar Adjustments

Handlebar Position

1. Loosen the four bolts on the

bottom of the adjuster block.

If necessary, pry the blocks

apart with a screwdriver.

2. Adjust the handlebar forward

or rearward to the desired

position.

3. Tighten the bolts.

Handlebar Angle

1. Loosen the four bolts on the

top of the adjuster block. If

necessary, pry the blocks

apart with a screwdriver.

2. Adjust the handlebar forward

or rearward to the desired

angle.

3. Tighten the bolts.

Loosen top bolts to adjust

handlebar angle

Loosen bottom bolts to

adjust handlebar position
