Snowmobile Polaris Rush (2010 year). Manual - part 10

41

THE PERFECT FIT

Suspension Quick Set-Up Guide

Polaris recommends that riders use this Quick Set-Up Guide to make

any adjustments for rider weight and trail conditions. If additional tun-

ing is needed after you have exhausted all possible adjustments to the

rear shock spring and clicker, refer to the information on the following

pages of this manual.

Factory Suspension Settings

IFS and Front Track Shock

IFS Shock Clicker

6 clicks clockwise from full soft

IFS Shock Spring Preload

3 3/4" (9.5 cm) from body end to retainer

Front Track Shock Clicker

2 clicks clockwise from full soft

Front Track Shock Spring Preload 1 1/4" (3.2 cm) from body end to retainer

Stock 190 Rear Spring

Rear Shock Clicker

4 clicks clockwise from full soft

Rear Shock Spring Preload

See Optional Spring Guide (page 40)

Accessory Spring Recommended Initial Settings

Accessory 120 Rear Spring

Rear Shock Clicker

4 clicks clockwise from full soft

Rear Shock Spring Preload

See Optional Spring Guide (page 40)

Accessory 260 Rear Spring

Rear Shock Clicker

4 clicks clockwise from full soft

Rear Shock Spring Preload

See Optional Spring Guide (page 40)

42

THE PERFECT FIT

Front Suspension Adjustments

Independent Front Suspension (IFS)

Factory settings, combined with user adjustments to the rear shock

spring, should be all that’s necessary to provide the best riding experi-

ence for most riders. If all rear shock spring adjustments have been

exhausted and rider weight is at the very high or very low weight range

for the stock spring, additional adjustments are possible to the IFS.
Settings will vary from rider to rider, depending on rider weight, vehicle

speed, riding style, and trail conditions. We recommend starting with

factory settings and then customizing each adjustment individually to

suit rider preference. The snowmobile should be methodically tested,

one change at a time, under the same conditions (trail and snow condi-

tions, vehicle speed, riding position, etc.) after each adjustment until the

best ride is achieved.
Break in the suspension for about 150 miles (240 km) before making

adjustments to the front suspension.
IFS Components
1. Skis
2. Front shocks and springs
3. Rod ends
4. A-arms

IFS Adjustment Options
• Front shock spring preload
• Compression damping
• Optional springs
• Optional shock valving

1

2

3

4

43

THE PERFECT FIT

Front Suspension Adjustments

IFS Shock Spring Preload

Increasing spring preload will increase

ski-to-ground pressure. Decreasing spring

preload will decrease ski-to-ground pres-

sure. When adjusting, be sure the springs

on both the left and right sides of the

machine are at the same adjustment.

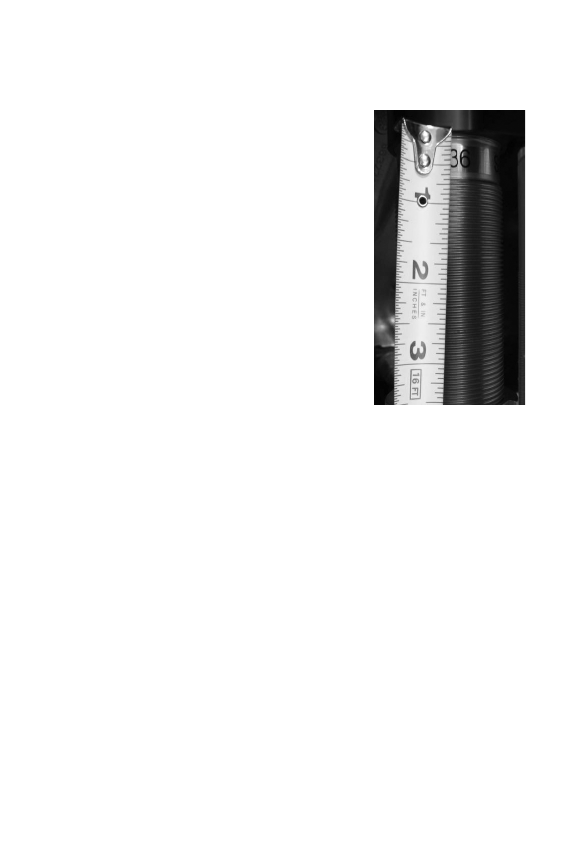

The initial IFS preload setting is 3 3/4

inches (9.5 cm) from body end to retainer.

To change shock spring preload, grasp the

spring retainer and rotate it.
Increasing the spring preload too much

may adversely affect the handling of the

snowmobile and the performance of the

suspension. Never exceed one inch (2.54

cm) of preload beyond the factory set-

tings.
When decreasing preload, make sure at

least two turns of preload are holding the

spring between the retainer on the top of

the shock and the threaded spring preload

adjuster nut on the shock body. Failure to

do so could cause the retainer to fall off

when the suspension is fully extended.

TIP: Other spring options are available. Please

see your Polaris dealer.

44

THE PERFECT FIT

Front Suspension Adjustments

IFS Shock Compression Damping

Make adjustments to the shock clickers to control bottoming. Make the

adjustments in 1-to-2-click increments, then test ride. Repeat the adjust-

ment until the desired result is achieved.

TIP: Initially, heavier riders may want to set the shock clickers 2-4 clicks higher

than lighter riders.

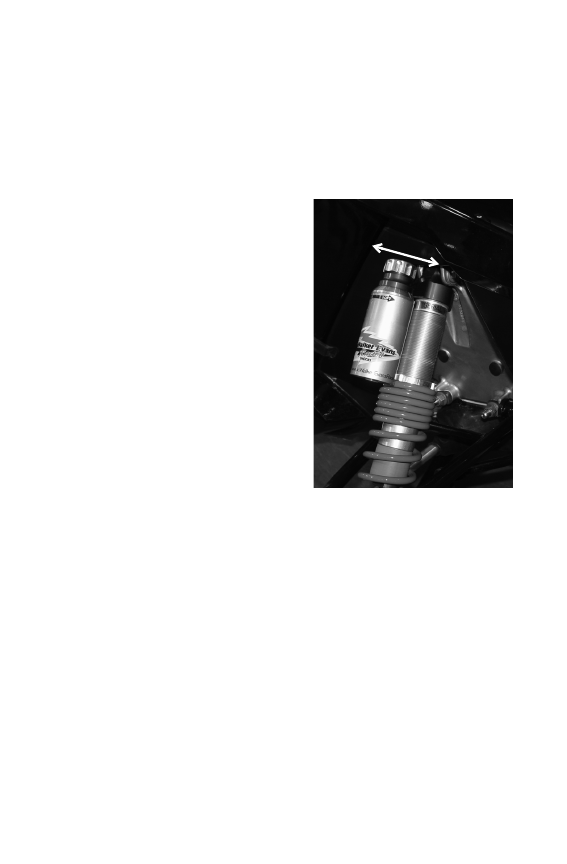

The standard clicker setting is 6 clicks

from the softest position.
• Turn the clicker clockwise for a

stiffer ride (as viewed from the top).

• Turn the clicker counter-clockwise

for a softer ride.

When adjusting, we recommend that

you turn the clicker only one or two

clicks, then test ride. Always adjust

both shocks equally.

Shock Valving

Some shocks can be revalved if spring

preload alone isn't sufficient and fur-

ther adjustment is desired to control

suspension stiffness. Please see your

Polaris dealer.

WARNING! Changing shock valving requires special tools and a sound

knowledge of mechanical theory, tool use, and shop procedures to perform the

work safely and correctly. Shocks contain high-pressure nitrogen gas. Use

extreme caution when handling high-pressure service equipment. We

recommend that this work be performed by a Polaris dealer.

Softer

Ride

Stiffer

Ride
