9.3
Front Suspension / Steering
9
Rev. 1 07/2006

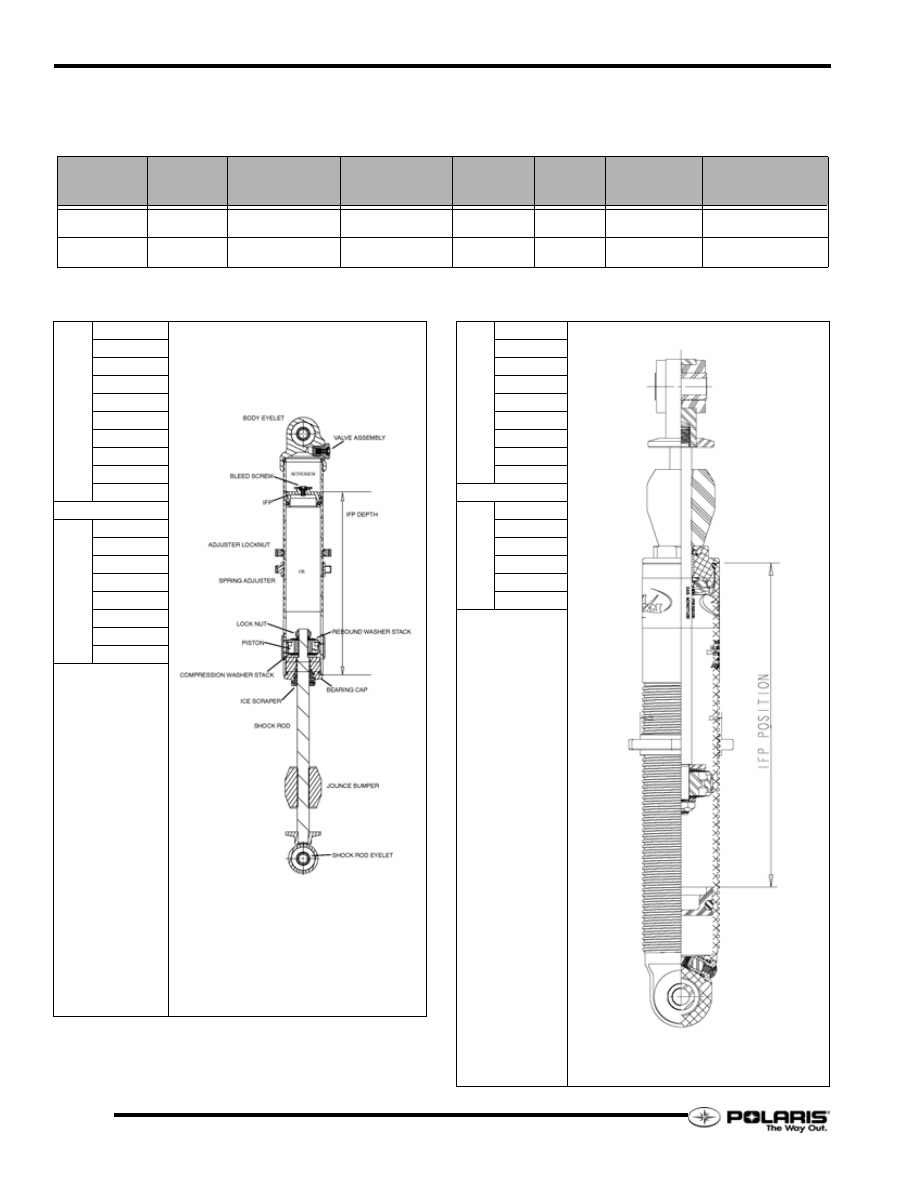

Adjustable Shocks
Snowmobiles equipped with adjustable Ryde FX shocks allow
the driver to make adjustments to the compression valving by
turning the screw on the shock.
Locate the adjustment screw near the base of the shock.
By turning the screw clockwise (a small screwdriver or dime
work well), the compression valving is increased, stiffening the
ride. To soften the ride, reduce the compression by turning the
screw counter-clockwise. A great deal of ride performance is
accomplished with a mere 1/2 to 1 turns. There are
approximately 3 full turns of adjustment available.
If the suspension is "bottoming", tighten the compression screw
clockwise in 1/2 turn increments until the bottoming stops.
Backing off 1/4 turn counter-clockwise at this point should give
you the best possible ride ensuring use of the full travel of the
suspension. The opposite procedure should be used if the
suspension is too stiff upon initial set-up.
If bottoming continues after the screw is turned in full
clockwise, the compression spring should be adjusted with the
threaded adjustment collar. Back the screw out to the original
starting position after the compression spring has been adjusted.
Riding conditions are ever changing. Keep in mind the
compression damping adjustable screw can be adjusted at any
time to achieve the best possible ride in any condition.
NOTE: Install shock so the adjustment screw is
facing outwards.
