7.6

CLUTCHING

DRIVE BELT REMOVAL WITH POLARIS

DRIVEN CLUTCH

To ensure belt life, install belts so they operate in the same
direction of rotation. Position the identification numbers so
that you can read them standing on left side of machine. This
will keep the belt rotating in the same direction. If belt has
been operated with numbers readable from right side of
machine, re-install belt in this direction.

Before attempting to remove the drive belt, make certain that
the snowmobile was in forward motion. Turn the key off so
that the engine has come to a complete stop.

1.

Remove the clutch guard retaining pin and open the clutch
guard.

2.

Apply and lock the parking brake.

3.

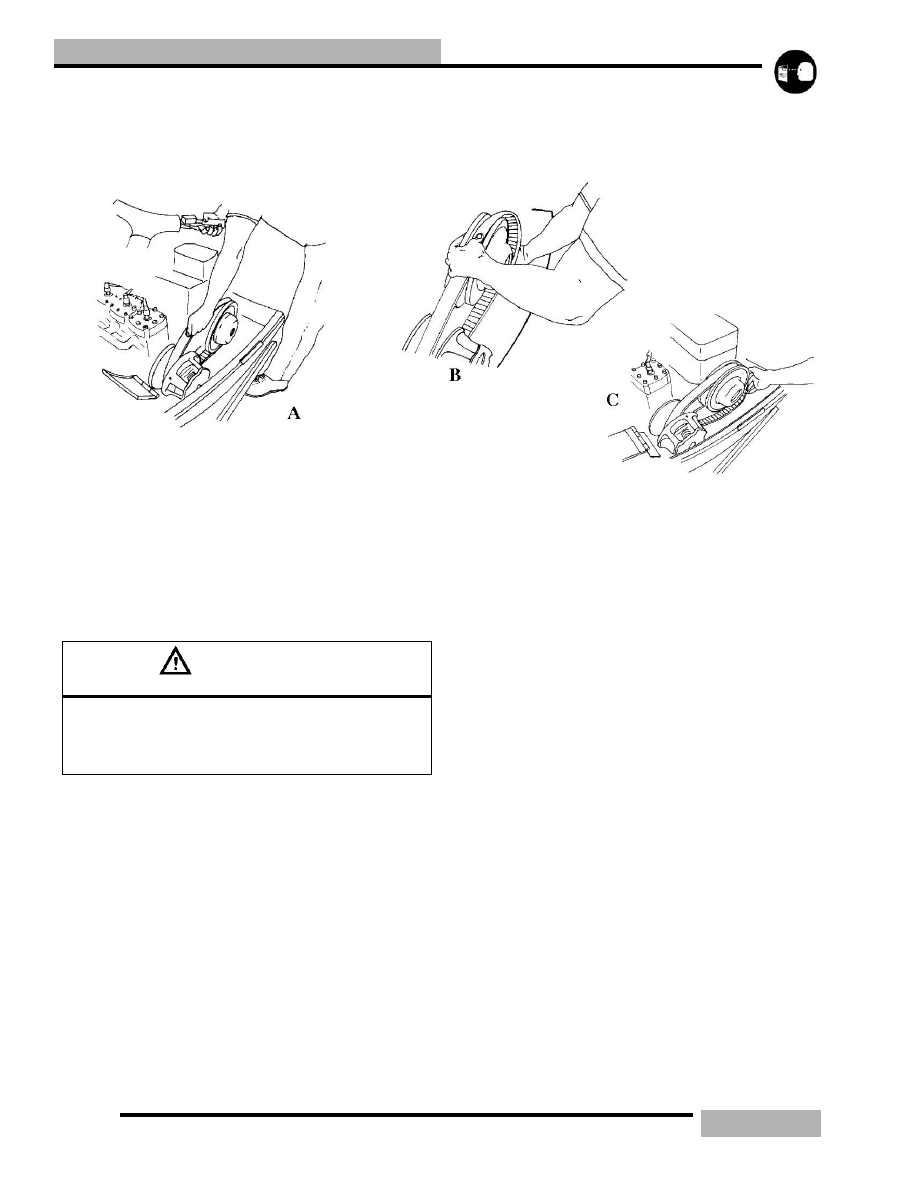

Grasp belt firmly midway between clutches and pull
upward and rearward to open the driven clutch sheaves
(A). Remove the belt from the driven clutch and then from
the drive clutch (B, C).

4.

Release the parking brake.

BELT INSTALLATION (POLARIS DRIVEN
CLUTCH)

1.

Drop the drive belt over the drive clutch and pull back the
slack (C).

2.

Turn the driven clutch moveable sheave clockwise while
at the same time pushing inward and forcing the belt down
between the sheaves.

3.

Hold the belt down between the sheaves and roll the
bottom portion over the outer clutch sheave. Once
installed, be sure to work the belt to the outer edge of the
sheave.

4.

Be sure to release parking brake if applied.

5.

Close the clutch guard and reinstall the retaining pin.

WARNING

 Inspect the condition of the drive belt and clutch
sheaves for damage wear, or belt residue during pre-
ride inspections. Clean with a non-oil base cleaner
such as isopropyl alcohol

7.7

CLUTCHING

DRIVE SYSTEM TERMINOLOGY

SYSTEM OVERVIEW

The Polaris drive system is a centrifugally actuated variable
speed belt drive unit. The drive clutch, driven clutch, and belt
make up the torque converter system. Each clutch comes from
the factory with the proper internal components installed for
its specific engine model. Therefore, modifications or
variations of components at random are never recommended.
Proper clutch setup and adjustments of existing components
must be the primary objective in clutch operation diagnosis.

DRIVE SPRING

The drive spring opposes the shift force generated by the
clutch weights, and determines the neutral RPM, engagement
RPM, and wether the engine RPM remains flat, rises, or falls
during shift out. When changing only the drive spring,
installing a spring with a lower pre-load rate will result in a
lower engagement RPM speed, while installing a spring with a
higher pre-load rate will result in a higher engagement RPM.

CLUTCH WEIGHT

The clutch weights generate centrifugal force as the drive
clutch rotates. The force generated changes in relation to the
engine RPM and with specified weight of each clutch weight.
When changing only the clutch weights, a lighter weight will
result in a higher engagement RPM, lower shifting force, and
higher shift out RPM. Installing heavier weights has the
opposite effect

NEUTRAL SPEED

Engine RPM when the force generated by the clutch weights is
less than the pre-load force generated by the drive spring. In
this mode, the drive clutch is disengaged.

ENGAGEMENT RPM

Engine RPM when the force generated by the clutch weights
overcomes the drive spring pre-load force and the moveable
sheave begins to close or “pinch" the drive belt. The
engagement mode continues until no more belt slippage occurs
in the drive clutch. Once 100% belt engagement is achieved,
the sled will accelerate along the low ratio line until the drive
clutch up shift force overcomes the opposing shift force
generated by the driven clutch.

SHIFT OUT OVERREV

Engine RPM that spikes above the desired operating RPM
speed. The shift out RPM should come down to the desired
operating RPM, but never below, after the driven clutch begins
to open.

SHIFT OUT RPM

Engine RPM at which the up shift force generated by the drive
clutch overcomes the shift force within the driven clutch. In
this mode, the drive clutch will move the belt outwards, and
the driven clutch will allow the drive belt to be pulled down
into the sheaves.

During WOT operation, the shift out RPM can be seen as the
maximum, sustained RPM displayed on the tachometer. The
shift out RPM should be the same RPM as the recommended
engine operating RPM. If the shift out RPM is above the
recommended engine operating RPM, install heavier drive
clutch weights. If the shift out RPM is below the
recommended engine operating RPM, install lighter drive
clutch weights.

The shift out RPM should remain constant during both the
upshift and back shift modes.

DRIVEN SPRING

A compression spring (Team driven clutch) or torsional spring
(Polaris P-85 driven clutch) works in conjunction with the
helix, and controls the shift rate of the driven clutch. The
spring must provide enough side pressure to grip the belt and
prevent slippage during initial acceleration. A higher spring
rate will provide more side pressure and quicker back shifting
but decreases drive system efficiency. If too much spring
tension exists, the driven clutch will exert too much force on
the belt and can cause premature belt failure.

CAUTION

All clutch maintenance repairs must be performed only

by an authorized Polaris service technician who has at-

tended a Polaris sponsored service training seminar

and understands the proper procedures as outlined in

this manual. Because of the critical nature and preci-

sion balance incorporated into the drive clutch, it is ab-

solutely essential that no attempt at clutch disassembly

and/or repair be made without factory authorized spe-

cial tools and service procedures. Any unauthorized

modifications to clutches, such as adding or removing

weights, will void the warranty

.

7.8

CLUTCHING

BACK-SHIFTING

Back-shifting occurs when the track encounters an increased
load (demand for more torque). Back-shifting is a function of
a higher shift force within the driven clutch then within the
drive clutch. Several factors, including riding style,
snowmobile application, helix angles, and vehicle gearing
determine how efficient the drive system back-shifts. The
desired engine operating RPM should never fall below 200
RPM when the drive system back-shifts.

FINAL GEARING

The final drive gear ratio plays an important role in how much
vehicle load is transmitted back to the helix. A tall gear ratio
(lower numerical number) typically results in lower initial
vehicle acceleration, but a higher top-end vehicle speed. A
lower gear ratio (higher numerical number) typically results in
a higher initial vehicle acceleration, but a lower top-end
vehicle speed.

Choosing the proper gear ratio is important to overall drive
system performance. Lowering the final drive gear ratio will
compress the MPH scale between the low and high ratio lines,
while raising the final drive gear ratio will expand the MPH
scale between the low and high ratio lines.

When deciding on which gear ratio to use, the operator must
factor in the decision where the snowmobile will be ridden,
what type of riding will be encountered, and the level of
performance the operator hopes to achieve.

Gearing a snowmobile too low for extended high-speed runs
may cause damage to the drive belt and drive system, while
gearing a snowmobile too high for deep-snow, mountain use
may cause premature belt and clutch wear.

Typically, it is recommended to gear the snowmobile with a
slightly higher ratio than the actual top speed the snowmobile
will ever achieve.

1:1 Shift Ratio

A 1:1 shift ratio occurs when the drive clutch and the driven
clutch are rotating at the same RPM. In this mode, the drive
system is at its highest efficiency. Drive system efficiency
falls off past the 1:1 shift ratio.

The mathematical vehicle speed for a given gear ratio at a 1:1
shift ratio is represented in the chaincase gearing charts
located in the Final Drive Chapter.

LOW / HIGH RATIO LINES

The low ratio line is the mechanical position when the drive
belt is all the way down into the drive clutch, and all the way
out on the driven clutch. The high ratio line represents when
the drive belt is all the way out on the drive clutch, and all the
way in on the driven clutch.

Note that the high ratio line is past the ideal 1:1 shift ratio.

DRIVEN HELIX / RAMP

The helix cam is the primary torque feedback component
within the driven clutch, regardless of driven clutch type. The
beginning angle of the helix must transmit enough torque
feedback to the moveable sheave in order to pinch the drive
belt while minimizing belt slip. The flatter or lower the helix
angle, the more side force will be exerted on the moveable
sheave, while the steeper, or higher the helix angle, the less

side force will be exerted on the moveable sheave.

7.9

CLUTCHING

CENTRIFUGAL DRIVE SYSTEM

THEORY OF OPERATION

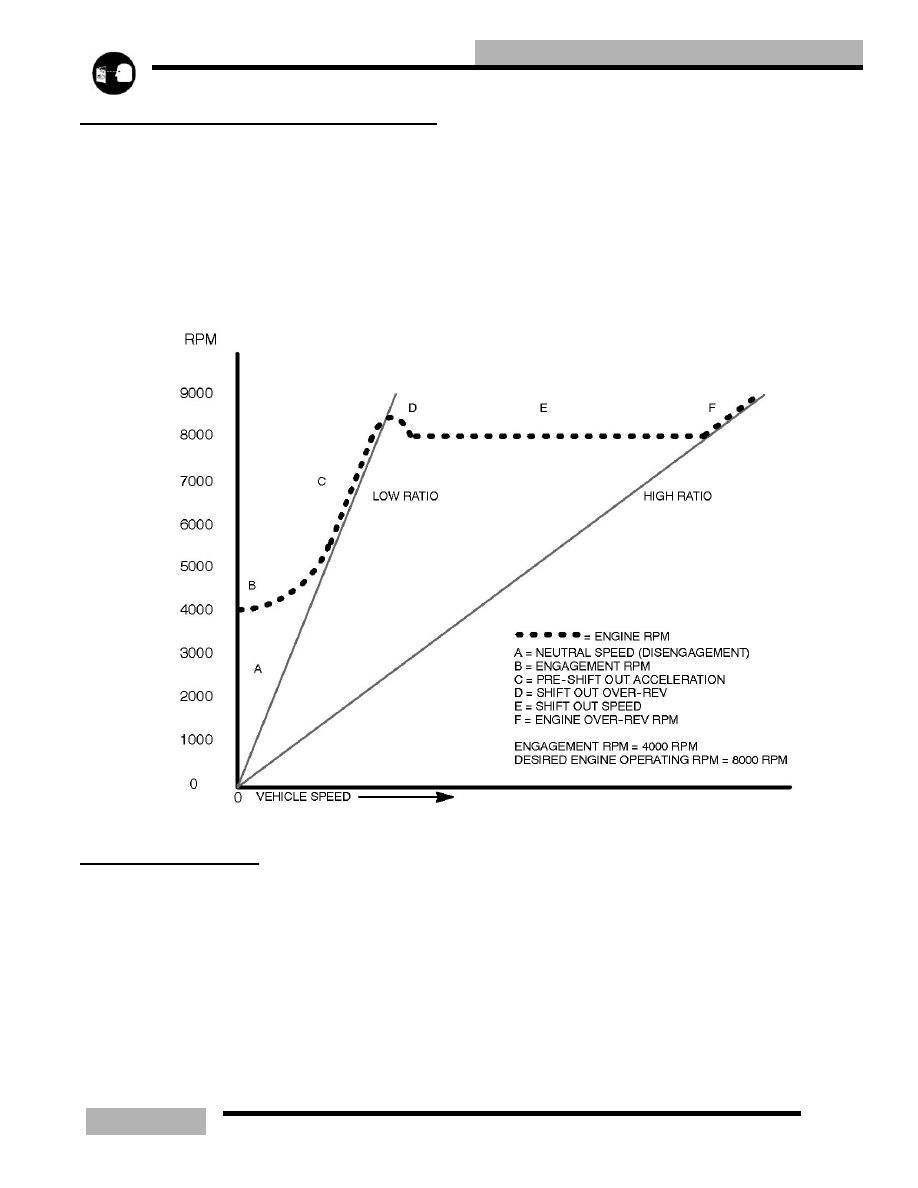

The graph illustrates what occurs in a properly tuned
snowmobile drive system during an idle speed to WOT (wide
open throttle) pull. Note that the shift out overrev occurs for a
brief amount of time and drops back to the desired engine

operating RPM. The low and high ratio lines are a function of
component design.

NOTE:  Shift out overrev is not detrimental to overall
efficiency of the drive system as long as the RPM
drop does not fall below the desired operating RPM.
The use of the new drive system technologies,
tighter tolerance components and refined drive
system calibration in Polaris snowmobiles has
virtually eliminated shift out overreving.

DRIVE CLUTCH

OPERATION

The drive, or primary, clutch is an RPM sensing device. The
main functions of the drive clutch is to control the neutral
RPM speed, initial engagement RPM, and desired engine
operating RPM. The drive clutch works by using the principle
of centrifugal force to react to engine RPM. At idle speed, the
moveable sheave is held open by the drive spring pre-load
force. As engine speed increases, the centrifugal force
generated by the clutch weights will overcome the drive spring

pre-load force, and begin to close the moveable sheave. This
action engages, or “pinches" the drive belt.

In a properly tuned clutch, the desired operating RPM should
be reached immediately after clutch engagement under full
throttle (WOT) conditions. The desired engine operating RPM
is the recommended operating RPM listed for each model.
This information can be found in each models' general
specification table. To ensure optimum power, the
recommended operating RPM must be maintained throughout
the upshift and backshift modes.
