DRIVER SUPPORT

* Option/accessory.

372

For more information on Speed Warnings in con-
junction with speed cameras, also see “Road
Sign Information with Speed Warning and Set-
tings” and “Road Sign Information limitations”.

NOTE

•

For an audible alert to be provided if the
speed is exceeded, the

Speed Limit

Warning

function must be activated and

the

Road Sign Audio Warning

sub-

function must be On. Audible alerts are
provided if the vehicle's speed exceeds
the speed displayed by RSI in the instru-
ment panel.

•

It is possible to receive an audible alert
for speed cameras regardless of the vehi-
cle's speed, whether or not the speed
limit is exceeded, and even if the

Road

Sign Audio Warning

function is deacti-

vated: See heading "

Speed camera

warning

On/Off" in section "Road Sign

Information with Speed Warning and set-
tings" and select

Speed Camera Audio

Warning

there.

•

Information about speed cameras on the
navigation map is not available for all
markets/areas.

Related information

•

Road Sign Information* (p. 367)

•

Road Sign Information with Speed Warning
and Settings (p. 370)

•

Road Sign Information limitations (p. 372)

Road Sign Information limitations

Road Sign Information (RSI

101

) functionality may

be reduced in certain situations.

RSI could have reduced functionality due to e.g.:

•

faded road signs

•

signs located in a curve in the road

•

twisted or damaged signs

•

signs positioned high above the road

•

fully/partially obstructed or poorly positioned
signs

•

signs partially or fully covered by frost, snow
and/or dirt

•

digital road maps

102

that are outdated, incor-

rect or do not contain speed information

103

NOTE

Certain types of bike carriers that are con-
nected to the trailer socket may be interpre-
ted as a connected trailer by the RSI function.
In such cases, the instrument panel may indi-
cate incorrect speed information.

101

Road Sign Information

102

Vehicles equipped with Sensus Navigation*.

103

Map data and speed information is not available for all areas.

DRIVER SUPPORT

}}

* Option/accessory.

373

NOTE

The function uses the vehicle's camera unit,
which has some general limitations – see the
section "Camera unit limitations".

Related information

•

Road Sign Information* (p. 367)

•

Camera limitations (p. 341)

Driver Alert Control

The Driver Alert Control (DAC) function is
designed to help capture the driver become
aware of erratic behavior, e.g. if the driver is dis-
tracted or showing signs of fatigue.

The objective of DAC is to detect slowly deterio-
rating driving behavior and is primarily intended to
be used on major roads. The function is not
intended for use in city traffic.

DAC is activated when the vehicle's speed
exceeds 65 km/h (40 mph) and remains active
as long as speeds are above 60 km/h (37 mph).

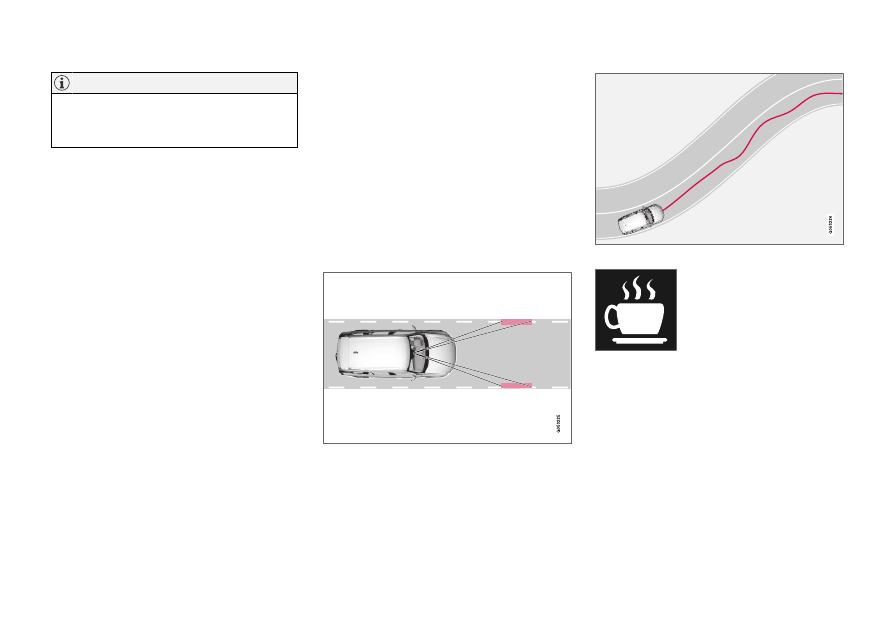

DAC detects the vehicle's position in the traffic lane.

A camera monitors the traffic lane's marker lines
and compares the direction of the road with the
driver's movements of the steering wheel.

The vehicle is moving erratically in the lane.

If driving behavior becomes
considerably erratic, the driver
will be alerted by this symbol in
the instrument panel, an audi-
ble signal and the message

Time for a break

If the vehicle is equipped with Sensus
Navigation* and the

Rest Stop Guidance

func-

tion is activated, a suitable place to take a break
will also be suggested (see section “Selecting
guidance to a rest stop if a Driver Alert Control
warning has been given”).

The warning will be repeated after a short time if
driving behavior does not improve.

DRIVER SUPPORT

374

WARNING

•

The Driver Alert Control function is sup-
plementary driver support intended to
facilitate driving and help make it safer –
it cannot handle all situations in all traffic,
weather and road conditions.

•

Driver Alert Control must not be used to
extend a period of driving. The driver
should plan in breaks at regular intervals
and make sure they are well rested.

•

Driver Alert Control is not a substitute for
the driver's attention and judgment. The
driver is always responsible for ensuring
the vehicle is driven in a safe manner, at
the appropriate speed, with an appropri-
ate distance to other vehicles, and in
accordance with current traffic rules and
regulations.

WARNING

An alarm from Driver Alert Control should be

taken very seriously since a sleepy driver is

often not aware of their own condition.
If the alarm sounds or you feel fatigued:

•

Stop the vehicle safely as soon as possi-
ble and rest.

Studies have shown that it is just as danger-

ous to drive while tired as it is to drive under

the influence of alcohol or other stimulants.

Related information

•

Activating/deactivating Driver Alert Control
(p. 374)

•

Selecting guidance to a rest area if the
Driver Alert Control warning has been given
(p. 375)

•

Driver Alert Control limitations (p. 375)

Activating/deactivating Driver Alert

Control

The Driver Alert Control (DAC) function can be
activated/deactivated.

On/Off

To change DAC settings:

1. Tap

Settings

in the center display's Top

view.

2. Select

My Car

IntelliSafe

Driver Alert

Control

3. Select/deselect

Alertness Warning

to acti-

vate/deactivate DAC.

Related information

•

Driver Alert Control (p. 373)

DRIVER SUPPORT

}}

* Option/accessory.

375

Selecting guidance to a rest area if

the Driver Alert Control warning has

been given

The

Rest Stop Guidance

function can be

switched on or off.

In vehicles equipped with Sensus Navigation*, the
driver can activate a guide that can automatically
suggest a suitable rest stop if the DAC warning
is given.

To select

Rest Stop Guidance

1. Tap

Settings

in the center display's Top

view.

2. Select

My Car

IntelliSafe

Driver Alert

Control

3. Select/deselect

Rest Stop Guidance

activate/deactivate the function.

Related information

•

Driver Alert Control (p. 373)

Driver Alert Control limitations

Driver Alert Control (DAC) functionality may be
reduced in certain situations.

In certain situations, the system may provide a
warning even if it has not detected a change in
driving behavior, e.g.:

•

in strong crosswinds

•

on grooved road surfaces.

WARNING

In certain cases, driving behavior might not be

affected despite the driver's fatigue – when

using the Pilot Assist function – resulting in

the driver not getting a warning from DAC.
It is therefore very important to always stop

and take a break at the slightest sign of fati-

gue, regardless of whether the DAC function

has issued a warning or not.

NOTE

The function uses the vehicle's camera unit,
which has some general limitations – see the
section "Camera unit limitations".

Related information

•

Driver Alert Control (p. 373)

•

Camera limitations (p. 341)

Lane Keeping Aid

Lane Keeping Aid (LKA

104

) is designed to

actively steer the vehicle on freeways, highways
and other major roads to help the driver reduce
the risk of the vehicle unintentionally veering out
of the lane.

Lake Keeping Assistance steers the vehicle back
into the lane and/or alerts the driver using vibra-
tions in the steering wheel.

Lane Keeping Aid is active at speeds between
65-200 km/h (40-125 mph) on roads with
clearly visible traffic lane marker lines.

On narrow roads, the function may be unavailable
and go into standby mode. The function will
become available again when the road becomes
sufficiently wide.

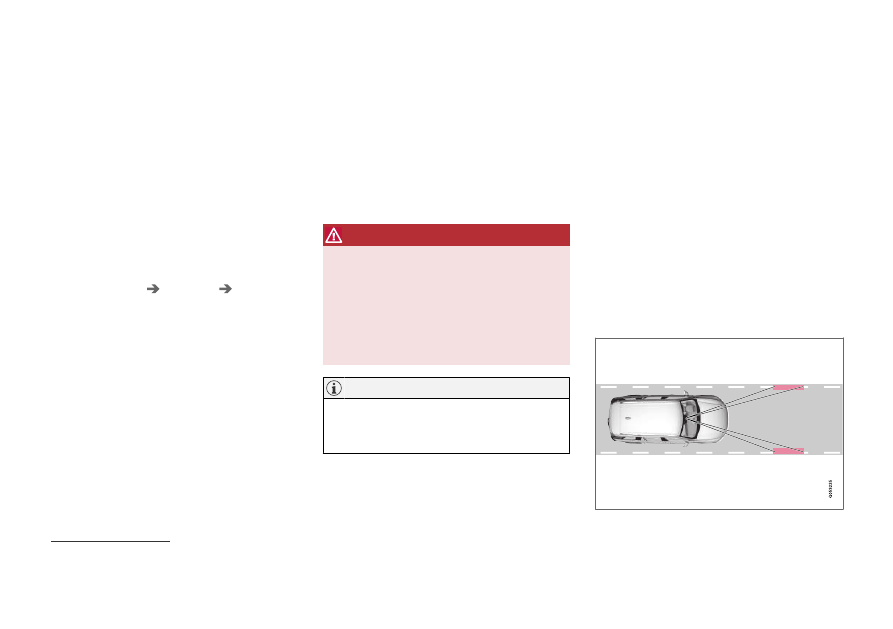

A camera monitors the road/traffic lane's marker lines.

104

Lane Keeping Aid

DRIVER SUPPORT

376

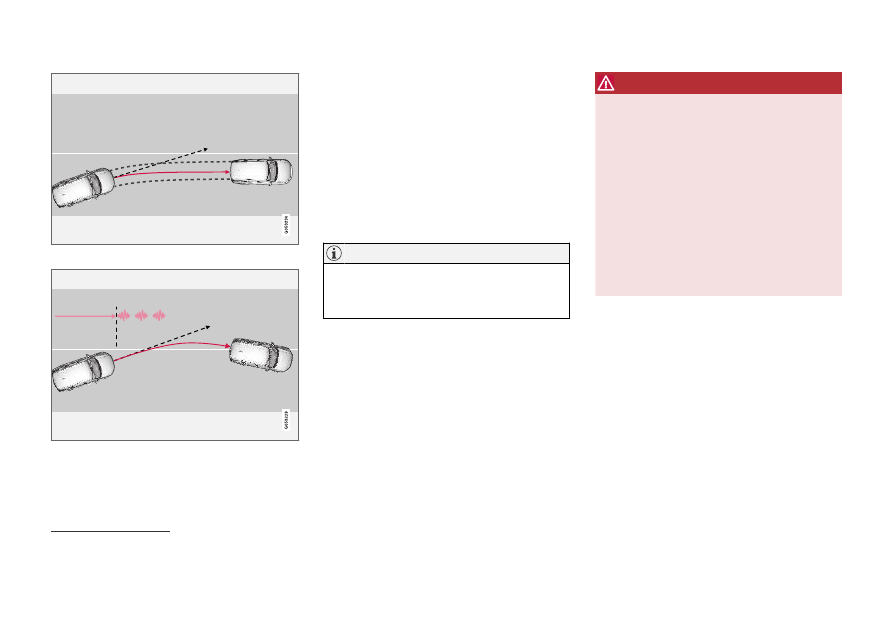

Lane Keeping Aid steers the vehicle back into its lane.

Lane Keeping Aid alerts the driver using vibrations in the
steering wheel

105

Depending on the settings used, Lane Keeping
Aid functions in different ways:

•

With

Assist

106

activated: When the vehicle

approaches a lane marker line, LKA will
actively steer the vehicle back into the lane
using light pressure on the steering wheel.

•

With

Warning

106

activated: If the vehicle is

about to move over a lane marker line, the
driver will be alerted by vibrations in the
steering wheel.

NOTE

When the direction indicator is activated, the
Lane Keeping Aid does not provide any warn-
ing or intervene with steering.

WARNING

•

The Lane Keeping Aid function is supple-
mentary driver support intended to help
improve driving safety – it cannot handle
all situations in all traffic, weather and
road conditions.

•

The function is not a substitute for the
driver's attention and judgment. The driver
is always responsible for ensuring the
vehicle is driven in a safe manner, at the
appropriate speed, with an appropriate
distance to other vehicles, and in accord-
ance with current traffic rules and regula-
tions.

105

The steering wheel vibrations vary. The more time the vehicle is over the lane marker line, the longer the vibrations.

106

See "LKA assistance options" under "Activating/deactivating Lane Keeping Aid".

DRIVER SUPPORT

}}

377

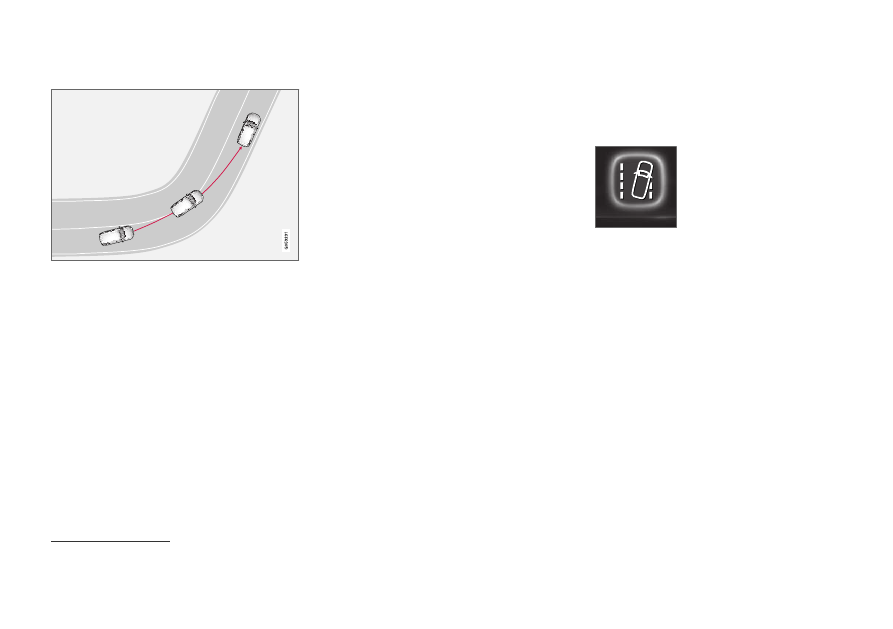

Lane Keeping Aid does not intervene

Lane Keeping Aid does not intervene in sharp inside
curves.

In certain cases, such as when a turn signal is
used or when "straightening out" an inside curve,
Lane Keeping Aid will not provide steering assis-
tance or alerts.

Related information

•

Steering assistance with Lane Keeping Aid
(p. 377)

•

Lane Keeping Aid limitations (p. 379)

•

Activating/deactivating Lane Keeping Aid
(p. 378)

•

Selecting type of assistance for Lane Keep-
ing Aid (p. 378)

•

Lane Keeping Aid symbols and messages
(p. 380)

•

Lane Keeping Aid symbols in the instrument
panel (p. 382)

Steering assistance with Lane

Keeping Aid

Lane Keeping Aid (LKA

107

) only functions if the

driver's hands are on the steering wheel.

This symbol on the instrument
panel indicates that LKA is
activated and continuously
monitoring that the driver's
hands are on the steering
wheel.

1. If the driver's hands are not on the steering

wheel, an audible signal will be given and a
message will instruct the driver to actively
steer the vehicle:

Lane Keeping Aid

–

Apply steering

2. If LKA detects that the driver is not actively

steering the vehicle, the message will be
repeated along with a longer audible signal.

3. If the driver still does not begin actively steer-

ing the vehicle, a short audible signal will be
given in a different tone, LKA will be deacti-

107

Lane Keeping Aid

DRIVER SUPPORT

378

vated, another symbol will illuminate and the
following message will be displayed:

–

Lane Keeping Aid

–

Apply

steering

LKA will then be deactivated until the driver
begins actively steering the vehicle again.

The audible signal will stop and the information
symbol and message will disappear when LKA
detects that the driver is actively steering the
vehicle again.

Related information

•

Lane Keeping Aid (p. 375)

Activating/deactivating Lane

Keeping Aid

The Lane Keeping Aid (LKA

108

) function can be

switched On or Off.

On/Off

Press the

Lane Keeping Aid

button in the center display's
Function view.

•

GREEN button indicator light - LKA is acti-
vated.

•

GRAY button indicator light - LKA is deacti-
vated.

Related information

•

Lane Keeping Aid (p. 375)

Selecting type of assistance for

Lane Keeping Aid

The driver can determine what types of assis-
tance LKA

109

should provide if the vehicle veers

from its lane.

1. Select

Settings

My Car

IntelliSafe

the center display's Top view.

2. Under

Lane Keeping Aid Mode

, select

what assistance LKA should provide:

•

Assist

the driver will receive steering

assistance but no warning.

•

Both

- the driver will receive both steering

assistance and a warning.

•

Warning

- the driver will only receive a

warning.

Related information

•

Lane Keeping Aid (p. 375)

108

Lane Keeping Aid

109

Lane Keeping Aid

DRIVER SUPPORT

379

Lane Keeping Aid limitations

In certain demanding driving conditions, Lane
Keeping Aid may not be able to properly assist
the driver. In these situations, it is recommended
that the function be deactivated.

Examples of such situations include:

•

road work

•

winter driving conditions

•

poor road surfaces

•

a very sporty driving style

•

bad weather with reduced visibility

•

roads with indistinct or no lane markings

•

sharp edges or lines other than the lane's
side markings

•

when the power steering works at reduced
power, e.g. during cooling due to overheating
(see section “Speed-dependent steering
force”).

NOTE

The function uses the vehicle's camera unit,
which has some general limitations – see the
section "Camera unit limitations".

Related information

•

Lane Keeping Aid (p. 375)

•

Speed-dependent steering wheel resistance
(p. 280)

•

Camera limitations (p. 341)

DRIVER SUPPORT

380

Lane Keeping Aid symbols and

messages

A number of symbols and messages related to
Lane Keeping Aid LKA

110

may be displayed in

the instrument panel.

Some examples of symbols and messages are shown in the table below.

Symbol

Message

Meaning

Driver support system

Reduced functionality Service required

The system is not functioning as intended. Contact a workshop

‒ an authorized Volvo work-

shop is recommended.

Windscreen sensor

Sensor blocked, see Owner's manual

The camera's ability to detect the lane in front of the vehicle is reduced.

Lane Keeping Aid

Apply steering

LKA's steering assistance is disabled when the driver's hands are not on the wheel. Follow
the instructions and steer the vehicle.

Lane Keeping Aid

Apply steering

LKA will go into standby mode until the driver begins steering the vehicle again.

110

Lane Keeping Aid

DRIVER SUPPORT

381

A text message can be erased by briefly pressing
the

button in the center of the right-side

steering wheel keypad.

If the message persists: Contact a workshop

‒ an

authorized Volvo workshop is recommended.

Related information

•

Lane Keeping Aid (p. 375)

DRIVER SUPPORT

382

Lane Keeping Aid symbols in the

instrument panel

Lane Keeping Aid (LKA

111

) uses symbols in the

instrument panel for various situations.

Some examples of symbols and
descriptions of the situations in
which they might appear are
provided below.

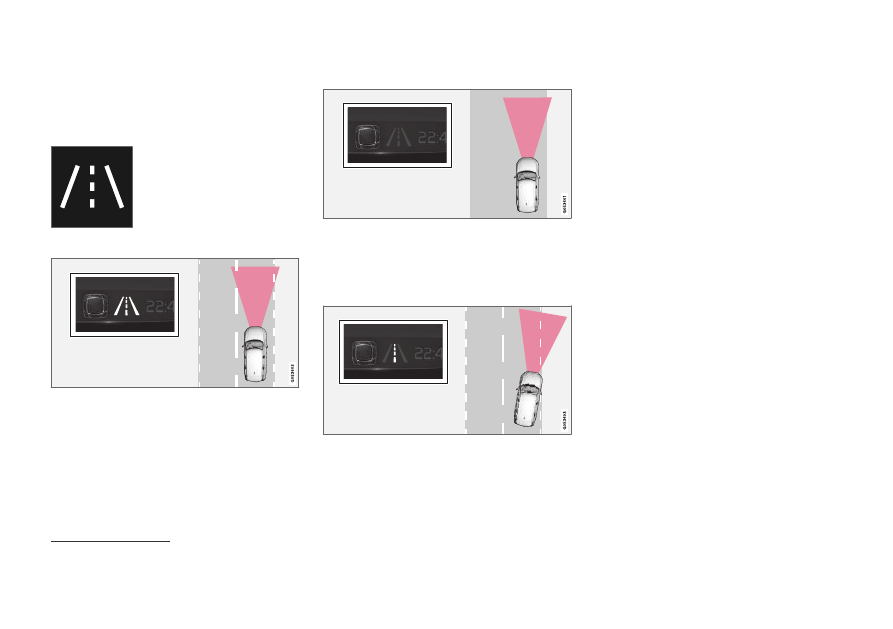

Available

‒ the marker lines in the symbol are WHITE.

Lane Keeping Aid is able to detect one or both of
the traffic lane's side marker lines.

Unavailable

‒ the marker lines in the symbol are GRAY.

Lane Keeping Aid is unable to detect the lane
marker lines, the vehicle's speed is too low or the
road is too narrow.

Steering/warning indicator

Steering/warning

‒ the marker lines in the symbol are

COLORED.

Indicates that the Lane Keeping Aid system is
alerting the driver and/or attempting to steer the
vehicle back into the lane.

Related information

•

Lane Keeping Aid (p. 375)

111

Lane Keeping Aid

DRIVER SUPPORT

* Option/accessory.

383

Steering assistance at risk of

collision

The

Collision avoidance assistance

function

is intended to help the driver reduce the risk of
the vehicle inadvertently veering from the traffic
lane and/or colliding with another vehicle or
obstacle by actively steering the vehicle back
into the lane and/or swerving out of the way.

Collision avoidance assistance

consists of

three sub-functions:

•

Run-Off Mitigation with steering assistance

•

Steering assistance during collision risks
from oncoming traffic

•

Steering assistance during collision risks
from behind*

After the system has automatically intervened,
this text message will appear in the instrument
panel:

•

Collision avoidance assistance

–

Automatic intervention

NOTE

It is always the driver who must decide how
much the vehicle should be in control – the
vehicle can never take command.

Related information

•

Activating/deactivating steering assistance
during collision risks (p. 383)

•

Symbols and messages for steering assis-
tance during collision risks (p. 392)

•

Run-Off Mitigation with steering assistance
(p. 384)

•

Run-Off Mitigation with steering assistance
levels (p. 384)

•

Activating/deactivating Run-Off Mitigation
with steering assistance (p. 385)

•

Limitations of Run-Off Mitigation with steer-
ing assistance (p. 386)

•

Steering assistance during collision risks
from oncoming traffic (p. 386)

•

Activating/deactivating Steering assistance
during collision risks with oncoming vehicles
(p. 387)

•

Limitations of steering assistance during col-
lision risks from oncoming traffic (p. 388)

•

Steering assistance during collision risks
from behind* (p. 389)

•

Activating/deactivating Steering assistance
during collision risks from behind* (p. 390)

•

Limitations of steering assistance during col-
lision risks from behind (p. 390)

Activating/deactivating steering

assistance during collision risks

The driver can choose to have this function On
or Off.

Use this button in the center
display's Function view to turn
the function On and Off.

NOTE

When the

Collision avoidance assistance

function is deactivated, all subfunctions of the
following are deactivated:

•

Steering assistance at risk of run-off

•

Steering assistance at risk of head-on
collision

•

Steering assistance during collision risks
from behind*

Although it is possible to deactivate the func-
tion, the driver is advised to keep it activated
since it can help improve driving safety in
most cases.

Related information

•

Steering assistance at risk of collision
(p. 383)

DRIVER SUPPORT

384

Run-Off Mitigation with steering

assistance

This sub-function is intended to help reduce the
risk of the vehicle inadvertently running off the
road by actively steering the vehicle back onto
the road.

The function is active at speeds between
65-140 km/h (40-87 mph) on roads with clearly
visible traffic lane markings/lines.

The system uses a camera to monitor the edges
of the road and the painted side marker lines. If
the vehicle is about to cross the edge of the road,
the function will attempt to steer the vehicle back
onto the road. If this is not sufficient to keep the
vehicle on the road, the brakes will also be
applied.

However, the function will not provide either
steering assistance or braking if the turn signal is
used. The function will also not be activated if it
detects that the driver is actively operating the
vehicle.

After the system has automatically intervened,
this text message will appear in the instrument
panel:

•

Collision avoidance assistance

–

Automatic intervention

WARNING

•

The "Steering assistance at risk of run-
off" subfunction is supplementary driver
support intended to help improve driving
safety – it cannot handle all situations in
all traffic, weather and road conditions.

•

The function cannot detect barriers, rails
or similar obstacles at the side of the
road.

•

"Steering assistance at risk of run-off" is
not a substitute for the driver's attention
and judgment. The driver is always
responsible for ensuring the vehicle is
driven in a safe manner, at the appropri-
ate speed, with an appropriate distance to
other vehicles, and in accordance with
current traffic rules and regulations.

Related information

•

Steering assistance at risk of collision
(p. 383)

Run-Off Mitigation with steering

assistance levels

This function has two activation levels for inter-
vention:

•

Steering assistance only

•

Steering assistance with braking

Steering assistance only

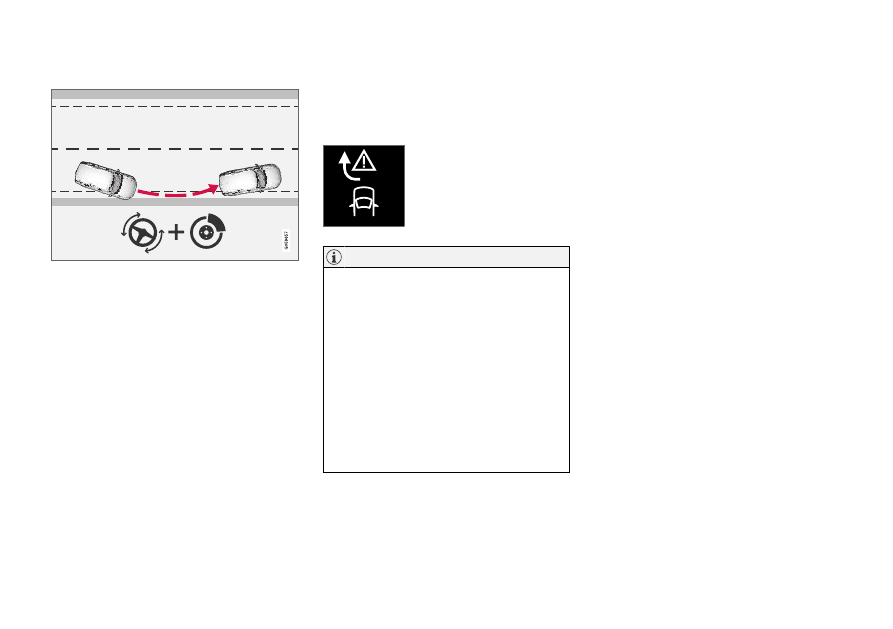

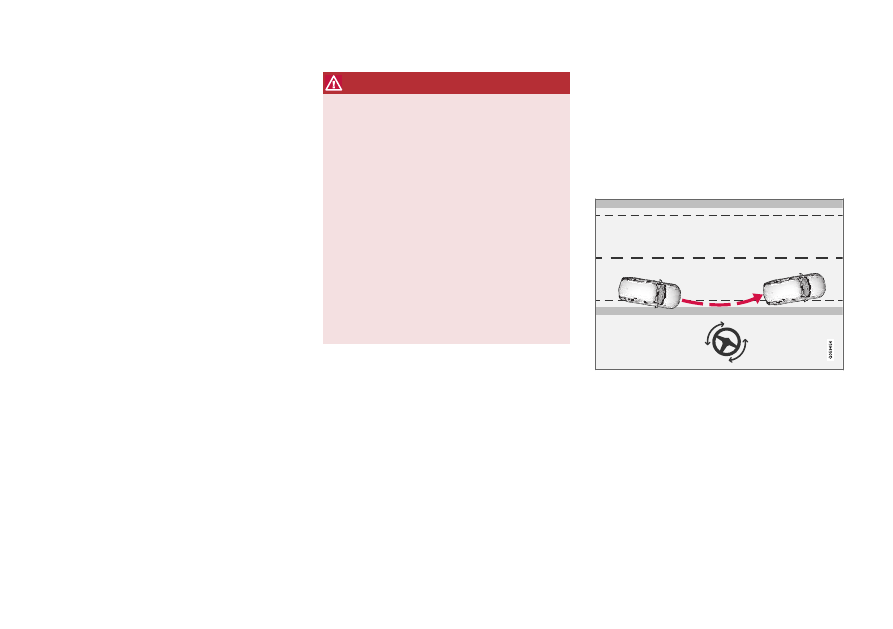

Intervention with steering assistance.

DRIVER SUPPORT

* Option/accessory.

385

Steering assistance with braking

Intervention with steering assistance and braking.

Braking intervention assists in situations where
steering assistance alone is not sufficient. Brak-
ing force is automatically adapted according to
the situation at the moment the vehicle begins to
run off the road.

Related information

•

Steering assistance at risk of collision
(p. 383)

Activating/deactivating Run-Off

Mitigation with steering assistance

The driver can choose to have this function On
or Off.

Use this button in the center
display's Function view to turn
the function On and Off.

NOTE

When the

Collision avoidance assistance

function is deactivated, all subfunctions of the
following are deactivated:

•

Steering assistance at risk of run-off

•

Steering assistance at risk of head-on
collision

•

Steering assistance during collision risks
from behind*

Although it is possible to deactivate the func-
tion, the driver is advised to keep it activated
since it can help improve driving safety in
most cases.

Related information

•

Steering assistance at risk of collision
(p. 383)

•

Run-Off Mitigation with steering assistance
(p. 384)

DRIVER SUPPORT

386

Limitations of Run-Off Mitigation

with steering assistance

In certain demanding driving conditions, the
function may not be able to properly assist the
driver. In these situations, it is recommended
that it is turned off.

Examples of such situations include:

•

road work

•

winter driving conditions

•

narrow roads

•

poor road surfaces

•

a very sporty driving style

•

bad weather with reduced visibility

•

roads with indistinct or no lane markings

•

sharp edges or lines other than the lane's
side markings

•

when the power steering works at reduced
power, e.g. during cooling due to overheating
(see section “Speed-dependent steering
force”).

NOTE

The function uses the vehicle's combined
camera and radar unit, which has certain gen-
eral limitations; see sections "Camera limita-
tions" and "Radar sensor limitations".

Related information

•

Steering assistance at risk of collision
(p. 383)

•

Speed-dependent steering wheel resistance
(p. 280)

•

Camera limitations (p. 341)

•

Radar sensor limitations (p. 336)

Steering assistance during collision

risks from oncoming traffic

This sub-function can help assist a distracted
driver who has not noticed that the vehicle is
veering into oncoming traffic.

The function provides assistance by swerving your vehi-
cle back into your own lane.

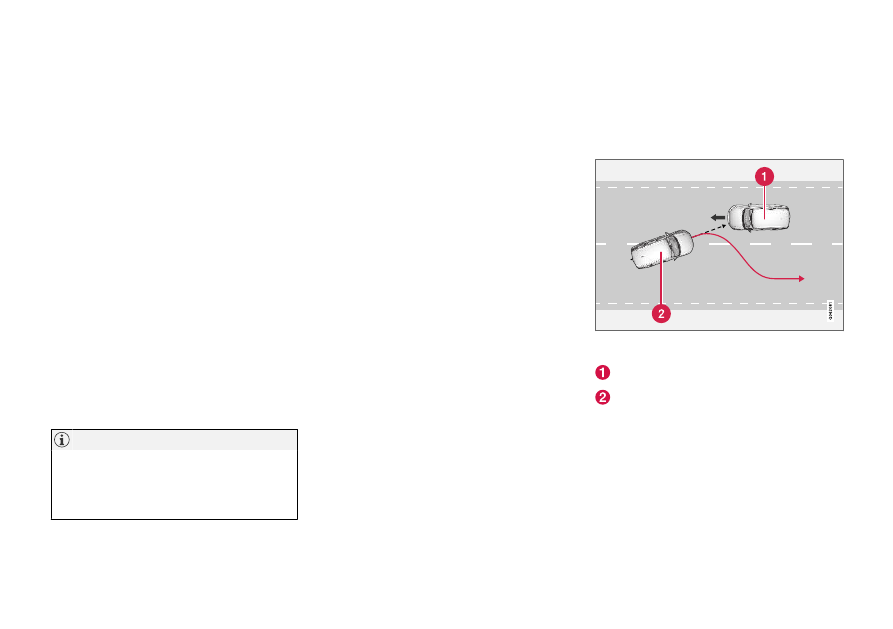

Oncoming vehicles

Own vehicle

The function is active at speeds between
60-140 km/h (37-87 mph) on roads with clearly
visible traffic lane markings/lines.

If your vehicle is starting to veer from your own
lane and a vehicle is approaching from the oppo-
site direction, this function can help the driver
steer the vehicle back into its own lane.

DRIVER SUPPORT

}}

* Option/accessory.

387

However, the function will not provide steering
assistance if the turn signal is used. The function
will also not be activated if it detects that the
driver is actively operating the vehicle.

After the system has automatically intervened,
this text message will appear in the instrument
panel:

•

Collision avoidance assistance

–

Automatic intervention

WARNING

•

The "Steering assistance at risk of head-
on collision" subfunction is supplemen-
tary driver support intended to improve
driving safety – it cannot handle all situa-
tions in all traffic, weather and road condi-
tions.

•

Pilot Assist is only activated if there is a
high risk of collision – you must therefore
never wait for the function to intervene.

•

Related information

•

Steering assistance at risk of collision
(p. 383)

•

Activating/deactivating Steering assistance
during collision risks with oncoming vehicles
(p. 387)

•

Limitations of steering assistance during col-
lision risks from oncoming traffic (p. 388)

Activating/deactivating Steering

assistance during collision risks

with oncoming vehicles

The driver can choose to have this function On
or Off.

Use this button in the center
display's Function view to turn
the function On and Off.

NOTE

When the

Collision avoidance assistance

function is deactivated, all subfunctions of the
following are deactivated:

•

Steering assistance at risk of run-off

•

Steering assistance at risk of head-on
collision

•

Steering assistance during collision risks
from behind*

Although it is possible to deactivate the func-
tion, the driver is advised to keep it activated
since it can help improve driving safety in
most cases.

Content .. 20 21 22 23 ..
