Make sure that none of the vehicle's other
12 V sockets are used while the compressor
is running.

WARNING

Never leave children unattended in the vehicle

while the engine is running.

WARNING

Inhaling exhaust fumes could lead to serious

injury. Never leave the engine running in an

enclosed space or a space without sufficient

ventilation.

8. Start the compressor by moving the switch to

the I (On) position.

WARNING

Never stand next to a tire being inflated with

the compressor. If cracks, bulges, etc. form on

the tire, switch off the compressor immedi-

ately. The vehicle should not be driven. Call

roadside assistance to have the vehicle towed

to a workshop for inspection/replacement of

the tire. Volvo recommends an authorized

workshop.

When the compressor first starts, air pressure
may temporarily increase up to 6 bar (88 psi)
but should decrease again after approxi-
mately 30 seconds.

9. Inflate the tire for 7 minutes.

To help avoid overheating, the compressor
should never be used for more than
10 minutes at a time.

WHEELS AND TIRES

586

10. Switch off the compressor and check the

inflation pressure using the air pressure
gauge. The inflation pressure should be
between 1.8 bar (22 psi) and 3.5 bar
(51 psi). If the inflation pressure is too high,
use the air release valve to release air.

WARNING

If pressure falls below 1.8 bar (22 psi), the

hole in the tire may be too large. The vehicle

should not be driven. Call roadside assistance

to have the vehicle towed to a workshop for

inspection/replacement of the tire. Volvo rec-

ommends an authorized workshop.

11. Switch off the compressor and remove the

electrical cable.

12. Unscrew the hose from the tire's valve and

screw the valve cap back on.

•

After inflating a tire, always replace the
valve cap to help prevent valve damage
caused by gravel, dirt, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.

13. Put the protective hose cover onto the hose

to help prevent leakage of any residual seal-
ing compound. Return the equipment to the
cargo compartment.

14. Immediately drive the vehicle at least 3 km

(2 miles) at a maximum speed of 80 km/h
(50 mph) to allow the sealing compound to
seal the tire, and then recheck the inflation
pressure.

During the tire's first revolution, some sealing
compound may spray out of the puncture
hole.

WARNING

Before driving away, make sure that no one is

near the vehicle who could be sprayed with

sealing compound. Make sure no one is

within 2 meters(7 feet) of the vehicle.

15. Rechecking the inflation pressure

Connect the hose to the tire's valve and
screw the hose connector onto the valve as
far as possible. The compressor must be
switched off.

16. Check the inflation pressure on the air pres-

sure gauge.

•

If the pressure is under 1.3 bar (19 psi),
the tire is not sufficiently sealed. The vehi-
cle should not be driven. Call roadside
assistance to have the vehicle towed.

•

If the inflation pressure is higher than
1.3 bar (19 psi), the tire must be inflated
to the inflation pressure specified on the
tire pressure decal on the driver's side
door pillar (1 bar = 100 kPa = 14.5 psi). If
the inflation pressure is too high, use the
air release valve to release air.

Replace the sealing compound bottle and
hose after use. Volvo recommends having
these replaced by an authorized Volvo work-
shop.

WARNING

Check inflation pressure regularly.

Volvo recommends driving to the nearest author-
ized Volvo workshop to have the tire replaced/
repaired. Inform the workshop that the tire con-
tains sealing compound.

WHEELS AND TIRES

}}

587

The sealing compound bottle must be replaced
after use. Volvo recommends contacting an
authorized Volvo workshop for replacement.

WARNING

After using the tire sealing system, the vehicle

should not be driven farther than approxi-

mately 200 km (120 miles).

Recommended tire pressure (p. 569)

The compressor is an electric device. Follow
local regulations for disposal.

Related information

•

•

Tire sealing system (p. 582)

•

Inflate tires with the compressor included in
the tire sealing system (p. 587)

Inflate tires with the compressor

included in the tire sealing system

The vehicle's original tires can be inflated using
the compressor in the tire sealing system.

1. The compressor must be switched off. Make

sure that the switch is in the 0 (Off) position
and take out the electrical cable and the
hose.

2. Unscrew the tire's valve cap and screw the

hose's valve connector as far as possible
onto the valve.

Be sure the air release valve on the com-
pressor's hose is completely closed.

3. Connect the electrical cable to the nearest

12 V outlet and start the vehicle.

WARNING

Inhaling exhaust fumes could lead to serious

injury. Never leave the engine running in an

enclosed space or a space without sufficient

ventilation.

WARNING

Never leave children unattended in the vehicle

while the engine is running.

4. Start the compressor by moving the switch to

the I (On) position.

Risk of overheating. The compressor should
not be running for longer than 10 minutes at
a time.

5. Inflate the tire to the pressure specified on

the tire pressure decal on the driver's side
door pillar. If the inflation pressure is too
high, use the air release valve to release air.

6. Switch off the compressor. Remove the hose

and the electrical cable.

7. Screw the valve cap back onto the tire.

•

After inflating a tire, always replace the
valve cap to help prevent valve damage
caused by gravel, dirt, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.

Recommended tire pressure (p. 569)

The compressor is an electric device. Follow
local regulations for disposal.

WHEELS AND TIRES

588

Related information

•

•

Using the tire sealing system (p. 583)

•

Tire sealing system (p. 582)

Determining the vehicle's permitted

weight

Properly loading your vehicle will provide maxi-
mum return of vehicle design performance.

Weight designations

Before loading your vehicle, familiarize yourself
with the following terms for determining your
vehicle's weight ratings, with or without a trailer,
from the vehicle's Federal/Canadian Motor Vehi-
cle Safety Standards (FMVSS/CMVSS) label, and
the vehicle's tire information placard:

Curb weight

The weight of the vehicle including a full tank of
fuel and all standard equipment. It does not
include passengers, cargo, or optional equipment.

Capacity weight

All weight added to the curb weight, including
cargo and optional equipment. When towing, tow-
bar weight is also part of cargo weight.

Permissible axle weight

The maximum allowable weight that can be car-
ried by a single axle (front or rear). These num-
bers are shown on the Federal/Canadian Motor
Vehicle Safety Standards (FMVSS/CMVSS) label.
The total load on each axle must never exceed its
maximum permissible weight.

Gross vehicle weight (GVW)

The vehicle's curb weight + cargo + passengers.

Steps for Determining Correct Load
Limit

1. Locate the statement "the combined weight

of occupants and cargo should never exceed
XXX kg or XXX lbs." on your vehicle's plac-
ard.

2. Determine the combined weight of the driver

and passengers that will be riding in your
vehicle.

3. Subtract the combined weight of the driver

and passengers from XXX kg or XXX lbs.

4. The resulting figure equals the available

amount of cargo and luggage load capacity.
For example, if the "XXX" amount equals
1400 lbs. and there will be five 150 lb. pas-
sengers in your vehicle, the amount of availa-
ble cargo and luggage load capacity is 650
lbs. (1400 - 750 (5 × 150) = 650 lbs.)

5. Determine the combined weight of luggage

and cargo being loaded on the vehicle. That
weight may not safely exceed the available
cargo and luggage load capacity calculated
in Step 4.

6. If your vehicle will be towing a trailer, load

from your trailer will be transferred to your
vehicle. Consult this manual to determine
how this reduces the available cargo and lug-
gage load capacity of your vehicle.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

592

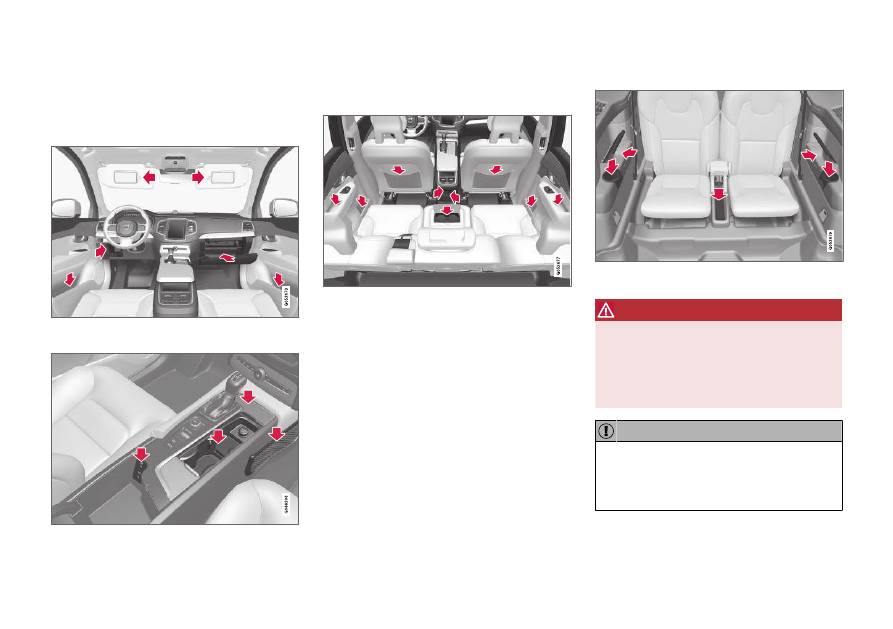

Passenger compartment interior

Overview of the passenger compartment interior
and storage spaces.

Front seats

Storage compartment in the door panel and near the
steering wheel, glove compartment and sun visors.

Storage compartments with cup holders, net pocket*,
electrical outlets and USB ports in the tunnel console.

Rear seat

Second row of seats

Storage compartment in the door panel, cup holders* in
the center seat's backrest, storage pocket* in the front
seat's backrest and electrical outlets in the tunnel con-
sole.

Third row of seats*

Storage compartment and cup holders in the side panel
and storage compartment between the seats.

WARNING

Store loose objects, such as cell phone, cam-

era, remote control for extra equipment, etc.,

in the glove compartment or another compart-

ment. Otherwise, these could injure people in

the vehicle in the event of hard braking or a

collision.

Electrical outlets (p. 594)

Keep in mind that glossy surfaces can be
easily scratched by e.g. metal objects. Do not
place keys, phones or similar items on sensi-
tive surfaces.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

593

Related information

•

•

Using the glove compartment (p. 597)

•

Sun visors (p. 598)

•

Tunnel console (p. 593)

•

Connecting a device via the USB port
(p. 525)

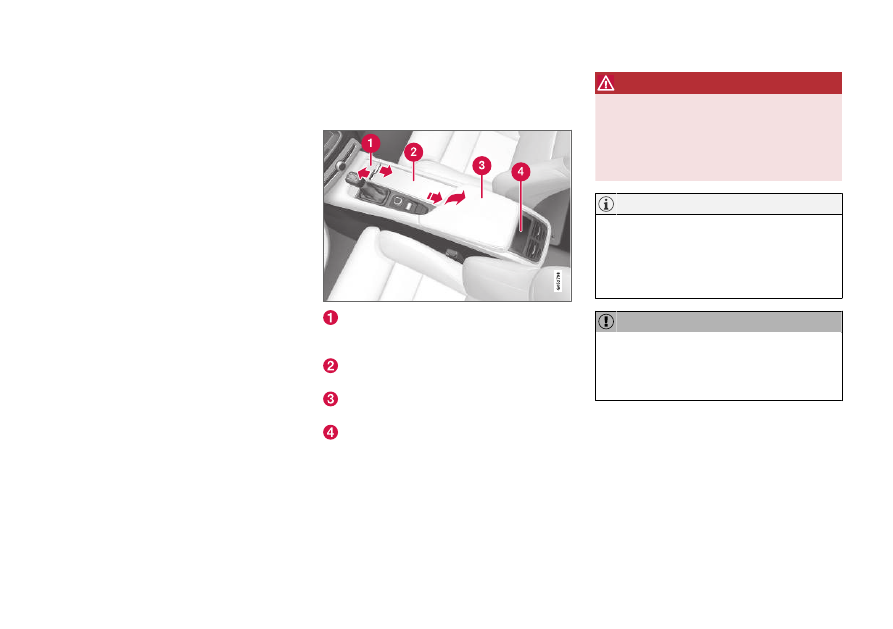

Tunnel console

The tunnel console is located between the front
seats.

Storage compartment with cover*. The cover
can be opened/closed by pressing the han-
dle.
Storage compartment with cup holder and
12 V socket.
Storage compartment and USB port under
the armrest.
Climate control panel for the rear seats* or
storage compartment.

WARNING

Store loose objects, such as cell phone, cam-

era, remote control for extra equipment, etc.,

in the glove compartment or another compart-

ment. Otherwise, these could injure people in

the vehicle in the event of hard braking or a

collision.

One of the sensors for the alarm* is located
under the cup holder in the center console.
Avoid placing coins, keys and other metal
objects in the cup holder as this could trigger
the alarm.

Keep in mind that glossy surfaces can be
easily scratched by e.g. metal objects. Do not
place keys, phones or similar items on sensi-
tive surfaces.

Related information

•

Electrical outlets (p. 594)

•

•

Climate system controls (p. 215)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

594

Electrical outlets

There are two 12 V electrical outlets and one
120 V electrical outlet* in the tunnel console,
and one 12 V electrical outlet* in the trunk/cargo
compartment.

If a problem occurs with an electrical socket,
contact a workshop - an authorized Volvo work-
shop is recommended.

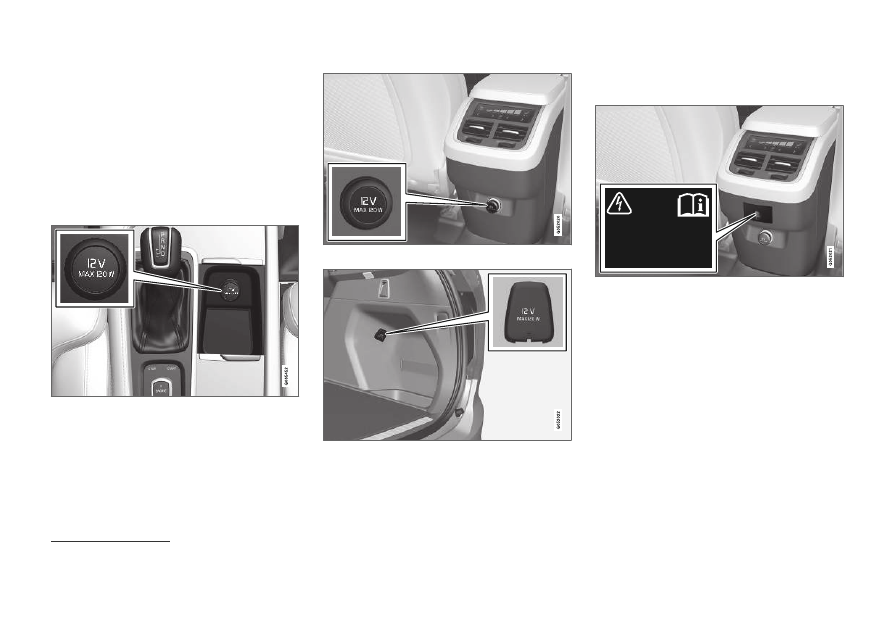

12 V outlets

12 V outlet in the tunnel console, front seat.

The 12 V outlets can be used for devices
intended for this such as MP3 players, coolers
and cellular phones.

12 V outlet in the tunnel console, second row of seats.

12 V outlet in the cargo compartment*.

Electrical outlets in the tunnel console -
rear seat*

Electrical outlet in the tunnel console, second row of
seats.

The high-voltage outlet* can be used for devices
intended for this, such as chargers, laptops, etc.

High-voltage outlet status indicator
light

An LED

light on the outlet indicates its status:

LED (Light Emitting Diode)

LOADING, STORAGE AND PASSENGER COMPARTMENT

595

Status indicator light

Cause

Action

Steady green light

The outlet is providing electrical current to a connected device.

None.

Flashing orange light The outlet's voltage converter is too hot (e.g. if the device draws too much cur-

rent or if the temperature in the passenger compartment is very high).

Unplug the device, let the voltage converter cool
down and plug in the device again.

The connected device is drawing too much current (at the moment or con-
stantly) or is not functioning properly.

None. The device cannot be used in the outlet.

Indicator light off

The outlet has not detected a device plugged into the outlet.

Make sure the device is correctly plugged into
the outlet.

The outlet is not active.

Make sure the vehicle's ignition is in at least
mode I.

The outlet has been active but has been deactivated.

Start the engine and/or charge the start battery.

Related information

•

Using the electrical outlets (p. 596)

•

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

596

Using the electrical outlets

The 12 V outlet can be used for devices
intended for this such as MP3 players, coolers
and cellular phones.

The high-voltage outlet* can be used for devices
intended for this, such as chargers, laptops, etc.

The ignition must be in at least mode I for the
outlets to supply current. The outlets will then be
active as long as there is sufficient charge in the
start battery.

If the engine is turned off and the vehicle is
locked, the outlets will be deactivated. If the
engine is turned off and the vehicle remains
unlocked, the sockets will remain active for up to
7 minutes.

Bear in mind that using the electrical outlets
when the engine is off could cause the starter
battery to have too low of a charge level,
which could limit other functionality.

Accessories connected to the electrical out-
lets can be activated even when the vehicle
electrical system is off or if preconditioning is
used. For this reason, disconnect plugs when
they are not in use to prevent the starter bat-
tery from becoming discharged.

WARNING

•

Do not use accessories with large or
heavy plugs – they could damage the out-
let or come loose while you are driving.

•

Do not use accessories that could cause
disruptions to e.g. the vehicle's radio
receiver or electrical system.

•

Position the accessory so that there is no
risk of it injuring the driver or passengers
in the event of heavy braking or a colli-
sion.

•

Pay attention to connected accessories
as they can generate heat that could burn
passengers or the interior.

Using 12 V outlets

1. Remove the stopper (tunnel console) or fold

down the cover (trunk/cargo compartment)
over the socket and plug in the device.

2. Unplug the device and put the stopper back

in (tunnel console) or fold up the cover
(trunk/cargo compartment) when the socket
is not in use or left unattended.

The maximum power is 120 W (10 A) per
outlet.

Using high-voltage outlets

The ignition must be in at least mode I for outlets
to supply current. The outlets will then be active
as long as there is sufficient charge in the start
battery.

1. Slide down the cover over the outlet and plug

in the device.
> The LED

light on the outlet will indicate

its status.

2. The outlet is supplying electrical current

when the light is glowing steadily green.

3. Disconnect the device by pulling out the plug

(do not pull on the cord).

Pull up the cover when the outlet is not in
use or is left unattended.

Electrical outlets (p. 594)

The maximum power is 150 W.

WARNING

Do not attempt to alter or repair the high-volt-

age outlet on your own. Volvo recommends

contacting an authorized Volvo workshop.

LED (Light Emitting Diode)

LOADING, STORAGE AND PASSENGER COMPARTMENT

597

WARNING

•

Only use accessories that are not dam-
aged or malfunctioning. The accessories
must be designed for 120 V and 60 Hz,
with plugs intended for the outlet. The
accessories must be CE marked, UL
marked or have an equivalent safety
marking.

•

New let outlets, plugs or accessories
come into contact with water or another
fluid. Do not touch or use the outlet if it
appears damaged or has been in contact
with water or another fluid.

•

Do not connect power strips, adapters or
extension cords to the outlet has this
could cause the outlet's safety functions
to malfunction.

•

The outlet is equipped with a pet guard.
Make sure that no one picks at or dam-
ages the outlet in such a way that the
guard is disabled. Children should not be
left unsupervised in the vehicle when the
outlet is active.

Failure to follow the above could lead to

severe or fatal electrical shocks.

Related information

•

•

Using the glove compartment

The glove compartment is located on the pas-
senger side. The glove compartment can be
used to store the Owner's Manual, maps, etc.
There is also room for a pen and a card holder.

Glove compartment and opening button on the center
console.

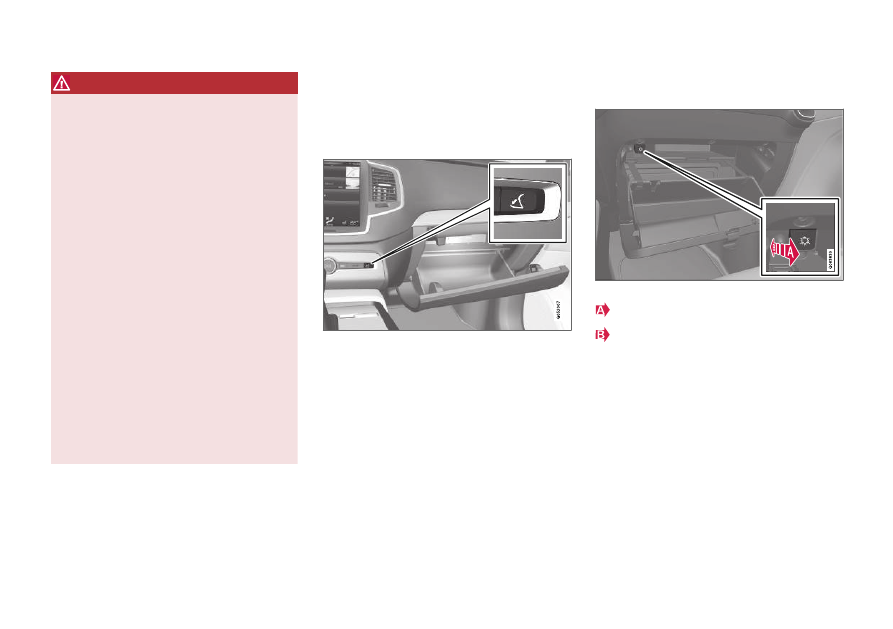

The glove compartment is opened by pressing
the opening button in the center console.

Locking and unlocking the glove box

The glove compartment can be locked ("private
locking") when the vehicle is left at a workshop,
hotel, etc. When private locking is activated, the
tailgate is also locked.

Using the glove box as a cooled area

The glove compartment can be used to cool e.g.
drinks or food. Cooling is possible when the cli-

mate system is active (i.e. when the ignition is in
mode II or when the engine is running).

The illustration is generic – the design may vary.

Activate cooling

Deactivate cooling

–

Activate or deactivate cooling by moving the
control as far as possible toward the passen-
ger compartment/glove compartment.

Related information

•

•

Private Locking (p. 271)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

598

Sun visors

In the ceiling in front of the driver and front pas-
senger, there are sun visors that can be lowered
and angled to the side as necessary.

The illustration is generic – the design may vary.

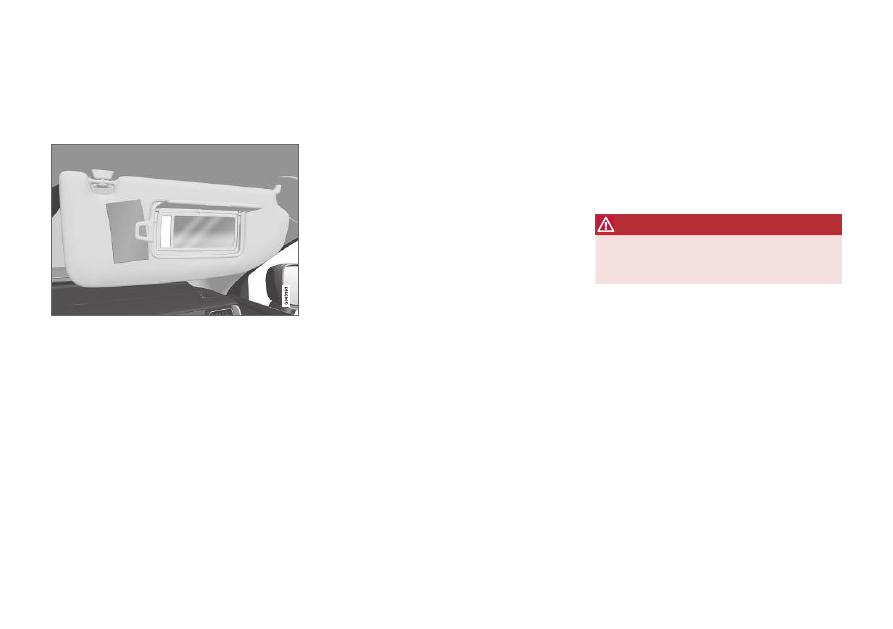

The mirror lighting* comes on automatically when
the cover is lifted up.

The mirror frame has a holder for e.g. cards or
tickets.

Related information

•

Cargo compartment

The vehicle has a flexible cargo compartment
that makes it possible to carry and secure large
objects.

The cargo compartment capacity can be consid-
erably increased by folding down the backrests in
the second and third rows* of seats. To make
loading and unloading easier, the rear section of
the vehicle can be raised and lowered using the
level control function*. Use the load anchoring
eyelets or grocery bag holders to help secure
objects in place, and the retractable cargo com-
partment cover* to help conceal objects in the
cargo compartment.

If the vehicle is equipped with a temporary spare
tire, this is secured to the cargo compartment
floor under the cover. The towing eyelet and tire
sealing system are located under the cargo com-
partment floor.

Related information

•

Grocery bag holders (p. 600)

•

•

Load anchoring eyelets (p. 601)

•

Installing and removing the cargo compart-
ment cover* (p. 601)

Loading recommendations

There are a number of things to consider when
carrying loads in or on the vehicle.

Load-carrying capacity is determined by the vehi-
cle's curb weight. The total weight of all passen-
gers and any installed accessories reduces the
vehicle's load-carrying capacity by the corres-
ponding amount.

WARNING

The vehicle's driving characteristics change

depending on the weight and position of the

load.

Loading the cargo compartment/trunk

•

Position objects so they are pressing against
the rear seat backrests.

•

Distribute the load evenly.

•

Heavy objects should be positioned as low
as possible. Avoid placing heavy objects on
folded-down seat backrests.

•

Cover sharp corners with a soft cloth or simi-
lar to help prevent damage to the upholstery.

•

Use the load anchoring eyelets and tension-
ing straps or similar to secure all objects.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

599

WARNING

In a head-on collision at a speed of 50 km/h

(30 mph), an unsecured object weighing 20

kg (44 pounds) can reach a projectile weight

equivalent to 1000 kg (2200 pounds).

WARNING

If objects are loaded higher than the upper

edge of the side windows, leave a 10 cm (4

in.) space between the objects and the win-

dow. Objects placed closer to this could

impede the function of the inflatable curtain

concealed inside the headlining.

WARNING

Always secure the load. Otherwise, it may shift

during heavy braking and injure people in the

vehicle.
Cover sharp edges and sharp corners with

something soft.
Turn off the engine and apply the parking

brake when loading/unloading long objects.

Otherwise, it is possible for the load to reach

the gear lever or gear selector and move it to

a drive position – which could cause the vehi-

cle to begin rolling.

Extra cargo space

The rear seat backrests can be folded down to
increase cargo compartment space and simplify
loading. If the rear seat backrests are folded

down, make sure that no objects loaded into the
vehicle prevent the WHIPS system for the front
seats from functioning correctly.

Raising/lowering the rear end of the
vehicle*

The rear end of the vehicle can be lowered or
raised for easier loading or to facilitate attaching
a trailer*.

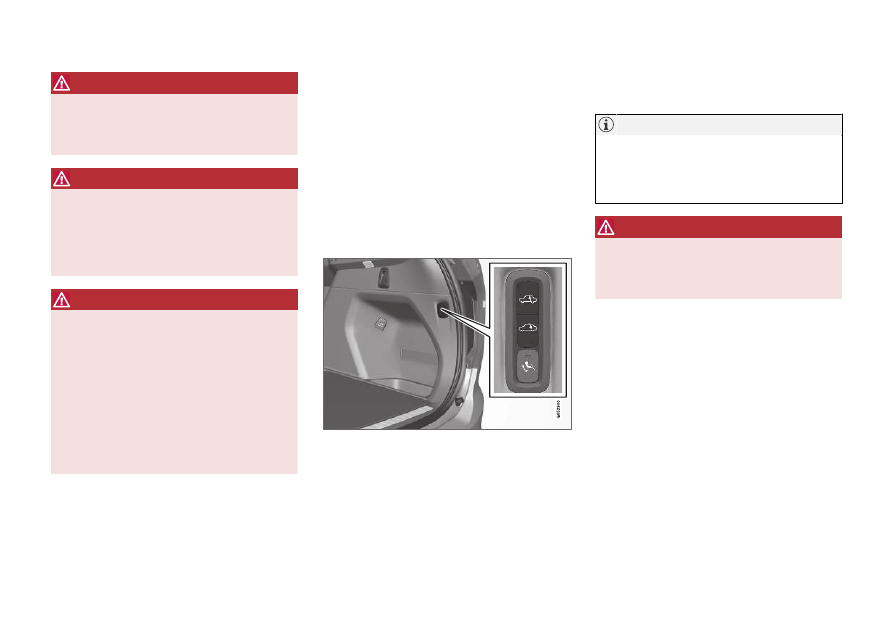

The controls for raising/lowering are located at
the rear edge of the cargo compartment's right
side panel.

Controls for raising/lowering the rear end of the vehicle.

The controls consist of two buttons

‒ one button

for lowering and one button for raising the rear
end. Press and hold the relevant button until the
desired height is reached.

The rear end of the vehicle cannot be raised
higher than its normal height.

The rear end will return to the normal height
when the vehicle begins driving.

Load anchoring eyelets (p. 601)

It is not possible to adjust the height of the
vehicle's rear when one or more of the doors
or the hood is open. This does not apply to
the tailgate.

WARNING

Make sure that no people, animals or objects

are found under the vehicle when it is low-

ered. This could endanger life and cause

damage to the vehicle or objects.

Related information

•

•

Folding the second row backrests (p. 193)

•

Roof loads and load carriers (p. 600)

•

Leveling control* and suspension (p. 461)

•

Weights (p. 669)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

600

Roof loads and load carriers

Volvo-developed load carriers are recommended
for carrying loads on the roof of the vehicle.

Volvo load carriers are specially designed to help
prevent damage to your vehicle and help ensure
maximum safety while driving. Volvo load carriers
are available from authorized Volvo retailers.

Carefully follow the installation instructions provi-
ded with the load carriers.

•

Distribute the load evenly throughout the
load carriers. Place heavier cargo at the bot-
tom of the load.

•

Check periodically to ensure that the load
carriers and load are properly secured.
Secure the load firmly using tie straps or
similar.

•

If the load is longer than the vehicle, such as
a canoe or kayak, attach the towing eyelet in
its front outlet and secure the tie straps in it.

•

The vehicle's wind resistance and fuel con-
sumption increase with the size of the load.

•

Drive smoothly. Avoid rapid acceleration, hard
braking and fast cornering.

WARNING

The vehicle's center of gravity and driving

characteristics are altered by roof loads.
Follow the vehicle's specifications regarding

weights and maximum permitted load.

Related information

•

•

Weights (p. 669)

Grocery bag holders

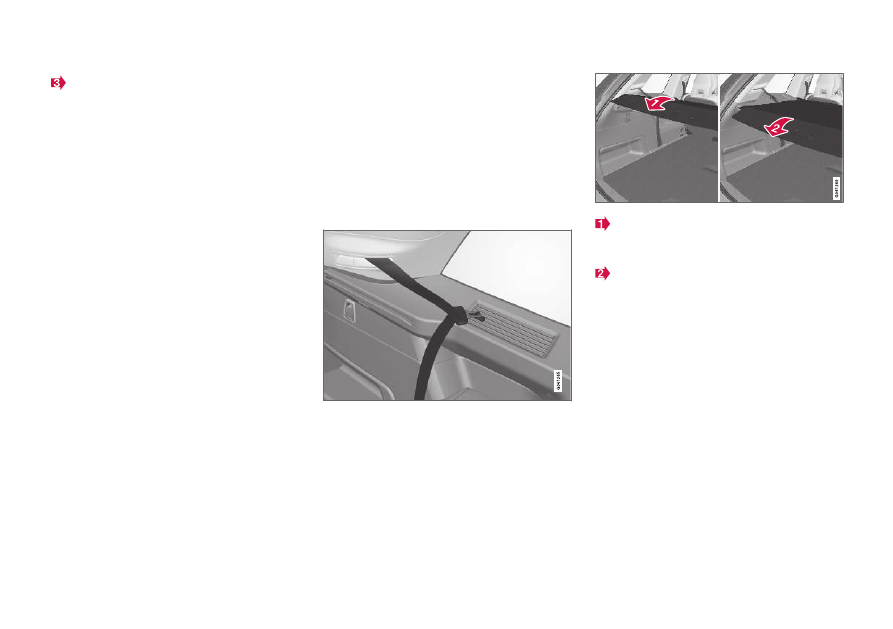

Grocery bag holders (hooks) help keep shop-
ping bags in place and prevent them from falling
over and spilling their contents in the cargo
compartment.

On the sides of the cargo compartment

There are two fold-out holders in the side panels,
one on each side of the cargo compartment.

The grocery bag holders are only intended to
hold weights up to 5 kg (11 lbs).

Related information

•

Installing and removing the cargo net*
(p. 606)

•

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

601

•

Installing and removing the cargo compart-
ment cover* (p. 601)

•

Installing and removing the steel cargo grid*
(p. 604)

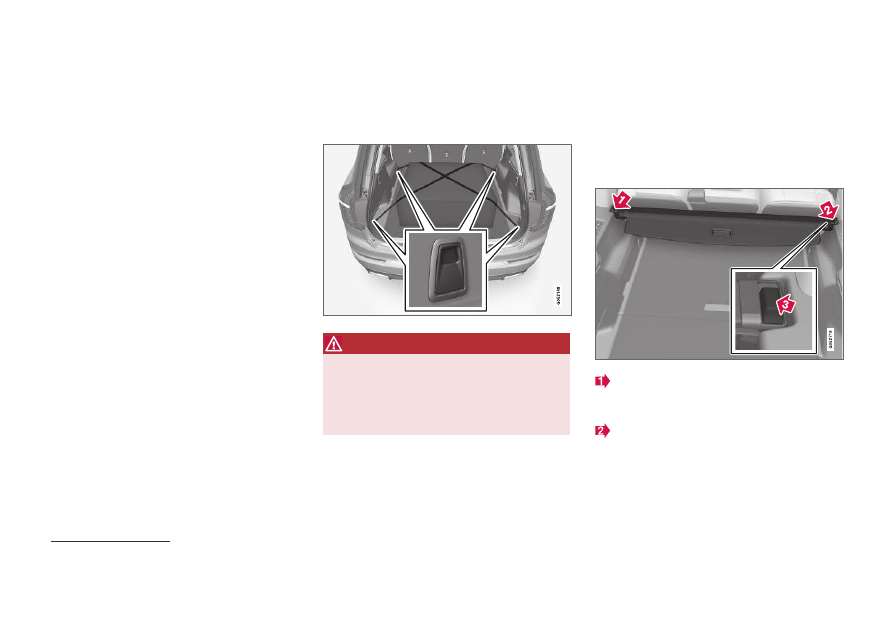

Load anchoring eyelets

The load anchoring eyelets in the cargo com-
partment can be used to secure objects with
straps, a net, etc.

WARNING

Hard, sharp and/or heavy objects in or pro-

truding from the vehicle can cause injury in

the event of hard braking.
Always secure large and heavy objects with a

seat belt or cargo retaining straps.

Related information

•

Operating the cargo compartment cover*
(p. 602)

•

Weights (p. 669)

Installing and removing the cargo

compartment cover*

The cover can be rolled out to conceal objects
in the cargo compartment.

Installing the cargo compartment
cover

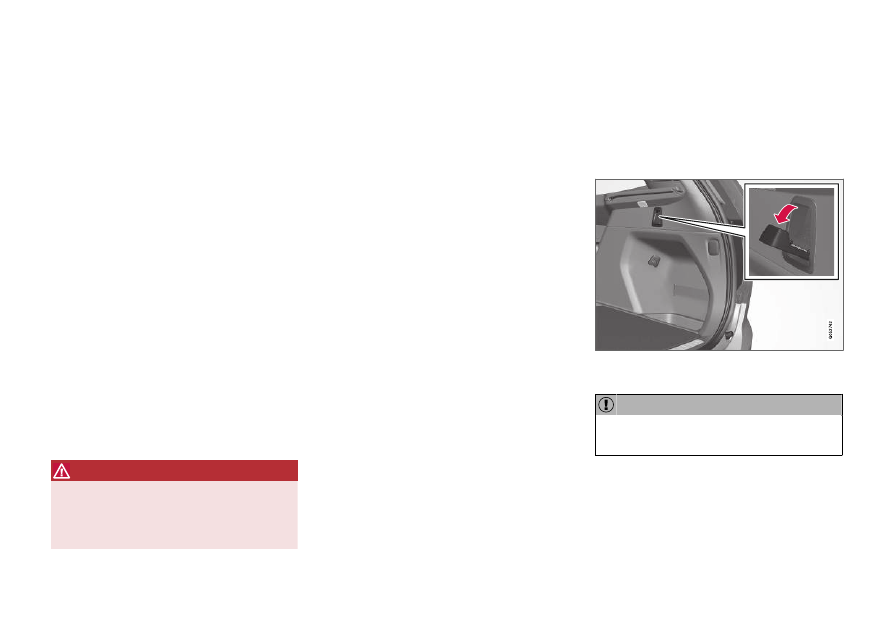

Press the end piece on one side of the cover
into the retaining bracket in the side panel of
the cargo compartment.

Then put the other end piece in the recess in
the side panel on the opposite side.

In the XC90 Excellence, the cargo compartment cover is permanently fixed and cannot be taken out or put in.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

602

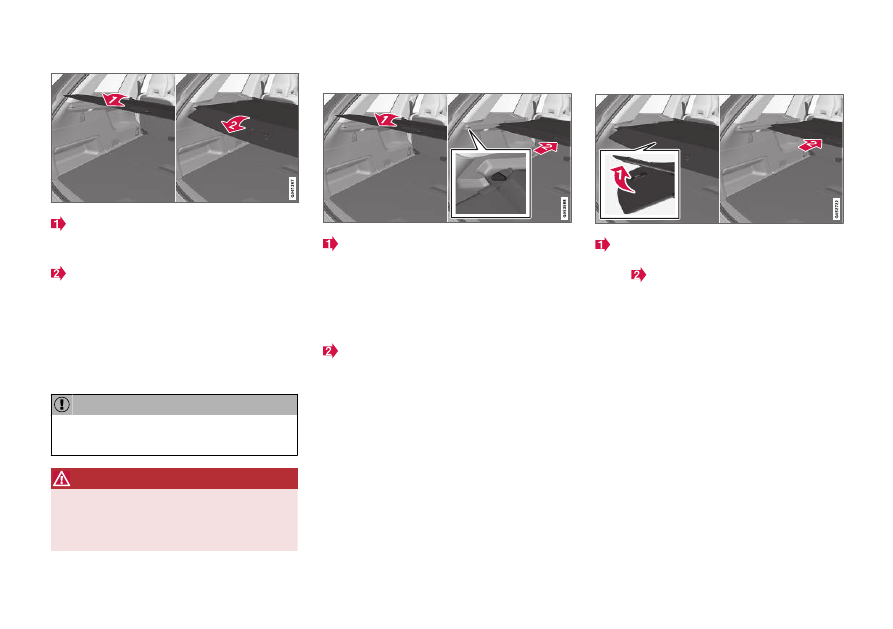

Push the end piece down on both sides, one
at a time.
> When a click is heard and the red marks

on each end piece are no longer visible,
the cover is in place. Check that it is
secure.

Removing the cargo compartment
cover

In retracted position:

1. Press the button on one of the cover's ends

and lift out that end.

For 7-seat models - remove the third row
seat belt latches from the hooks above the
side panels.

2. Carefully lift the cover up and out.

> The other end will release automatically

and the cover can then be lifted out of the
cargo compartment.

Related information

•

•

Operating the cargo compartment

cover*

The cover can be used in two positions: fully
open to completely cover the cargo compart-
ment or partially retracted to make it easier to
reach further into the cargo compartment.

Fully open

7-seat models

Hang the third-row seat belt latches in the
hooks provided in the side panels.

Grasp the handle and pull the cover out and
above the side panels in the cargo compart-
ment. Pull the cover to its end position.

With the cover completely open (covering the
cargo compartment), press the attaching
pins at the end of the cover into the grooves
on the side panels and release the cover
slightly while pressing the handle lightly
downward to hook the pins into the grooves.
> The cover will be secured in the fully open

position.

5-seat models

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

603

Grasp the handle and pull the cover out and
above the side panels in the cargo compart-
ment. Pull the cover to its end position.

position.
