Volvo V40 Cross Country (2018 year). Instruction

MAINTENANCE AND SERVICE

378

fabric care product is available for purchase from
a Volvo dealer.

Leather upholstery

Volvo's leather upholstery is treated to preserve
its original appearance.

Leather upholstery is a natural product that
changes and acquires a beautiful patina over
time. Regular cleaning and treatment are
required in order that the properties and colours
of the leather shall be preserved. Volvo offers a
comprehensive product, Volvo Leather Care Kit/
Wipes, for the cleaning and treatment of leather
upholstery which, when used in accordance with
the instructions, preserves the leather's protective
coating.

To achieve best results, Volvo recommends the
cleaning and application of the protective cream
once to four times per year (or more if required).
The Volvo Leather Care Kit/Wipes is available for
purchase from a Volvo dealer.

Leather steering wheel

Leather needs to breathe. Never cover the
leather steering wheel with protective plastic.
Volvo Leather Care Kit/Wipes is recommended
for cleaning the leather steering wheel.

Interior plastic, metal and wood parts

A fibrillated fibre or microfibre cloth, lightly mois-
tened with water, available from a Volvo dealer, is
recommended for cleaning interior parts and sur-
faces.

Do not scrape or rub stains. Never use strong
stain removers. A special cleaning agent available
from Volvo dealers can be used for more difficult
cleaning.

Seatbelts

Use water and a synthetic detergent. A special
textile cleaning agent is available from a Volvo
dealer. Ensure that the seatbelt is dry before
allowing it to retract.

Inlay mats and floor mat

Remove inlaid carpets for separate cleaning of
the floor carpet and the inlaid carpets. Use a vac-
uum cleaner to remove dust and dirt. Each inlay
mat is secured with pins.

Remove the inlay mat by taking hold of the inlay
mat at each pin and lifting the mat straight up.

Fit the inlay mat in place by pressing it in at each
pin.

WARNING

Only use one inlaid mat at each seat, and

check before setting off that the mat by the

driver's seat is firmly affixed and secured in

the pins so that it does not get caught adja-

cent to and under the pedals.

A special textile cleaner is recommended for
stains on the floor mat after vacuuming. Floor
mats must be cleaned with agents recommended
by a Volvo dealer.

Related information

•

Car wash (p. 374)

MAINTENANCE AND SERVICE

}}

379

Paint damage

Paint is an important part of the car's rustproof-
ing and should therefore be checked regularly.
The most common types of paintwork damage
are stone chips, scratches, and marks on the
edges of wings, doors and bumpers.

Touching up minor paintwork damage

To avoid the onset of rust, damaged paintwork
should be rectified immediately.

Materials that may be needed

•

Primer

- a special adhesive primer in a

spray can is available for e.g. plastic-coated
bumpers.

•

Base coat and clear coat - are available in
spray cans or as touch-up pens/sticks

•

Masking tape.

•

Fine sand paper

Colour code

The label for colour code is located on the car's
door pillar and is visible when the right-hand rear
door is opened.

Exterior colour code

Any secondary exterior colour code

It is important that the correct colour is used. For
product label location, see Type designations
(p. 382).

Repair minor paintwork damage such
as stone chips and scratches

G021832

Before work is begun, the car must be clean and
dry and at a temperature above 15 °C.

1. Apply a piece of masking tape over the dam-

aged surface. Then remove the tape to
remove any loose paint.

If the damage is down to the metal, use of a
primer is appropriate. In the event of damage
to a plastic surface, an adhesive primer
should be used to give better results - spray
into the lid of the spray can and brush on
thinly.

If required.

Follow the instructions that are included with the package for the touch-up pen/stick.

SPECIFICATIONS

384

contact with an authorised Volvo dealer regarding
the car and when ordering spare parts and
accessories.

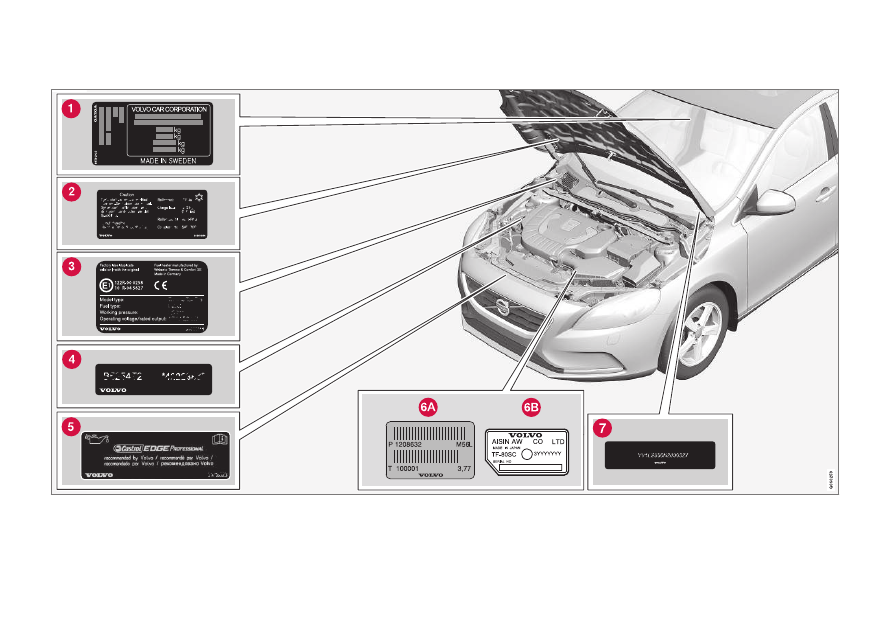

Decal for type designation, vehicle identifica-
tion number, permissible maximum weights
and code designation for exterior colour and
date of manufacture. The decal is positioned
on the door pillar, and will be visible when the
right-hand rear door is opened.
Label for A/C system.

Label for parking heater.

Decal for engine code and the engine's
serial number.
Label for engine oil.

Decal for gearbox type designation and serial
number.

Manual gearbox

Automatic gearbox

Decal for the car's identification number -
VIN (Vehicle Identification Number).

Further information on the car is presented in the
registration document.

NOTE

It is not intended that the decals illustrated in
the owner's manual should be exact replicas
of those in the car. They are included to show
their approximate appearance and locations
in the car. The information that applies to your
particular car can be found on the decal on
the car.

Related information

•

Weights (p. 386)

•

Engine specifications (p. 389)

SPECIFICATIONS

385

Dimensions

Measurement of car length, height, etc. can be
read in the table.

V40 CROSS COUNTRY.

Dimensions

A Wheelbase

2647

B Length

4370

C Load length, floor, folded rear

seat

1508

D Load length, floor

684

Height

1458

Dimensions

Load height

532

G Front track

1552

1547

H Rear track

1540

1535

Load width, floor

960

Dimensions

Width

1802

K Width including door mirrors

2041

Width including folded-in door
mirrors

1857

Offset 50 mm.

Offset 52.5 mm.

SPECIFICATIONS

386

Weights

Max. gross vehicle weight, etc. can be read on a
label in the car.

Kerb weight includes the driver, the fuel tank
90% full and all fluids.

The weight of passengers and accessories, and
towball load (p. 387) (when a trailer is hitched)
influence the load capacity and are not included
in the kerb weight.

Permitted max. load = Gross vehicle weight -
Kerb weight.

NOTE

The documented kerb weight applies to cars
in the standard version - i.e. a car without
extra equipment or accessories. This means
that for every accessory added the loading
capacity of the car is reduced correspondingly
by the weight of the accessory.

Examples of accessories that reduce load
capacity are the different equipment levels
(e.g. Kinetic, Momentum, Summum), as well
as other accessories such as towbar, load
carrier, space box, audio system, auxiliary
lamps, GPS, fuel-driven heater, safety grille,
carpets, cargo cover, power seats, etc.

Weighing the car is a certain way of ascer-
taining the kerb weight of your own particular
car.

WARNING

The car's driving characteristics change

depending on how heavily it is loaded and

how the load is distributed.

For information on label location, see Type designations

(p. 382).

Max. gross vehicle weight

Max. train weight (car+trailer)

Max. front axle load

Max. rear axle load

Equipment level

Max. load: See registration document.

Max. roof load: 75 kg.

Related information

•

Towing capacity and towball load (p. 387)

SPECIFICATIONS

}}

387

Towing capacity and towball load

Towing capacity and towball load for driving with
a trailer can be read in the tables.

Max. weight braked trailer

NOTE

Not all engines are available in all markets.

V40CC

Engine

Engine code

Gearbox

Max. weight braked trailer (kg)

Max. towball load (kg)

B4204T37

Manual, M76

1500

B4154T4

Automatic, TF-71SC

1500

B4204T19

Manual, M76

1500

B4204T19

Automatic, TF-71SC

1500

T4 AWD

B4204T21

Automatic, TG-81SC

1500

B4204T15

Automatic, TG-81SC

1500

B4204T41

Automatic, TG-81SC

1500

T5 AWD

B4204T41

Automatic, TG-81SC

1500

T5 AWD

B4204T11

Automatic, TG-81SC

1500

D4204T8

Manual, M76

1500

D4204T8

Automatic, TF-71SC

1500

D4204T9

Manual, M76

1500

D4204T9

Automatic, TF-71SC

1500

SPECIFICATIONS

388

V40CC

Engine

Engine code

Gearbox

Max. weight braked trailer (kg)

Max. towball load (kg)

D4204T14

Manual, M66

1500

D4204T14

Automatic, TG-81SC

1500

V40 CROSS COUNTRY

Engine code, component and serial number can be read on the engine; see Type designations (p. 382).

Max. weight unbraked trailer

V40CC

Engine

Max. weight unbraked trailer (kg)

Max. towball load (kg)

T4 AWD

T5 AWD

750

other

700

V40 CROSS COUNTRY

Related information

•

Weights (p. 386)

•

Driving with a trailer (p. 303)

•

Trailer Stability Assist - TSA (p. 310)

SPECIFICATIONS

389

Engine specifications

Engine specifications (output etc.) for each
respective engine alternative can be read in the
table.

NOTE

Not all engines are available in all markets.

V40CC

Engine

Engine code

Output (kW/

rpm)

Output (hp/

rpm)

Torque (Nm/rpm)

No. of cyl-

inders

Bore

(mm)

Stroke

(mm)

Swept vol-

ume (litres)

Compres-

sion ratio

B4154T4

112/5000

152/5000

250/1700–4000

82.0

70.9

1.498

10.5:1

B4204T37

112/5000

152/5000

250/1300–4000

82.0

93.2

1.969

11.3:1

B4204T19

140/4700

190/4700

300/1300–4000

82.0

93.2

1.969

11.3:1

T4 AWD

B4204T21

140/5000

190/5000

320/1500–4000

82.0

93.2

1.969

10.8:1

B4204T15

162/5500

220/5500

350/1500–4000

82.0

93.2

1.969

10.8:1

T5 / T5 AWD

B4204T41

180/5500

245/5500

350/1500–4800

82.0

93.2

1.969

8.6:1

T5 AWD

B4204T11

180/5500

245/5500

350/1500–4800

82.0

93.2

1.969

10.8:1

D4204T8

88/3750

120/3750

280/1500-2250

82.0

93.2

1.969

16.0:1

D4204T9

110/3750

150/3750

320/1750-3000

82.0

93.2

1.969

16.0:1

D4204T14

140/4250

190/4250

400/1750-2500

82.0

93.2

1.969

15.8:1

V40 CROSS COUNTRY

Engine code, component and serial number can be read on the engine; see Type designations (p. 382).

Related information

•

Coolant - grade and volume (p. 393)

•

Engine oil - grade and volume (p. 391)

SPECIFICATIONS

390

Engine oil - adverse driving

conditions

Adverse driving conditions can lead to abnor-
mally high oil temperature or oil consumption.
Below are some examples of adverse driving
conditions.

Check the oil level (p. 345), more frequently for
long journeys:

•

towing a caravan or trailer

•

in mountainous regions

•

at high speeds

•

in temperatures colder than -30 °C or hotter
than +40 °C

The above also apply to shorter driving distances
at low temperatures.

Choose a fully synthetic engine oil for adverse
driving conditions. It provides extra protection for
the engine.

Volvo recommends:

IMPORTANT

In order to fulfil the requirements for the
engine's service intervals all engines are filled
with a specially adapted synthetic engine oil
at the factory. The choice of oil has been
made very carefully with regard to service life,
starting characteristics, fuel consumption and
environmental impact.

An approved engine oil must be used in order
that the recommended service intervals can
be applied. Only use a prescribed grade of oil
for both filling and oil change, otherwise you
will risk affecting service life, starting charac-
teristics, fuel consumption and environmental
impact.

Volvo Car Corporation disclaims all warranty
liability if engine oil of the prescribed grade
and viscosity is not used.

Volvo recommends that oil changes are car-
ried out at an authorised Volvo workshop.

Related information

•

Engine oil - grade and volume (p. 391)

•

Engine oil - general (p. 344)

SPECIFICATIONS

392

V40CC

Engine

Engine code

Oil grade

Volume, incl. oil filter

(litres)

B4154T4

Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0W-20

approx. 5.6

B4204T37

Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0W-20

approx. 5.6

B4204T19

approx. 5.6

T4 AWD

B4204T21

approx. 5.6

B4204T15

approx. 5.6

T5 / T5 AWD

B4204T41

approx. 5.6

T5 AWD

B4204T11

approx. 5.6

D4204T8

Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0W-20

approx 5.2

D4204T9

approx 5.2

D4204T14

approx 5.2

V40 CROSS COUNTRY

Engine code, component and serial number can be read on the engine; see Type designations (p. 382).

Related information

•

Engine oil - adverse driving conditions
(p. 390)

•

Engine oil - checking and filling (p. 345)

SPECIFICATIONS

393

Coolant - grade and volume

Approved coolant volume for each respective
engine alternative can be read in the table.

Prescribed grade: Coolant recommended by
Volvo mixed with 50% water

, see the packaging.

NOTE

Not all engines are available in all markets.

V40CC

Engine

Volume

(litres)

B4154T4

7.5 (7,8

)

B4204T37

B4204T19

T5 / T5 AWD

B4204T41

T4 AWD

B4204T21

B4204T15

T5 AWD

B4204T11

V40CC

Engine

Volume

(litres)

D4204T8

8,0 (8,4

)

D4204T9

D4204T14

V40 CROSS COUNTRY

Engine code, component and serial number can be read on the

engine; see Type designations (p. 382).

Applies to cars with fuel-driven heater.

Related information

•

Coolant - level (p. 347)

Water quality must fulfil the standard STD 1285.1.

SPECIFICATIONS

394

Transmission fluid - grade and

volume

The prescribed transmission fluid and volume for
each respective gearbox alternative can be read
in the table.

Manual gearbox

Volume (litres)

Prescribed transmission fluid

M66

approx. 1.45

BOT 350M3

M76

approx 1.6

BOT 352 B1

Automatic gearbox

Volume (litres)

Prescribed transmission fluid

TF-71SC

approx 6.8

AW1

TG-81SC

approx. 6.6

approx. 7.5

AW1

Petrol engines

Diesel engines

NOTE

The transmission fluid does not need to be
changed under normal driving conditions.
However, it may be necessary under adverse
driving conditions.

Related information

•

Engine oil - adverse driving conditions
(p. 390)

•

Type designations (p. 382)

Volvo V40 Cross Country (2018 year). Instruction - part 22
