CLIMATE CONTROL

* Option/accessory.

141

Engine block heater and passenger

compartment heater* - direct start

The engine block heater and passenger com-
partment heater can be started directly.

Direct start can be performed via:

information display

remote control key

*

mobile

*.

Upon direct start of the engine block and pas-
senger compartment heater (p. 140), it will run
for 50 minutes.

Heating of the passenger compartment will begin
as soon as the engine coolant has reached the
correct temperature.

NOTE

The car can be started and driven while the
heater is running.

Direct start via the information display

1. Press OK to access the menu.

2. Scroll with the thumbwheel to

Parking

heater

 and select with OK.

3. Scroll forward in the next menu to

Direct

start

 in order to activate the heater and

select with OK.

4. Exit the menu with RESET.

Direct start via the remote control key

*

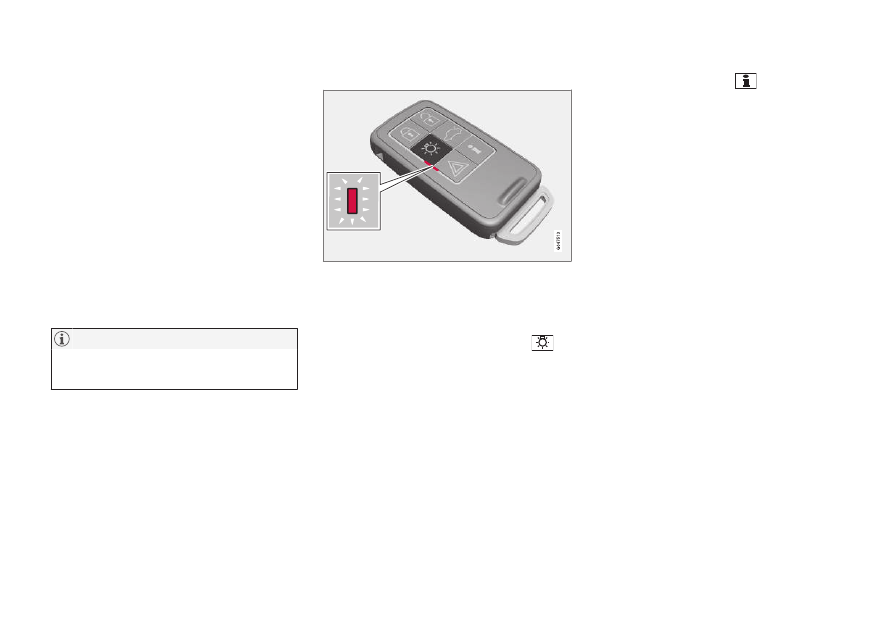

Indicator lamp on remote control key with PCC

*.

The engine block heater and passenger compart-
ment heater can be activated via the remote con-
trol key:

Hold the button for approach lighting
depressed for 2 seconds.

Hazard warning flashers provide information
in accordance with the following:

5 short flashes followed by a constant
glow for approx. 3 seconds - the signal
has reached the car and the heater has
been activated.

5 short flashes - the signal has reached
the car but the heater has not been acti-
vated.

Hazard warning flashers remain switched
off - the signal has not reached the car.

If the button for information

 is depressed

when the heater is active then the indicator lamp
will show the status for this - at the same time
the car's lock status (p. 165) is shown. While the
status is being investigated the indicator lamp
emits a pair of short flashes followed by a con-
stant glow if the heater is active.

Status is also shown in the trip computer during
heating.

Direct start via a mobile

*

Activation and information on selected settings
are available via the Volvo On Call

* app.

Related information

Engine block heater and passenger compart-
ment heater

* - timer (p. 142)

Engine block heater and passenger compart-
ment heater

* - immediate stop (p. 142)

Engine block heater and passenger compart-
ment heater

* - messages (p. 143)

CLIMATE CONTROL

* Option/accessory.

142

Engine block heater and passenger

compartment heater* - immediate

stop

The engine block heater and passenger com-
partment heater can be deactivated directly via
the information display.

1. Press OK to access the menu.

2. Scroll with the thumbwheel to

Parking

heater

 and select with OK.

3. Scroll forward in the next menu to

Stop

 in

order to deactivate the heater and select with
OK.

4. Exit the menu with RESET.

Related information

Engine block heater and passenger compart-
ment heater

* - direct start (p. 141)

Engine block heater and passenger compart-
ment heater

* - timer (p. 142)

Engine block heater and passenger compart-
ment heater

* - messages (p. 143)

Engine block heater and passenger

compartment heater* - timer

The timer of the engine block and passenger
compartment heater (p. 140) is connected to
the car's clock.

Two different times can be selected using the
timer. Here, time refers to the time when the car
is heated and ready. The car's electronic system
calculates when heating should be started based
on the outside temperature.

NOTE

All timer programming will be cleared if the
car's clock is reset.

Adjusting

1. Press OK to access the menu.

2. Scroll with the thumbwheel (p. 110) to

Parking heater

 and select with OK.

3. Select one of the two timers using the

thumbwheel and confirm with OK.

4. Briefly press OK to move to the lit hours set-

ting.

5. Select the required hour using the thumb-

wheel.

6. Briefly press OK to move to the lit minutes

setting.

7. Select the required minute using the thumb-

wheel.

8. Press OK

3

 to confirm the setting.

9. Go back in the menu structure using RESET.

10. Select the other time (continue from step 2)

or exit the menu with RESET.

Starting

1. Press OK to access the menu.

2. Scroll with the thumbwheel to

Parking

heater

 and select with OK.

3. Select one of the two timers using the

thumbwheel and activate with OK.

4. Exit the menu with RESET.

Switching off

A timer-started heater can be switched off man-
ually before the set time has elapsed. Proceed as
follows:

1. Press OK to access the menu.

2. Scroll with the thumbwheel to

Parking

heater

 and select with OK.

> If a timer is set but not activated, a clock

icon is shown next to the set time.

3. Select one of the two timers using the

thumbwheel and confirm with OK.

3

Press OK again to activate the timer.

CLIMATE CONTROL

}}

* Option/accessory.

143

4. Deactivate the timer as follows:

long press on OK or

short press on OK to continue in the
menu. Then select to stop the timer and
confirm with OK.

5. Exit the menu with RESET.

A timer-started heater can be switched off
directly (p. 141).

Related information

Engine block heater and passenger compart-
ment heater

* - messages (p. 143)

Engine block heater and passenger

compartment heater* - messages

Symbols and messages regarding the engine
block and passenger compartment heater
(p. 140) differ depending on whether the com-
bined instrument panel is analogue (p. 66) or
digital (p. 67).

When the heater has been activated
the heat symbol illuminates in the
information display.

When one of the timers is activated the symbol
for activated timer illuminates in the information
display at the same time as the set time is shown
next to the symbol.

Symbol for activated timer in analogue
combined instrument panel.

Symbol for activated timer in digital
combined instrument panel.

The table shows symbols and display texts that
appear.

Symbol

Message

Specification

The heater is
switched on and run-
ning.

The heater's timer is
activated after the
remote control key
has been removed
from the ignition
switch and leaving
the car - the engine
and passenger com-
partment are heated
at the set time.

Fuel
operated
heater
stopped
Battery
saving
mode

The heater has been
stopped by the car's
electronics in order to
facilitate starting the
engine.

||

CLIMATE CONTROL

* Option/accessory.

144

Symbol

Message

Specification

Fuel
operated
heater
stopped
Low fuel
level

Setting the heater is
not possible due to
fuel level being too
low - this is in order
to facilitate starting
the engine as well as
approx. 50 km driving.

Fuel
operated
heater
Service
required

Heater not working.
Contact a workshop
for repair. Volvo rec-
ommends that you
contact an authorised
Volvo workshop.

A display text clears automatically after a time or
after one press on the indicator stalk (p. 110) OK
button.

Related information

Engine block heater and passenger compart-
ment heater

* - direct start (p. 141)

Engine block heater and passenger compart-
ment heater

* - timer (p. 142)

Additional heater*

For cars with diesel engines sold in cold climate
zones

4

 an additional heater may be required to

obtain the correct operating temperature in the
engine and to obtain sufficient heating in the
passenger compartment.

In such instances, the car is equipped with either

electric additional heater (p. 145) or

fuel-driven additional heater (p. 144)

5

.

Related information

Engine block and passenger compartment
heater

* (p. 140)

Fuel-driven additional heater*

The car is equipped with either an electric
(p. 145) or a fuel-driven additional heater
(p. 144).

The heater starts automatically when extra heat is
required when the engine is running.

The heater is switched off automatically when the
correct temperature is reached or when the
engine is switched off.

NOTE

When the auxiliary heater is active there may
be smoke from underneath the car, which is
perfectly normal.

Auto mode or shutdown

Automatic start of the additional heater can be
deactivated if required.

NOTE

Volvo recommends that the fuel-driven addi-
tional heater should be switched off for short
distances.

1. Before starting the engine: Select key posi-

tion I (p. 81).

4

An authorised Volvo dealer has information regarding the geographical areas concerned.

5

For cars equipped with parking heater (p. 140).

CLIMATE CONTROL

* Option/accessory.

145

2. Press OK to access the menu.

3. Scroll with the thumbwheel to

Additional

heater

6

 or

Settings

7

 and select with OK.

4. Select one of the options

ON

 or

OFF

 using

the thumbwheel and confirm with OK.

5. Exit the menu with RESET.

NOTE

The menu options are only visible in key posi-
tion I - any adjustments must therefore be
made before starting the engine.

Related information

Engine block and passenger compartment
heater

* (p. 140)

Electric additional heater*

The car is equipped with either a fuel-driven
(p. 144) or an electric additional heater (p. 144).

The heater cannot be controlled manually but is
instead activated automatically after the engine
has been started in outside temperatures below
9 °C and is switched off after the set passenger
compartment temperature has been reached.

Related information

Engine block and passenger compartment
heater

* (p. 140)

6

Analogue combined instrument panel.

7

Digital combined instrument panel.

LOADING AND STORAGE

148

Storage spaces

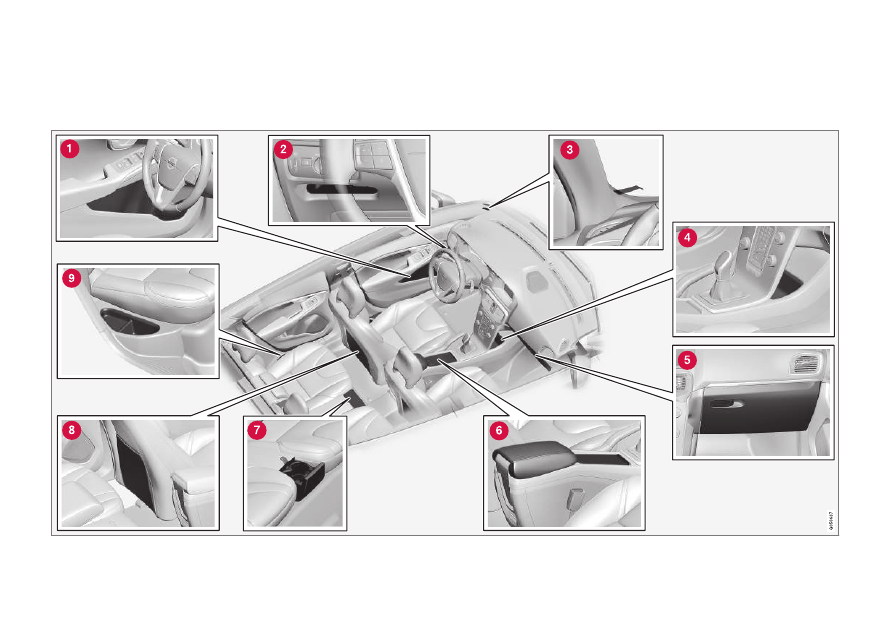

Overview of storage spaces in the passenger
compartment.

LOADING AND STORAGE

* Option/accessory.

149

Storage compartment

1

 in door panel

Storage compartment, driver’s side (p. 150)

Ticket clip

Storage compartment

Glovebox (p. 151)

Storage compartment, cup holder (p. 150)

Cup holder

* in rear seat

Storage pocket

2

Storage compartment, rear seat

WARNING

Keep loose objects such as mobile phones,

cameras, remote controls for accessories, etc.

in the glove compartment or other compart-

ments. Otherwise they may injure people in

the car in the event of sudden braking or a

collision.

1

With ice scraper holder on the driver’s side.

2

Not applicable to textile upholstery.

LOADING AND STORAGE

* Option/accessory.

150

Storage compartment driver’s side

This storage compartment (p. 148) is located on
the driver's side, to the left under the lighting
panel.

WARNING

Do not keep any sharp objects in the com-

partment, or objects which protrude.

Tunnel console

The tunnel console is located between the front
seats.

Storage compartment (e.g. for CDs) and
USB

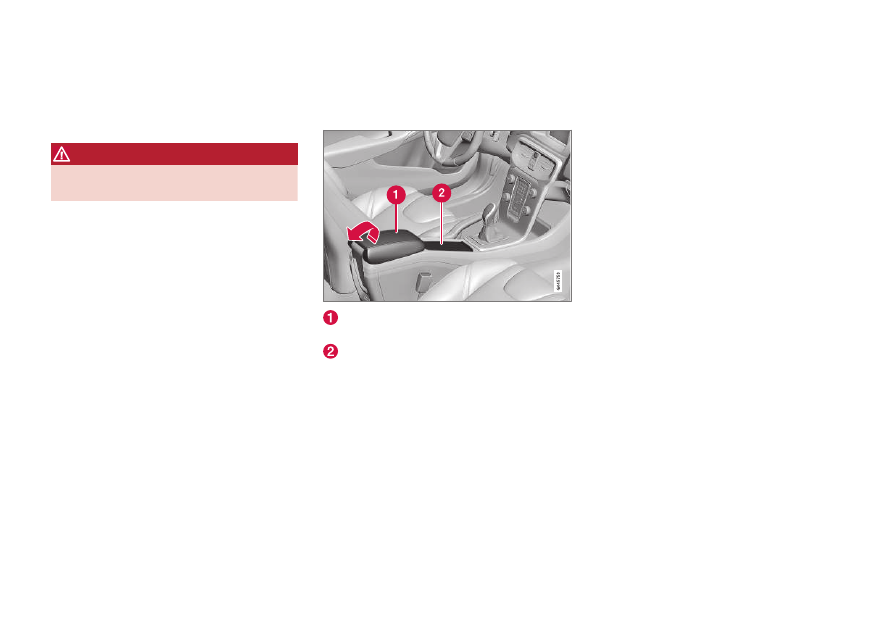

*/AUX input under the armrest.

Includes cup holder for driver and passenger.

Related information

Storage spaces (p. 148)

Tunnel console - armrest (p. 150)

Tunnel console - armrest

The tunnel console is located between the front
seats.

When closed, the tunnel console's armrest can
be adjusted

* longitudinally.

Related information

Tunnel console - 12 V-sockets (p. 152)

LOADING AND STORAGE

* Option/accessory.

151

Glovebox

The glovebox is located on the passenger side.

The owner's manual and maps can be kept in
here for example. There are also holders for pens
on the inside of the lid. The glovebox can be
locked

* (p. 176), using the key blade (p. 167).

Related information

Storage spaces (p. 148)

Inlaid mats*

Inlay mats collect e.g. rubbish and slush. Volvo
supplies specially manufactured inlay mats.

WARNING

Only use one inlaid mat at each seat, and

check before setting off that the mat by the

driver's seat is firmly affixed and secured in

the pins so that it does not get caught adja-

cent to and under the pedals.

Related information

Cleaning the interior (p. 377)

Vanity mirror

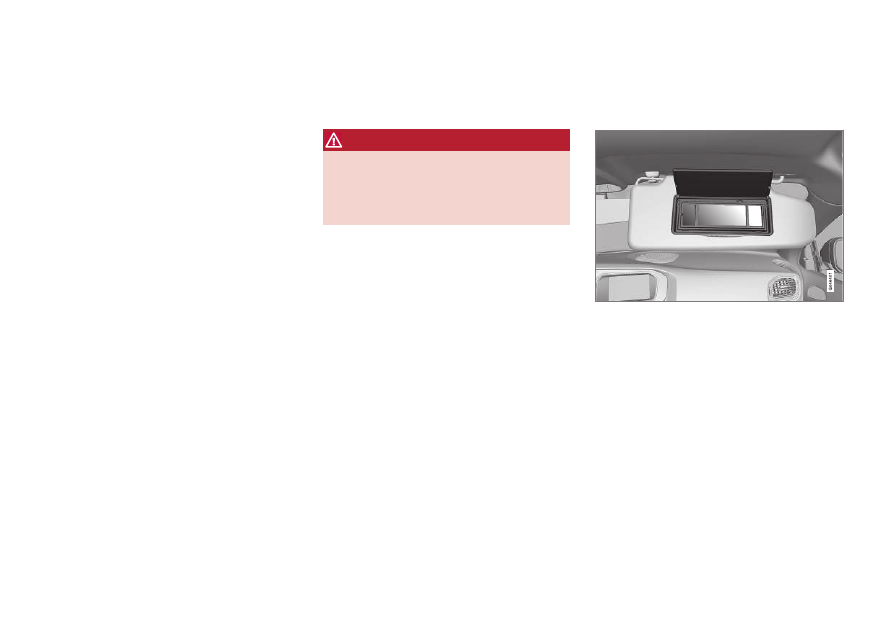

The vanity mirror is located on the rear of the sun
visor.

Vanity mirror with lighting.

The light illuminates automatically when the cover
is lifted.

Related information

Lamp replacement - vanity mirror lighting
(p. 356)

LOADING AND STORAGE

* Option/accessory.

152

Tunnel console - 12 V-sockets

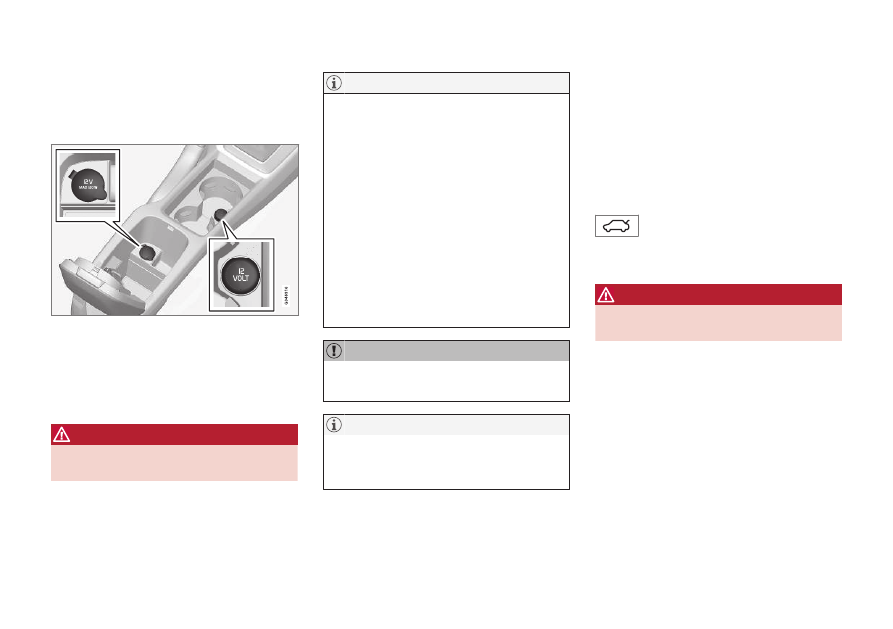

The electrical sockets (12 V) are located in the
tunnel console's storage compartment and
beside the cup holder.

12 V socket in tunnel console, front seat.

The electrical sockets can be used for various
accessories designed for 12 V, e.g. screens,
music players and mobile phones. For the socket
to supply current, the remote control key must be
in at least key position I (p. 81).

WARNING

Always leave the plug in the socket when the

socket is not in use.

NOTE

Optional equipment and accessories - e.g.
display screens, music players and mobile
phones - which are connected to one of the
passenger compartment's 12V electrical
sockets could be activated by the climate
control system, even when the remote control
key has been removed or when the car is
locked, for example, when the engine block
and passenger compartment heater

* is acti-

vated at a preset time.

For this reason remove the plugs from the
electrical sockets for optional equipment or
accessories when not in use because the bat-
tery could be drained in the event of such an
occurrence!

IMPORTANT

Max. power takeoff is 10 A (120 W) in either
socket.

NOTE

The compressor for emergency puncture
repair (p. 330) has been tested and approved
by Volvo.

Related information

12 V socket - cargo area (p. 155)

Loading

Payload depends on the car's kerb weight.

Payload depends on the car's kerb weight. The
total of the weight of the passengers and all
accessories reduces the car's payload by a cor-
responding weight.

For more detailed information on weights, see
Weights (p. 386).

The tailgate is opened via a button on
the lighting panel or the remote control
key, see Locking/unlocking - tailgate

(p. 176).

WARNING

The car’s driving properties change depend-

ing on the weight and positioning of the load.

To bear in mind when loading

Position the load firmly against the rear
seat's backrest.

Note that objects must not prevent the function
of the WHIPS system for the front seats if any of
the rear seat's backrests is folded down, see
WHIPS - seating position (p. 41).

Centre the load.

Heavy objects should be placed as low as
possible. Avoid placing heavy loads on low-
ered backrests.

LOADING AND STORAGE

* Option/accessory.

153

Cover sharp edges with something soft to
avoid damaging the upholstery.

Secure all loads to the load retaining eyelets
with straps or web lashings.

WARNING

A loose object weighing 20 kg (44 pounds)

can, in a frontal collision at a speed of

50 km/h (30 mph) carry the impact of an

item weighing 1000 kg (2200 pounds).

WARNING

The protection provided by the inflatable cur-

tain in the headlining may be compromised or

eliminated by high loads.

Never load cargo above the backrest.

WARNING

Always secure the load. Always secure the

load. During heavy braking the load may oth-

erwise shift, causing personal injury to the

car's occupants.
Cover sharp edges and sharp corners with

something soft.
Switch off the engine and apply the parking

brake when loading/unloading long items.

Otherwise you may accidentally knock the

gear lever or gear selector with the load into a

drive position - and the car could then move

off.

Related information

Load retaining eyelets (p. 154)

Cargo net

* (p. 156)

Loading - long load (p. 153)

Roof load (p. 154)

Loading - long load

To simplify loading in the cargo area, the rear
seat backrest can be folded down. The passen-
ger seat backrest can also be folded for an extra
long load.

Folding the passenger seat

See Seats, front (p. 82).

Lowering the rear seat backrest

See (p. 86).

Related information

Loading (p. 152)

LOADING AND STORAGE

* Option/accessory.

154

Roof load

The load carriers recommended for roof loads
are the ones developed by Volvo. This is in order
to avoid damage to the car and in order to
achieve the maximum possible safety during a
journey.

Carefully follow the installation instructions sup-
plied with the carriers.

Load carriers must always be mounted on
the aluminium rail.

Check periodically that the load carriers and
load are properly secured. Lash the load
securely with retaining straps.

Distribute the load evenly over the load carri-
ers. Put the heaviest objects at the bottom.

The size of the area exposed to the wind, and
therefore fuel consumption, increase with the
size of the load.

Drive gently. Avoid quick acceleration, heavy
braking and hard cornering.

WARNING

The car's centre of gravity and driving charac-

teristics are altered by roof loads.
For information about the maximum permitted

load on the roof, including load carriers and

any space box, see Weights (p. 386).

Related information

Loading (p. 152)

Load retaining eyelets

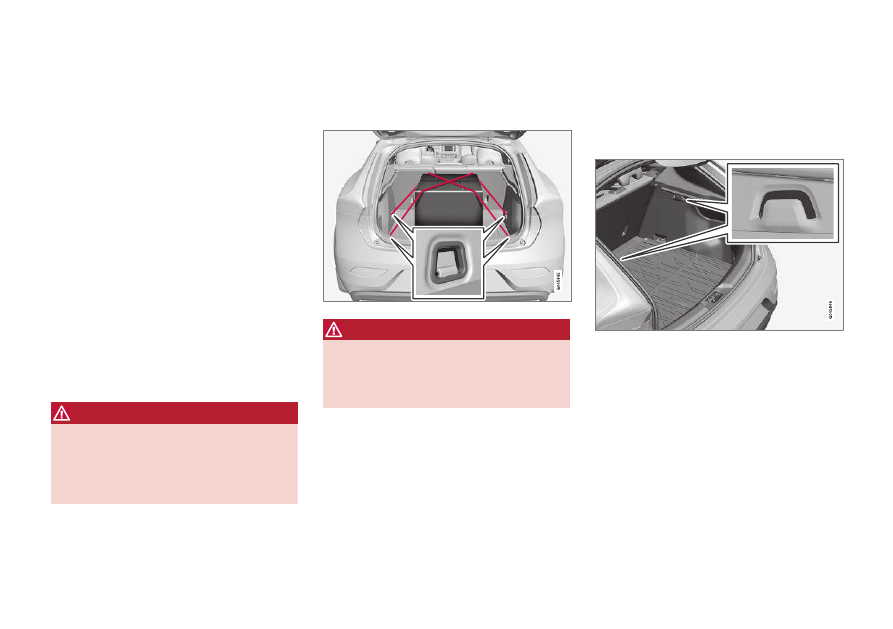

The load retaining eyelets are used to fasten
straps in order to anchor items in the cargo area.

WARNING

Hard, sharp and/or heavy objects which pro-

trude may cause injury under violent braking.
Always secure large and heavy objects with a

seatbelt or cargo retaining straps.

Related information

Loading (p. 152)

Loading - bag holder

The bag holders keep carrier bags in place and
prevent them from overturning and spreading
their contents around the cargo area. The holder
has a capacity of max. 3 kg.

Bag holder

Related information

Loading (p. 152)

Loading - folding bag holder

* (p. 155)

LOADING AND STORAGE

}}

* Option/accessory.

155

Loading - folding bag holder*

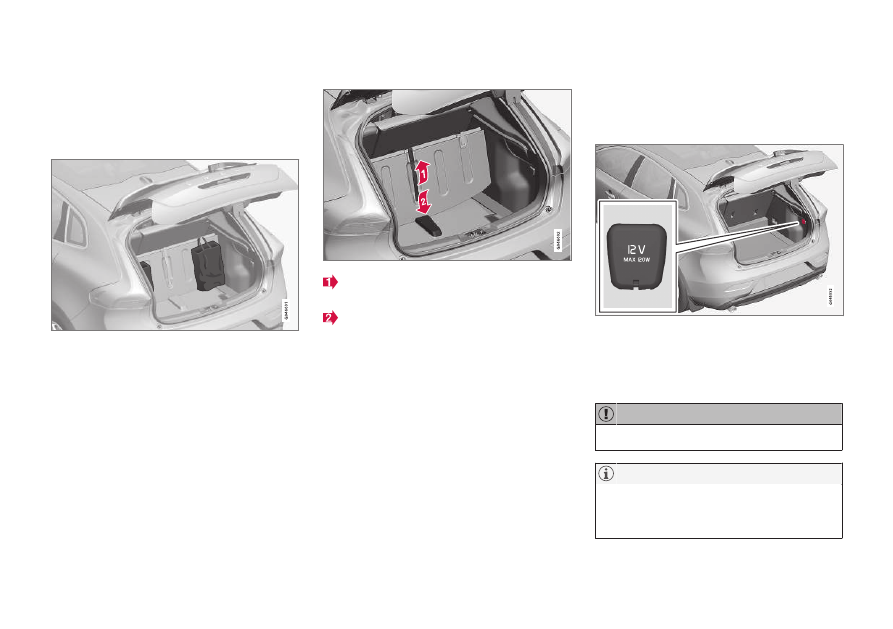

A folding bag holder in the floor keeps bags in
place and prevents them from overturning and
spreading their contents in the cargo area, and
can be opened up in three positions.

Folding bag holder

It can be set to two adjustment positions and one
service position, as it is known, where it is fully
unfolded. There are also two floor combination
variants, one with adjustment positions in a tub
under the floor and one with adjustment posi-
tions in plastic rails. The raising below shows the
adjustment position in a tub under the floor.

The load on the central holder is max. 3 kg and
max. 10 kg on the outer holder.

Folding up

Lift the handle

* on the upper floor and fold

up the floor.

Move the floor forwards to an appropriate
position and place it in the adjustment
groove.

3. In service position, the floor is moved all the

way forwards towards the rear seat back and
placed in the plastic support in the centre.

Related information

Loading (p. 152)

Loading - bag holder (p. 154)

12 V socket - cargo area

The electrical socket can be used for various
accessories designed for 12 Volts, e.g. display
screens, music players and mobile phones.

Lower the cover to access the electrical socket.

The socket also provides voltage when the
remote control key is not in the ignition
switch.

IMPORTANT

Max. socket current is 10 A (120 W).

NOTE

Remember that using the electrical socket
with the engine switched off involves the risk
of discharging the car's battery.

||

LOADING AND STORAGE

* Option/accessory.

156

NOTE

The compressor for emergency puncture
repair (p. 330) has been tested and approved
by Volvo.

Related information

Tunnel console - 12 V-sockets (p. 152)

Cargo net*

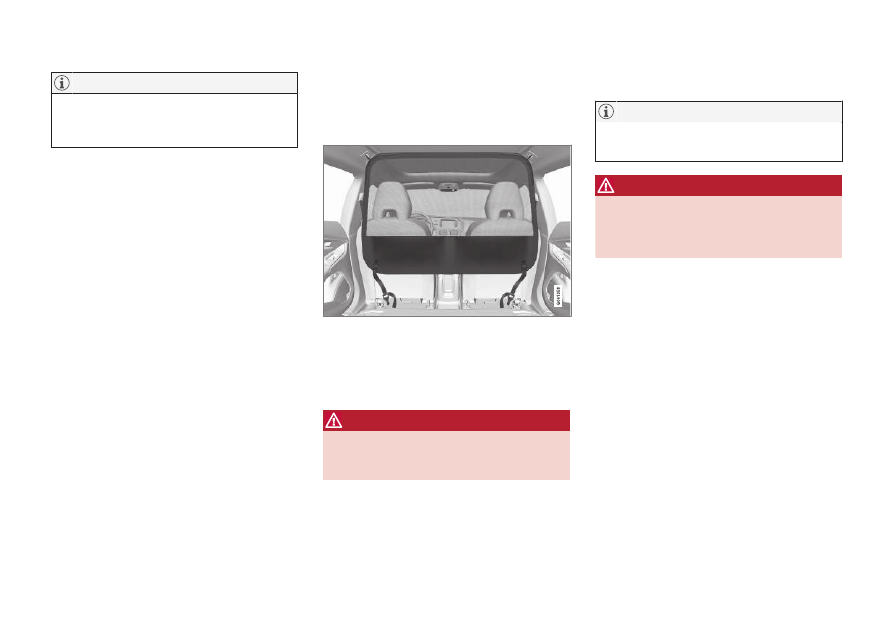

A cargo net prevents cargo from being thrown
forward in the passenger compartment in the
event of heavy braking.

The cargo net is fitted into four mounting points.

For safety reasons, the cargo net must always be
correctly fastened and secured. The mesh is
made of a strong nylon fabric and secured
behind the front seat backrests.

WARNING

Loads in the luggage compartment must be

anchored well, and also have a correctly fitted

safety net.

Attaching

NOTE

The easiest way to fit the safety net is via one
of the rear doors.

WARNING

It is necessary to ensure that the upper secur-

ing points of the safety net are fitted correctly

and that the puller-straps are secured prop-

erly. Damaged nets must not be used.

LOADING AND STORAGE

157

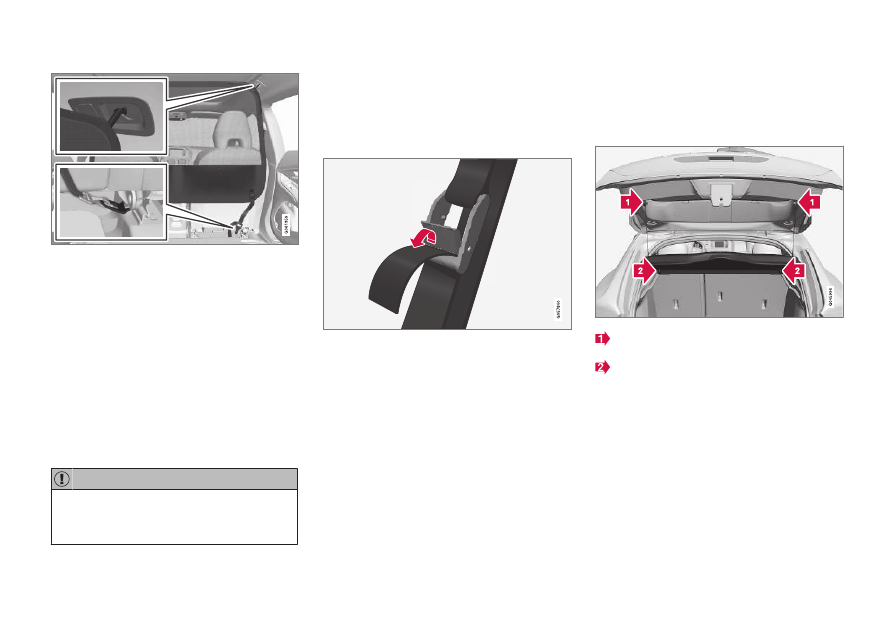

1. Hook the hooks into the roof mounting with

the anchoring strap locks turned towards
you.

Thread the cargo net's anchoring straps
through the eyes on the rear of the seat slide
rails - it is easier if the backrests are straight-
ened and the seats are moved forward
slightly.

Pay attention to make sure that you do not
press the seat/backrest hard against the net
when the seat/backrest is moved back again
- only adjust until the seat/backrest makes
contact with the net.

IMPORTANT

If a seat/backrest is pushed backwards hard
into the safety net then the net and/or its
roof mounts may be damaged.

2. Depress the button in the anchoring strap's

lock and thread the anchoring strap from
below through the lock.

Tension the cargo net with the anchoring
straps.

Removal and storage

1. Release the tension in the cargo net by

pressing in the button on the anchoring
strap's lock and feeding out the strap.

2. Unhook the hooks from the roof mountings.

3. Fold up the cargo net and place it in the

storage bag in the cargo area.

Related information

Loading (p. 152)

Load retaining eyelets (p. 154)

Hat shelf

The hat shelf can be removed to provide addi-
tional cargo space.

Hat shelf removal

Undo the hat shelf lifting eyes on both sides.

Unhook the front edge of the hat shelf and
remove it.

Related information

Loading (p. 152)

Loading - long load (p. 153)

LOCKS AND ALARM

* Option/accessory.

160

Remote control key

Amongst other things, the remote control key is
used for locking/unlocking and starting the
engine.

There are three variants of key available -
Remote control key in basic version, Remote con-
trol key without PCC

* and Remote control key

with PCC

*.

Functionality

Basic

A

without

PCC

A

with

PCC

B

Locking/
unlocking and
detachable key
blade

x

x

x

Keyless lock-
ing/unlocking

x

x

Keyless engine
starting

x

x

Information but-
ton and indica-
tor lamps

x

A

5-button key

B

6-button key

More information

Remote Control Key Basic - is a key in the
basic version, see Remote control key - func-

tions (p. 164) for a description of its func-
tions.

Remote control key without PCC - with Key-
less Drive

* (p. 169) and keyless locking

(p. 171) and unlocking (p. 172).

Remote control key with PCC - also has an
information button and indicator lamps. Read
more about these unique functions (p. 165).

All remote control keys have a detachable key
blade (p. 167) made of metal. The visible section
is available in two versions so that it is possible to
distinguish between the remote control keys.

More remote control keys can be ordered - but
not variants other than the one supplied with the
car. Up to six keys can be programmed and used
for one single car.

The car is supplied with two remote control keys.

WARNING

If there are children in the car:
Remember to switch off the supply to the

power windows by removing the remote con-

trol key if the driver leaves the car.

Remote control key - losing

If you lose a remote control key (p. 160) then a
new one can be ordered at a workshop - an
authorised Volvo workshop is recommended.

The remaining remote control keys must be
taken to the Volvo workshop. The code of the
missing remote control key must be erased from
the system as a theft prevention measure. The
current number of keys registered to the car can
be checked in the menu system MY CAR. For a
description of the menu system, see MY CAR
(p. 113).

Related information

Remote control key - functions (p. 164)

Remote control key - range (p. 165)















Content   ..  6  7  8  9   ..
