Volvo XC60 Twin Engine (2019 year). Instruction - part 7





DISPLAYS AND VOICE CONTROL

}}

129

Changing keyboard language in the

center display

In order to toggle between keyboard languages,
the languages must first be added under

Settings

.

Adding or deleting languages in
Settings

The keyboard is automatically set to the same
language as the system language. The keyboard
language can be manually changed without
affecting the system language.

1. Tap

Settings

 in Top view.

2. Tap

System

System Languages and

Units

Keyboard Layouts

.

3. Select one or more languages in the list.

> It is now possible to toggle between the

selected languages using the keyboard.

If no language has been selected under

Settings

, the keyboard will remain in the same

language as the vehicle's system language.

Toggling between keyboard languages

If more than one language has
been selected in

Settings

, the

button in the keyboard can be
used to switch between the dif-
ferent languages.

To toggle between keyboard languages from the
list:

1. Press and hold the button.

> A list will appear.

2. Select the desired language. If more than

four languages have been selected under

Settings

, you can scroll through the list

shown on the keyboard.
> The keyboard and word suggestions will

be adapted to the selected language.

To change keyboard language without displaying
the list:

Tap the button.
> The keyboard layout will change to the

next language in the list without display-
ing the list.

Related information

Changing system language (p. 132)

Using the center display keyboard (p. 126)

Entering characters, letters and

words by hand in the center display

Characters, letters and words can be entered in
the center display by handwriting them on the
touchscreen.

Tap the button on the center
display's keyboard to switch
from the keyboard to handwrit-
ing mode.

Space for entering characters/letters/
words/parts of words.
Text field displaying suggested characters or
words

11

 as they are written on the screen

(1).

||

DISPLAYS AND VOICE CONTROL

130

Suggestions for characters/letters/words/
parts of words. You can scroll through the
list.
Space bar. Blank spaces can be created by
writing a dash (

‒) in the field for handwritten

letters (1). See "Writing blank spaces in free-
text fields" below.
Delete. Tap once to erase one character/
letter at a time. Wait a moment before tap-
ping again to erase the next character, letter
etc.
Return to the standard keyboard layout.

Switch off/on screen tap sounds.

Hide the keyboard. In cases where this is not
possible, the button will not be displayed.
Change language for text input.

Handwriting characters/letters/words

1. Write a character, a letter, a word or parts of

a word in the field for handwritten letters (1).
Write the word or part of the word vertically
or horizontally.
> A number of suggestions for characters,

letters or words will be displayed (3). The
most likely will be shown at the top of the
list.

CAUTION

Do not use sharp objects on the screen as
this could cause scratches.

2. The character/letter/word will be entered

automatically after a short pause if no other
action is taken.
> The character/letter/word at the top of

the list will be used. Tap one of the other
characters/letters/words in the list to use
it instead.

Erasing/changing handwritten characters/
letters

Erase text in the text field (2) by swiping over the hand-
writing field (1).

Characters/letters can be erased or changed
in several ways:

Tap the desired letter or word in the list
(3).

Tap the delete button (5) to erase the let-
ter and start again.

Swipe horizontally from right to left

12

 over

the handwriting field (1). Erase several let-
ters at once by swiping over the area sev-
eral times.

Tap the X box in the text field (2) to erase
all written text.

11

Certain system languages only.

12

For Arabic keyboards, swipe in the other direction. Swiping from right to left will create a blank space.

DISPLAYS AND VOICE CONTROL

131

New lines in free-text fields in handwriting
mode

Create a new line by drawing above the characters in
the handwriting field as shown in the illustration

13

.

Writing blank spaces in free-text fields

Make a blank space by drawing a line from left to right

14

.

Related information

Using the center display keyboard (p. 126)

Changing the appearance of the

center display

The appearance of the center display can be
changed by selecting a different theme.

1. Tap

Settings

 in the Top view.

2. Tap

My Car

Displays

Display

Themes

.

3. Select a theme, e.g.

Minimalistic

 or

Chrome Rings

.

In addition to these themes, you can also choose
between

Normal

 and

Bright

. In

Normal

, the

background of the screen is dark and the text is
light. This option is the default setting for all
themes. If the bright version is selected, the
background will be light and the text will be dark.
This option can, for example, make the screen
easier to see in bright daylight conditions.

These alternatives are always available for selec-
tion and are not affected by the ambient lighting.

Related information

Changing settings in the center display's Top
view (p. 132)

Activating and deactivating the center display
(p. 115)

Cleaning the center display (p. 643)

Turning off and adjusting the

volume of the center display system

sounds

The volume of the center display system sounds
can be adjusted or turned off completely.

1. Tap

Settings

 in the Top view in the center

display.

2. Tap

Sound

System Volumes

.

3. Pull the control under

Touch Sounds

 to

adjust the volume or turn off screen tap
sounds. Pull the control to the desired sound
level.

Related information

Center display overview (p. 109)

Changing settings in the center display's Top
view (p. 132)

Sound settings (p. 492)

13

For Arabic keyboards, draw the same character, but in mirror image.

14

For Arabic keyboards, draw the line from right to left.

DISPLAYS AND VOICE CONTROL

132

Changing system units of

measurement

Unit settings are adjusted in the

Settings

 menu

in the center display.

1. Tap

Settings

 in the Top view in the center

display.

2. Proceed to

System

System Languages

and Units

Units of Measurement

.

3. Choose a measurement standard:

Metric

 - kilometers, liters and degrees

Celsius.

Imperial

 - miles, gallons and degrees

Celsius.

US

 - miles, gallons and degrees Fahren-

heit.

> The units in the instrument panel, center

display and head-up display are changed.

Related information

Center display overview (p. 109)

Changing settings in the center display's Top
view (p. 132)

Changing system language (p. 132)

Changing system language

Language settings are adjusted in the

Settings

menu in the center display.

NOTE

Changing languages in the center display
could mean that certain owner's information
will not comply with national or local laws and
regulations. Do not change to a language that
you do not fully understand, as this could
make it difficult to navigate back through the
menu.

1. Tap

Settings

 in the Top view in the center

display.

2. Proceed to

System

System Languages

and Units

.

3. Select

System Language

. A voice control

symbol indicates that the language can be
used for voice commands.
> Languages in the instrument panel, center

display and head-up display are changed.

Related information

Center display overview (p. 109)

Changing settings in the center display's Top
view (p. 132)

Changing system units of measurement
(p. 132)

Changing settings in the center

display's Top view

You can change settings and information for
many of the vehicle's functions via the center
display.

1. Open Top view by tapping the tab at the top

of the screen or by dragging/swiping from
the top of the screen downward.

2. Tap

Settings

 to open the Settings menu.

Top view with Settings button.

3. Tap one of the categories and sub-catego-

ries to navigate to the desired setting.

4. Change the setting(s). Different types of set-

tings are changed in different ways.
> Changes are saved immediately.

DISPLAYS AND VOICE CONTROL

133

A sub-category in the Settings menu with various possi-
ble settings; has a multi-selection button and radio but-
tons.

Related information

Center display overview (p. 109)

Resetting center display settings (p. 134)

Table of settings in the center display
(p. 135)

Opening contextual setting in the

center display

Most of the settings for the vehicle's basic apps
can be changed directly in Top view in the cen-
ter display via contextual settings.

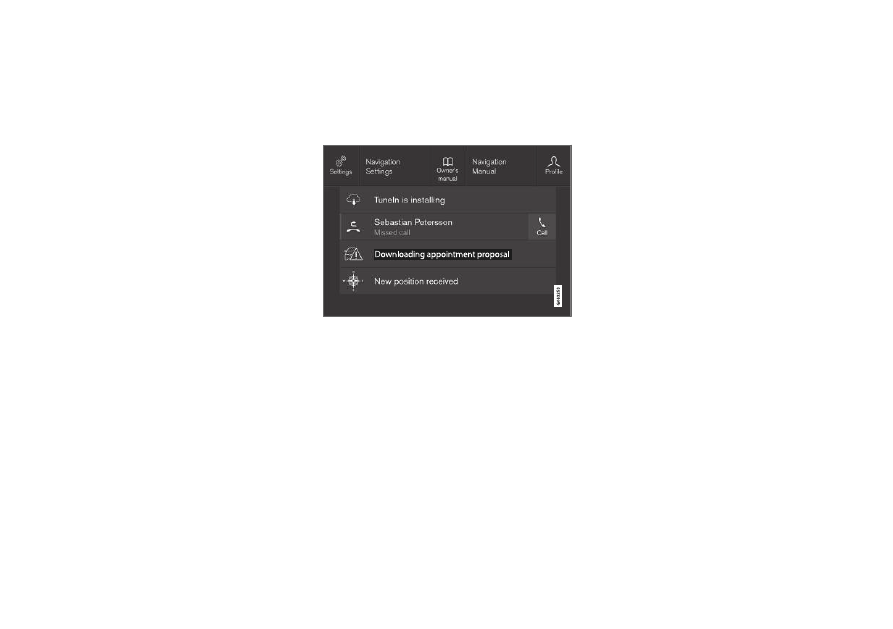

Top view with button for contextual settings.

Contextual setting is a shortcut for accessing
specific settings related to the active function
displayed on the screen. Apps that are factory-
installed in your vehicle, e.g.

FM radio

 and

USB

,

are part of Sensus and are used to control the
vehicle's integrated functions. The settings for
these apps can be changed directly via contex-
tual setting in Top view.

When contextual setting is available:

1. Pull down Top view when an app is in expan-

ded form, e.g.

Navigation

.

2. Tap

Navigation Settings

.

> The navigation settings page will open.

3. Change the desired settings and confirm.

Tap

Close

 or press the Home button under the

center display to close Settings view.

Most of the vehicle's basic apps have this contex-
tual setting option, but not all.

Third-party apps

Third-party apps are apps that are not factory-
installed in the vehicle's system, but can be
downloaded, e.g.

Volvo ID

. Settings for these

apps are changed in the apps themselves, not in
Top view.

Related information

Changing settings in the center display's Top
view (p. 132)

Center display overview (p. 109)

Resetting center display settings (p. 134)

Download apps (p. 495)

DISPLAYS AND VOICE CONTROL

134

Resetting user data when the

vehicle changes owners

If the vehicle changes owners, all user data and
system settings should be reset to factory
defaults.

Vehicle settings can be reset at different levels.
Reset all user data and system settings to their
original factory defaults when the vehicle
changes owner. It is also important to change the
owner of the Volvo On Call service.

Related information

Resetting center display settings (p. 134)

Resetting driver profile settings (p. 139)

Resetting center display settings

All settings made in the center display's Settings
menu can be reset to default values.

Two types of reset

There are two ways to reset the settings in the
Settings menu:

Factory Reset

- erases all data and files and

resets all settings to factory default.

Reset Personal Settings

- erases personal

data and resets personalized settings to fac-
tory default.

Resetting settings

Follow these instructions to reset the settings.

NOTE

Factory Reset

 is only possible when the

vehicle is stationary.

1. Tap

Settings

 in the Top view in the center

display.

2. Proceed to

System

Factory Reset

.

3. Select the type of reset you would like to do.

> A pop-up window will appear.

4. Tap

OK

 to confirm the reset.

For

Reset Personal Settings

, confirm the

reset by tapping

Reset for the active

profile

 or

Reset for all profiles

.

> The selected settings will be reset.

Related information

Center display overview (p. 109)

Changing settings in the center display's Top
view (p. 132)

Table of settings in the center display
(p. 135)

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

135

Table of settings in the center

display

The center display's Settings menu has a num-
ber of main categories and sub-categories that
contain settings and information for many of the
vehicle's features and functions.

There are seven main categories:

My Car

,

Sound

Navigation

Media

Communication

,

Climate

 and

System

.

Each category, in turn, contains a number of sub-
categories and possible settings. The table below
shows the first level of sub-categories. The possi-
ble settings for a function or an area are descri-
bed in more detail in their respective sections of
the Owner's Manual.

Some settings are personal, which means that
they can be saved to a

Driver Profiles

. Others

are global, which means that they are not linked
to a driver profile.

My Car

Sub-categories

Displays

IntelliSafe

Drive Preferences

/

Individual Drive Mode

*

Lights and Lighting

Mirrors and Convenience

Sub-categories

Locking

Parking Brake and Suspension

Wipers

Sound

Sub-categories

Tone

Balance

System Volumes

Navigation

Sub-categories

Map

Route and Guidance

Traffic

Media

Sub-categories

AM/FM Radio

SiriusXM

SiriusXM Travel Link

Sub-categories

Gracenote®

Video

Communication

Sub-categories

Phone

Text Messages

Android Auto

*

Apple CarPlay

*

Bluetooth Devices

Wi-Fi

Vehicle Wi-Fi Hotspot

Vehicle Modem Internet

Volvo On Call

Volvo Service Networks

Climate

The

Climate

 main category does not have any

sub-categories.

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

136

System

Sub-categories

Driver Profile

Date and Time

System Languages and Units

Privacy and Data

Keyboard Layouts

Voice Control

*

Factory Reset

System Information

Related information

Center display overview (p. 109)

Changing settings in the center display's Top
view (p. 132)

Resetting center display settings (p. 134)

Driver profiles

Many of the vehicle's settings can be custom-
ized to the driver's personal preferences and
saved in one or more driver profiles.

These personal settings are automatically saved
in the active driver profile. Each key can be linked
to one driver profile. When the linked key is used,
the vehicle is customized to the specific settings
of that driver profile.

Which settings are saved in driver
profiles?

Many of the settings made in the vehicle will be
automatically stored in the active driver profile if
the profile is not protected. The vehicle has set-
tings that can be made either personal or global.
The personal settings are saved in driver profiles.

Settings that can be saved in a driver profile
include, among other things, screens, mirrors,
front seats, navigation*, audio and media system,
language and voice control.

Some settings are global settings. These settings
can be changed but are not saved to a specific
driver profile. Changes to global settings affect all
profiles.

Global settings

Global settings and parameters do not change
when driver profiles are changed. They remain
the same regardless of which driver profile is cur-
rently active.

Keyboard layout is an example of a global setting.
If driver profile X is used to add additional key-
board languages, these languages will also be
available for driver profile Y. The settings for key-
board layout are not saved to a specific driver
profile - the settings are global.

Personal settings

If driver profile X has been used to e.g., set the
brightness for the center display, driver profile Y
will not be affected by this setting. It will only be
saved to driver profile X because brightness set-
ting is a personal setting.

Related information

Selecting a driver profile (p. 137)

Changing a driver profile's name (p. 137)

Linking a remote key to a driver profile
(p. 138)

Protecting a driver profile (p. 138)

Resetting driver profile settings (p. 139)

Table of settings in the center display
(p. 135)

DISPLAYS AND VOICE CONTROL

137

Selecting a driver profile

When the center display starts up, the selected
driver profile will be shown at the top of the
screen. The most recently used driver profile will
be active the next time the vehicle is unlocked. A
different driver profile can be selected once the
vehicle has been unlocked. However, if the
remote key has been linked to a driver profile,
this profile will be used instead.

There are two options for switching between
driver profiles.

Option 1:

1. Tap the name of the driver profile shown at

the top of the center display when the dis-
play starts up.
> A list will appear, showing driver profiles

that can be selected.

2. Select desired driver profile.

3. Tap

Confirm

.

> The driver profile has now been selected

and the system will load the settings
stored in that profile.

Option 2:

1. Pull down Top view in the center display.

2. Tap

Profile

.

> The same list as in option 1 will be dis-

played.

3. Select desired driver profile.

4. Tap

Confirm

.

> The driver profile has now been selected

and the system will load the settings
stored in that profile.

Related information

Driver profiles (p. 136)

Navigating in the center display's views
(p. 115)

Changing a driver profile's name (p. 137)

Linking a remote key to a driver profile
(p. 138)

Changing a driver profile's name

It is possible to change the names of the differ-
ent driver profiles used in the vehicle.

1. Tap

Settings

 in the Top view in the center

display.

2. Tap

System

Driver Profiles

.

3. Select

Edit Profile

.

> A menu will open in which the driver pro-

file can be changed.

4. Tap the

Profile Name

 box.

> A keyboard will be displayed and can be

used to change the name. Tap

 to

close the keyboard.

5. Save the name change by pressing

Back

 or

Close

.

> The name has now been changed.

NOTE

Profile names may not begin with a space. If a
space is entered first, the profile name will not
be saved.

Related information

Selecting a driver profile (p. 137)

Using the center display keyboard (p. 126)

DISPLAYS AND VOICE CONTROL

138

Protecting a driver profile

It may not always be desirable to store settings
made in the vehicle to the active driver profile. In
these instances, the driver profile can be protec-
ted.

NOTE

Protecting a driver profile is only possible
when the vehicle is stationary.

To protect a driver profile:

1. Tap

Settings

 in the Top view in the center

display.

2. Tap

System

Driver Profiles

.

3. Select

Edit Profile

.

> A menu will open in which the driver pro-

file can be changed.

4. Tap

Protect Profile

 to protect the profile.

5. Confirm your selection to protect the profile

by tapping

Back

/

Close

.

> When the profile is protected, settings

made in the vehicle will not be automati-
cally stored to the profile. The changes
must instead be saved manually by tap-
ping

Save current settings to the

profile

. If the profile is not protected, the

settings will be automatically stored to the
profile.

Related information

Driver profiles (p. 136)

Linking a remote key to a driver

profile

A remote key can be linked to a driver profile.
This driver profile and all of its settings will then
automatically be selected every time the vehicle
is used with that particular remote key.

The first time the remote key is used, it is not
linked to any specific driver profile. The

Guest

profile is automatically activated when the ignition
is switched on.

A driver profile can also be selected manually
without linking it to any key. When the vehicle is
unlocked, the last active driver profile will be acti-
vated. If the key has ever been linked to a driver
profile, it is not necessary to manually select a
driver profile when using that particular key.

Linking a remote key to a specific driver
profile

NOTE

A remote key can only be connected to a
driver profile when the vehicle is stationary.

First select the profile you would like to link to
the key (if that profile is not already active). The
active profile can then be linked to the key.

1. Tap

Settings

 in the Top view in the center

display.

DISPLAYS AND VOICE CONTROL

139

2. Tap

System

Driver Profiles

.

3. Mark the desired profile. The display will

return to Home view. The

Guest

 profile can-

not be linked to a remote key.

4. Pull down Top view again and tap

Settings

System

Driver Profiles

Edit

Profile

.

5. Select

Connect key

 to link the profile with

the key. A driver profile can only be linked to
the key currently being used in the vehicle. If
there are any other keys in the vehicle,

More

than one key is found, put the key you
want to connect on backup reader

 will be

displayed.

Location of the backup reader in the tunnel console.

> When

Profile connected to key

 is dis-

played, the key and driver profile have
been linked.

6. Tap

OK

.

> The key used is now linked to the driver

profile and will remain so as long as the

Connect key

 box is not deselected.

Related information

Driver profiles (p. 136)

Changing a driver profile's name (p. 137)

Remote key (p. 237)

Resetting driver profile settings

Settings that have been saved for one or more
driver profiles can be reset when the vehicle is
stationary.

NOTE

Factory Reset

 is only possible when the

vehicle is stationary.

1. Tap

Settings

 in the Top view.

2. Tap

System

Factory Reset

Reset

Personal Settings

.

3. Select option

Reset for the active profile

,

Reset for all profiles

 or

Cancel

.

Related information

Driver profiles (p. 136)

Resetting center display settings (p. 134)

DISPLAYS AND VOICE CONTROL

140

Messages in the center display

The center display shows messages in certain
circumstances to inform or assist the driver.

Messages in the center display's Top view.

Messages with lower priority for the driver are
shown in the center display.

Most of the messages are shown in the center
display's status bar. The message will disappear
from the status bar after a short period of time or
after the required action has been taken. Mes-
sages that need to be saved are stored in Top
view in the center display.

The message may be shown along with graphics,
symbols or a button to e.g. activate/deactivate a
function connected to the message.

Pop-up messages

Messages are sometimes shown as pop-up win-
dows. Pop-up messages have a higher priority

than messages shown in the status bar and
require acknowledgment/action before they dis-
appear. Messages that need to be saved are
stored in Top view in the center display.

Related information

Handling messages in the center display
(p. 140)

Handling messages saved from the center
display (p. 141)

Messages in the instrument panel (p. 105)

Handling messages in the center

display

Messages in the center display are handled in
the center display's views.

Messages in the center display's Top view.

Some messages in the center display have a but-
ton (or several buttons in a pop-up message) to
e.g. activate/deactivate a function related to the
message.

DISPLAYS AND VOICE CONTROL

141

Handling new messages

For messages with buttons:

Tap the button to perform the action or let
the message automatically time-out after a
short period.
> The message will disappear from the sta-

tus bar.

For messages without buttons:

Close the message by tapping it or let the
message automatically time-out after a short
period.
> The message will disappear from the sta-

tus bar.

Messages that need to be saved are stored in
Top view in the center display.

Related information

Messages in the center display (p. 140)

Handling messages saved from the center
display (p. 141)

Messages in the instrument panel (p. 105)

Handling messages saved from the

center display

Messages saved from the instrument panel and
center displays are handled in the center display.

Saved messages and possible selections in Top view.

Messages that have been shown in the center
display and that need to be saved are stored in
the center display's Top view.

Reading saved messages

1. Open Top view in the center display.

> A list of saved messages will be displayed.

Messages with an arrow to the right can
be expanded.

2. Tap a message to expand/minimize it.

> More information about the message will

appear in the list and the image to the left
of the app will display information about
the message in graphic form.

Handling saved messages

Some messages have a button to e.g. activate/
deactivate a function related to the message.

Tap the button to perform the action.

Saved messages in Top view are automatically
deleted when the ignition is switched off.

Related information

Messages in the center display (p. 140)

Handling messages in the center display
(p. 140)

Messages in the instrument panel (p. 105)

DISPLAYS AND VOICE CONTROL

* Option/accessory.

142

Head-up display*

The head-up display is a complement to the
instrument panel and projects information from
the instrument panel onto the windshield. The
projected images can only be seen from the driv-
er's seat.

Incoming phone calls.

The head-up display projects warnings and infor-
mation related to speed, cruise control functions,
navigation, etc. onto the windshield in the driver's
field of vision. Traffic information and incoming
phone calls can also be shown on the head-up
display.

NOTE

The driver's ability to see information in the
head-up display may be impeded by:

the use of polarizing sunglasses

a driving posture in which the driver is not
centered in the seat

objects on the display unit's glass cover

unfavorable lighting conditions.

CAUTION

The information is projected from a display
unit located in the dashboard. To help prevent
damage to the display unit's glass cover, do
not place any objects on the glass and pre-
vent objects from falling onto it.

Examples of what might be shown on the display.

Speed

Cruise control

Navigation

Road signs

A number of symbols may be projected temporar-
ily onto the head-up display, including:

If the warning symbol appears, read the
warning message in the instrument
panel.

If the information symbol appears, read
the warning message in the instrument
panel.

DISPLAYS AND VOICE CONTROL

* Option/accessory.

143

The snowflake symbol will illuminate if
there is a risk of slippery conditions.

NOTE

People with certain types of vision problems
may experience headaches or eye strain
when using the head-up display.

City Safety in head-up-display

If a collision warning is given, the information in
the head-up display will be replaced by a City
Safety graphic. This graphic will illuminate even if
the head-up display is turned off.

A City Safety graphic flashes to attract the driver's atten-
tion.

Related information

Activating and deactivating the head-up dis-
play* (p. 143)

Cleaning the head-up display* (p. 644)

Replacing a windshield with head-up display*
(p. 619)

Activating and deactivating the

head-up display*

The head-up display can be activated and deac-
tivated when the vehicle has been started.

Press the

Head-up Display

button in the center display's
Function view. An indicator light
in the button will illuminate
when the function is activated.

Related information

Head-up display settings* (p. 144)

Head-up display* (p. 142)

DISPLAYS AND VOICE CONTROL

* Option/accessory.

144

Head-up display settings*

Adjusting settings for the head-up display.

Settings can be adjusted when the vehicle is
started and a projected image is displayed on the
windshield.

Selecting display options

Select the functions to be shown in the head-up
display.

1. Tap

Settings

 in the center display's Top

view.

2. Tap

My Car

Displays

Head-Up

Display Options

.

3. Select one or more functions:

Show Navigation

Show Road Sign Information

Show Driver Support

Show Phone

.

This setting is stored as a personal setting in the
driver profile.

Adjusting brightness and height
position

1. Press the

Head-up Display Adjustments

button in the center display's Function view.

2. Adjust the brightness of the projected image

and the height position in the driver's field of
vision using the right-side steering wheel
lever.

Decreasing brightness

Increasing brightness

Raising position

Lowering position

Confirm

The brightness of the graphic is automatically
adapted to the light conditions in its background.
Brightness is also affected by adjustments to the
brightness of the other displays in the vehicle.

The height position can be stored in the front
power seat's* memory function using the keypad
in the driver's door.















Content   ..  5  6  7  8   ..
