MAINTENANCE AND SERVICE

}}

* Option/accessory.

393

Polishing and waxing

Polish and wax the car if the paintwork is dull or
to give the paintwork extra protection.

The car does not need to be polished until it is
at least one year old. However, the car can be
waxed during this time. Do not polish or wax the
car in direct sunlight.

Wash and dry the car thoroughly before you
begin polishing or waxing. Clean off asphalt and
tar stains using tar remover or white spirit. More
stubborn stains can be removed using fine rub-
bing paste designed for car paintwork.

Polish first with a polish and then wax with liquid
or solid wax. Follow the instructions on the pack-
aging carefully. Many preparations contain both
polish and wax.

IMPORTANT

Avoid waxing and polishing on plastic and
rubber.

When using degreasant on plastic and rubber,
only rub with light pressure if it is necessary.
Use a soft washing sponge.

Polishing glossy trim mouldings could wear
away or damage the glossy surface layer.

Polishing agent that contains abrasive must
not be used.

IMPORTANT

Only paint treatment recommended by Volvo
should be used. Other treatment such as pre-
serving, sealing, protection, lustre sealing or
similar could damage the paintwork. Paint-
work damage caused by such treatments is
not covered by Volvo warranty.

Related information

•

Car wash (p. 391)

Water and dirt-repellent coating

The windows are treated with a surface coating
that improves visibility in difficult weather condi-
tions.

Water and dirt-repellent coating

There is natural wear of the water-
repellent coating.

Maintenance:

•

Never use products such as car wax,
degreaser or similar on glass surfaces as this
could ruin their water-repellent properties.

•

Take care when cleaning so as not to dam-
age the glass surface.

•

To avoid damaging glass surfaces when
removing ice – only use plastic ice scrapers.

•

Treatment with a special finishing agent
available from Volvo dealers is recommended
in order to maintain the water-repellent prop-
erties on the side windows. This should be
used first after three years and then each
year.

IMPORTANT

Do not use a metal ice scraper to remove ice
from the windows. Use the heating to remove
ice from the door mirrors, see Windows and
rearview and door mirrors - heating (p. 102).

MAINTENANCE AND SERVICE

394

Related information

•

Car wash (p. 391)

Rustproofing

The car received a thorough and complete rust-
proofing at the factory. Parts of the body are
made of galvanised sheet metal. The underbody
is protected by a wear-resistant anti-corrosion
compound. A thin, penetrating rustproofing fluid
was sprayed into the exposed members, cavi-
ties, closed sections and side doors.

Inspection and maintenance

The car's anti-corrosion protection does not nor-
mally need to be maintained, but keeping the car
clean always helps to further reduce the risk of
corrosion. Strong alkaline or acidic cleaning solu-
tions must always be avoided on the glossy trim
components. Any stone chips should be rectified
as soon as they are discovered.

Related information

•

Paint damage (p. 396)

Cleaning the interior

Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains at once for best results. Vacuuming
is important prior to using cleaning agents.

IMPORTANT

•

Certain items of coloured clothing (e.g.
dark jeans and suede garments) may
stain the upholstery. If this occurs, it is
important to clean and treat these parts
of the upholstery as soon as possible.

•

Never use strong solvents such as
washer fluid, pure petrol or white spirit to
clean the interior, since this may damage
the upholstery as well as other interior
materials.

•

Never spray the cleaning agent directly
onto components that have electrical but-
tons and controls. Wipe them instead
using a moistened cloth containing the
cleaning agent.

•

Sharp objects and Velcro may damage
the fabric upholstery.

Fabric upholstery and ceiling upholstery

Volvo offers a comprehensive fabric care product
for fabric upholstery and ceiling upholstery which,
when used in accordance with the instructions,
preserves the properties of the upholstery. The

MAINTENANCE AND SERVICE

395

fabric care product is available for purchase from
a Volvo dealer.

Leather upholstery

Volvo's leather upholstery is treated to preserve
its original appearance.

Leather upholstery is a natural product that
changes and acquires a beautiful patina over
time. Regular cleaning and treatment are
required in order that the properties and colours
of the leather shall be preserved. Volvo offers a
comprehensive product, Volvo Leather Care Kit/
Wipes, for the cleaning and treatment of leather
upholstery which, when used in accordance with
the instructions, preserves the leather's protective
coating.

To achieve best results, Volvo recommends the
cleaning and application of the protective cream
once to four times per year (or more if required).
The Volvo Leather Care Kit/Wipes is available for
purchase from a Volvo dealer.

Leather steering wheel

Leather needs to breathe. Never cover the
leather steering wheel with protective plastic.
Volvo Leather Care Kit/Wipes is recommended
for cleaning the leather steering wheel.

Interior plastic, metal and wood parts

A fibrillated fibre or microfibre cloth, lightly mois-
tened with water, available from Volvo dealers, is
recommended for cleaning interior parts and sur-
faces.

Do not scrape or rub stains. Never use strong
stain removers. A special cleaning agent available
from Volvo dealers can be used for more difficult
cleaning.

Seatbelts

Use water and a synthetic detergent. A special
textile cleaning agent is available from a Volvo
dealer. Ensure that the seatbelt is dry before
allowing it to retract.

Inlay mats and floor mat

Remove inlaid carpets for separate cleaning of
the floor carpet and the inlaid carpets. Use a vac-
uum cleaner to remove dust and dirt. Each inlay
mat is secured with pins.

Remove the inlay mat by taking hold of the inlay
mat at each pin and lifting the mat straight up.

Fit the inlay mat in place by pressing it in at each
pin.

WARNING

Only use one inlaid mat at each seat, and

check before setting off that the mat by the

driver's seat is firmly affixed and secured in

the pins so that it does not get caught adja-

cent to and under the pedals.

A special textile cleaner is recommended for
stains on the floor mat after vacuuming. Floor
mats must be cleaned with agents recommended
by a Volvo dealer.

Related information

•

Car wash (p. 391)

MAINTENANCE AND SERVICE

396

Paint damage

Paint is an important part of the car's rustproof-
ing and should therefore be checked regularly.
The most common types of paintwork damage
are stone chips, scratches, and marks on the
edges of wings, doors and bumpers.

Touching up minor paintwork damage

To avoid the onset of rust, damaged paintwork
should be rectified immediately.

Materials that may be needed

•

Primer

- for e.g. bumpers, there are special

adhesive primers available in spray cans.

•

Base coat and clear coat - are available in
spray cans or as touch-up pens/sticks

•

Masking tape.

•

Fine sand paper

Colour code

The label for colour code is located on the car's
door pillar and is visible when the right-hand rear
door is opened.

Exterior colour code

Any secondary exterior colour code

It is important that the correct colour is used. For
product label location, see Type designations
(p. 400).

Repairing minor paint damage such as
stone chips and scratches

G021832

Before work is started, the car must be clean and
dry as well as at a temperature above 15 °C.

1. Apply a piece of masking tape over the dam-

aged surface. Then remove the tape to
remove any loose paint.

If the damage has reached down to a metal
surface (sheet steel), it is preferable to use a
primer. In the event of damage to a plastic
surface, an adhesive primer should be used
for better results - spray into the spray can's
cap and brush thinly.

If required.

Follow the instructions that are included with the package for the touch-up pen/stick.

MAINTENANCE AND SERVICE

397

2. Before painting, gentle polishing using a very

fine polishing agent may be carried out
locally if required (e.g. if there are any uneven
edges). Clean the surface thoroughly and
allow to dry.

3. Stir the primer well and apply using a fine

brush, matchstick or similar. Finish with base
coat and clear coat once the primer has
dried.

4. For scratches, proceed as above, but mask

around the damaged area to protect the
undamaged paintwork.

NOTE

If the stone chip has not penetrated down to
the meal and an undamaged layer of paint
remains in place, fill in with base coat and
clear coat as soon as the surface has been
cleaned.

Related information

•

Rustproofing (p. 394)

SPECIFICATIONS

402

contact with an authorised Volvo dealer regarding
the car and when ordering spare parts and
accessories.

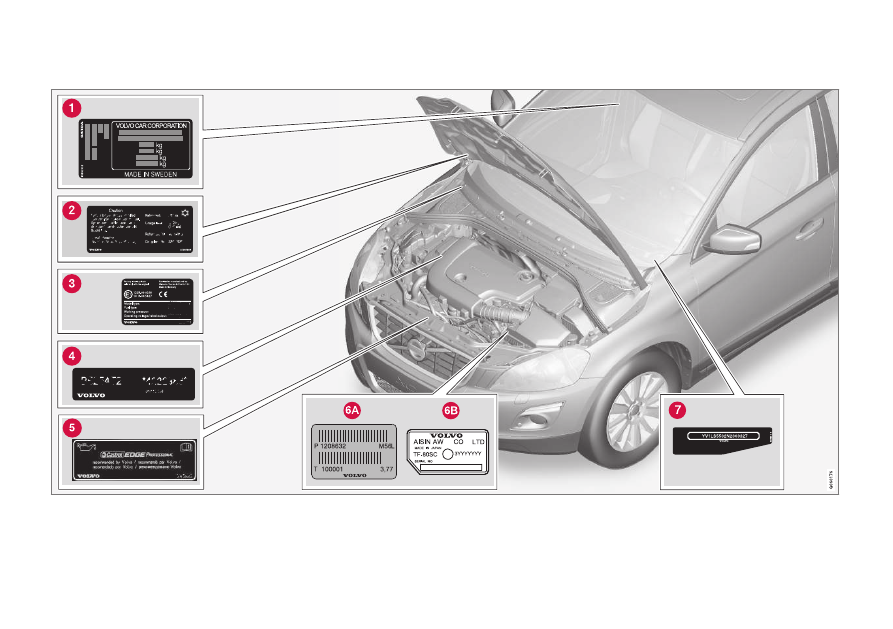

Decal for type designation, vehicle identifica-
tion number, permissible maximum weights
and code designation for exterior colour and
type approval number. The decal is posi-
tioned on the door pillar, and will be visible
when the right-hand rear door is opened.
Label for A/C system.

Label for parking heater.

Decal for engine code and the engine's
serial number.
Label for engine oil.

Decal for gearbox type designation and serial
number.

Manual gearbox

Automatic gearbox

Decal for the car's identification number -
VIN (Vehicle Identification Number).

Further information on the car is presented in the
registration document.

NOTE

It is not intended that the decals illustrated in
the owner's manual should be exact replicas
of those in the car. They are included to show
their approximate appearance and locations
in the car. The information that applies to your
particular car can be found on the decal on
the car.

Related information

•

Weights (p. 404)

•

Engine specifications (p. 406)

•

Specifications for air conditioning (p. 414)

SPECIFICATIONS

403

Dimensions

Measurement of car length, height, etc. can be
read in the table.

S60CC

Dimensions

Wheelbase

2774

Length

4637

Load length, floor,
folded rear seat

1749

Load length, floor

965

Height

1539

Load height

492

S60CC

Dimensions

Front track

1619

1609

Rear track

1577

1567

Load width, floor

919

Width

1866

S60CC

Dimensions

Width including door
mirrors

2097

Width including folded-
in door mirrors

1899

S60 Cross Country

Tyre width 215 mm.

Tyre width 235 mm.

SPECIFICATIONS

404

Weights

Max. gross vehicle weight, etc. can be read on a
label in the car.

Kerb weight includes the driver, the fuel tank
90% full and all fluids.

The weight of passengers and accessories, and
towball load (p. 405) (when a trailer is hitched)
influence the load capacity and are not included
in the kerb weight.

Permitted max. load = Gross vehicle weight -
Kerb weight.

NOTE

The documented kerb weight applies to cars
in the standard version - i.e. a car without
extra equipment or accessories. This means
that for every accessory added the loading
capacity of the car is reduced correspondingly
by the weight of the accessory.

Examples of accessories that reduce load
capacity are the different equipment levels
(e.g. Kinetic, Momentum, Summum), as well
as other accessories such as towbar, load
carrier, space box, audio system, auxiliary
lamps, GPS, fuel-driven heater, safety grille,
carpets, cargo cover, power seats, etc.

Weighing the car is a certain way of ascer-
taining the kerb weight of your own particular
car.

WARNING

The car's driving characteristics change

depending on how heavily it is loaded and

how the load is distributed.

For information on label location, see Type designations

(p. 400).

Max. gross vehicle weight

Max. train weight (car+trailer)

Max. front axle load

Max. rear axle load

Equipment level

Max. load: See registration document.

Max. roof load: 75 kg.

Related information

•

Towing capacity and towball load (p. 405)

•

Fuel consumption and CO2 emissions
(p. 416)

SPECIFICATIONS

* Option/accessory.

405

Towing capacity and towball load

Towing capacity and towball load for driving with
a trailer can be read in the tables.

Max. weight braked trailer

NOTE

Not all engines are available in all markets.

S60CC

Engine

Engine code

Gearbox

Max. weight braked trailer (kg)

Max. towball load (kg)

T5 AWD

B4204T11

Automatic, TG-81SC

1800

D4204T4

Manual, M66

1800

D4204T4

Automatic, TG-81SC

1800

D4204T14

Manual, M66

1800

D4204T14

Automatic, TG-81SC

1800

D4 AWD

D5244T21

Automatic, TF-80SD

1900

S60 Cross Country

Engine code, component and serial number can be read on the engine; see Type designations (p. 400).

Max. weight unbraked trailer

Max. weight unbraked trailer (kg)

Max. towball load (kg)

750

Related information

•

Weights (p. 404)

•

Driving with a trailer

* (p. 311)

SPECIFICATIONS

406

Engine specifications

Engine specifications (output etc.) for each
respective engine alternative can be read in the
table.

NOTE

Not all engines are available in all markets.

S60CC

Engine

Engine code

Output

(kW/rpm)

Output

(hp/rpm)

Torque

(Nm/rpm)

No. of cylinders

Bore

(mm)

Stroke

(mm)

Swept volume

(litres)

Compression ratio

T5 AWD

B4204T11

180/5500

245/5500

350/1500–4800

82.0

93.2

1,969

10.8:1

D4204T4

110/4250

150/4250

350/1500-2500

82.0

93.2

1,969

15.8:1

D4204T14

140/4250

190/4250

400/1750-2500

82.0

93.2

1,969

15.8:1

D4 AWD

D5244T21

140/4000

190/4000

440/1500-2750

81.0

93.2

2.400

16.5:1

S60 Cross Country

Engine code, component and serial number can be read on the engine; see Type designations (p. 400).

Related information

•

Coolant - grade and volume (p. 410)

•

Engine oil - grade and volume (p. 408)

SPECIFICATIONS

407

Engine oil - adverse driving

conditions

Adverse driving conditions can lead to abnor-
mally high oil temperature or oil consumption.
Below are some examples of adverse driving
conditions.

Check the oil level (p. 354) more frequently for
long journeys:

•

towing a caravan or trailer

•

in mountainous regions

•

at high speeds

•

in temperatures colder than -30 °C or hotter
than +40 °C.

The above also apply to shorter driving distances
at low temperatures.

Choose a fully synthetic engine oil for adverse
driving conditions. It provides extra protection for
the engine.

Volvo recommends:

IMPORTANT

In order to fulfil the requirements for the
engine's service intervals all engines are filled
with a specially adapted synthetic engine oil
at the factory. The choice of oil has been
made very carefully with regard to service life,
starting characteristics, fuel consumption and
environmental impact.

An approved engine oil must be used in order
that the recommended service intervals can
be applied. Only use a prescribed grade of oil
for both filling and oil change, otherwise you
will risk affecting service life, starting charac-
teristics, fuel consumption and environmental
impact.

Volvo Car Corporation disclaims all warranty
liability if engine oil of the prescribed grade
and viscosity is not used.

Volvo recommends that oil changes are car-
ried out at an authorised Volvo workshop.

Related information

•

Engine oil - grade and volume (p. 408)

•

Engine oil - general (p. 353)

SPECIFICATIONS

408

Engine oil - grade and volume

Engine oil grade and volume for each respective
engine alternative can be read in the table.

Volvo recommends:

NOTE

Not all engines are available in all markets.

S60CC

Engine

Engine code

Oil grade

Volume, incl. oil filter

(litres)

T5 AWD

B4204T11

Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0W-20

approx. 5.6

D4204T4

Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0W-20

approx 5.2

D4204T14

approx 5.2

D4 AWD

D5244T21

Oil grade: ACEA A5/B5

Viscosity: SAE 0W–30

approx. 5.9

S60 Cross Country

Engine code, component and serial number can be read on the engine; see Type designations (p. 400).

SPECIFICATIONS

410

Coolant - grade and volume

Approved coolant volume for each respective
engine alternative can be read in the table.

Prescribed grade: Coolant recommended by
Volvo mixed with 50% water

, see the packaging.

NOTE

Not all engines are available in all markets.

S60CC

Engine

Volume

(litres)

T5 AWD

B4204T11

8,3 (8,7

)

D4204T4

8,9 (9,2

)

D4204T14

D4 AWD

D5244T21

8.9

S60 Cross Country

Engine code, component and serial number can be read on the

engine; see Type designations (p. 400).

Applies to cars with fuel-driven heater.

Related information

•

Coolant - level (p. 357)

Water quality must fulfil the standard STD 1285.1.

SPECIFICATIONS

411

Transmission fluid - grade and

volume

The prescribed transmission fluid and volume for
each respective gearbox alternative can be read
in the table.

Manual gearbox

Volume (litres)

Prescribed transmission fluid

M66

approx. 1.45

BOT 350M3

Automatic gearbox

Volume (litres)

Prescribed transmission fluid

TF-80SD

approx 7.0

AW1

TG-81SC

approx. 6.6

approx. 7.5

AW1

Petrol engines

Diesel engines

NOTE

The transmission fluid does not need to be
changed under normal driving conditions.
However, it may be necessary under adverse
driving conditions.

Related information

•

Engine oil - adverse driving conditions
(p. 407)

•

Type designations (p. 400)

SPECIFICATIONS

412

Brake fluid - grade and volume

Brake fluid is the term for the medium in a
hydraulic brake system that is used to transfer
pressure from the master brake cylinder to the
mechanical brakes.

Prescribed grade: Volvo Original Dot 4 class 6
or equivalent.

Volume: 0.6 litres

Related information

•

Brake and clutch fluid - level (p. 358)

Power steering fluid - grade

Power steering fluid is the denomination of the
medium used in the car's power steering sys-
tem.

Prescribed grade: Power steering fluid recom-
mended by Volvo.

Related information

•

Power steering fluid - level (p. 358)

Volvo S60 Cross Country (2018 year). Instruction - part 23
