INSTRUMENTS AND CONTROLS

}}

183

1. Tap

Settings

in the center display's Top

view.

2. Select

System

Global Reset

Reset

Personal Settings

3. Select one of the following:

Reset for the

active profile

Reset for all profiles

Cancel

Related information

•

Driver profiles (p. 181)

•

Resetting the settings view (p. 119)

•

Using the center display keyboard (p. 36)

•

Using the center display (p. 50)

•

Selecting a driver profile (p. 181)

Linking a remote key to a driver

profile

A remote key can be linked to a driver profile,
which means that all of the settings stored in the
driver profile will apply each time that particular
remote key is used with the vehicle.

A remote key is not initially linked to a specific
driver profile. When the key is used to unlock the
vehicle/start the engine for the first time, the

Guest

profile will be used.

A driver profile can be selected manually each
time the vehicle is unlocked/started without a
remote key being linked to that profile. When the
vehicle is started, the most recently selected
driver profile will be activated. If the key has previ-
ously been linked to a driver profile, it is not nec-
essary to manually select a profile when that par-
ticular key is used.

Linking a remote key to a driver profile
for the first time

Select a profile to link to the remote key (if that
profile is not already active).

1. Pull down the center display's Top view and

tap

Settings

2. Tap

System

Driver Profile

3. Tap the profile to be linked to the remote

key. The

Guest

profile cannot be linked to a

remote key.

4. Open Top view in the center display and tap

Settings

System

Driver Profile

Edit Profile

5. Select

Connect key

to link the selected pro-

file to the remote key currently being used. A
profile can only be linked to the remote key
that is currently being used. If there are sev-
eral keys in the vehicle at the same time,

More than one key is found, put the key
you want to connect on backup reader

will be displayed.

Location of the backup reader in the tunnel console

> When

Profile connected to key

is dis-

played, the remote key and the selected
driver profile have been linked.

6. Tap

to confirm.

> The key currently in use will remain linked

to the selected driver profile as long as
the

Connect key

box is not deselected.

INSTRUMENTS AND CONTROLS

184

Related information

•

Driver profiles (p. 181)

•

Editing a driver profile (p. 182)

•

Remote key (p. 238)

Importing/exporting a driver profile

from/to a USB flash drive

The personal settings stored in a driver profile
can be imported or exported to another vehicle
using a USB flash drive.

The following steps describe the procedure for
importing or exporting personal settings saved in
a driver profile to a USB flash drive:

1. Tap

Settings

in the center display's Top

view.

2. Tap

System

Driver Profile

3. Insert a flash drive in the USB socket in the

tunnel console.

USB socket in the tunnel console

4. Select

Import Profile From USB

Export

Profile To USB

NOTE

•

The

Guest

profile cannot be imported or

exported

•

Several profiles can be exported to USB
but only one profile can be imported.
When a profile is imported, it overwrites
the one currently being used in the vehicle.

5. Select the profile(s) to be imported/exported.

6. Select

If an export does not succeed, this may be due
to:

•

USB flash drive is full.

•

USB flash drive was not inserted correctly or
was removed before the export was comple-
ted.

If an import does not succeed, this may be due
to:

•

USB flash drive was not inserted correctly or
was removed before the import was comple-
ted.

•

No driver profile had been stored on the USB
flash drive.

•

The driver profile file on the USB flash drive
is damaged.

CLIMATE

188

Climate control system

The vehicle is equipped with Electronic Climate
Control (ECC) that cools, heats, dehumidifies
and filters the air in the passenger compartment.

4-zone climate system

4-zone system climate zones

The 4-zone climate system makes it possible to
set the left- and right-side temperatures sepa-
rately for the front and rears seats.

All climate system settings are made from the
center display and the buttons in the center con-
sole. Settings for the rear seats can also be
made from the climate system panel on the rear
side of the tunnel console.

Related information

•

Climate system sensors (p. 189)

•

Perceived temperature (p. 188)

•

Climate system controls (p. 199)

•

Air quality (p. 196)

•

Air distribution (p. 212)

•

Air conditioning refrigerant (p. 565)

•

Parking climate (preconditioning) (p. 189)

Perceived temperature

The climate system regulates passenger com-
partment temperature based on the perceived
temperature, not on the actual one.

The selected passenger compartment tempera-
ture is based on a physical perception relating to
the current ambient temperature, air flow, humid-
ity, sunlight in the passenger compartment, etc.

The system's sunlight sensor monitors the side of
the car where sunlight is entering the passenger
compartment. This means that the actual tem-
perature may differ between the right and left
sides of the compartment, even if the tempera-
ture setting is the same for both sides.

Related information

•

Climate system sensors (p. 189)

•

Climate control system (p. 188)

CLIMATE

}}

* Option/accessory, for more information, see Introduction.

189

Climate system sensors

The climate system's sensors help regulate the
passenger compartment temperature, humidity
level, etc.

Location of the sensors

Humidity sensor: in the rearview mirror con-
sole.
Ambient temperature sensor: in the pas-
senger's side door mirror.
Passenger compartment temperature sen-
sor: near the center console buttons.
Sunlight sensor: on the upper side of the
dashboard.

NOTE

Do not cover or block the sensors with cloth-
ing or other objects.

On models equipped with the optional Interior Air
Quality System, there is also an air quality sensor
located at the climate system's air intake.

Related information

•

Climate control system (p. 188)

•

Perceived temperature (p. 188)

•

Interior Air Quality System (IAQS)

* (p. 197)

Parking climate (preconditioning)

The climate in the passenger compartment can
be preconditioned and maintained, even when
the vehicle is parked. For full functionality, the
vehicle's charging cable must be connected.

Parking climate/preconditioning and maintaining pas-
senger compartment climate comfort is controlled from
the Parking climate tab in the center display's Climate
view.

CLIMATE

* Option/accessory, for more information, see Introduction.

190

Preconditioning

Preconditioning the vehicle before driving can
help reduce wear and reduce energy consump-
tion during a trip.

NOTE

Full preconditioning is only possible when the
vehicle's charging cable is connected.

In other cases, the passenger compartment
can be cooled for 3 minutes in warm weather.
This function is started from the

Parking

climate

tab in the center display's Climate

view.

With the charging cable connected, precondition-
ing can be started immediately or a timer function
can start this procedure at a later time.

This feature utilizes several of the vehicle's sys-
tems:

•

The High Voltage Coolant Heater (HVCH)
warms the hybrid battery and passenger
compartment in cold weather.

•

In warm weather, the ventilation system will
attempt to cool the passenger compartment
to the current ambient temperature.

•

In warm weather, the air conditioning system
will cool the passenger compartment to a
comfortable temperature.

•

The electrically heated steering wheel and
seats can be activated.

•

Heating for the windshield, tailgate window
and door mirrors can be activated.

If preconditioning is used in warm weather, a cer-
tain amount of water may condense under the
vehicle, which is normal.

When preconditioning is used, this system will
attempt to establish a comfortable temperature in
the passenger compartment but not necessarily
the temperature currently set in the climate
system.

Maintaining a comfortable passenger
compartment climate

The climate in the passenger compartment can
be maintained even when the vehicle is parked
and the engine is turned off (e.g., if anyone
intends to remain in the vehicle).

This function can only be direct-started.

This function utilizes several of the vehicle's sys-
tems:

•

Residual heat from the engine is used help
keep the passenger compartment warm in
cool temperatures.

•

In warm weather, the ventilation system will
attempt to cool the passenger compartment
to the current ambient temperature.

This function will not be activated if the vehicle is
locked from the outside in order to avoid using

residual engine heat unnecessarily. This function
is primarily intended for use when the engine is
not running but someone remains in the vehicle.

Related information

•

Starting and stopping preconditioning
(p. 194)

•

Activating/deactivating the climate comfort
retaining function

* (p. 191)

•

Activating/deactivating the parking climate
timer (p. 191)

•

Charging the hybrid battery (p. 413)

•

Hybrid battery charging cable (p. 405)

CLIMATE

}}

* Option/accessory, for more information, see Introduction.

191

Activating/deactivating the parking

climate timer

With the vehicle's charging cable connected,
the parking climate timer can be activated or
deactivated at any time.

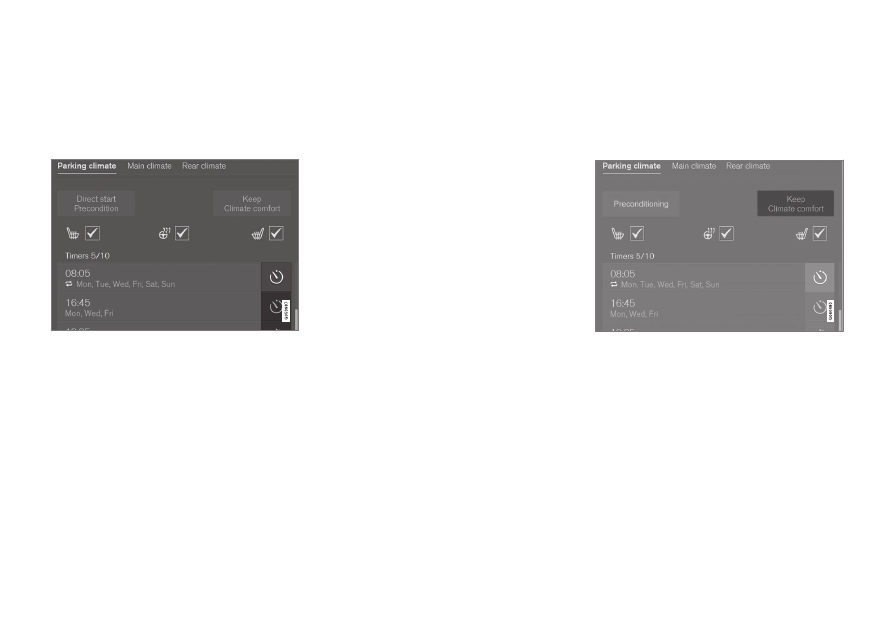

The timer button in the Parking climate tab in Climate
view

1. Open Climate view in the center display.

2. Tap

Parking climate

3. Activate/deactivate the timer by tapping the

button to the right of the setting.
> The timer setting will be activated/deacti-

vated and the indicator light in the button
will be on/off.

Related information

•

Preconditioning timer (p. 192)

•

Setting the parking climate (preconditioning)
timer (p. 192)

•

Hybrid battery charging cable (p. 405)

Activating/deactivating the climate

comfort retaining function

This function helps keep the passenger com-
partment comfortable if anyone remains in the
vehicle after the engine has been switched off.

Button for retaining climate comfort in the Parking

climate tab in Climate view

1. Open Climate view in the center display.

2. Tap

Parking climate

3. Tap

Keep climate comfort

> The function for retaining climate comfort

in the passenger compartment will be
activated/deactivated and the indicator
light in the button will be on/off.

CLIMATE

192

NOTE

•

If there is not sufficient residual engine
heat available, this function cannot be
started

•

This function will be turned off if the vehi-
cle is locked from the outside in order to
avoid using residual engine heat unnec-
essarily. This function is primarily
intended for use when the engine is not
running but someone remains in the vehi-
cle

Preconditioning timer

The timer can be set to start preconditioning at a
predetermined time.

The timer can store up to 8 preset times for:

•

A time on a particular date

•

A time on one or more days of the week, with
or without the repeat function.

NOTE

Full preconditioning is only possible when the
vehicle's charging cable is connected.

In other cases, the passenger compartment
can be cooled for 3 minutes in warm weather.
This function is started from the

Parking

climate

tab in the center display's Climate

view.

Related information

•

Parking climate (preconditioning) (p. 189)

Setting the parking climate

(preconditioning) timer

The parking climate (preconditioning) timer can
be activated or deactivated at any time. How-
ever, the vehicle's changing cable must be
connected.

Adding a timer

Timer button in the center display's Parking climate tab

1. Open Climate view in the center display.

2. Tap

Parking climate

CLIMATE

193

3. Tap

Add timer

> A pop-up window will open.

NOTE

A new timer setting cannot be made if there
are already 8 timers set. Delete one of the
existing timer settings in order to add a new
one.

4. Tap

Date

to set a specific date for the timer

setting.

Tap

Days

to set a timer for one or more days

of the week.

For

Days

: activate/deactivate the repeat

function by selecting/deselecting the

Repeat weekly

box.

5. For

Date

: Select a date for preconditioning

by scrolling in the date list using the arrow
keys.

For

Days

: Select days of the week for pre-

conditioning by tapping the days' buttons.

6. Set the time at which preconditioning should

be completed by scrolling with the arrows in
the clock.

7. Tap

Confirm

to add the timer setting.

> The timer settings will be added to the list

and activated.

Editing a timer setting

1. Open Climate view in the center display.

2. Tap the

Parking climate

tab.

3. Tap the timer setting to be changed.

> A pop-up window will open.

4. Change the setting as described in the sec-

tion "Adding a timer setting" above.

Deleting a timer setting

The button for editing a list/deleting a timer setting in
the Climate setting's Parking climate tab

1. Open Climate view in the center display.

2. Tap the

Parking climate

tab.

3. Tap

Edit list

4. Tap the delete icon at the right in the list.

> The icon will change to the text

Delete

5. Tap

Delete

to confirm.

> The timer setting will be deleted from the

list.

CLIMATE

* Option/accessory, for more information, see Introduction.

194

Starting and stopping

preconditioning

Preconditioning heats/cools the passenger com-
partment prior to driving. Please note that the
charging cable must be connected.

Starting/stopping from the center
display

The preconditioning button in the Parking climate tab
in Climate view.

1. Open Climate view in the center display.

2. Tap

Parking climate

The window for seat/steering wheel heating in Climate
view's Parking climate tab

3. Tap the boxes to select if seat/steering

wheel heating is to be activated/deactivated
when preconditioning starts.

4. Tap

Preconditioning

> Preconditioning starts/stops and the indi-

cator lights in the buttons will be on/off.

NOTE

Full preconditioning is only possible when the
vehicle's charging cable is connected.

In other cases, the passenger compartment
can be cooled for 3 minutes in warm weather.
This function is started from the

Parking

climate

tab in the center display's Climate

view.

The vehicle's doors and windows should be
closed during preconditioning.

Starting from a cell phone

Starting preconditioning and checking the cur-
rent settings can be done from a cell phone with
the Volvo On Call mobile app. Preconditioning
heats the passenger compartment to a comforta-
ble temperature or cools the compartment to the
current ambient temperature.

If the vehicle is equipped with the optional
Engine Remote Start (ERS), the air conditioning
can be used to pre-cool the passenger compart-
ment to a comfortable temperature.

Related information

•

Setting the parking climate (preconditioning)
timer (p. 192)

•

Activating/deactivating the parking climate
timer (p. 191)

•

Hybrid battery charging cable (p. 405)

CLIMATE

195

Preconditioning symbols and

messages

A symbol and various texts relating to precondi-
tioning may be displayed in the instrument panel.

Symbol

Message

Explanation

Parking climate

Unavailable Charge level too
low

Preconditioning cannot be started because the hybrid battery's charge level is too low. Connect the charg-
ing cable. In certain cases, the parking climate function can be started with limited functionality.

Parking climate

Unavailable, fuel and charge
level too low

Parking climate

Service required

Preconditioning is not functioning properly. Contact a Volvo retailer or a trained and qualified Volvo service
technician to have the system checked as soon as possible.

Parking climate

Temporary unavailable

Preconditioning is temporarily not functioning and will be reset automatically while the vehicle is being
driven or when it is restarted.

The reference to fuel level does not apply in North America.

CLIMATE

* Option/accessory, for more information, see Introduction.

196

Air quality

The materials used in the passenger compart-
ment have been selected and designed to be
pleasant and comfortable, even for people with
asthma or other types of allergies.

Materials in the passenger
compartment

The materials used have been developed to help
minimize the amount of dust and make the cabin
easier to keep clean.

All floor mats (including the cargo compartment)
can be easily removed for cleaning.

Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and fol-
low the instructions included with the product.

Air filtering systems

In addition to the passenger compartment filter,
the Clean Zone Interior Package

* and the Interior

Air Quality System

* contribute to a cleaner pas-

senger compartment environment.

Clean Zone

The Clean Zone function monitors the conditions
that affect good passenger compartment air
quality.

The indicator is shown in center display's Cli-
mate view.
The indicator is shown in the climate bar
when the Climate view is not open.

If the air quality conditions are not met, the text

Clean Zone

will be white. When the conditions

are met, the text will change to blue.

The conditions monitored are:

•

All side windows, doors, tailgate and panor-
amic roof

* are closed

•

The Interior Air Quality System

* is activated

•

The air conditioning is activated

•

Recirculation is deactivated

NOTE

Please be aware that the Clean Zone function
does not indicate that the air quality in the
passenger is good, only that the conditions
for good air quality have been met.

Related information

•

Passenger compartment air filter (p. 198)

•

Interior Air Quality System (IAQS)

* (p. 197)

•

Clean Zone Interior Package (CZIP)

(p. 197)

•

Cleaning the interior (p. 550)

•

Climate system controls in the center display
(p. 199)

CLIMATE

* Option/accessory, for more information, see Introduction.

197

Clean Zone Interior Package

(CZIP)

The Clean Zone Interior Package includes a
number of features that help further reduce aller-
genic substances in the passenger compart-
ment.

CZIP includes the following:

•

An enhanced blower function that starts the
blower when the vehicle is unlocked with the
remote key to fill the passenger compart-
ment with fresh air. This function starts auto-
matically when required and shuts off auto-
matically after a short period or if one the
doors is opened. The time for which the
blower operates decreases gradually due to
reduced need until the vehicle is four years
old.

•

The Interior Air Quality System (IAQS).

Interior Air Quality System (IAQS)

The Interior Air Quality System uses a multifilter
and an air quality sensor to remove gases, parti-
cles and other contaminants from the air enter-
ing the passenger compartment.

The IAQS air quality sensor monitors increased
levels of contaminants in the outside air and if
contaminants are detected, the air intake closes
and the air inside the passenger compartment is
recirculated, i.e., no outside air enters the vehicle.
The filter also cleans recirculated passenger
compartment air.

NOTE

•

The air quality sensor should always be
engaged in order to obtain the best air in
the passenger compartment.

•

Recirculation is limited in cold weather to
avoid fogging.

•

If the insides of the windows start fog-
ging, disengage the air quality sensor.
Use the defroster function to increase
airflow to the front, side, and rear win-
dows.

Activating/deactivating IAQS

To change the setting for IAQS activation/deacti-
vation:

1. In the center display's Settings view, go to

Climate

2. Activate/deactivate IAQS by selecting/dese-

lecting the

Air Quality Sensor

box.

Related information

•

Air quality (p. 196)

•

Passenger compartment air filter (p. 198)

•

Clean Zone Interior Package (CZIP)

(p. 197)

•

Turning recirculation on and off (p. 205)

CLIMATE

* Option/accessory, for more information, see Introduction.

198

Passenger compartment air filter

All air entering the passenger compartment
through the climate system air intake is filtered.

Filter replacement

The filter must be replaced according to the serv-
ice schedule for your vehicle. When driving in e.g.,
dusty or industrial areas, the filer may need to be
replaced more often. Consult your Volvo retailer.

Related information

•

Air quality (p. 196)

•

Clean Zone Interior Package (CZIP)

(p. 197)

•

Interior Air Quality System (IAQS)

* (p. 197)

•

Volvo's service program (p. 504)

Automatic climate control

The Auto feature automatically controls a num-
ber of climate system functions.

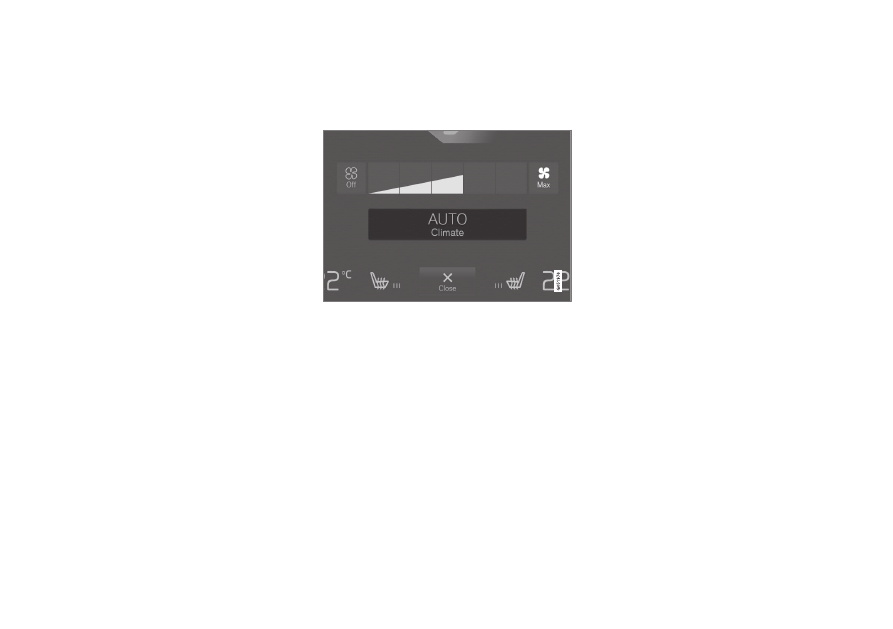

The Auto climate button in Climate view

1. Go to the center display's Climate view.

2. Tap or press and hold

AUTO

> Auto mode is activated (button lights up)/

deactivated (button is off). Auto mode
automatically controls air recirculation, air
conditioning, and air distribution.

Blower speed and temperature change
depending on how long the button is
pressed.

•

Tap: return to previous settings.

•

Press and hold: change to default set-
tings (level

and 72 °F (22 °C).

Related information

•

Climate system controls in the center display
(p. 199)

CLIMATE

}}

* Option/accessory, for more information, see Introduction.

199

Climate system controls

Climate system functions are controlled using
buttons on the center console, the center dis-
play and the climate system panel on the rear
side of the tunnel console.

Overview of climate system controls

Climate system controls in the center display

Defroster buttons on the center console

Climate system panel on the rear side of the
tunnel console

Related information

•

Climate system controls in the center display
(p. 199)

•

Climate control system (p. 188)

•

Rear climate system controls on the tunnel
console (p. 201)

•

Defrosting windows and mirrors (p. 206)

•

Climate system voice commands (p. 128)

Climate system controls in the

center display

All climate system functions can be controlled
from the center display's climate bar and Cli-
mate view.

Climate bar

The most common climate system functions can
be controlled from the climate bar.

Temperature control for the driver and pas-
senger sides.

Control for heated

* and ventilated* driver/

passenger seats and heated steering wheel

Button for opening Climate view. The graphic
in the button shows the activated climate
system settings.

CLIMATE

200

Climate view

Tap the center button on the climate bar to
access Climate view, which is divided into the fol-
lowing tabs:

Main climate

Rear climate

and

Parking climate

Toggle between the tabs by

swiping the screen from left to right and by tap-
ping the respective headings.

Main climate settings

In addition to the climate bar's functions, other
primary climate system functions can also be
controlled from the

Main climate

tab.

Max

Electric

Rear

: controls for defrosting

windows and door mirrors.

: air conditioning controls.

Recirc

: recirculation controls.

Air distribution controls.

Blower control for the front seats.

AUTO

: climate system Auto mode.

Rear climate

All of the climate system functions for the rear
seat can be controlled from the

Rear climate

tab.

2nd row climate

: Blower control and cli-

mate system functions for the second row of
seats.

3rd row climate

: Blower control and climate

system functions for the third row of seats.

CLIMATE

}}

* Option/accessory, for more information, see Introduction.

201

Rear seat temperature control.

Rear seat heating control

Parking climate

All of the parking climate functions can be con-
trolled from the

Parking climate

tab.

Related information

•

Climate system controls (p. 199)

•

Defrosting windows and mirrors (p. 206)

•

Air conditioning (p. 209)

•

Adjusting air distribution (p. 213)

•

Setting the temperature (p. 203)

•

Setting the blower speed (p. 201)

•

Automatic climate control (p. 198)

•

Turning steering wheel heating

* on and off

(p. 208)

•

Turning seat heating

* on and off (p. 210)

Rear climate system controls on the

tunnel console

The rear seat climate system functions are con-
trolled from the rear side of the tunnel console.

Rear seat heating

Rear seat blower speed

Rear seat temperature control

Related information

•

Climate system controls (p. 199)

•

Turning seat heating

* on and off (p. 210)

•

Setting the blower speed (p. 201)

•

Setting the temperature (p. 203)

Setting the blower speed

The blower can be set to five different automatic
speeds plus

Off

and

Max

. The blower speed

can be set separately for the front and rear
seats.

Setting blower speed for the front seats

Blower control buttons in Climate view

1. Go to the center display's Climate view.

2. Tap the desired blower speed:

Off

–

Max

> The blower speed will change and the

button for the selected speed will light up.

XC90 T8 Plug-in Hybrid only.

Volvo XC90 T8 Twin Engine Plug-in Hybrid (2017 year). Instruction - part 11
