The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.

5. Press the infant seat firmly in place, let the

seat belt retract and pull it taut. A sound from
the seat belt retractor's automatic locking
function will be audible at this time and is
normal. The seat belt should now be locked
in place.

Ensure that the seat is securely in place

6. Push and pull the infant seat along the seat

belt path to ensure that it is held securely in
place by the seat belt.

WARNING

It should not be possible to move the child
restraint (child seat) more than 1 in. (2.5 cm)
in any direction along the seat belt path.

The infant seat can be removed by unbuckling
the seat belt and letting it retract completely.

Related information

•

•

Convertible seats (p. 86)

•

•

Buckling and unbuckling seat belts (p. 67)

•

Convertible seats

Suitable child restraints should always be used
when children (depending on their age/size) are
seated in the vehicle.

Securing a convertible seat with a seat
belt

Do not place the convertible seat in the front passeng-
er's seat

Convertible seats can be used in either a forward
or rearward-facing position, depending on the
age and size of the child.

SAFETY

}}

Route the seat belt through the convertible seat

WARNING

Always use a convertible seat that is suitable
for the child's age and size. See the converti-
ble seat manufacturer's recommendations.

1. Place the convertible seat in the rear seat of

the vehicle.

WARNING

•

A small child's head represents a consider-
able part of its total weight and its neck is
still very weak. Volvo recommends that
children up to age 4 travel, properly
restrained, facing rearward. In addition,
Volvo recommends that children should
ride rearward facing, properly restrained, as
long as possible.

•

Convertible child seats should be installed
in the rear seat only.

•

A rear-facing convertible seat should not
be positioned behind the driver's seat
unless there is adequate space for safe
installation.

2. Attach the seat belt to the convertible seat

according to the manufacturer's instructions.

Fasten the seat belt

3. Fasten the seat belt by inserting the latch

plate into the buckle (lock) until a distinct
click is audible.

4. Pull the shoulder section of the seat belt out

as far as possible to activate the belt's auto-
matic locking function.

SAFETY

The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.

5. Press the convertible seat firmly in place, let

the seat belt retract and pull it taut. A sound
from the seat belt retractor's automatic lock-
ing function will be audible at this time and is
normal. The seat belt should now be locked
in place.

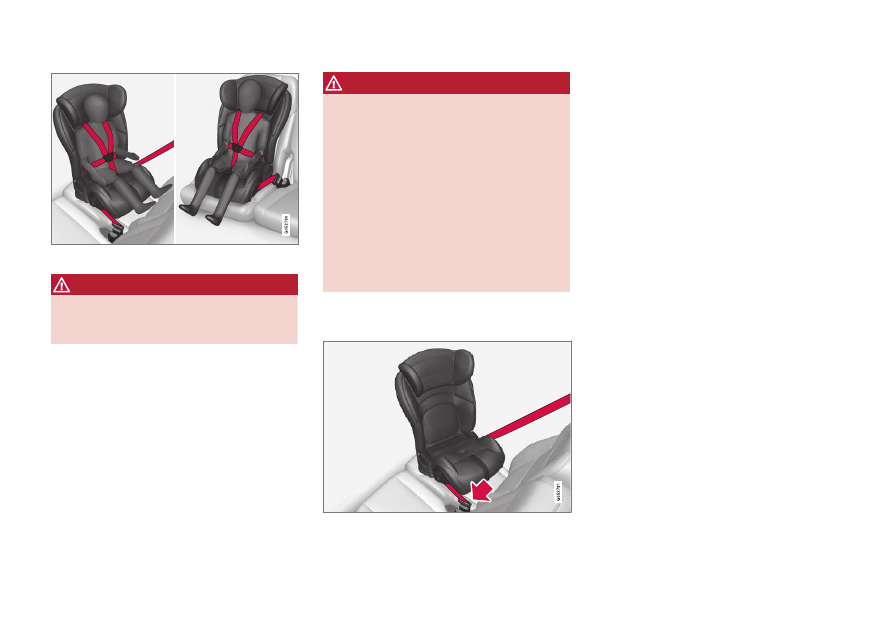

Pull out the shoulder section of the seat belt

6. Push and pull the convertible seat along the

seat belt path to ensure that it is held
securely in place by the seat belt.

WARNING

It should not be possible to move the child
restraint (child seat) more than 1 in. (2.5 cm)
in any direction along the seat belt path.

The convertible seat can be removed by unbuck-
ling the seat belt and letting it retract completely.

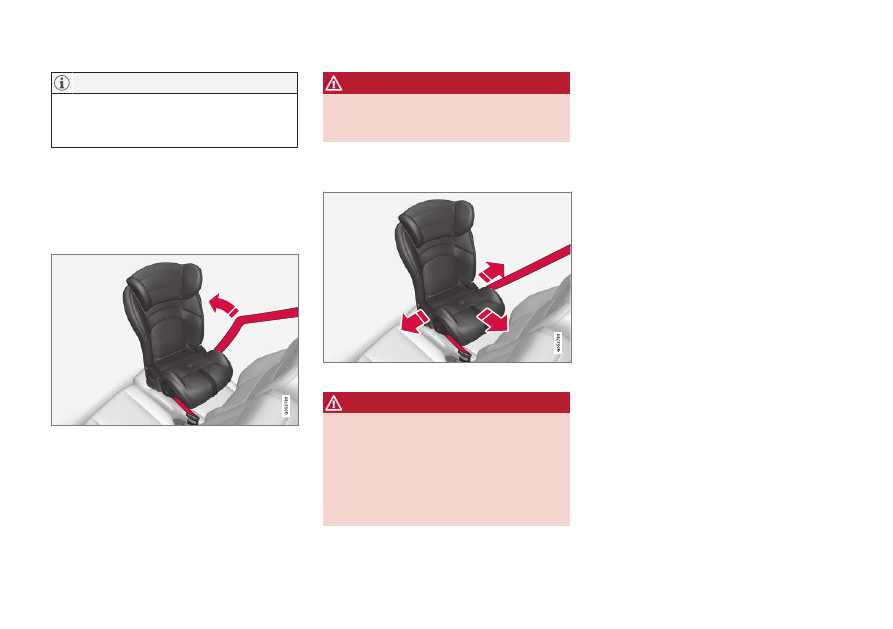

Ensure that the seat is securely in place

WARNING

A child seat should never be used in the front
passenger seat of any vehicle with a front
passenger airbag – not even if the "Passen-
ger airbag off" symbol near the rear-view mir-
ror is illuminated. If the severity of an accident
were to cause the airbag to inflate, this could
lead to serious injury or death to a child
seated in this position.

Related information

•

•

Buckling and unbuckling seat belts (p. 67)

•

Booster cushions (p. 89)

•

•

SAFETY

* Option/accessory, for more information, see Introduction.

Booster cushions

Securing a booster cushion

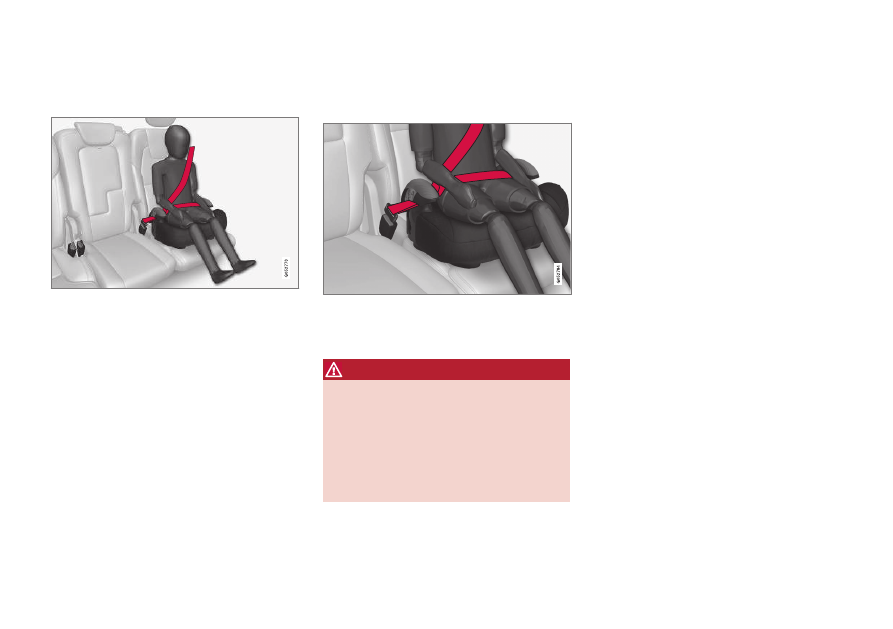

Position the child correctly on the booster cushion

Booster cushions are recommended for children
who have outgrown convertible seats.

1. Place the booster cushion in the rear seat of

the vehicle.

2. With the child properly seated on the booster

cushion, attach the seat belt to or around the
cushion according to the manufacturer's
instructions.

3. Fasten the seat belt by inserting the latch

plate into the buckle (lock) until a distinct
click is audible.

Positioning the seat belt

4. Ensure that the seat belt is pulled taut and

fits snugly around the child.

WARNING

•

The hip section of the three-point seat
belt must fit snugly across the child's
hips, not across the stomach.

•

The shoulder section of the three-point
seat belt should be positioned across the
chest and shoulder.

•

The shoulder belt must never be placed
behind the child's back or under the arm.

Related information

•

•

•

Buckling and unbuckling seat belts (p. 67)

•

•

Integrated booster cushion

* (p. 93)

SAFETY

ISOFIX/LATCH lower anchors

Lower anchors for ISOFIX/LATCH-equipped
child seats are located in the second row, out-
board seats, hidden below the backrest cush-
ions.

Lower anchors for ISOFIX/LATCH-equipped
child seats are located in the rear, outboard
seats, hidden below the backrest cushions.

Using the ISOFIX/LATCH lower child
seat anchors

Location of the ISOFIX/LATCH anchors

Symbols on the seat back upholstery mark the
ISOFIX/LATCH anchor positions as shown. To
access the anchors, kneel on the seat cushion
and locate the anchors by feel. Always follow your
child seat manufacturer's installation instructions,
and use both ISOFIX/LATCH lower anchors and
top tethers whenever possible.

To access the anchors

1. Put the child restraint in position.

2. Kneel on the child restraint to press down

the seat cushion and locate the anchors by
feel.

3. Fasten the attachment on the child

restraint's lower straps to the ISOFIX/
LATCH/LATCH lower anchors.

4. Firmly tension the lower child seat straps

according to the manufacturer's instructions.

WARNING

Volvo's ISOFIX/LATCH anchors conform to
FMVSS/CMVSS standards. Always refer to
the child restraint system's manual for weight
and size ratings.

•

The rear seat's center position is not
equipped with ISOFIX/LATCH lower
anchors. When installing a child restraint
in this position, attach the restraint's top
tether strap (if it is so equipped) to the
top tether anchorage point and secure
the restraint with the vehicle's center seat
belt.

•

Always follow your child seat manufactur-
er's installation instructions, and use both
ISOFIX/LATCH lower anchors and top
tethers whenever possible.

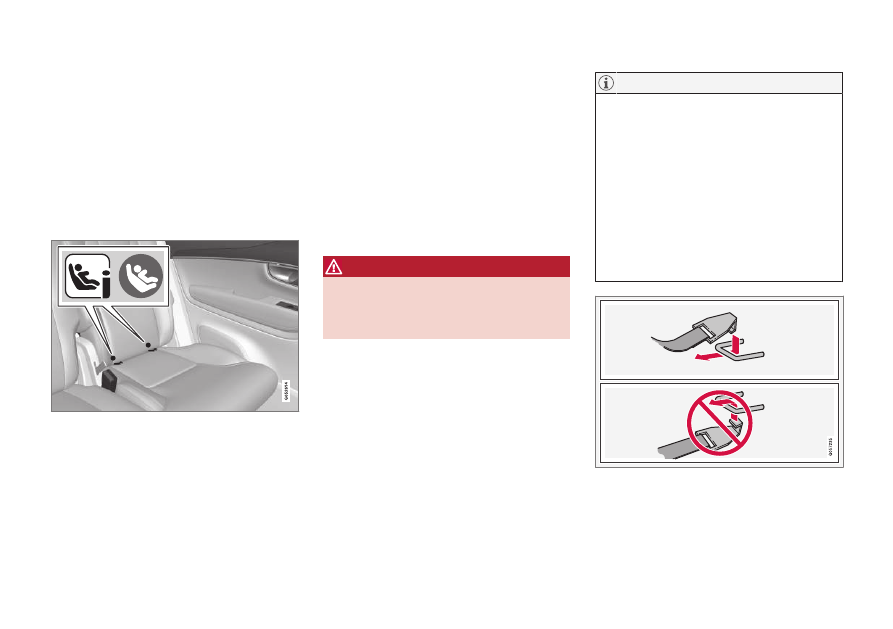

Fasten the attachment correctly to the ISOFIX/LATCH
lower anchors

SAFETY

}}

WARNING

•

Be sure to fasten the attachment cor-
rectly to the anchor (see the illustration).
If the attachment is not correctly fas-
tened, the child restraint may not be
properly secured in the event of a colli-
sion.

•

The ISOFIX/LATCH lower child restraint
anchors are only intended for use with
child seats positioned in the outboard
seating positions. These anchors are not
certified for use with any child restraint
that is positioned in the center seating
position. When securing a child restraint
in the center seating position, use only
the vehicle's center seat belt.

Related information

•

Lower child seat attachment points

The vehicle is equipped with lower attachment
points for child seats in the second row of seats.

The lower attachment points are intended for use
with rear-facing child restraints.

Always follow the child restraint manufacturer's
installation instructions when attaching a child
restraint to these attachment points.

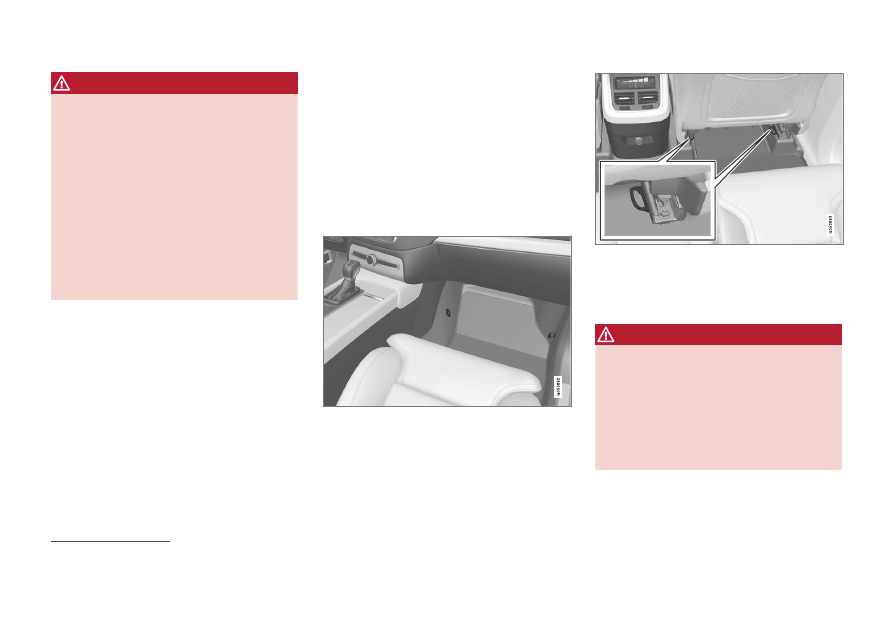

Location

Attachment points in the front seat

Attachment points in the second row of seats

The attachment points in the second row of seats
are in the rear section of the front seat's floor
rails.

WARNING

Not available in all markets

SAFETY

Related information

•

Child restraints (p. 83)

•

Occupant weight sensor (p. 74)

•

Top tether anchors

Your Volvo is equipped with child restraint top
tether anchorages for all three seating positions
in the rear seat. They are located on the rear
side of the backrests.

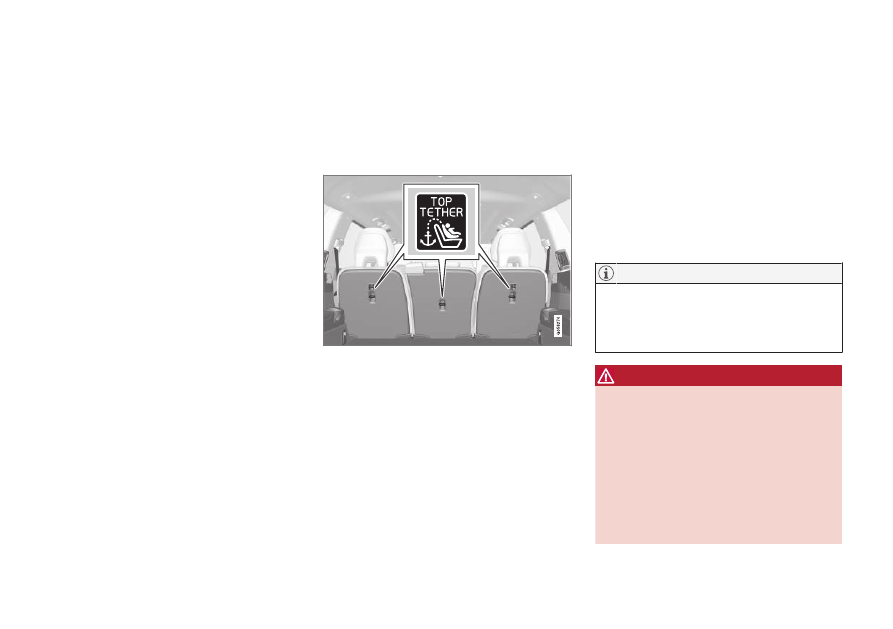

Child restraint anchorages

Top tether anchors and symbols on the rear side of the
second row backrests. There is no symbol for the center
anchor position.

Securing a child seat

1. Place the child restraint on the rear seat.

2. Route the top tether strap under the head

restraint and attach it to the anchor.

3. Attach lower tether straps to the lower ISO-

FIX/LATCH anchors. If the child restraint is
not equipped with lower tether straps, or the
restraint is used in the center seating posi-
tion, follow instructions for securing a child
restraint using the Automatic Locking
Retractor seat belt.

–

Firmly tension all straps.

Refer also to the child seat manufacturer's
instructions for information on securing the child
seat.

On models equipped with the optional cargo
area cover, this cover should be removed
before a child seat is attached to the child
restraint anchors.

WARNING

•

Always refer to the recommendations
made by the child restraint manufacturer.

•

Volvo recommends that the top tether
anchors be used when installing a for-
ward-facing child restraint.

•

Never route a top tether strap over the
top of the head restraint. The strap
should be routed beneath the head
restraint.

•

Child restraint anchorages are designed
to withstand only those loads imposed by

SAFETY

}}

* Option/accessory, for more information, see Introduction.

correctly fitted child restraints. Under no
circumstances are they to be used for
adult seat belts or harnesses. The ancho-
rages are not able to withstand excessive
forces on them in the event of collision if
full harness seat belts or adult seat belts
are installed to them. An adult who uses a
belt anchored in a child restraint anchor-
age runs a great risk of suffering severe
injuries should a collision occur.

•

Do not install rear speakers that require
the removal of the top tether anchors or
interfere with the proper use of the top
tether strap.

Related information

•

•

Child restraints (p. 83)

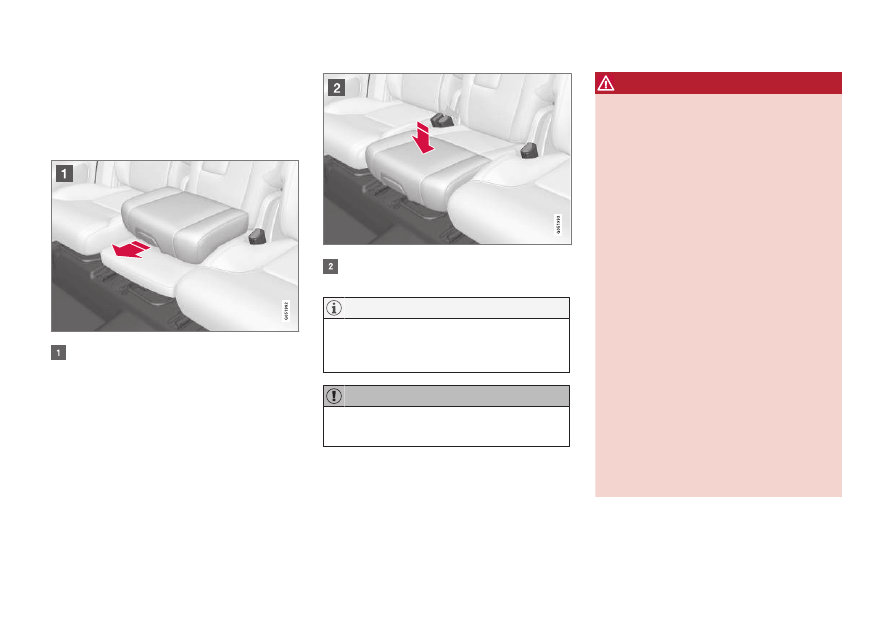

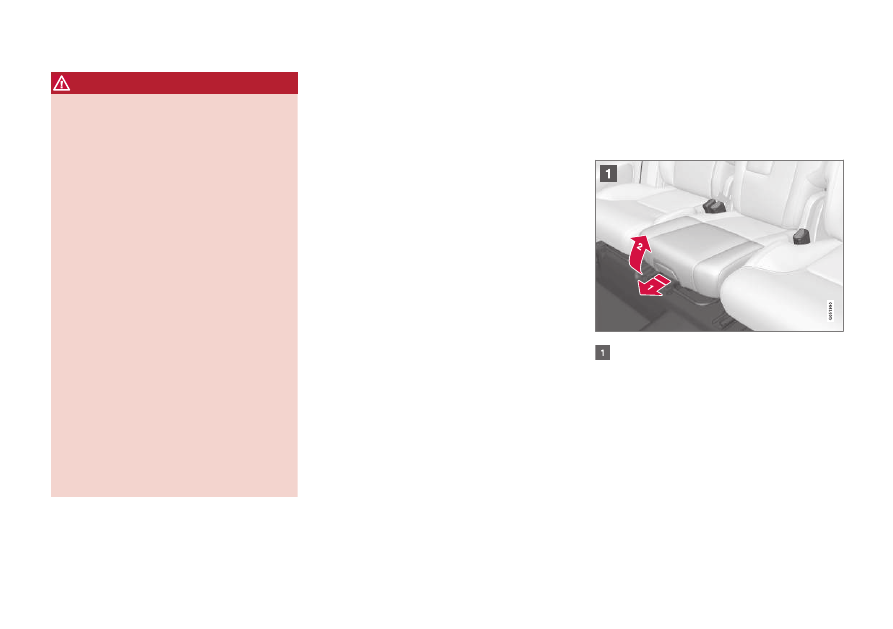

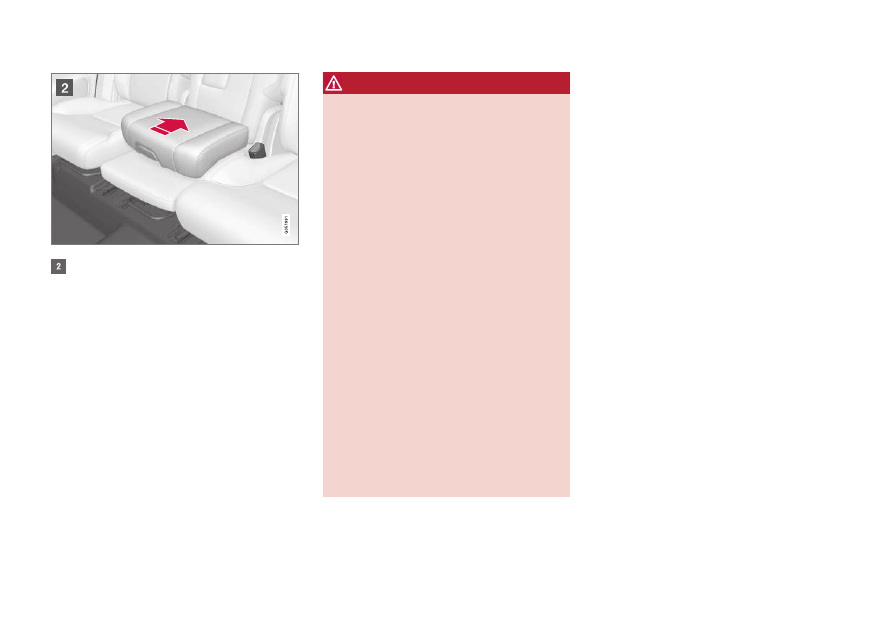

Integrated booster cushion

Volvo's optional integrated booster cushion is
located in the rear seat's center position and is
designed to raise the child higher so that the
shoulder strap crosses over the child's collar-
bone, not over the neck.

Integrated booster cushion

This booster cushion has been specially
designed to help safeguard children in the rear
seat. It should be stowed (folded down into the
seat cushion) when not in use. When using an
integrated booster cushion, the child must be
secured with the vehicle's three-point seat belt.

If using a booster cushion does not result in
proper positioning of the shoulder strap, then the
child should be placed in a properly secured child
restraint. The shoulder belt must never be placed
behind the child's back or under the arm.

Use only with children who weigh between 33
and 80 pounds (15 – 36 kg) and whose height is
between 38 and 54 inch (97 – 137 cm).

In Canada: 18 kg (40 lbs) is the minimum
weight requirement for a child using booster
seats according to the Canadian regulation
CMVSS 213.4

Correct seating position: the shoulder belt is across the
collarbone

Canada only: This cushion may be referred to as a built-in booster cushion.

SAFETY

* Option/accessory, for more information, see Introduction.

WARNING

DEATH or SERIOUS INJURY can

occur
• Follow all instructions on this

child restraint and in the vehicle’s

owner’s manual.

• Make sure the booster cushion is

securely locked before the child

is seated.

•

Use only with children who weigh
between 33 and 80 pounds (15 – 36 kg)
and whose height is between 38 and 54
inch (97 – 137 cm). In Canada: 18 kg
(40 lbs) is the minimum weight require-
ment for a child using booster seats
according to the Canadian regulation
CMVSS 213.4

•

Use only the vehicle’s lap and shoulder
belt system when restraining the child in
this booster seat.

•

In the event of a collision while the inte-
grated booster cushion was occupied, the
entire booster cushion and seat belt must
be replaced. The booster cushion should
also be replaced if it is badly worn or
damaged in any way. This work should be
performed by a trained and qualified
Volvo service technician only.

Before driving, check that:

•

The integrated booster cushion has been
correctly raised and locked in position.

•

That the seat belt is properly positioned and
is taut.

•

The shoulder section of the seat belt is
across the child's collarbone, not over the
neck.

•

The lap section of the seat belt is across the
child's hips and not the abdomen.

•

The head restraint is set to same height as
the child’s head so that, if possible, the entire
back of the child's head is covered.

Related information

•

Seat belts (p. 66)

•

Raising the integrated booster cushion

•

(p. 94)

•

Stowing the integrated booster cushion

(p. 96)

Raising the integrated booster

cushion

The integrated booster cushion in the second
row of seat's center position must be correctly
raised before use.

Pull the handle forward and upward to
release the booster cushion.

SAFETY

* Option/accessory, for more information, see Introduction.

Press the booster cushion rearward to lock it
in position.

WARNING

DEATH or SERIOUS INJURY can

occur
• Follow all instructions on this

child restraint and in the vehicle’s

owner’s manual.

• Make sure the booster cushion is

securely locked before the child

is seated.

•

Use only the vehicle’s lap and shoulder
belt system when restraining the child in
this booster seat.

•

Related information

•

Integrated booster cushion

* (p. 93)

•

Stowing the integrated booster cushion

(p. 96)

SAFETY

* Option/accessory, for more information, see Introduction.

Stowing the integrated booster

cushion

The integrated booster cushion in the second
row of seat's center position should be stowed
(folded down) when not in use.

Pull the handle forward to release the
booster cushion.

Press down on the center of the booster
cushion to return it to the stowed position.

The booster cushion must be in the stowed
position before the rear seat backrests are
folded down.

CAUTION

Be sure there are no loose objects under the
booster cushion before it is stowed.

WARNING

DEATH or SERIOUS INJURY can

occur
• Follow all instructions on this

child restraint and in the vehicle’s

owner’s manual.

• Make sure the booster cushion is

securely locked before the child

is seated.

•

Use only the vehicle’s lap and shoulder
belt system when restraining the child in
this booster seat.

•

INSTRUMENTS AND CONTROLS

* Option/accessory, for more information, see Introduction.

100

Instruments and controls

This overview shows the location of the primary
displays, and controls/buttons/switches.

Display/function/control

Parking lights, daytime running lights, low
beams, high beams, turn signals, rear fog
lights, trip computer reset

Transmission manual shifting paddle

Head-up-display

Instrument panel

Wipers/washers, rain sensor

Right-side steering wheel keypad

Display/function/control

Steering wheel adjustment

Horn

Left-side steering wheel keypad

Hood open

Display lighting, tailgate unlock, tailgate
open/close

Display/function/control

Front reading lights and courtesy lighting

Laminated panoramic roof

Display/function/control

Ceiling console display

Manual rearview mirror auto-dim (certain
markets only)

Display/function/control

Center display

Hazard warning flashers, max. defroster/
heated windshield

*, media player, glove

compartment open

Gear selector

Start knob

Drive modes

INSTRUMENTS AND CONTROLS

}}

* Option/accessory, for more information, see Introduction.

101

Display/function/control

Parking brake

Auto-hold brakes

Display/function/control

Memory control for:

•

power seats

•

door mirrors

•

head-up display

Door open, door/tailgate lock/unlock

Power windows, power door mirrors

Controls for power front seat

Trip computer

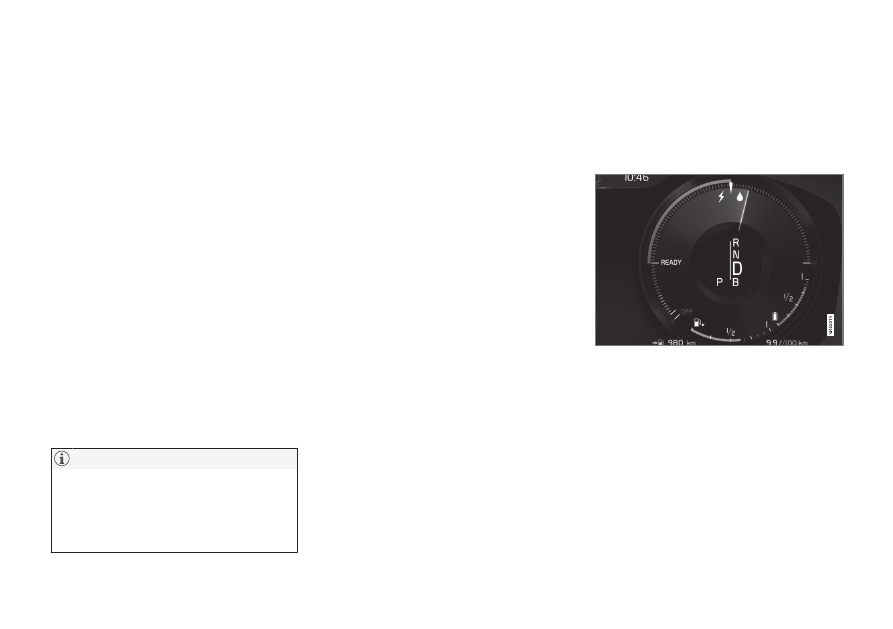

The trip computer registers and calculates infor-
mation such as distance driven, fuel consump-
tion and average speed. This information is dis-
played in the instrument panel.

To help promote fuel efficient driving, the trip
computer provides readings for current and aver-
age fuel consumption.

The trip computer includes the following
gauges:

•

Trip odometers

•

Odometer

•

Current fuel consumption

•

Distance to empty

•

Tourist (alternative speedometer)

Trip odometer

There are two trip odometers: TM and TA. During
a drive, the trip odometer registers:

•

Mileage

•

Driving time

•

Average speed

•

Average fuel consumption

The values displayed are those since the last
time the trip odometer was reset.

Odometer

The odometer registers the vehicle's total mile-
age and cannot be reset.

Current fuel consumption

This gauge shows the current fuel consumption.
This reading is updated once a second.

Distance to empty

This function shows the approximate distance
that can be driven on the fuel remaining in the
tank.

The calculation is based on average fuel con-
sumption during the last 20 miles (30 km) of
driving and the amount of fuel remaining in the
tank.

When the gauge displays "----", there is very little
useable fuel remaining in the tank; refuel as soon
as possible.

INSTRUMENTS AND CONTROLS

102

The accuracy of this figure may vary if your driv-
ing style changes. An economical driving style will
generally increase this distance.

Distance to discharged battery

This gauge shows the approximate distance that
can be driven on the charge remaining in the
hybrid battery. When the gauge displays "----"
there is no guaranteed driving charge remaining
in the battery.

This calculation is based on the average electrical
current consumption in a normally loaded vehicle
during normal driving, and whether the A/C is on
or off.

An economical driving style will generally
increase this distance.

Distance using the electric motor

To get the optimal driving distance using the
electric motor, it is essential to conserve current.
Functions that use a great deal of current (e.g.,
audio system, electrical heating in the steering
wheel/door mirrors/rear window/seats, very cold
air from the climate system, etc.) reduce the pos-
sible driving distance.
