Volkswagen Beetle (2015 year). Instruction - part 1

Side view

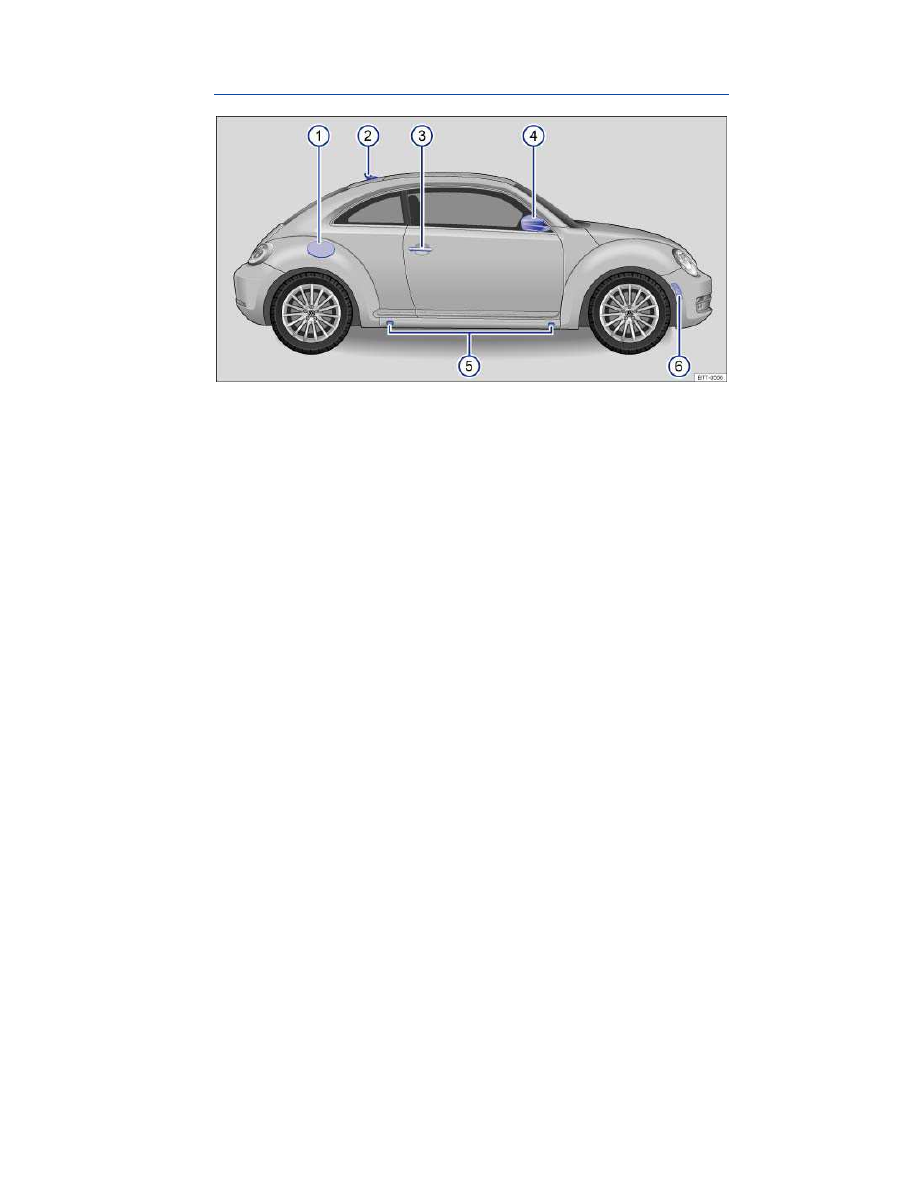

Fig. 1 Vehicle side overview.

Key to

fig. 1

(1)

Fuel filler flap

(2)

Roof antenna

(3)

Outside door handle

(4)

Outside mirror
– Additional turn signal light

(5)

Lift points for the jack

(6)

Side marker light

Front view

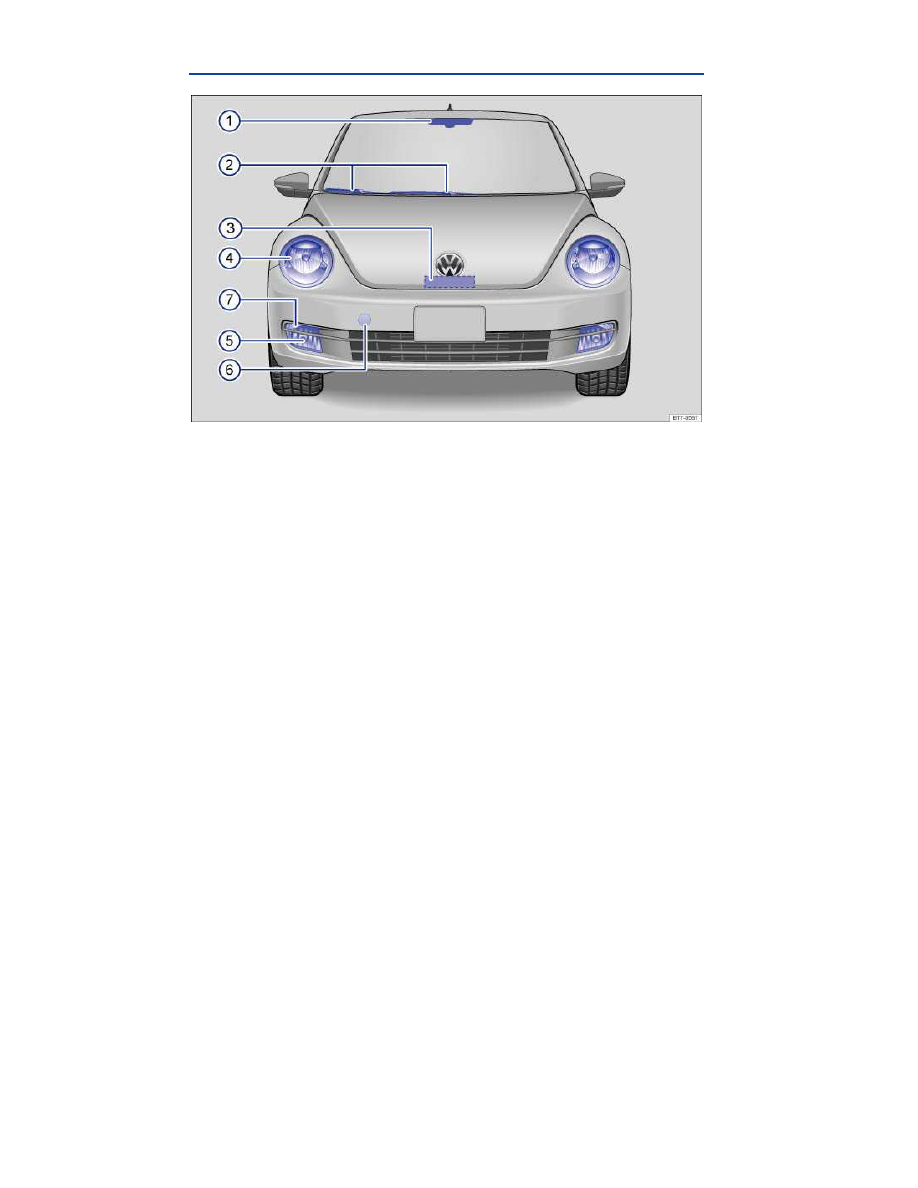

Fig. 2 Vehicle front overview.

Key to

fig. 2

(1)

Inside mirror with sensor on mirror base for:
– Rain sensor (if equipped)
– Low-light sensor (if equipped)

(2)

Windshield wipers

(3)

Engine hood release

(4)

Headlights (on left and right)

(5)

Fog lights/static cornering lights (on left and right, if equipped)

(6)

Threaded hole for the front towing eye (behind cover)

(7)

Turn signals (on left and right)

Rear view

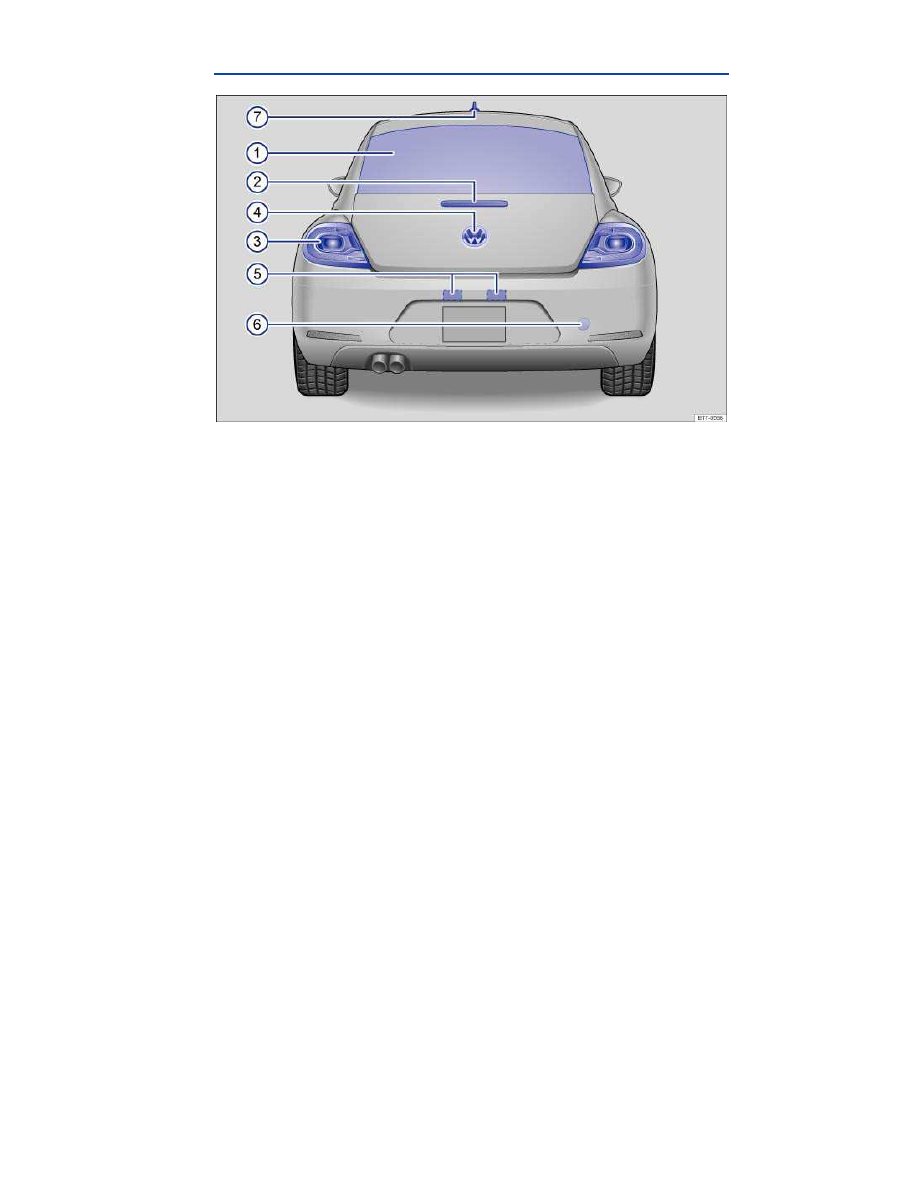

Fig. 3 Vehicle rear overview.

Key to

fig. 3

(1)

Rear window:
– Rear window defroster

(2)

High-mounted brake light

(3)

Taillights (on left and right)

(4)

Volkswagen emblem. Area for:
– Rear hatch release

(5)

License plate lights

(6)

Threaded hole for the rear towing eye (behind cover)

(7)

Roof antenna

Driver door overview

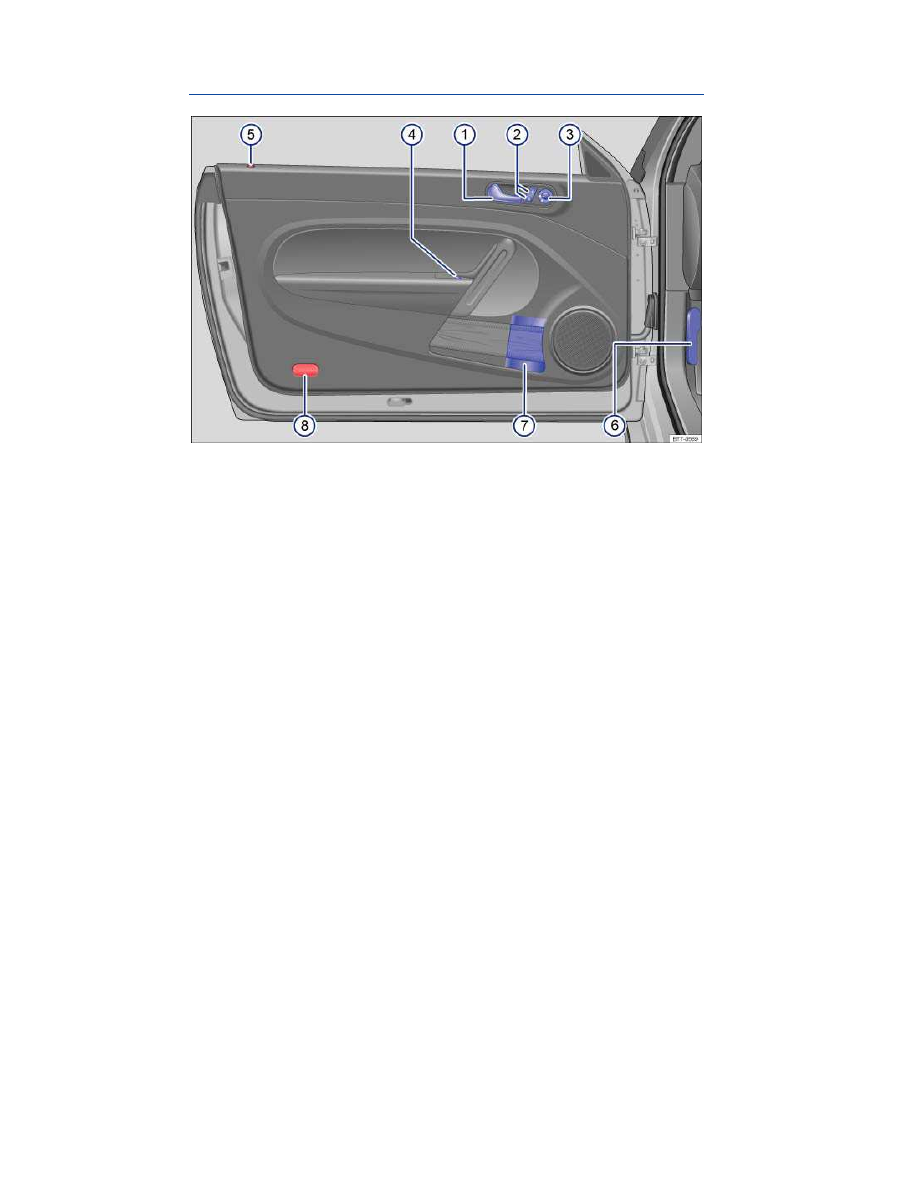

Fig. 5 Overview of controls in the driver door.

Key to

fig. 5

(1)

Door handle

(2)

Power locking button for locking and unlocking the vehicle –

(3)

Knob for adjusting the outside mirrors
–  Adjusting outside mirrors   –   –
–  Outside mirror heating

(4)

Switches for operating the power windows

(5)

Indicator light for the power locking system

(6)

Lever for releasing the engine hood

(7)

Bottle holder

(8)

Reflector

Driver side overview

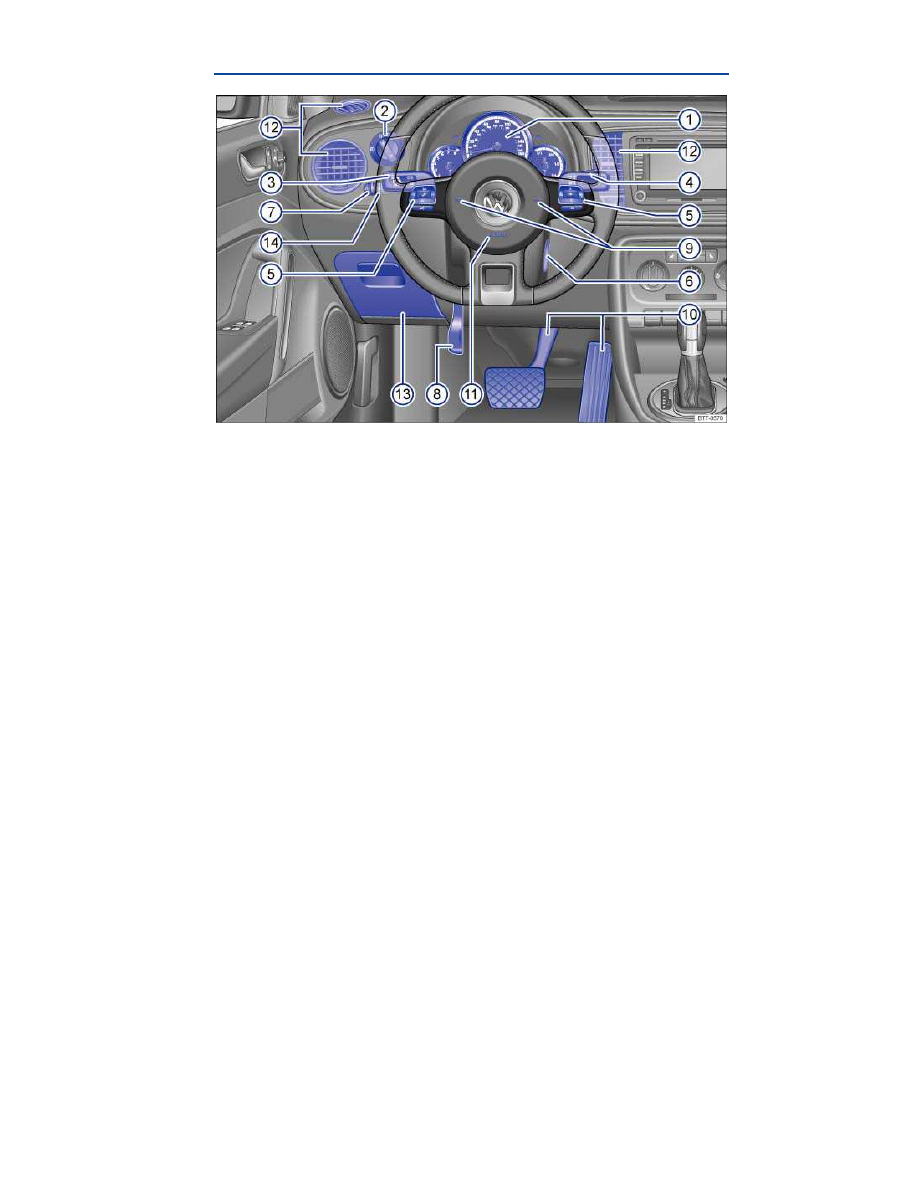

Fig. 6 Driver side overview.

Key to

fig. 6

(1)

Instrument cluster:
–  Instruments
–  Display
–  Warning and indicator lights

(2)

Headlight switch
–  Off position
–  Automatic headlights

(if equipped)

– Low beams

– Fog lights

(if equipped)

(3)

Lever for
– Turning high beams on or off

–

– Headlight flasher

– Turn signals

– Cruise control (if equipped) –

–

(4)

Windshield wiper and washer lever
– Windshield wiper

–

– Intermittent operation for windshield wipers

– Windshield wiper

– “One-tap wiping” x
– Windshield wiper

– Automatic wipe/wash for windshield
– Buttons for the Volkswagen Information System (if equipped)

(5)

Multi-function steering wheel controls (if equipped)
– Volume setting for radio, navigation system notifications, or telephone calls

–

– Voice control activation

– Audio, navigation –
– Control buttons for the Volkswagen Information System # – – ∃, , ,

(6)

Ignition switch (vehicles without Keyless Access) or location for the emergency start feature for
the Keyless Access system

(7)

Dimmer control for the instrument and switch illumination

(8)

Lever for the adjustable steering wheel

(9)

Horn (only works when the ignition is switched on)

(10)

Pedals

(11)

Driver front airbag

(12)

Air vents –

–

(13)

Storage compartment

(14)

Switch for background lighting (in the doors) and headlight range adjustment (if equipped)

Upper center console

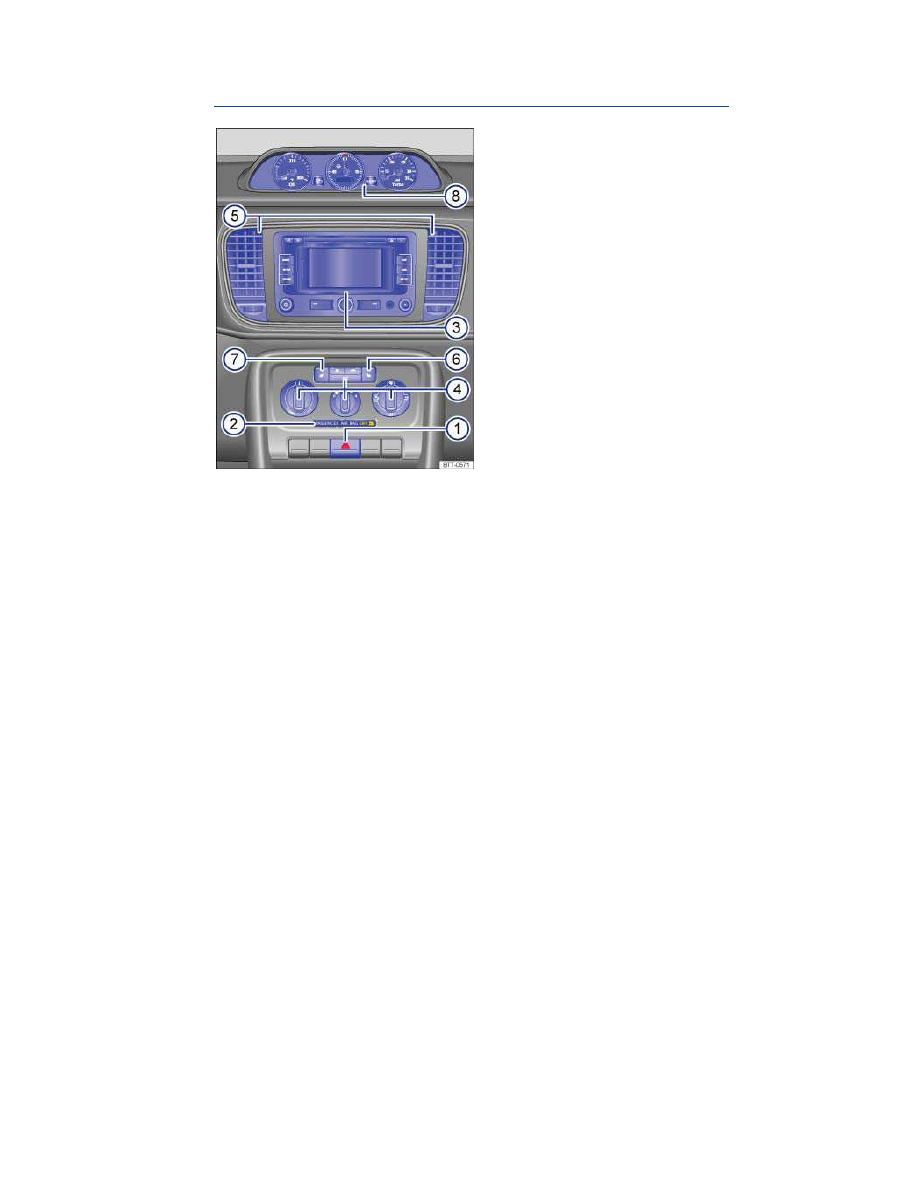

Fig. 7 Overview of the upper center console.

Key to

fig. 7

(1)

Button for the emergency flashers

(2)

PASSENGER AIR BAG

light (front airbag for front seat passenger)

(3)

Radio or Radio & Navigation system (factory-installed)

⇒ Booklet

Radio or

⇒ Booklet

Navigation system

(4)

Controls for:
– Manual air conditioning
– Climatronic

(5)

Air vents –

–

(6)

Passenger seat heating button

(7)

Driver seat heating button

(8)

Additional instruments (if equipped)

Lower center console

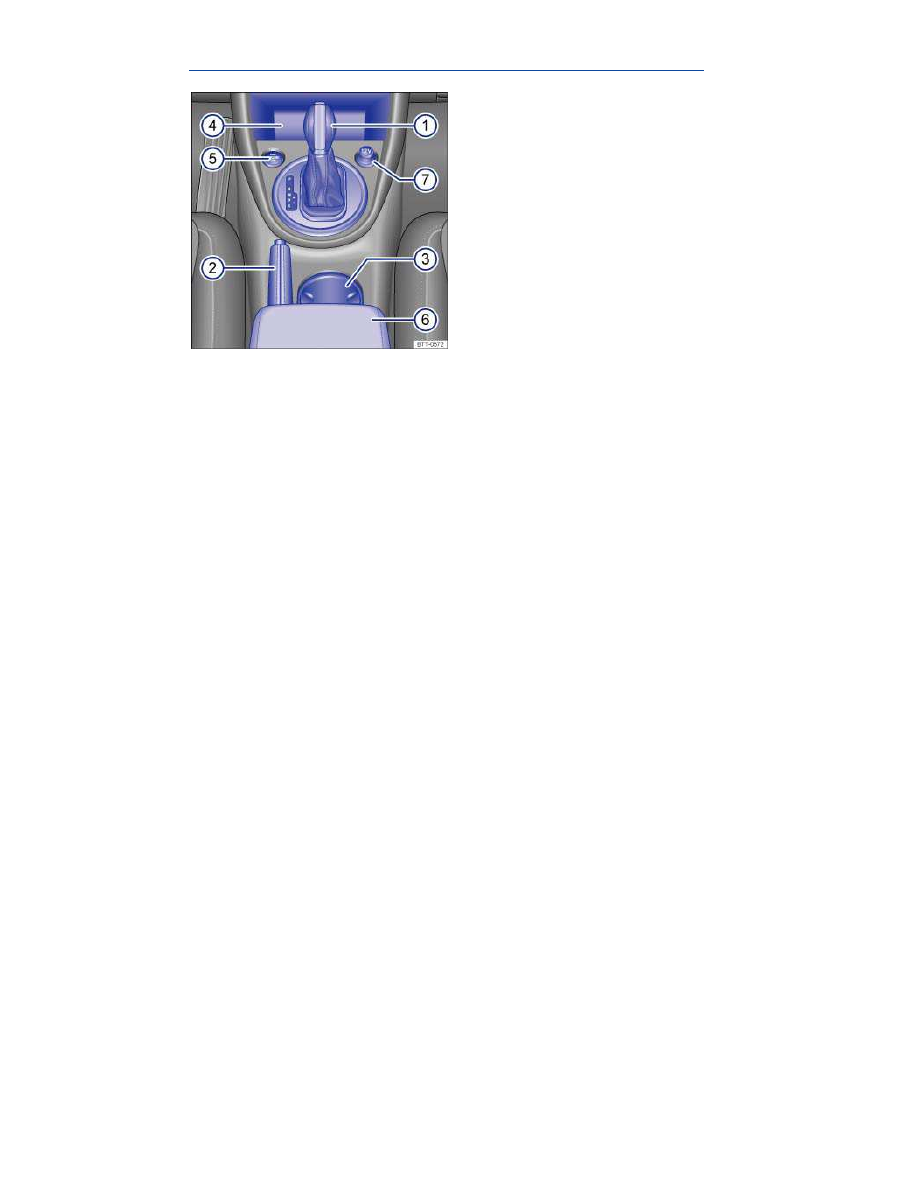

Fig. 8 Overview of the lower center console.

Key to

fig. 8

(1)

Lever for:
– Manual transmission
– Automatic transmission

(2)

Parking brake lever

(3)

Storage compartment with cup holders in the center console

(4)

Storage compartment

(5)

Starter button for the Keyless Access system (if equipped)

(6)

Center armrest with storage compartment (if equipped)

(7)

12 Volt socket

Front passenger side overview

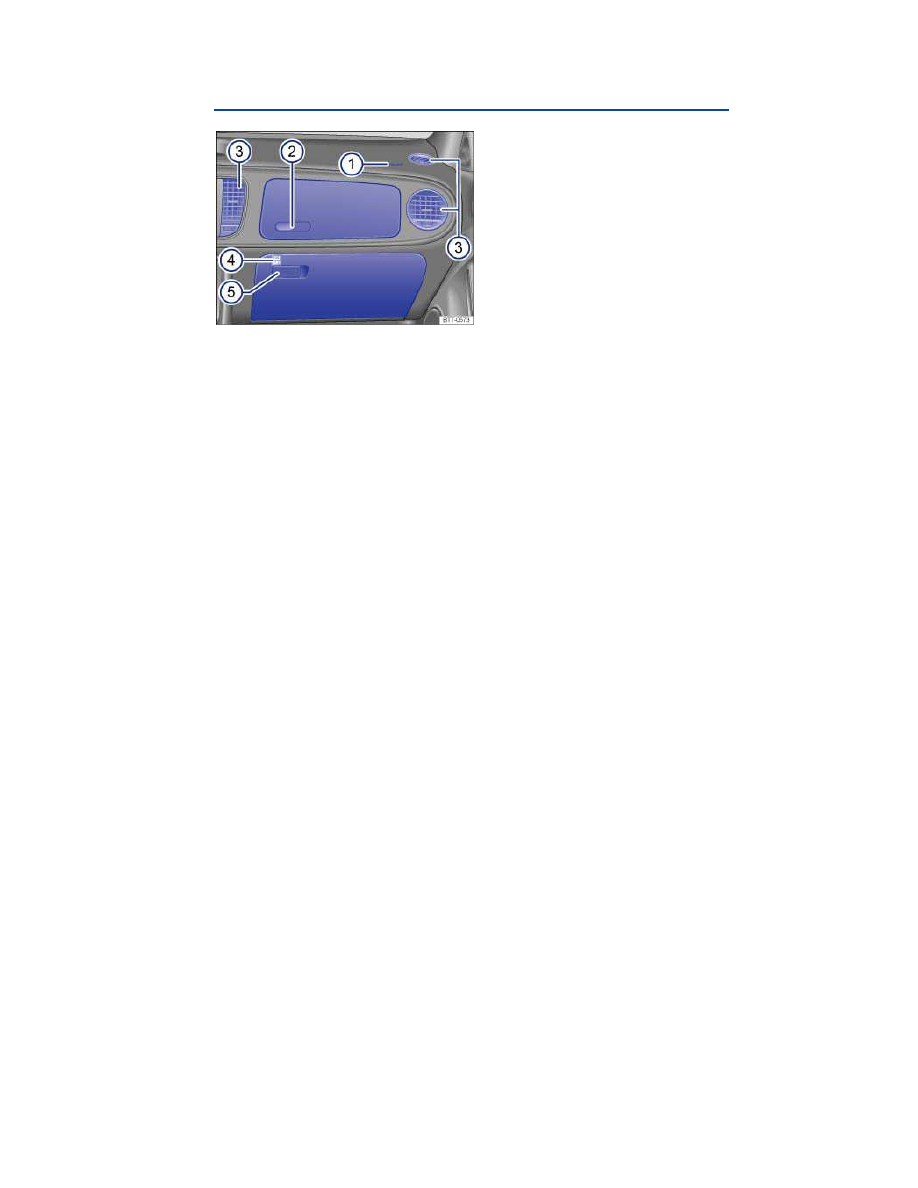

Fig. 9 Overview of the front passenger side.

Key to

fig. 9

(1)

Passenger front airbag location in the instrument panel (approximate)

(2)

Opening handle for the upper glove compartment (if equipped)

(3)

Air vents –

–

(4)

Inside the lower glove compartment: SET button for Tire Pressure Monitoring System

(5)

Opening handle for the lower glove compartment

Symbols on the roof console

Symbol

Meaning

Interior and reading lights

•

Power sunroof

3-button module for vehicles without Car-Net

⇒ Booklet

Mobile

Phone Package.

•

3-button module for vehicles with Car-Net

Instrument cluster

Introduction

In this section you’ll find information about:

Instrument overview

Additional instruments

Displays and warning lights (Basic version)

Displays (Premium version)

Service reminder display

More information:

  Warning and indicator lights
  Volkswagen Information System
  Shifting

Service reminder information

⇒ Booklet

Warranty and Maintenance

WARNING

Driving on today's roads demands the full attention of the driver at all times. Driver distrac-
tion causes accidents, collisions and serious personal injury!

Never use the buttons in the instrument cluster while driving.

Instrument overview

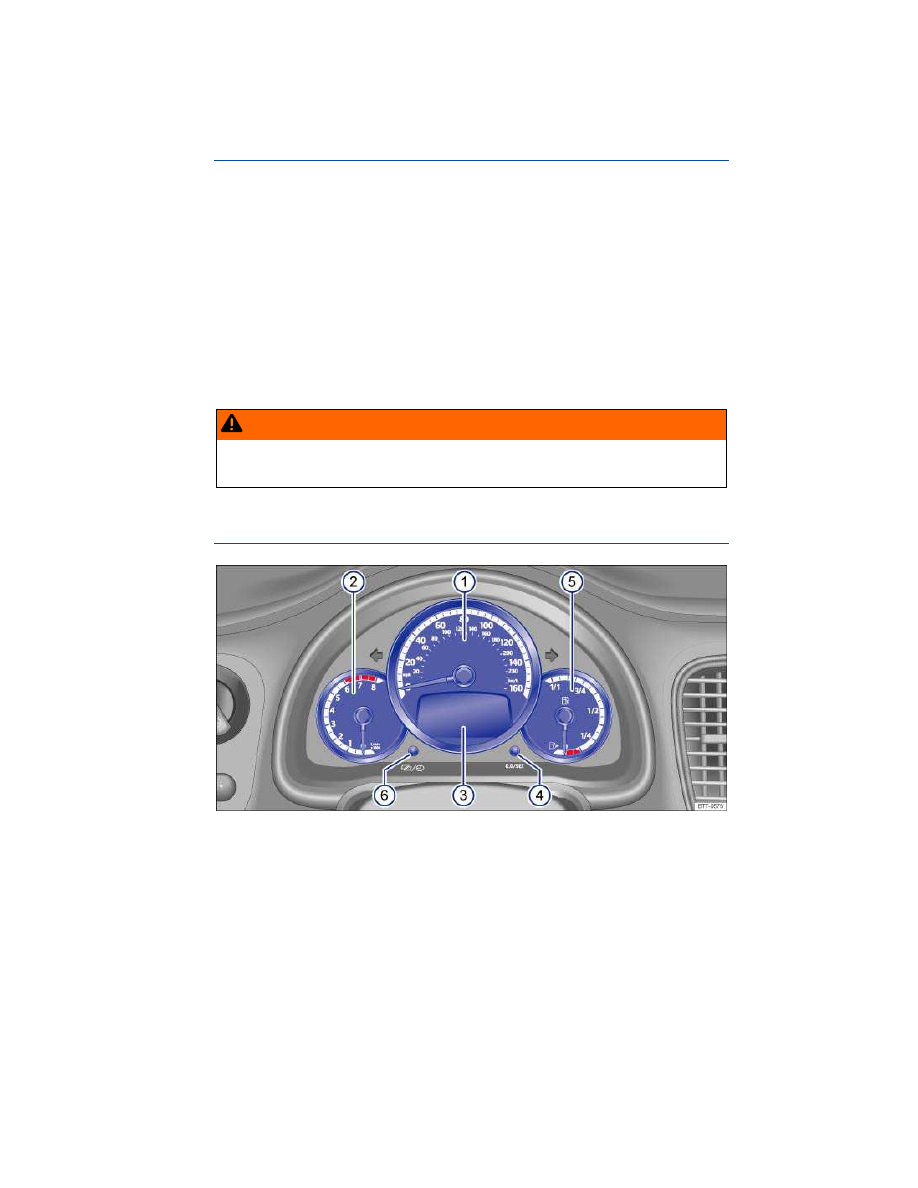

Fig. 11 Instrument cluster in the instrument panel.

Please first read and note the introductory information and heed the WARNINGS

Instrument explanations

⇒

fig. 11

(1)

Speedometer.

(2)

Tachometer (thousands of revolutions per minute when the engine is running).

The red zone at the end of the scale indicates maximum permissible engine rpm (revolutions
per minute) for all gears after the break-in period. Before reaching the red zone, select the next

higher gear or selector level position D, or ease your foot off the accelerator

⇒ .

(3)

Displays

⇒ Displays and warning lights (Basic version), ⇒ Displays (Premium version), ⇒

Displays (Premium version).

(4)

Reset button for the trip odometer display (trip).

– Push the .

button for about 1 second to reset to zero.

(5)

Fuel gauge

⇒ Refueling.

(6)

Button for setting the clock

– With the ignition on, push the

button to highlight the hour or the minutes in the clock

display.

– To advance the clock, push the .

button

(4)

. Press and hold the button to fast forward.

– Push the

button again or wait about 10 seconds to finish setting the clock.

NOTICE

To help prevent engine damage, always avoid high engine speeds, full throttle acceleration,

and heavy engine loads when the engine is cold.

To help prevent engine damage, the tachometer needle should only enter the red zone

(warning zone) briefly.

Upshifting early into the next higher gear saves fuel and reduces engine noise.

On appropriately equipped vehicles, the clock can also be set via the Settings menu in the instrument

cluster display

⇒ page 30, Settings menu (Premium version), ⇒ page Error! Bookmark not defined.,

Settings menu (Premium version).

Additional instruments

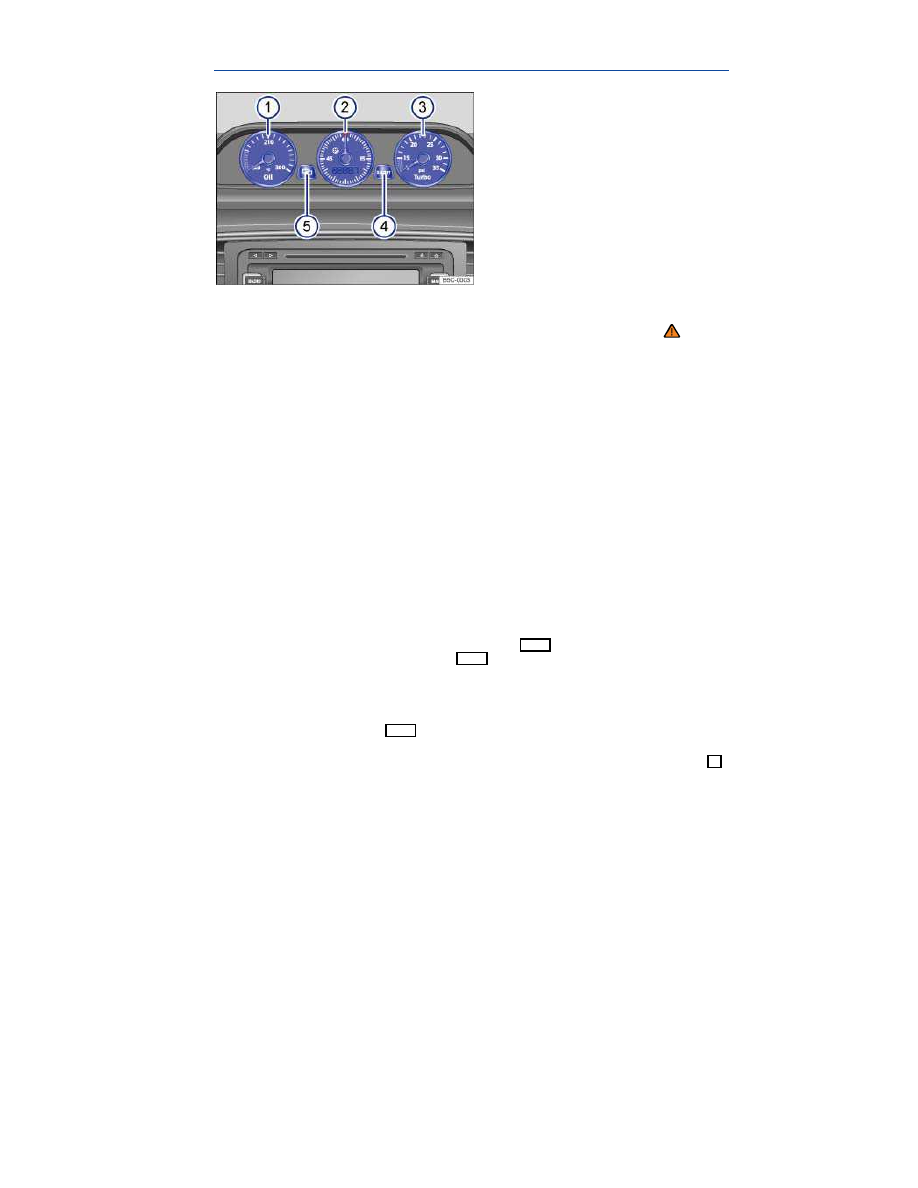

Fig. 12 Above the center console: Engine oil temperature indicator 1, stopwatch 2, and boost pressure indica-
tor 3.

Please first read and note the introductory information and heed the WARNINGS

Instrument explanations

⇒

fig. 12

(1)

Engine oil temperature indicator

The engine has reached operating temperature when the needle moves into the center of the
gauge under normal driving conditions. The needle may move farther to the right on the gauge
with a heavier engine load at high outside temperatures. This is not a cause for concern as long

as the indicator light

or does not light up or flash in the instrument cluster

⇒ Warning and

indicator lights.

(2)

Stopwatch
– Analog stopwatch that measures up to 60 seconds.
– Digital stopwatch with hour, minute and second display (one tenth of a second intervals are

shown up to 59 minutes and 59 seconds when the ignition is switched on).

– Digital display with stop function selected.
– Digital clock display with hours and minutes. If the timing function is not active, the digital

clock will display after the ignition is switched on.

(3)

Boost pressure indicator

The boost pressure indicator shows the pressure in the boost pressure duct between the su-
percharger or turbocharger and the engine. The farther right that the indicator points on the
gauge, the higher the pressure in the boost pressure duct and the greater the output from the
engine. The word “Turbo” on the gauge indicates the system is charged.

(4)

Start / Stop / Reset button
– Stopwatch mode (STOP-WATCH): press the button

once to start timing and press a

second time to stop. Press the button

again to resume timing.

– Speed-dependent stopwatch mode (TIME-SINCE-START): the stopwatch starts automati-

cally with an audible chime when you begin driving. Press once to stop the watch.

– Press and hold longer than 2 seconds: the stopwatch resets.
– When the digital clock (CLOCK) is displayed, you can switch between a 12-hour and 24-hour

display by pressing the

button.

(5)

Button for stopwatch mode or digital clock

You can switch between stopwatch modes and the digital clock display using the set button

After selecting the stopwatch in the display, the mode displays briefly, followed by the last time
that a time was recorded.
– Stopwatch mode (STOP-WATCH).

– Speed-dependent stopwatch mode (TIME-SINCE-START). The stopwatch starts automati-

cally with an audible chime when you begin driving. An LED in the stopwatch lights up to in-

dicate that this mode is active

⇒

– Digital clock display (CLOCK).

If the ignition is switched off while the timing function is active, the display will remain active for about
2 hours. If the timing function was not active when the ignition was switched off, the digital clock dis-
play will turn off after about 30 seconds.

The display will remain on for about 2 hours if you press the

button within about 30 se-

conds after switching the ignition off.

WARNING

Rapid acceleration can cause skidding and loss of traction, especially on slippery roads,
resulting in a loss of vehicle control, collisions, and serious personal injury.

Only use the stopwatch feature or fast acceleration if visibility, weather, road, and traffic

conditions permit and other drivers will not be endangered by your driving and the vehicle's
acceleration.

WARNING

Driving on today's roads demands the full attention of the driver at all times. Driver distrac-
tion causes accidents, collisions and serious personal injury!

Never set the stopwatch when the vehicle is moving.

NOTICE

To help prevent engine damage, always avoid high engine speeds, full throttle acceleration and
heavy engine loads when the engine is cold.

The digital clock is set using the buttons in the instrument cluster

Displays and warning lights (Basic version)

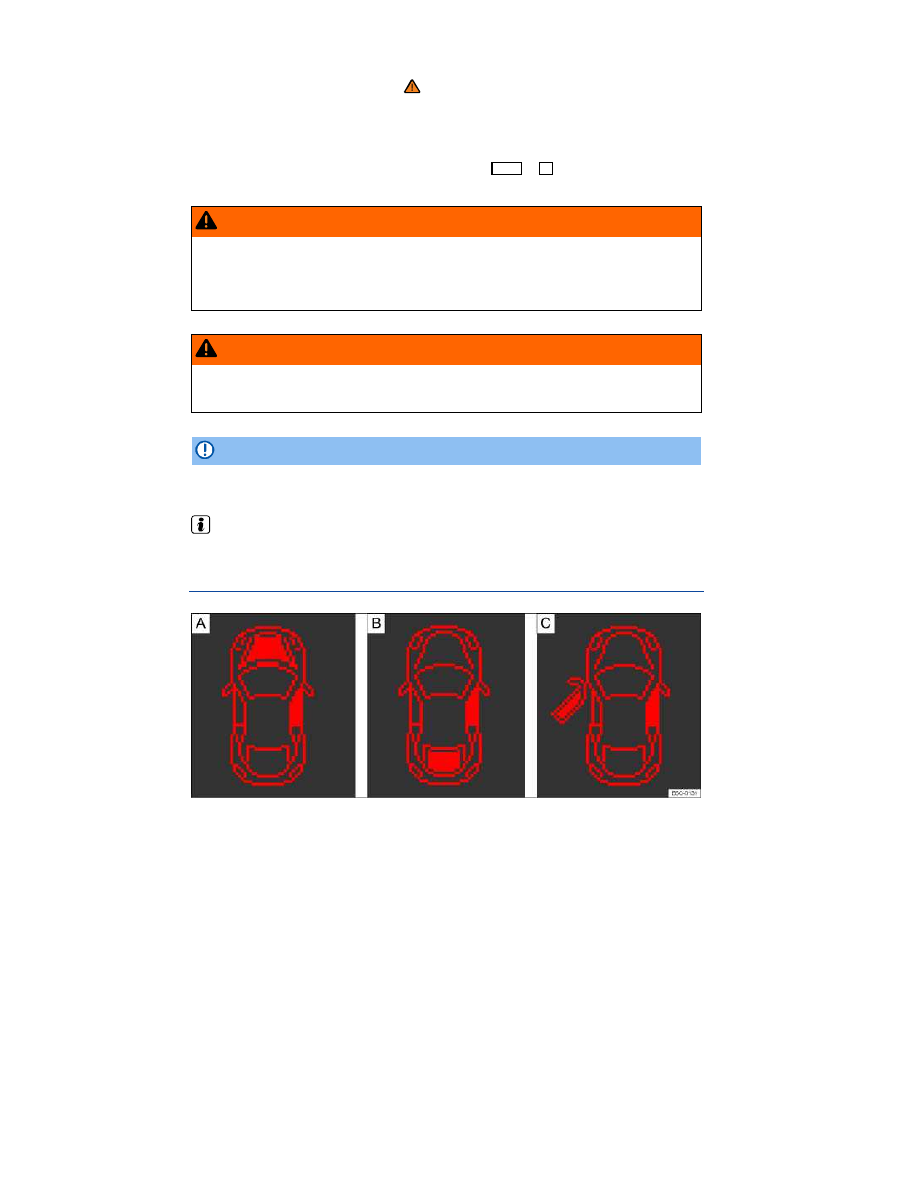

Fig. 13 In the instrument cluster display (examples): A: Open engine hood, B: Open rear hatch, C: Open
driver door.

Please first read and note the introductory information and heed the WARNINGS

Depending on the vehicle model and equipment level, different information may be shown in the
instrument cluster display.

Open door, engine hood, or rear hatch

⇒

fig. 13

  Odometer displays
  Time
  Outside temperature

Selector lever position

⇒ Shifting

Gear recommendation

⇒ Shifting

Service reminder display

⇒Service reminder display

Engine code

Open doors, hood, and rear hatch

The instrument cluster display indicates if any doors, the engine hood, or rear hatch are open once the
vehicle has been unlocked, and while the vehicle is in motion. There may also be an audible warning
chime. Different models and equipment versions may have different displays.

Key to

⇒

fig. 13

See

Stop!

The engine hood is open or not properly closed.

Stop!

The rear hatch is open or not properly closed.

Stop!

One or more vehicle doors open or not properly closed.

Warnings and information

All symbols and information in the display are shown in red. The red color of the letters, numbers and
symbols used in the display does not indicate a malfunction.

The status of various vehicle functions and components is monitored when the ignition is switched on
and while driving. Malfunctions are indicated by red and yellow warning lights in the instrument cluster,

but outside the display itself (

⇒ Warning and indicator lights). In some cases, they may also be

signaled acoustically.

Type of
notification

Warning

light

Explanation

Priority 1 warning
light

Red

Light flashing or lit – sometimes with acoustic warnings.

Stop!

⇒

Check malfunction and take corrective action. Contact an authorized
Volkswagen dealer or an authorized Volkswagen Service Facility for
assistance if necessary.

Type of
notification

Warning

light

Explanation

Priority 2 warning
light

Yellow

Light flashing or continuously lit – sometimes with acoustic warnings.
Malfunctions or low operating fluid levels may cause vehicle damage

and vehicle breakdown

⇒ .

Check malfunction as soon as possible. Contact an authorized
Volkswagen dealer or an authorized Volkswagen Service Facility for
assistance if necessary.

Odometer displays

The odometer indicates the total distance driven by the vehicle.

The trip odometer shows the distance driven since the last time the trip odometer was reset. The last
digit indicates 1/10 mile (100 meters).

Outside temperature display

At outside temperatures below about +39 °F (+4 °C), a “snowflake symbol” appears in the display.
The symbol flashes at first, then stays on until the outside temperature rises above +43 °F (+6 °C)
⇒

When the vehicle is not moving or when you are driving at very low speeds, the temperature displayed
may be slightly higher than the actual outside temperature.

The measurement range is from -40 °F (-40 °C) to +122 °F (+50 °C).

Selector lever positions (automatic transmission)

The selector lever position is shown both on the side of the selector lever and in the instrument cluster
display. The respective gear may also be shown in the instrument cluster display in Drive (D) and

Sport Drive (S), as well as in Tiptronic

mode

⇒ Shifting.

Gear recommendation

When the vehicle is moving, a fuel economy gear recommendation may appear in the instrument

cluster display

⇒ Shifting.

Engine identification code

Press and hold the .

button in the instrument cluster

⇒ Instrument overview for about

15 seconds to display the vehicle's engine identification code. You must do this when the ignition is
on, but the engine is not running.

WARNING

Failure to heed warning lights can cause the vehicle to break down in traffic and result in a
collision and serious personal injury.

  Never ignore warning lights or text WARNINGS.
  Always stop the vehicle as soon as it is safe to do so.
  Park the vehicle at a safe distance from moving traffic and where no part of the hot cata-

lytic converter and exhaust system can come into contact with flammable materials under the
vehicle, such as dry grass, brush, spilled fuel, etc.

A broken down vehicle presents a high accident risk for itself and others. Switch on

emergency flashers and set up a warning triangle to warn oncoming traffic.

Content .. 1 2 ..
