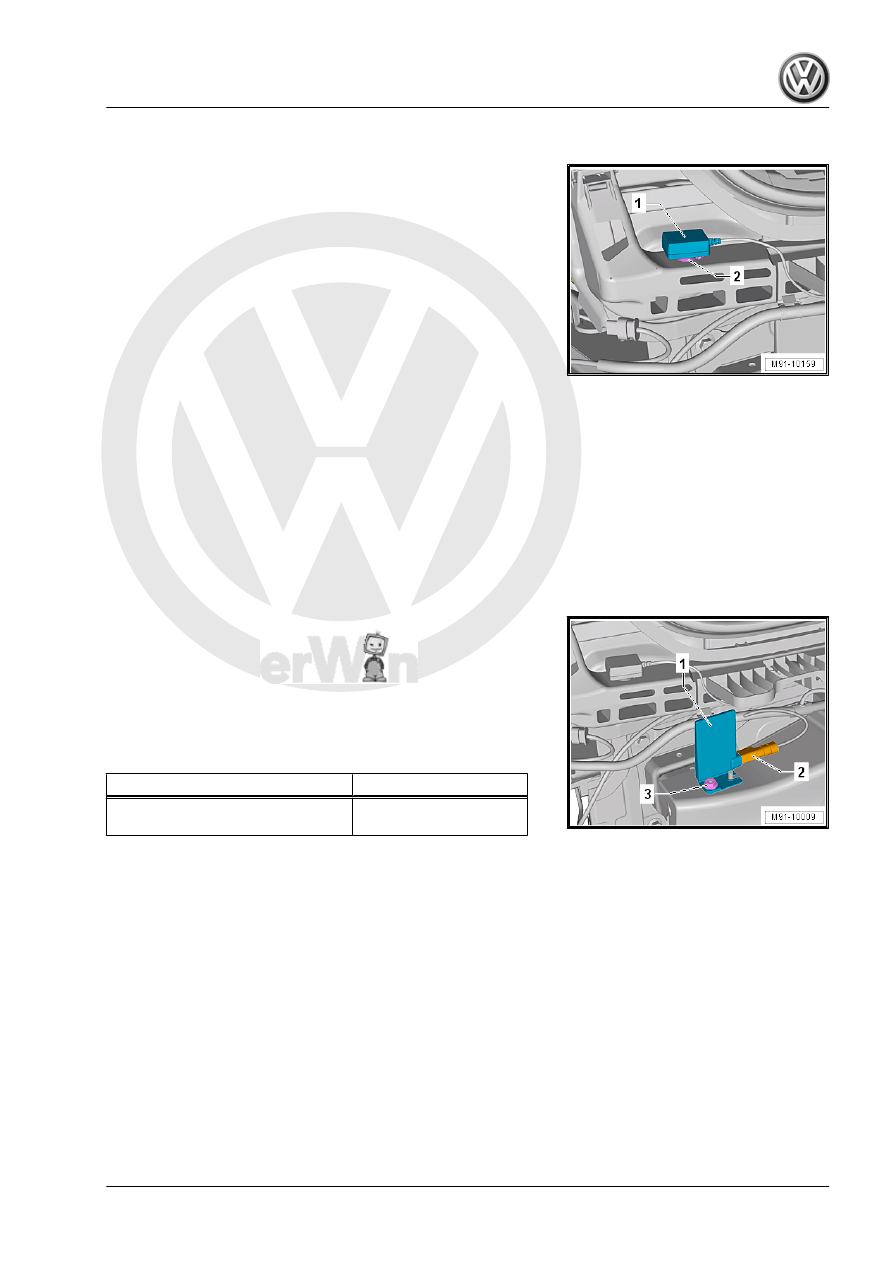

– Release and disconnect the connector from the Vehicle GPS

Antenna 1 - R259- .

The Vehicle GPS Antenna 1 - R259- -1- is secured on a connector

bracket -2-.
– Remove the Vehicle GPS Antenna 1 - R259- -1- with the con‐

nector bracket -2- using a suitable tool.

Installing
Install in reverse order of removal.

3.6.2

Vehicle GPS Antenna 2 - R260- , Re‐

moving and Installing, GSM

The Vehicle GPS Antenna 2 - R260- is located behind the left rear

bumper cover.
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the rear bumper cover. Refer to ⇒  Body Exterior;

Rep. Gr.  63 ; Rear Bumper; Bumper Cover, Removing and

Installing .

– Release and disconnect the connector -2- from the Vehicle

GPS Antenna 2 - R260- -1-.

– Remove the nut -3- on the Vehicle GPS Antenna 2 - R260-

-1- and then remove the Vehicle GPS Antenna 2 - R260- .

Installing
Install in reverse order of removal.
Tightening Specifications

Component

Tightening Specification

Nut -3- to Vehicle GPS Antenna 2 -

R260-

6 Nm

4

Radio

⇒ “4.1 Overview - Radio”, page 38
⇒ “4.2 Radio, Removing and Installing”, page 38

4.1

Overview - Radio

⇒ “4.1.1 Overview - Radio, Composition Media, I8D”, page 38
⇒ “4.1.2 Overview - Radio, Discover Pro, I8G”, page 38

4.1.1

Overview - Radio, Composition Media,

I8D

The radio function is integrated in the Information Electronics

Control Module 1 - J794- .
Fault finding is performed via

Guided Fault Finding

 using the

Vehicle Diagnostic Tester .
For additional information. Refer to

⇒ “1.1.1 General Information - Infotainment System, Composition

Media (I8D) and Discover Media (7UF)”, page 4

 .

4.1.2

Overview - Radio, Discover Pro, I8G

The radio function is integrated in the Information Electronics

Control Module 1 - J794- .
Fault finding is performed via

Guided Fault Finding

 using the

Vehicle Diagnostic Tester .
For additional information. Refer to

⇒ “1.1.2 General Information - Infotainment System, Discover Pro

(7UG)”, page 7

 .

4.2

Radio, Removing and Installing

⇒ “4.2.1  Radio R Composition Media and Discover Pro, Remov‐

ing and Installing”, page 38

4.2.1

Radio - R- Composition Media and Dis‐

cover Pro, Removing and Installing

The radio is a component of the Information Electronics Control

Module 1 - J794- and is located in the glove compartment.
– Remove the Information Electronics Control Module 1 - J794- .

Refer to

⇒ “1.4  Information Electronics Control Module 1 J794 , Re‐

moving and Installing”, page 13

 .

5

Telephone System

⇒ “5.1 Cell Phone Preparation”, page 39
⇒ “5.2 Component Location Overview - Telephone System”, page

40
⇒ “5.3  Mobile Communication 2-Way Signal Amplifier J984 , Re‐

moving and Installing”, page 42
⇒ “5.4  Telephone Microphone R38 , Removing and Installing”,

page 43
⇒ “5.5  Storage Compartment with Cell Phone Interface R265 ,

Removing and Installing”, page 44

5.1

Cell Phone Preparation

⇒ “5.1.1 Cell Phone Preparation, Bluetooth Hand-Free Calling,

9ZX”, page 39

5.1.1

Cell Phone Preparation, Bluetooth

Hand-Free Calling, 9ZX

The Bluetooth

®

 hands-free calling function is integrated in the In‐

formation Electronics Control Module 1 - J794- .
Bluetooth

®

 is connected via the Cellular Telephone - R54- .

The Bluetooth Antenna - R152- is integrated in the Information

Electronics Control Module 1 - J794- .
The hands-free calling consists of the following components:
♦ Front Information Display Control Head - J685-
♦ Information Electronics Control Module 1 - J794- with Blue‐

tooth Antenna - R152-

♦ Storage Compartment with Cell Phone Interface - R265-
♦ Telephone Microphone - R38-
The Information Electronics Control Module 1 - J794- is part of

the hands-free setup.
Fault finding is performed via

Guided Fault Finding

 using the

Vehicle Diagnostic Tester .
Antenna wires, repairing. Refer to ⇒  Electrical Equipment; Rep.

Gr.  97 ; Antenna Wires, Repairing .
Notes on Bluetooth

®

 Technology

A standardized radio connection is used to transfer data between

the Information Electronics Control Module 1 - J794- and Cellular

Telephone - R54- - Bluetooth

®

 Technology.

An additional transmitter/receiver unit is installed in the Informa‐

tion Electronics Control Module 1 - J794- . A Bluetooth Antenna

- R152- connects the Information Electronics Control Module 1 -

J794- and the Cellular Telephone - R54- so that the Cellular

Telephone - R54- can be operated without a wire connection.
The range is approximately 10 meters.

5.2

Component Location Overview - Tele‐

phone System

⇒ “5.2.1 Component Location Overview - Telephone System, Se‐

dan”, page 40
⇒ “5.2.2 Component Location Overview - Telephone System,

Wagon”, page 41

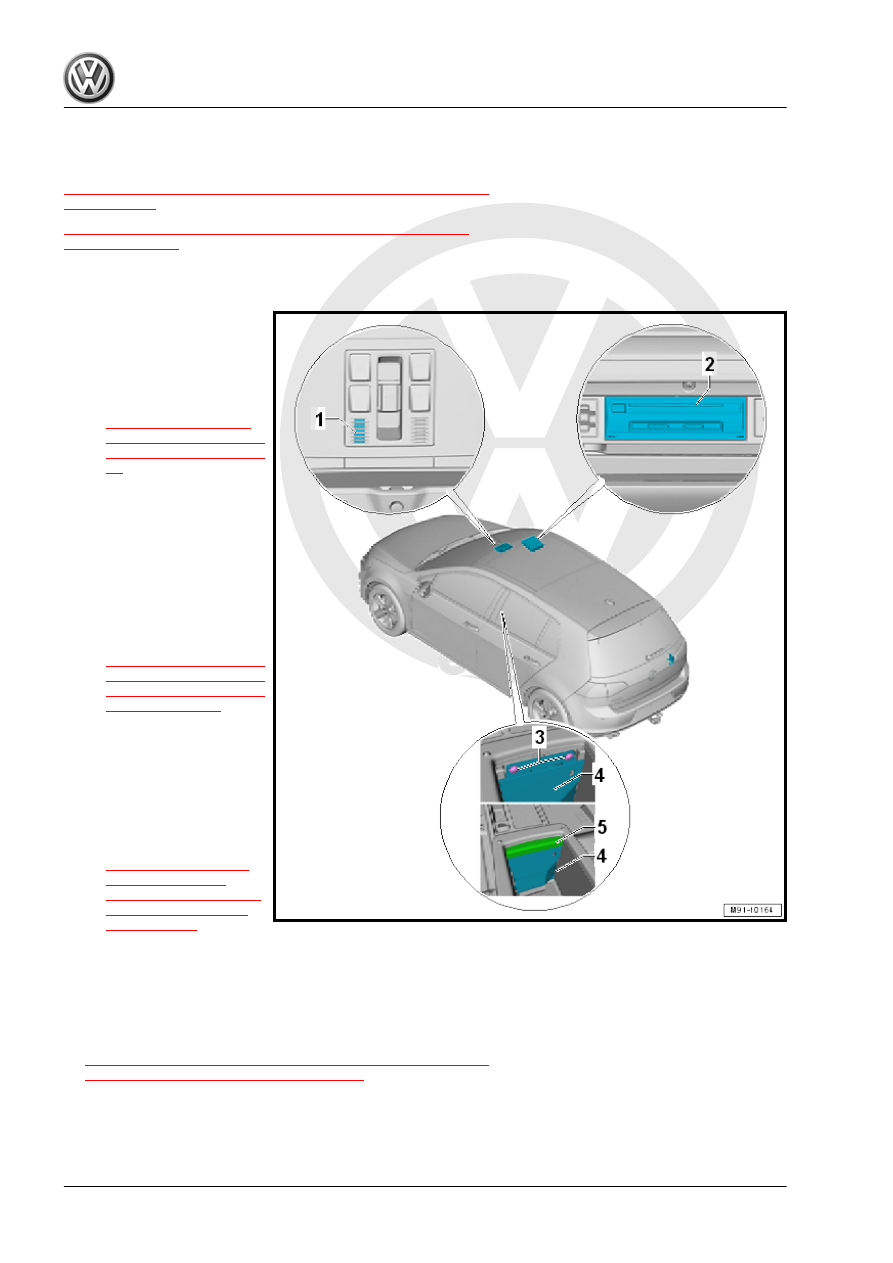

5.2.1

Component Location Overview - Telephone System, Sedan

1 - Telephone Microphone -

R38-

❑ In the Front Interior

Lamp - W1-

❑ Removing and instal‐

ling. Refer to

⇒ “5.4  Telephone Mi‐

crophone R38 , Remov‐

ing and Installing”, page

43

 .

2 - Information Electronics

Control Module 1 - J794-

❑ In the glove compart‐

ment

❑ Connector assignment.

Refer to ⇒ Wiring dia‐

grams, Troubleshooting

& Component locations.

❑ Removing and instal‐

ling. Refer to

⇒ “1.4  Information Elec‐

tronics Control Module 1

J794 , Removing and In‐

stalling”, page 13

 .

3 - Bolt

❑ 2 Nm
❑ Quantity: 2

4 - Storage Compartment with

Cell Phone Interface - R265-

❑ Removing and instal‐

ling. Refer to

⇒ “5.5  Storage Com‐

partment with Cell

Phone Interface R265 ,

Removing and Instal‐

ling”, page 44

 .

5 - Cover

No illustration:
♦ Mobile Communication 2-Way Signal Amplifier - J984- . Refer

to

⇒ “5.3.1  Mobile Communication 2-Way Signal Amplifier J984 ,

Removing and Installing, Sedan”, page 42

 .
