2.32

Left/Right Front Reading Lamp Button -

E633- / -E634- , Removing and Installing

The Left Front Reading Lamp Button - E633- / Right Front Read‐

ing Lamp Button - E634- is a component of the Front Interior Lamp

- WX1- and cannot be replaced separately.
– Remove the Front Interior Lamp - WX1- . Refer to

⇒ “2.30 Front Interior Lamp/Reading Lamp, Removing and In‐

stalling”, page 275

 .

3

Anti-Theft Alarm System

⇒ “3.1 Overview - Interior Monitoring”, page 278
⇒ “3.2  Alarm Horn H12 , Removing and Installing”, page 279
⇒ “3.3  Anti-Theft Alarm System Sensor G578 , Removing and

Installing”, page 279

3.1

Overview - Interior Monitoring

Note

The Sedan is shown. The Wagon is identical.

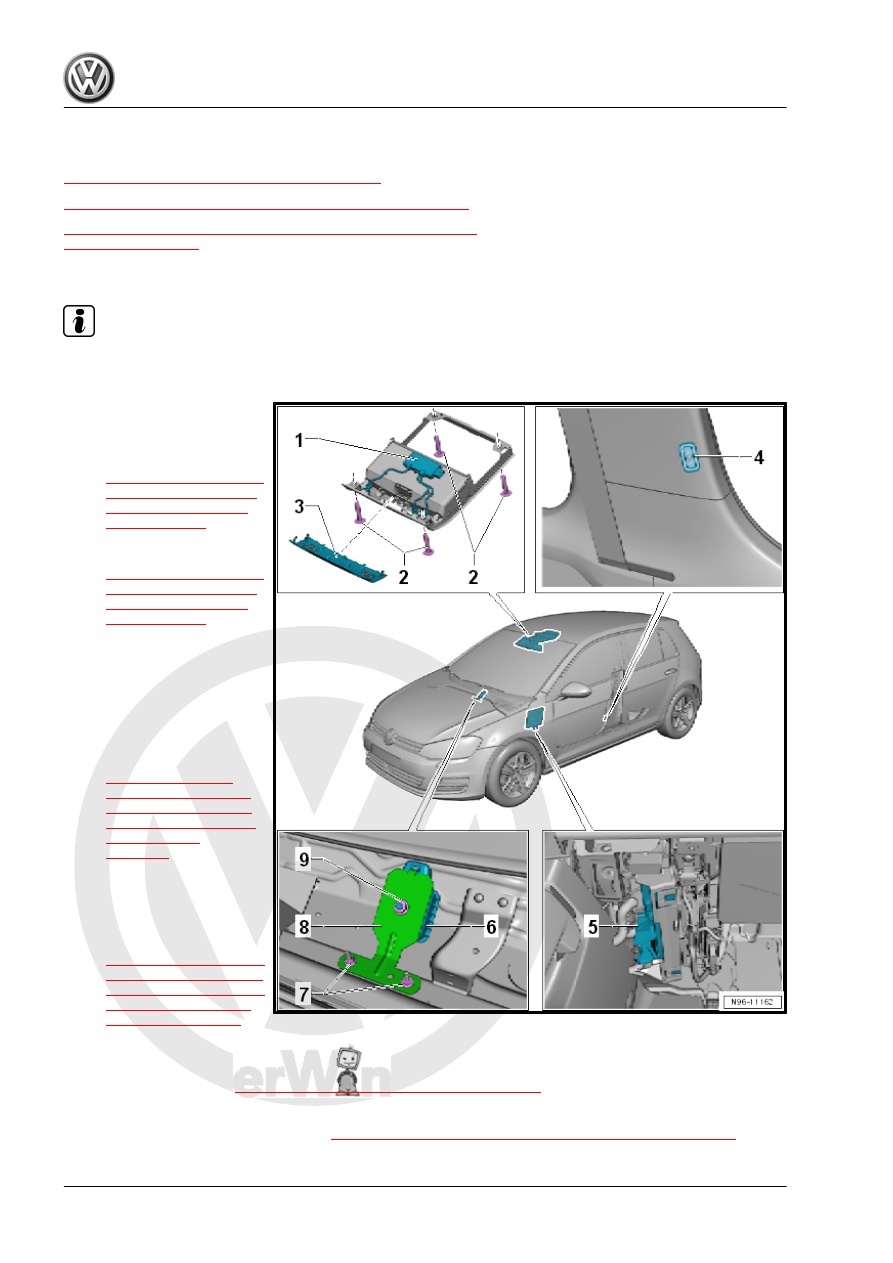

1 - Anti-Theft Alarm System

Sensor - G578-

❑ Removing and instal‐

ling. Refer to

⇒ “3.3  Anti-Theft Alarm

System Sensor G578 ,

Removing and Instal‐

ling”, page 279

 .

❑ After replacing adjust.

Refer to

⇒ “3.3  Anti-Theft Alarm

System Sensor G578 ,

Removing and Instal‐

ling”, page 279

 .

2 - Screw

❑ 1 Nm
❑ Quantity: 2 or 4, de‐

pending on version

3 - Cover

❑ Removing and instal‐

ling. Refer to

⇒ “3.3.2  Anti-Theft

Alarm System Sensor

G578 , Removing and

Installing, Version with

Four Screws”,

page 281

 .

4 - Interior Monitoring And Ve‐

hicle Inclination Deactivation

Button - E616-

❑ Removing and instal‐

ling. Refer to

⇒ “2.22  Interior Monitor‐

ing And Vehicle Inclina‐

tion Deactivation Button

E616 , Removing and

Installing”, page 272

 .

5 - Vehicle Electrical System Control Module - J519-

❑ With Central Locking and Anti-Theft Alarm System Antenna - R47-
❑ Overview. Refer to

⇒ “2.2 Overview - Control Modules”, page 298

 .

6 - Alarm Horn - H12-

❑ Removing and installing. Refer to

⇒ “3.2  Alarm Horn H12 , Removing and Installing”, page 279

 .

7 - Nut

❑ 9 Nm
❑ Quantity: 2

8 - Bracket

❑ Removing and installing. Refer to

⇒ “3.2  Alarm Horn H12 , Removing and Installing”, page 279

 .

9 - Nut

❑ 6 Nm

3.2

Alarm Horn - H12- , Removing and In‐

stalling

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the plenum chamber cover. Refer to ⇒  Body Exterior;

Rep. Gr.  50 ; Bulkhead; Plenum Chamber Cover, Removing

and Installing .

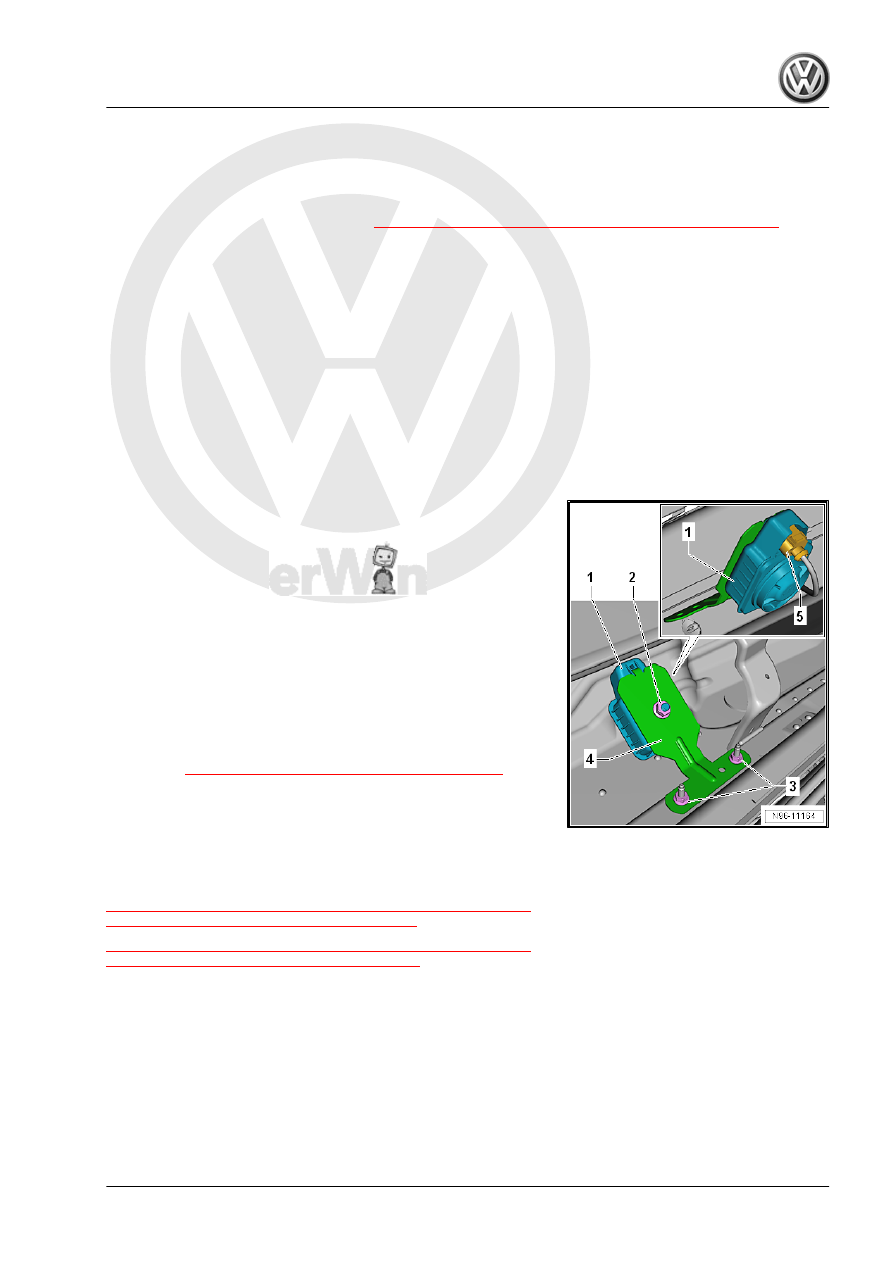

– Remove the nuts -3-.
– Remove the alarm horn -1- with the bracket -4- from the ple‐

num chamber.

– Disconnect the connector -5-.
– If necessity remove the nut -2-.
– Remove the alarm horn -1- from the bracket -4-.
Installing
Install in the reverse order of removal while paying attention to

the following:
– Perform a function test.
Tightening Specifications
♦ Refer to

⇒ “3.1 Overview - Interior Monitoring”, page 278

3.3

Anti-Theft Alarm System Sensor -

G578- , Removing and Installing

⇒ “3.3.1  Anti-Theft Alarm System Sensor G578 , Removing and

Installing, Version with Two Screws”, page 279
⇒ “3.3.2  Anti-Theft Alarm System Sensor G578 , Removing and

Installing, Version with Four Screws”, page 281

3.3.1

Anti-Theft Alarm System Sensor -

G578- , Removing and Installing, Ver‐

sion with Two Screws

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.

– Remove the Front Interior Lamp - WX1- . Refer to

⇒ “2.30 Front Interior Lamp/Reading Lamp, Removing and In‐

stalling”, page 275

 .

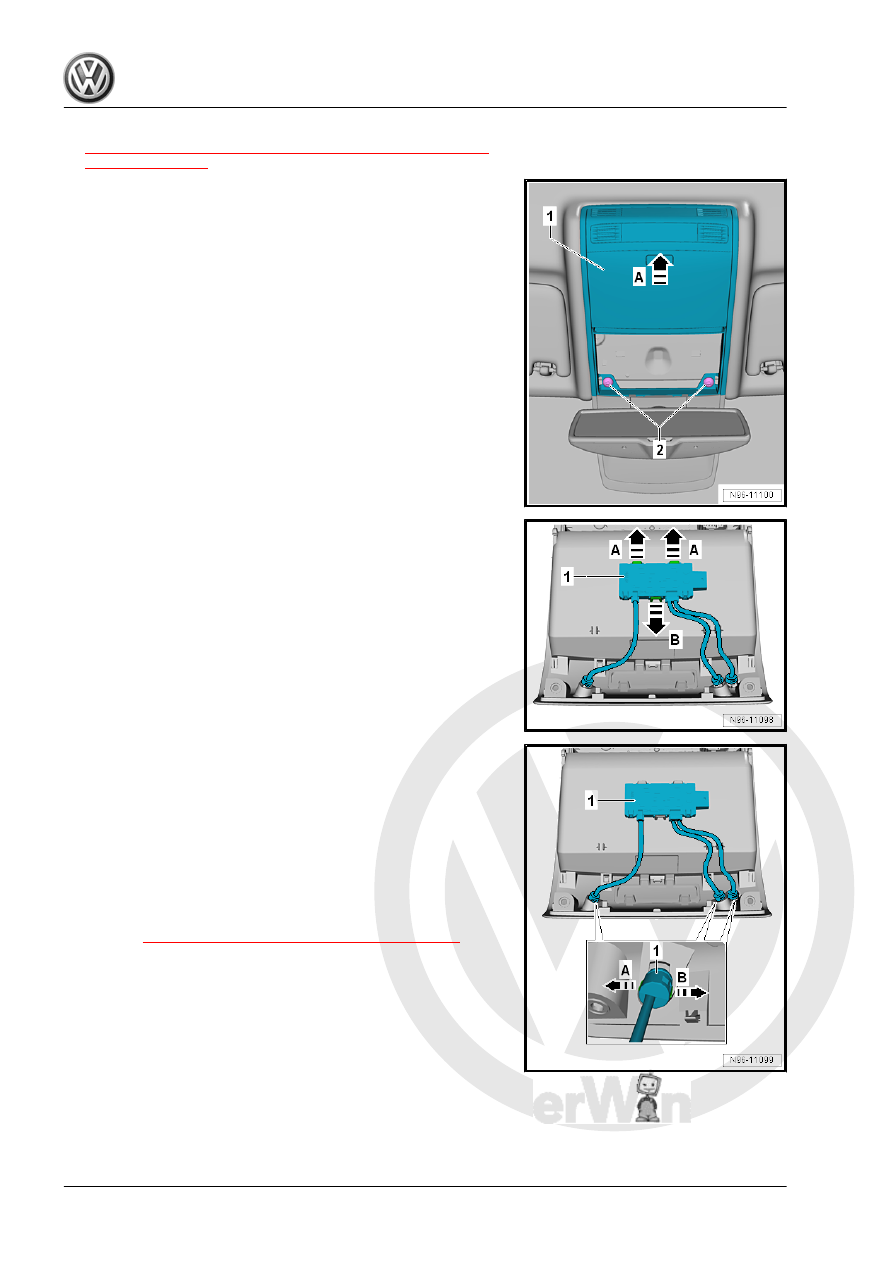

– Remove the screws -2-.
– Remove the roof module -1- in the direction of the -arrow A-.
– Disengage the connector and disconnect.

– Release the mounting tabs in the direction of the

-arrows A and B-.

– Remove the Anti-Theft Alarm System Sensor - G578- -1- from

the roof module.

– Release the mounting tabs in the direction of the arrows

-A and B-.

– Remove the individual sensor -1- from the roof module.
Installing
Install in the reverse order of removal while paying attention to

the following:
If the Anti-Theft Alarm System Sensor - G578- is being replaced,

then it must be adapted using the Vehicle Diagnostic Tester .
– Perform a function test.
Tightening Specifications
♦ Refer to

⇒ “3.1 Overview - Interior Monitoring”, page 278
