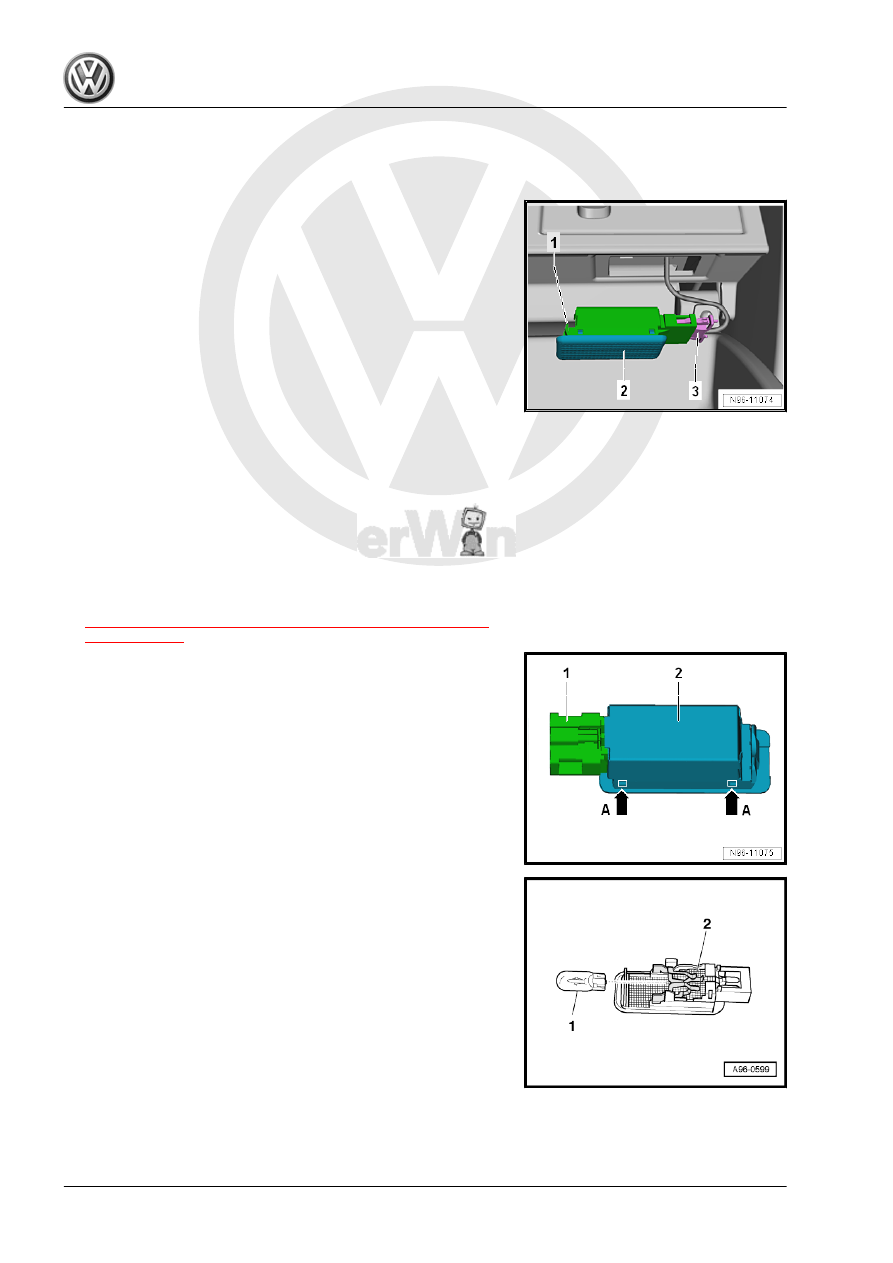

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Push the retaining tab -1- with a flat-head screwdriver and pry

up the glove compartment lamp -2-.

– Disconnect the connector -3-.
Installing
Install in the reverse order of removal while paying attention to

the following:
– Insert the glove compartment lamp into the opening and en‐

gage on the opposite side.

– Perform a function test.

1.8

Bulb for Glove Compartment Lamp -

W6- , Replacing

For a Glove Compartment Lamp - W6- the lamp must be replaced

if there is a faulty LED
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the Glove Compartment Lamp - W6- . Refer to

⇒ “1.7 Glove Compartment Lamp W6 , Removing and Instal‐

ling”, page 241

– Pry up the heat shield -2- when necessary on both sides ar‐

rows -A-.

– Remove the heat shield -2- from the Glove Compartment

Lamp - W6- -1-.

– Remove the bulb -1- from the bulb socket -2- on the back of

the glove compartment lamp.

Installing
Install in reverse order of removal.
– Perform a function test.

1.9

Left/Right Front Footwell Lamp -K268- /

-K269- , Removing and Installing

⇒ “1.9.1 Left Front Footwell Lamp K268 , Removing and Instal‐

ling, Driver Side”, page 243
⇒ “1.9.2 Right Front Footwell Lamp K269 , Removing and Instal‐

ling, Front Passenger Side”, page 243

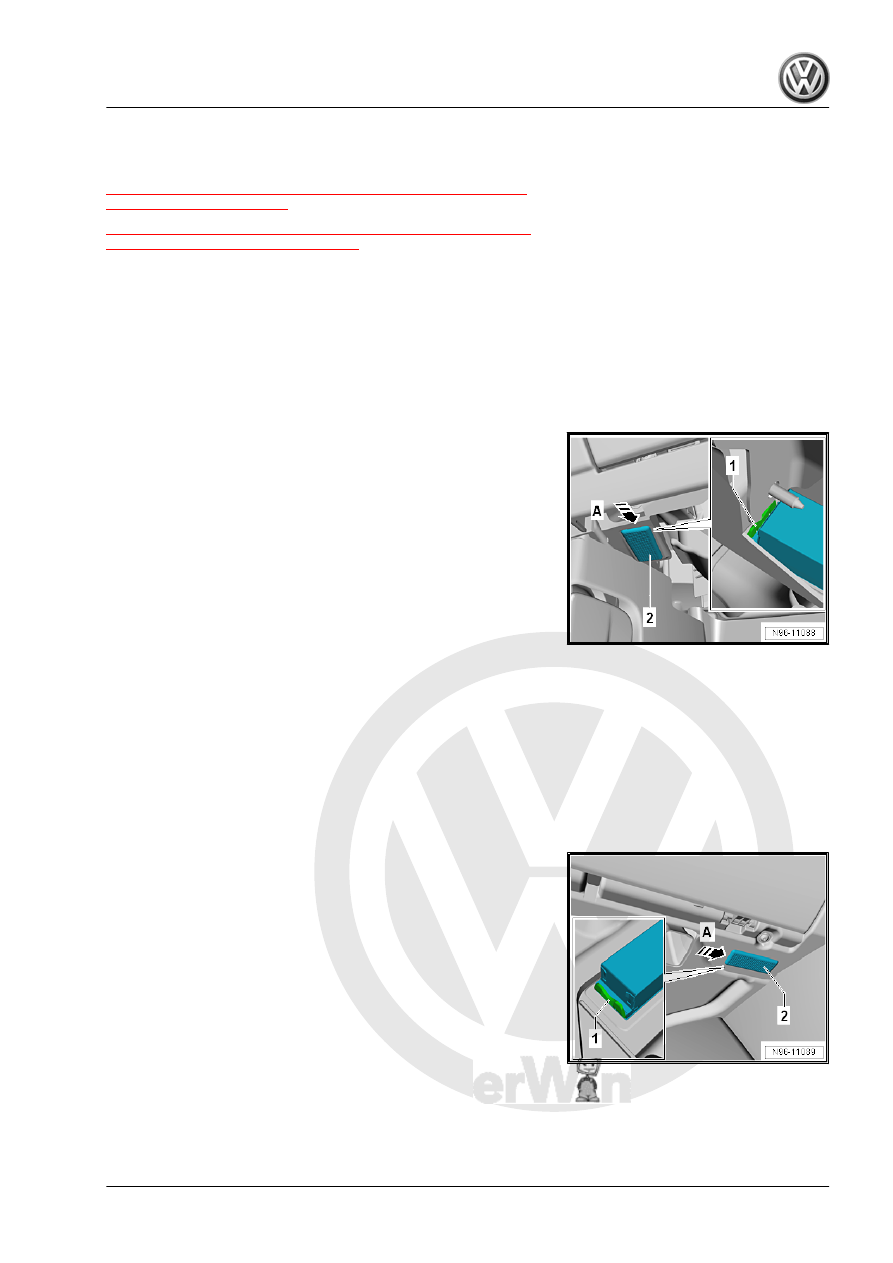

1.9.1

Left Front Footwell Lamp - K268- , Re‐

moving and Installing, Driver Side

For a footwell lamp the lamp must be replaced if there is a faulty

LED.
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Press the retaining tab -1- in the area of the -arrow A- with a

flat-head screwdriver.

– Pry up the footwell lamp -2-.
– Disengage the connector and disconnect.
Installing
Install in reverse order of removal.
– Perform a function test.

1.9.2

Right Front Footwell Lamp - K269- , Re‐

moving and Installing, Front Passenger

Side

For a footwell lamp the lamp must be replaced if there is a faulty

LED.
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Press the retaining tab -1- in the area of the -arrow A- with a

flat-head screwdriver.

– Pry up the footwell lamp -2-.
– Disengage the connector and disconnect.
Installing
Install in reverse order of removal.
– Perform a function test.

1.10

Left/Right Front Footwell Illumination

Bulb -L151- / -L152- , Removing and In‐

stalling

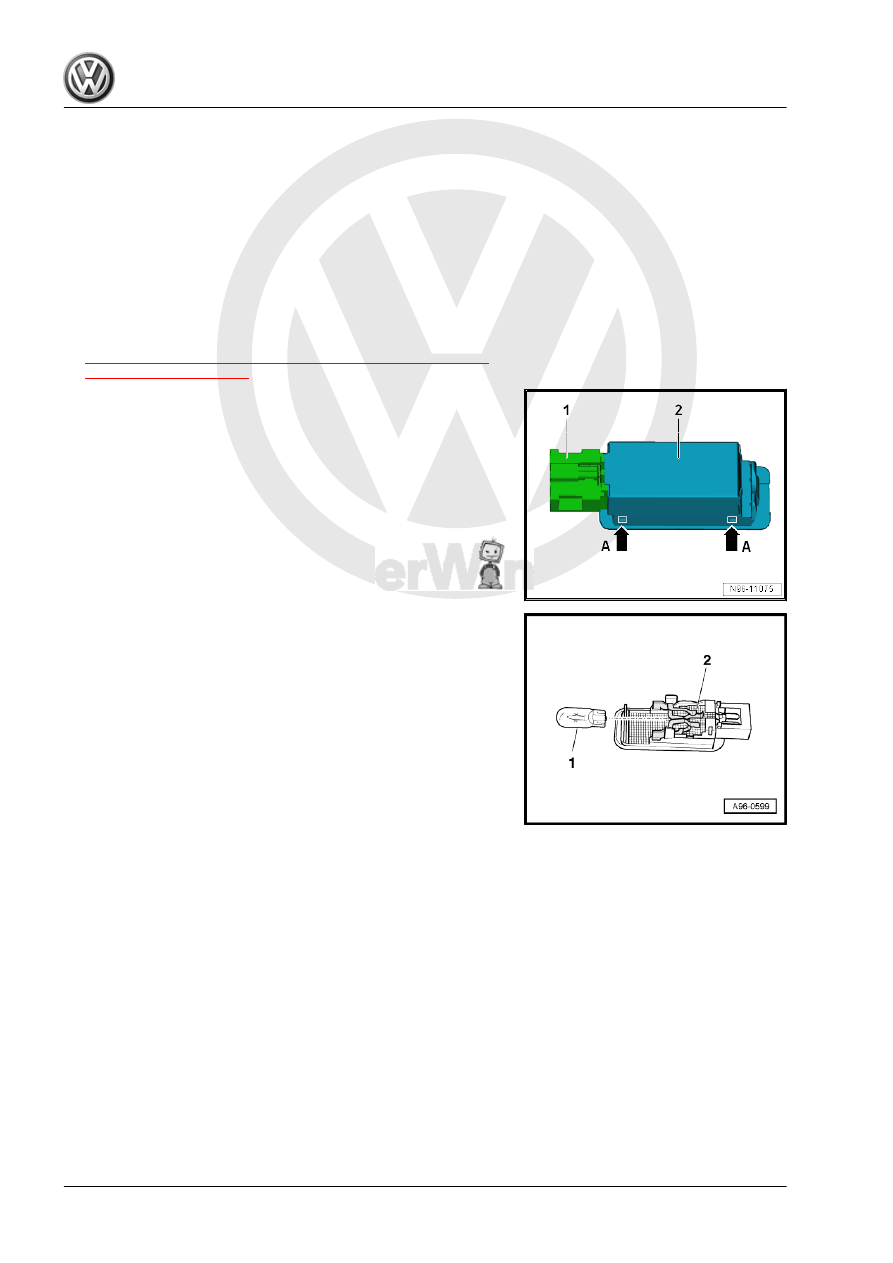

For a front footwell lamp the lamp must be replaced if there is a

faulty LED.
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the Left/Right Front Footwell Lamp -K268- / -K269- .

Refer to

⇒ “1.9 Left/Right Front Footwell Lamp K268 / K269 , Removing

and Installing”, page 243

– Pry up the heat shield -2- when necessary on both sides ar‐

rows -A-.

– Remove the heat shield -2- from the footwell lamp -1-.

– Remove the bulb -1- from the bulb socket -2- on the back of

the glove compartment lamp.

Installing
Install in reverse order of removal.
– Perform a function test.

1.11

Central Locking -Safe- Indicator Lamp -

K133- , Removing and Installing

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the front door trim panel. Refer to ⇒ Body Interior;

Rep. Gr. 70 ; Front Door Trim Panels; Front Door Trim Panel,

Removing and Installing .
