4

Sensors

⇒ “4.1  Steering Angle Sensor G85 , Removing and Installing”,

page 365

4.1

Steering Angle Sensor - G85- , Remov‐

ing and Installing

Note

♦

The Steering Angle Sensor - G85- is a component of the steer‐

ing gear.

♦

It cannot be replaced separately.

♦

The steering gear must be replaced if the Steering Angle Sen‐

sor - G85- is faulty. Refer to

⇒ “3.2 Steering Gear, Removing and Installing”, page 351

 .

5

Special Tools

Special tools and workshop

equipment required

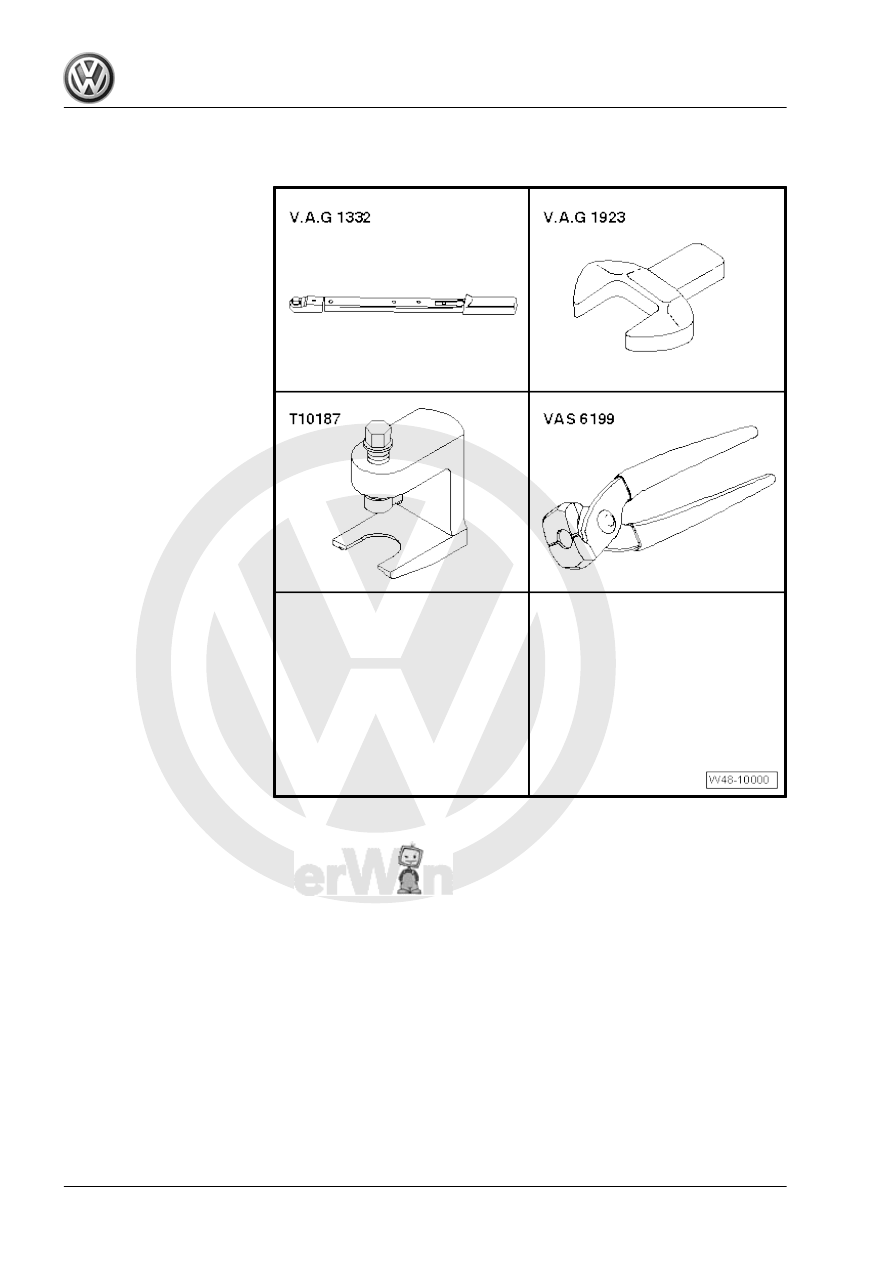

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Torque Wrench Insert -

Open Jaw - VAG1923-

♦ Puller - Ball Joint - T10187-
♦ Locking Pliers - VAS6199-

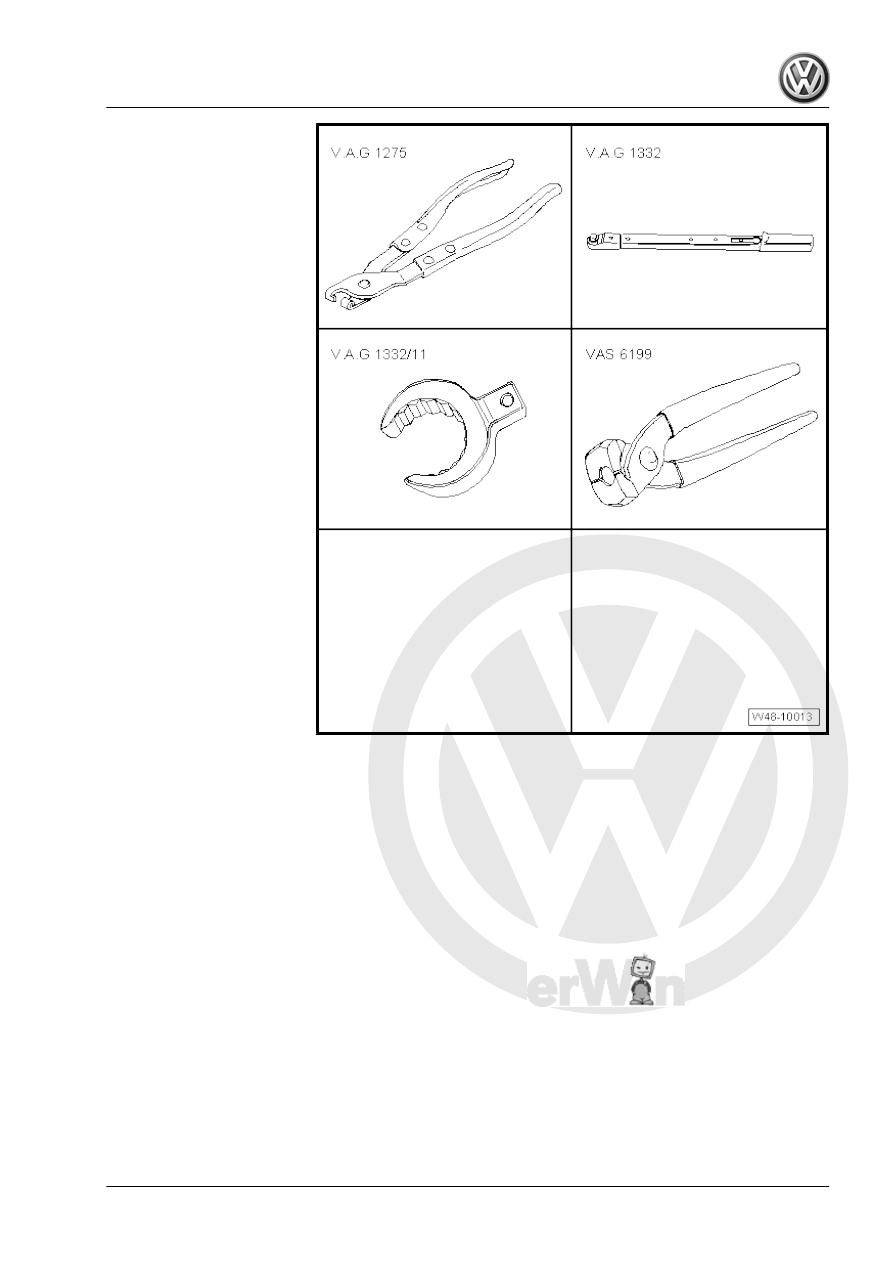

♦ Hose Clip Pliers -

VAG1275A-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Open Ring Wrench - 24mm

- VAG1332/11-

♦ Locking Pliers - VAS6199-

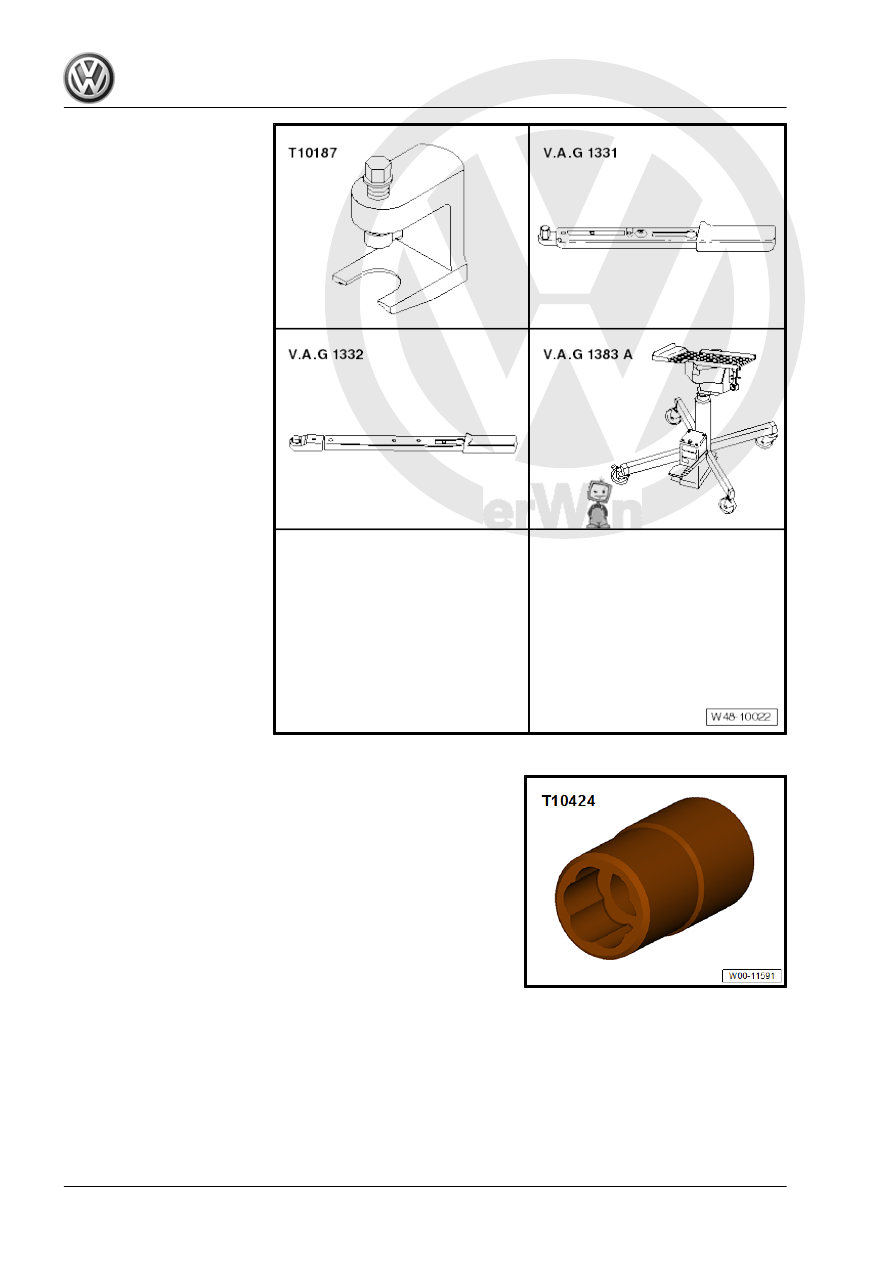

♦ Puller - Ball Joint - T10187-
♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Engine and Gearbox Jack -

VAS6931-

♦ 7/16 Inch Extractor - T10424US-
