43 – Level Control System

1

Electronic Damping

⇒ “1.1 Overview - Electronic Damping”, page 267
⇒ “1.2.1  Electronic Damping Control Module J250 , Removing

and Installing, Golf”, page 272
⇒ “1.3 Left/Right Front Body Acceleration Sensor G341 / G342 ,

Removing and Installing”, page 274
⇒ “1.4  Left Rear Body Acceleration Sensor G699 , Removing and

Installing”, page 275

1.1

Overview - Electronic Damping

⇒ “1.1.1 Overview - Electronic Damping, Torsion Beam Axle,

Golf”, page 267
⇒ “1.1.2 Overview - Electronic Damping, Multi-Link Suspension,

Golf”, page 269
⇒ “1.1.3 Overview - Electronic Damping, Multi-Link Suspension,

Golf Wagon”, page 271

1.1.1

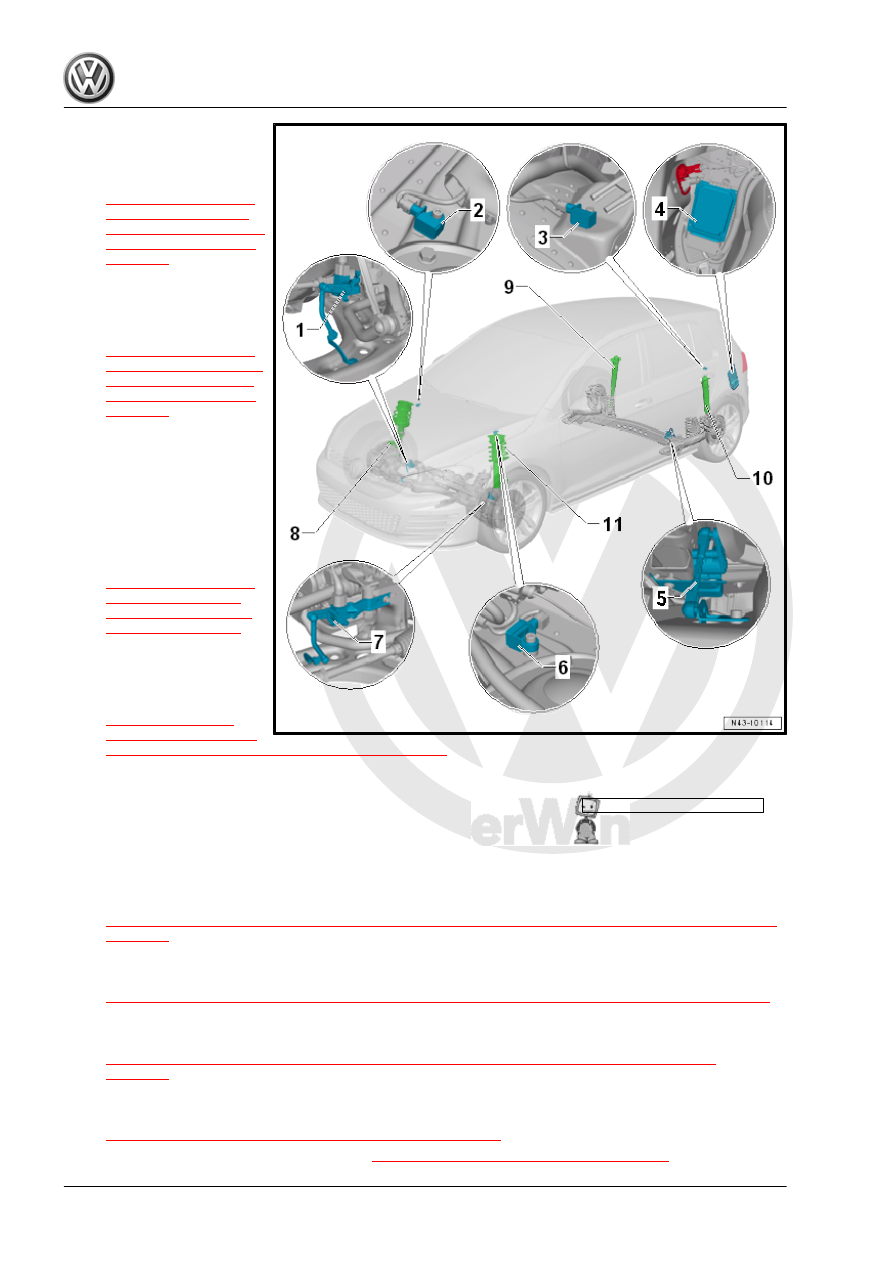

Overview - Electronic Damping, Torsion Beam Axle, Golf

1 - Right Front Level Control

Sensor - G289-

❑ Removing and instal‐

ling. Refer to

⇒ “2.3 Left/Right Front

Level Control System

Sensor G78 / G289 , Re‐

moving and Installing”,

page 280

2 - Right Front Body Accelera‐

tion Sensor - G342-

❑ Removing and instal‐

ling. Refer to

⇒ “1.3 Left/Right Front

Body Acceleration Sen‐

sor G341 / G342 , Re‐

moving and Installing”,

page 274

3 - Left Rear Body Acceleration

Sensor - G699-

❑ Component location: in

the luggage compart‐

ment on the left shock

absorber tower behind

the left side trim panel

❑ Removing and instal‐

ling. Refer to

⇒ “1.4  Left Rear Body

Acceleration Sensor

G699 , Removing and

Installing”, page 275

4 - Electronic Damping Control

Module - J250-

❑ Removing and instal‐

ling. Refer to

⇒ “1.2.1  Electronic

Damping Control Mod‐

ule J250 , Removing and Installing, Golf”, page 272

❑ Component location: the Electronic Damping Control Module - J250- is installed in the luggage com‐

partment behind the left side trim panel.

❑ If the Electronic Damping Control Module - J250- is being replaced, the

Replace Control Module

function must be performed using the Vehicle Diagnostic Tester .

❑ If the control position was reprogrammed and if the vehicle has lane assist, then the front camera for the

driver assistance systems must be calibrated.

5 - Left Rear Level Control System Sensor - G76-

❑ Removing and installing. Refer to

⇒ “2.4.1  Left Rear Level Control System Sensor G76 , Removing and Installing, Torsion Beam Axle”,

page 282

6 - Left Front Body Acceleration Sensor - G341-

❑ Removing and installing. Refer to

⇒ “1.3 Left/Right Front Body Acceleration Sensor G341 / G342 , Removing and Installing”, page 274

7 - Left Front Level Control System Sensor - G78-

❑ Removing and installing. Refer to

⇒ “2.3 Left/Right Front Level Control System Sensor G78 / G289 , Removing and Installing”,

page 280

8 - Shock Absorber with Right Front Damping Adjustment Valve - N337-

❑ Removing and installing the suspension strut. Refer to

⇒ “3.2 Suspension Strut, Removing and Installing”, page 45

 .

❑ Servicing the suspension strut. Refer to

⇒ “3.3 Suspension Strut, Servicing”, page 51

 .
