❑ Removing and installing. Refer to

⇒ “2.4.2 Wiring Harness, Removing and Installing, Sensors”, page 100

 .

❑ Allocation. Refer to the Parts Catalog.

6 - Transmission Fluid Temperature Sensor - G93-

❑ Component location. Refer to

⇒ Fig. ““Sensor Wiring Harness”“ , page 10

❑ Can be checked in “Guided Fault Finding” using Vehicle Diagnostic Tester .

7 - Solenoid Valve Wiring Harness

❑ Wiring harness, 14-pin
❑ Component location. Refer to

⇒ Fig. ““Solenoid Valve Wiring Harness”“ , page 11

❑ Removing and installing. Refer to

⇒ “2.4.1 Wiring Harness, Removing and Installing, Solenoid Valves”, page 99

 .

❑ Allocation. Refer to the Parts Catalog.

8 - Shift Lock Solenoid - N110-

❑ Component location: The shift lock solenoid is located in selector mechanism.
❑ Can be checked in “Guided Fault Finding” using Vehicle Diagnostic Tester .

9 - Selector Mechanism

❑ With the Tiptronic Switch - F189-
❑ The Tiptronic Switch - F189- is a component of the selector mechanism.
❑ Replace the selector mechanism if faulty. Refer to

⇒ “2.2 Selector Mechanism, Removing and Installing”, page 21

 .

❑ Can be checked in “Guided Fault Finding” using Vehicle Diagnostic Tester .

10 - Transmission Input Speed Sensor - G182-

❑ Component location. Refer to

⇒ Fig. ““ Transmission Input Speed Sensor -G182- and Transmission Output Speed Sensor -G195- ”“ ,

page 11

❑ Removing and installing. Refer to

⇒ “2.5  Transmission Input Speed Sensor G182 , Removing and Installing”, page 101

 .

❑ Can be checked in “Guided Fault Finding” using Vehicle Diagnostic Tester .

11 - Transmission Output Speed Sensor - G195-

❑ Component location. Refer to

⇒ Fig. ““ Transmission Input Speed Sensor -G182- and Transmission Output Speed Sensor -G195- ”“ ,

page 11

❑ Removing and installing. Refer to

⇒ “2.6  Transmission Output Speed Sensor G195 , Removing and Installing”, page 101

 .

❑ Can be checked in “Guided Fault Finding” using Vehicle Diagnostic Tester .

12 - Data Link Connector (DLC)

❑ Component location. Refer to

⇒ Fig. ““Data Link Connector (DLC)”“ , page 11

13 - Transmission Range Display - Y6-

❑ Component location. Refer to

⇒ Fig. ““ Transmission Range Display -Y6- ”“ , page 11

❑ Removing and installing. Refer to ⇒  Electrical Equipment; Rep. Gr.  90 ; Instrument Cluster; Overview

- Instrument Cluster .

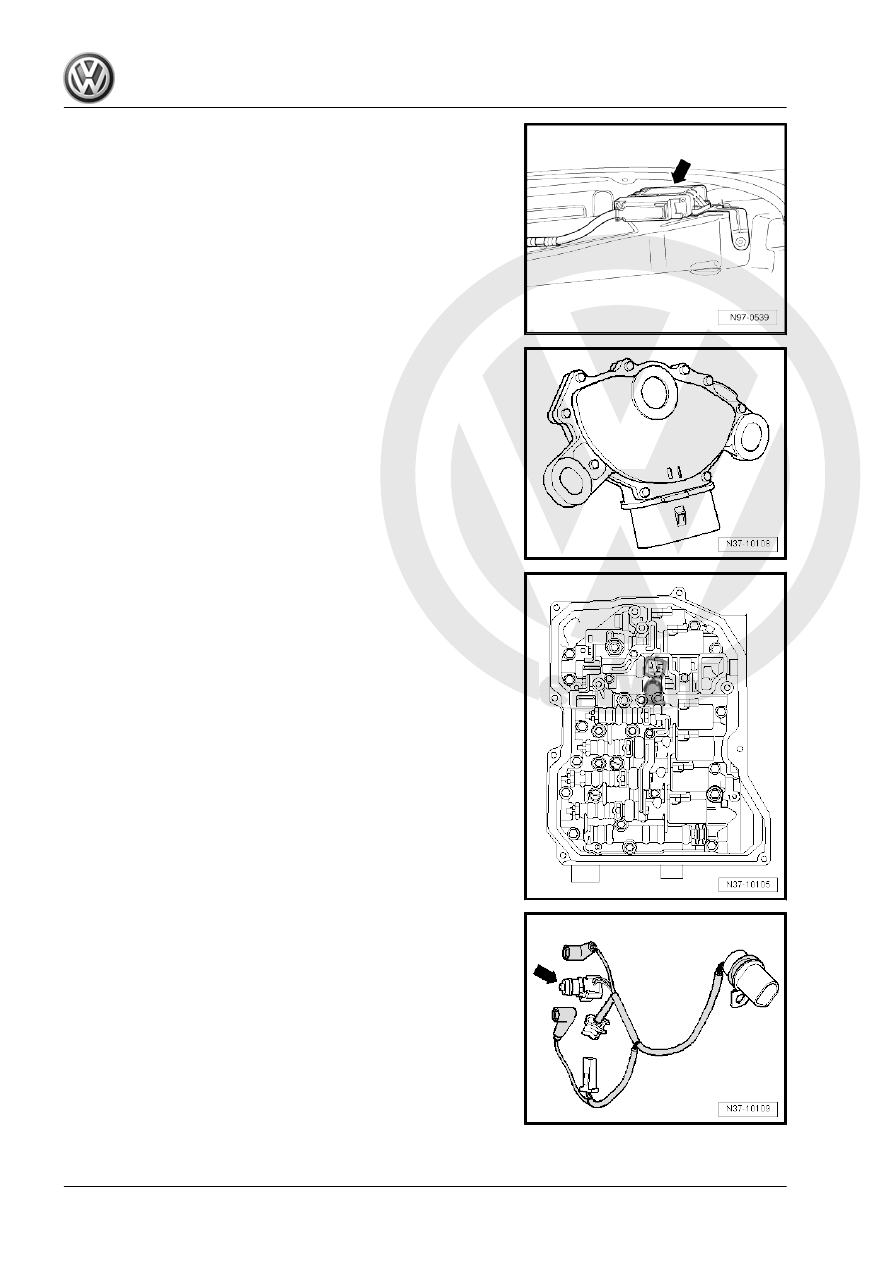

Transmission Control Module - J217- -arrow-
Component location: The control module is located in front left

wheel housing.
– The wheel housing liner must be removed for removal and in‐

stallation.

Multifunction Transmission Range Switch - F125-
Component location: The multi-function switch is located on up‐

per side of transmission.

Valve Body
Component location: Valve body is bolted to underside of trans‐

mission housing and is covered by transmission fluid pan.
The Solenoid Valve 1 - N88- , -N89- , -N90- , -N91- , -N92- , -

N93- , -N282- and -N283- are secured on the valve body.

Sensor Wiring Harness
♦ 8-pin wiring harness
♦ With integrated Transmission Fluid Temperature Sensor -

G93- -arrow-.

Component location: The wiring harness is secured to valve body

in the transmission.

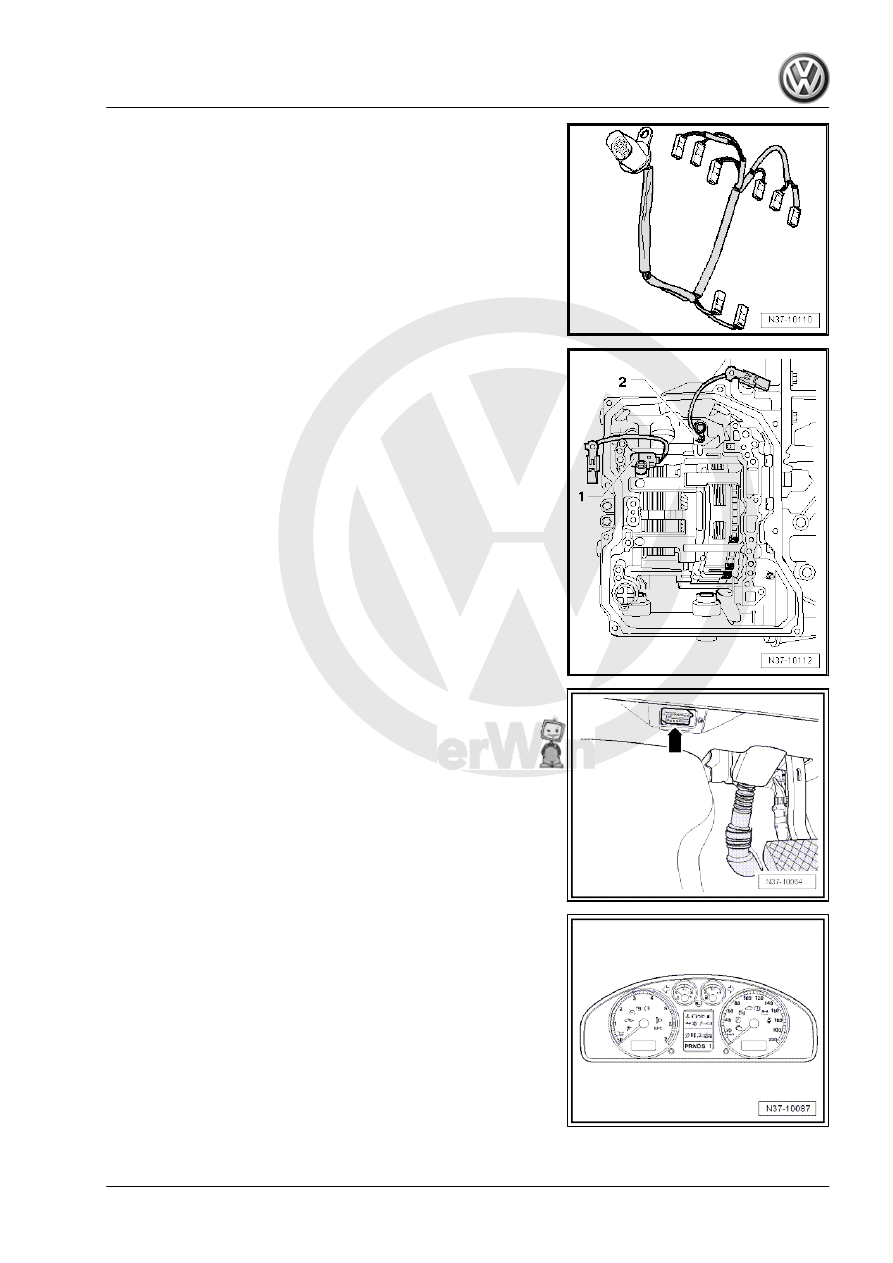

Solenoid Valve Wiring Harness
♦ Wiring harness, 14-pin
Component location: The wiring harness is secured to valve body

in the transmission.

Transmission Input Speed Sensor - G182- and Transmission

Output Speed Sensor - G195-
Component location: Inside the transmission housing above the

valve body.
1 - Transmission Input Speed Sensor - G182-
2 - Transmission Output Speed Sensor - G195-

Data Link Connector (DLC)
Component location: The DLC -arrow- is located under the driver

side storage compartment on the left side.

Transmission Range Display - Y6-
Component location: inside the instrument cluster

6

Special Tools

Special tools and workshop equipment required

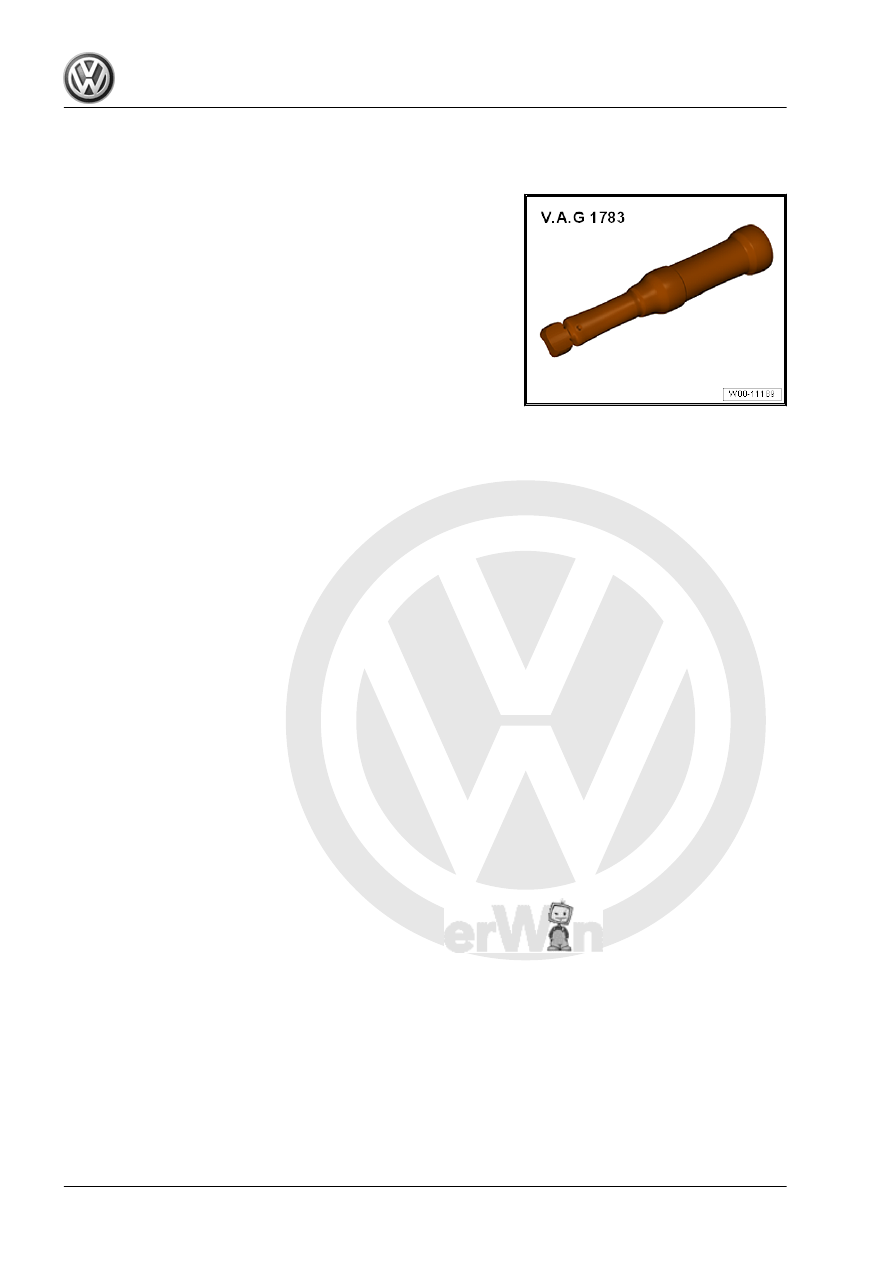

♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
