Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 565

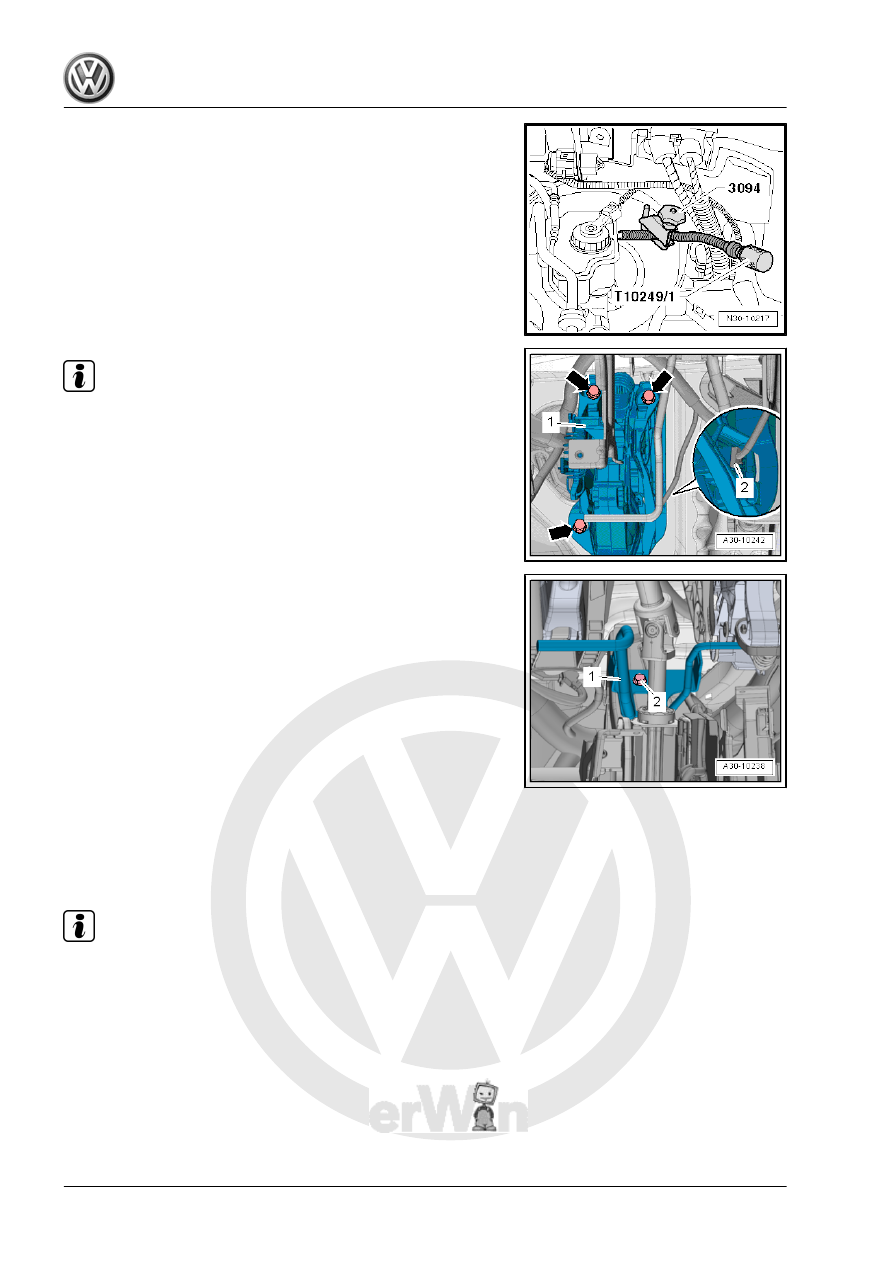

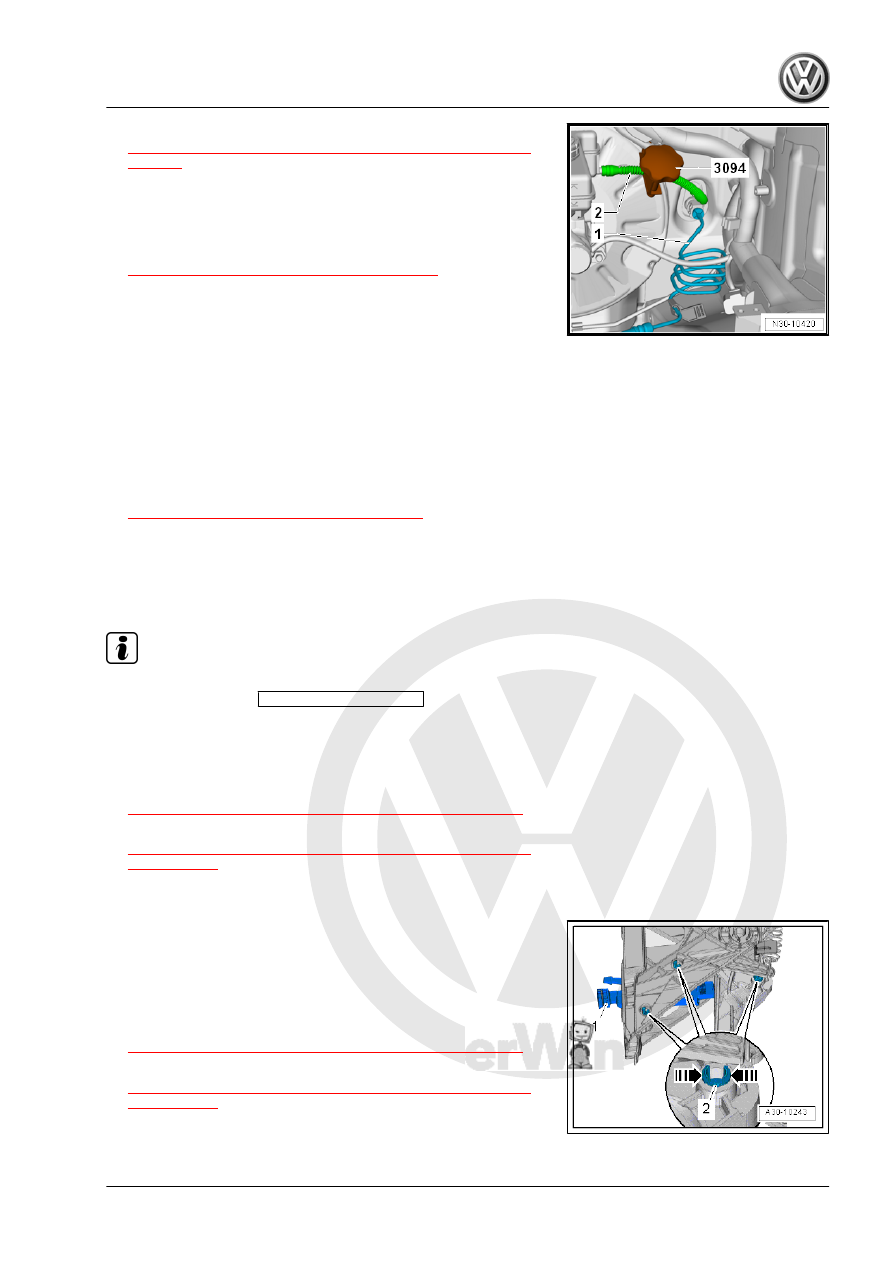

– Remove the clutch master cylinder return hose and seal with

the Sealing Tool - T10249/1- .

Note

When working inside the footwell, cover the carpet with cloths to

protect it from leaking brake fluid.

– Disconnect the connector -2- from the Clutch Position Sensor

- G476- .

– Remove nuts -arrows- and bracket -1-.

Installing
Install in reverse order of removal. Note the following:
– Replace self-locking nuts and clutch master cylinder seals af‐

ter removing them.

– Insert the crash bolster -1- and tighten the bolt -2-. Refer to ⇒

Body Interior; Rep. Gr.  70 ; Instrument Panel Central Tube;

Overview - Instrument Panel Central Tube .

– Install the Data Bus on Board Diagnostic Interface - J533- .

Refer to ⇒  Electrical Equipment; Rep. Gr.  97 ; Control Mod‐

ules; Component Location Overview - Control Modules .

– Install the driver side footwell vent. Refer to ⇒  Heating, Ven‐

tilation and Air Conditioning; Rep. Gr.  87 ; Air Routing; Driver

Side Footwell Vent, Removing and Installing .

Vehicles with a Knee Airbag
– Install the driver side knee airbag. Refer to ⇒  Body Interior;

Rep. Gr.  69 ; Knee Airbags; Overview - Knee Airbag .

Note

The battery will be installed and connected later.

Continuation for All
