Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 533

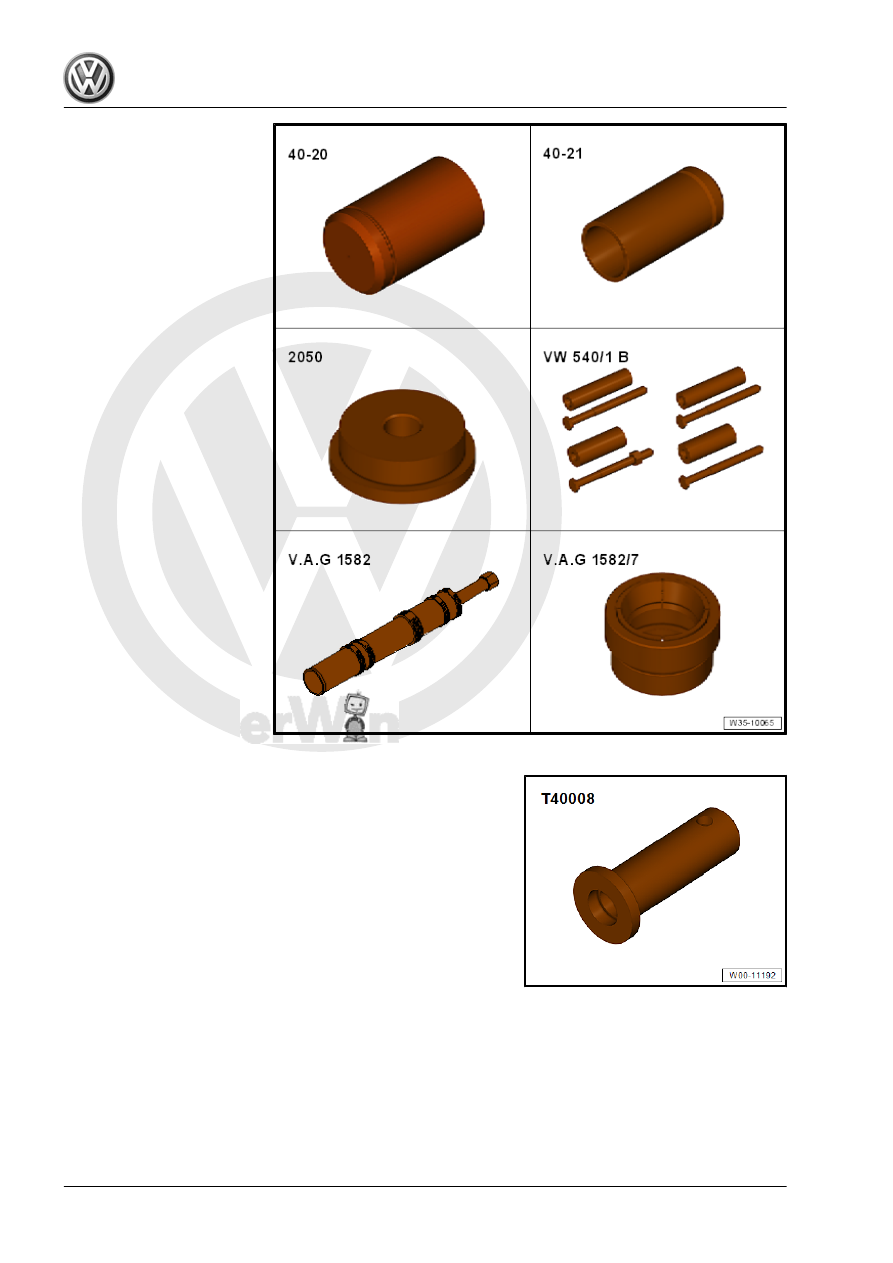

♦ Bearing Installer - Multiple

Use - 40-20-

♦ Bearing Installer - Differen‐

tial Bearing - 40-21-

♦ Press Piece - Multiple Use

- 2050-

♦ Holding Fixture - Spacers -

VW540/1B-

♦ Puller - Taper Roller Bear‐

ing - VAG1582-

♦ Puller - Taper Roller Bear‐

ing - Adapter 7 -

VAG1582/7-

♦ Seal Installer - Driveshaft - T40008-

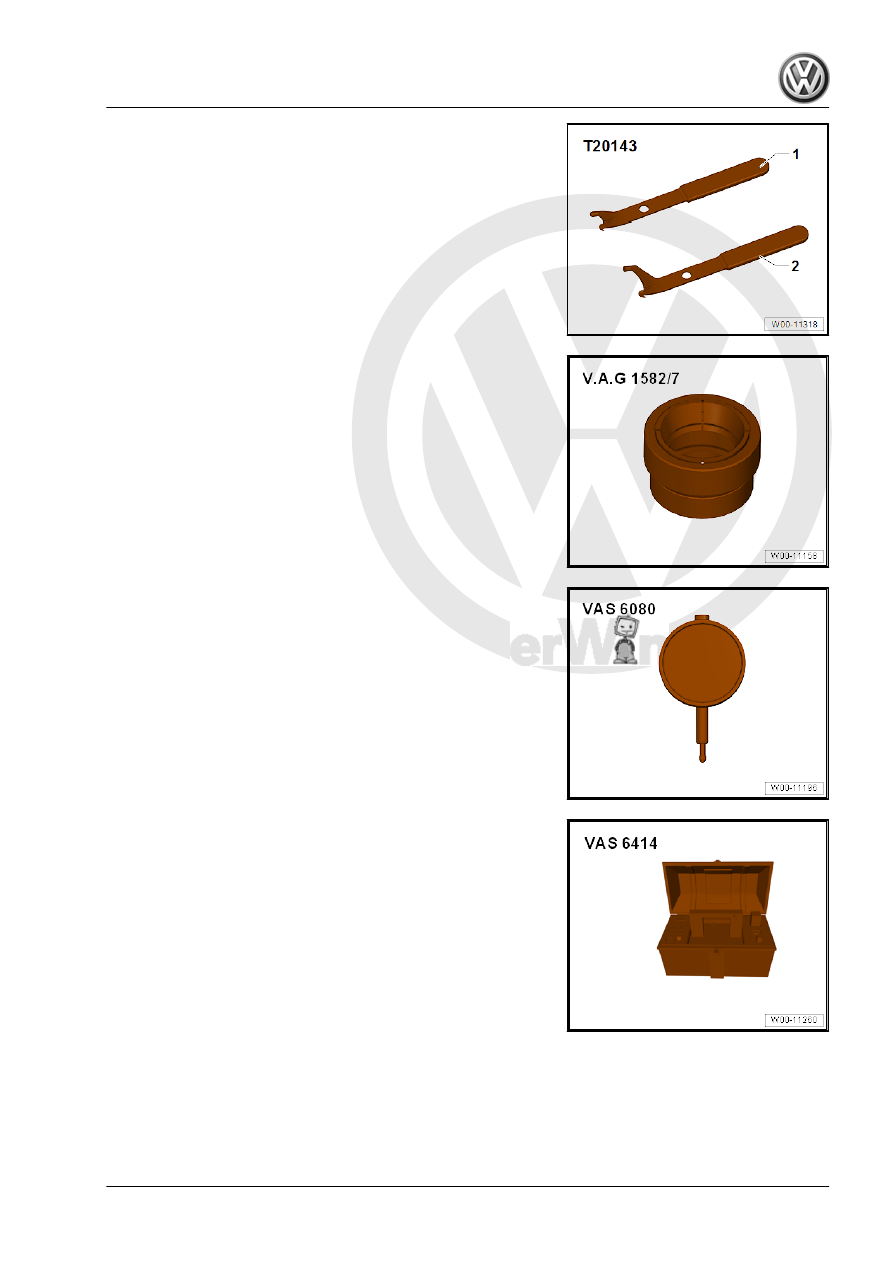

♦ Puller - Crankshaft/Power Steering Seal - T20143/1-

♦ Puller - Taper Roller Bearing - Adapter 7 - VAG1582/7-

♦ Dial Indicator - VAS6080A-

♦ Inductive Heater - VAS6414-

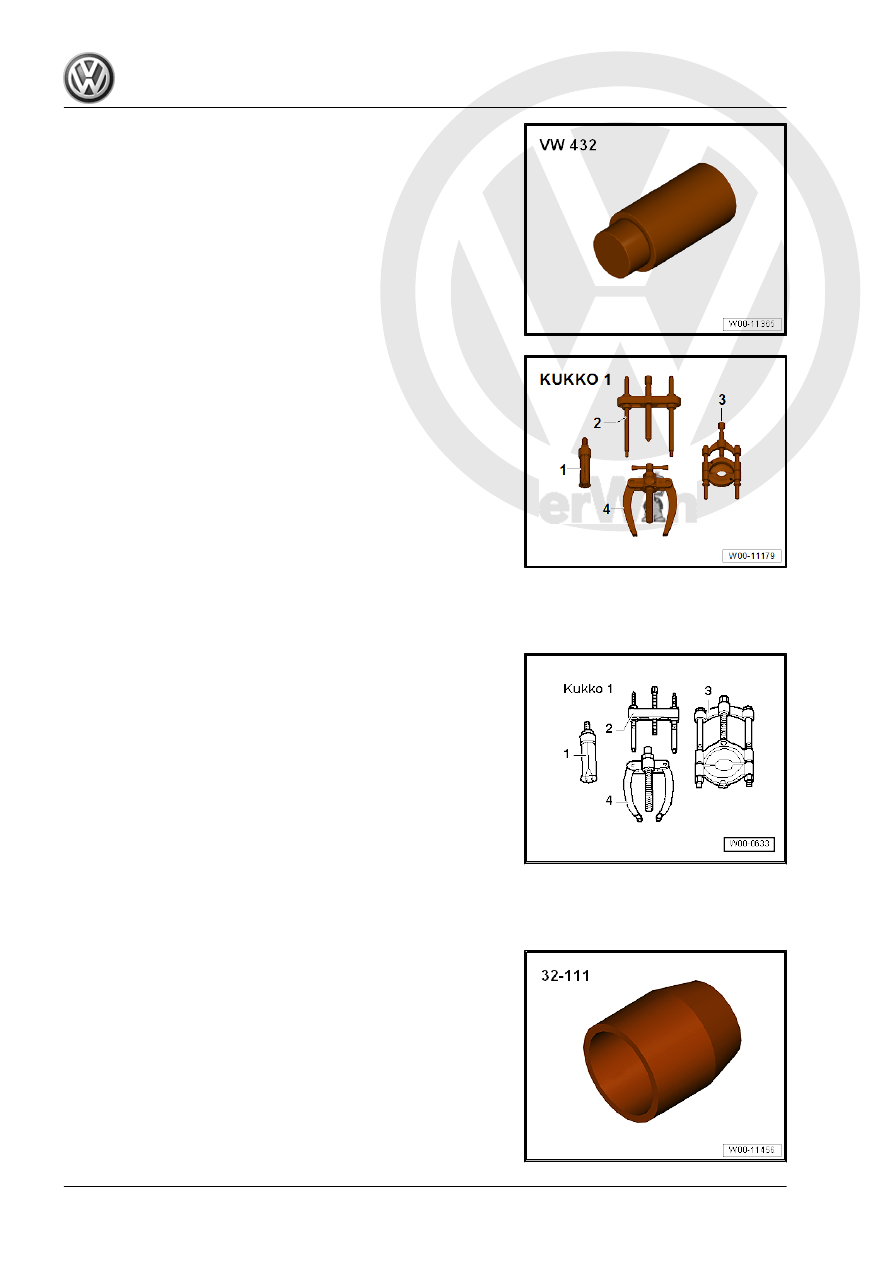

♦ Press Piece - Bushing - 50mm Diameter - VW432-

♦ -1- Puller - Kukko Internal - 28-37mm - 21/5-

♦ -3- Puller - Kukko Quick Action Separating Tool - 22-115mm -

17/2-

♦ -4- Puller - Kukko Counterstay - 22/2-
♦ -1- Puller - Kukko Internal - 46-56mm - 21/7-

♦ -1- Puller - Kukko Internal - 56-70mm - 21/8-
♦ -2- Puller - Kukko Puller - 60-200mm Width, 250mm Length -

18/2-

♦ Bearing Installer - Multiple Use - 32-111-

39 – Final Drive, Differential

1

Seals

⇒ “1.1 Overview - Component Location, Seals”, page 207
⇒ “1.2 Left Seal, Replacing”, page 207
⇒ “1.3 Right Seal, Replacing”, page 209

1.1

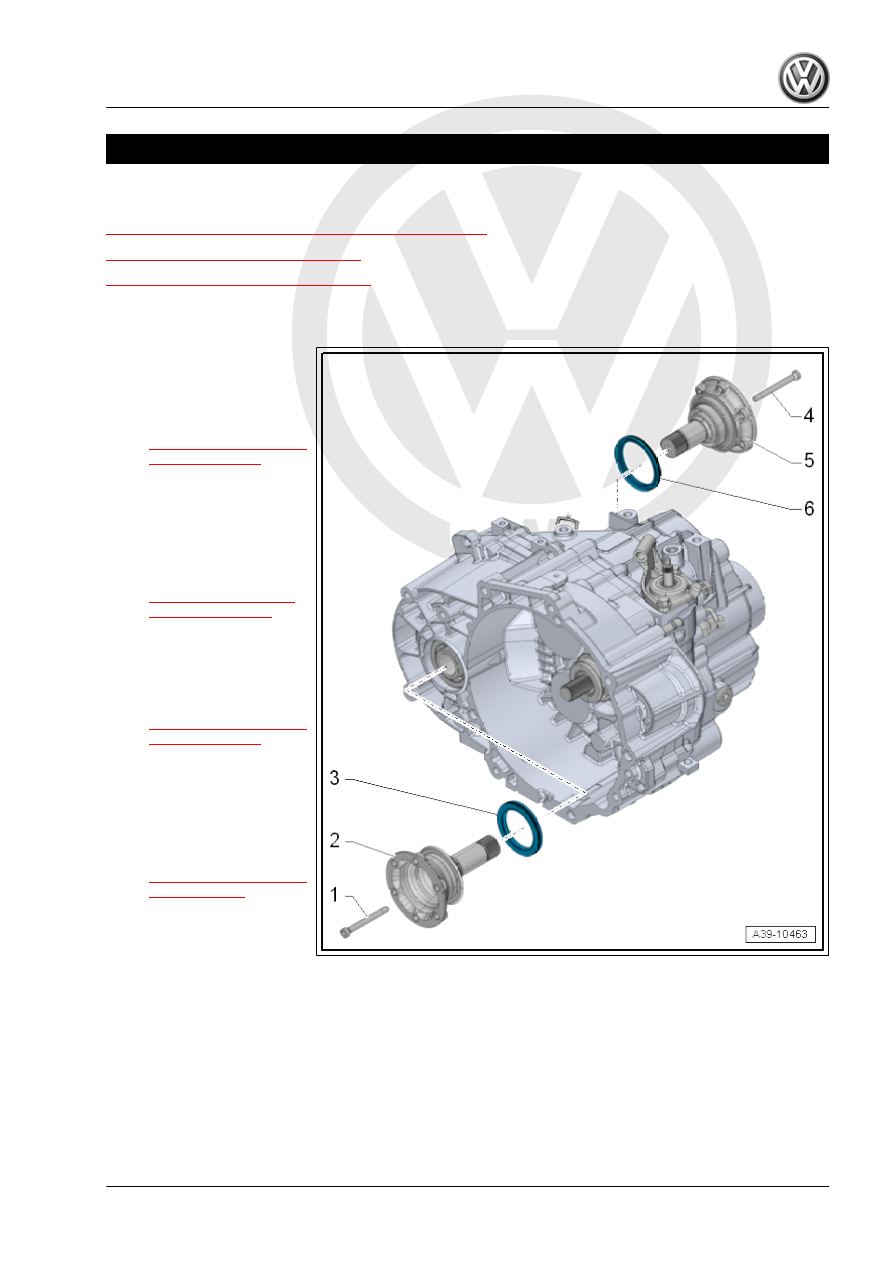

Overview - Component Location, Seals

1 - Bolt

❑ For right flange shaft to

transmission

❑ Tightening specifica‐

tion. Refer to

⇒ “2.1 Overview - Differ‐

ential”, page 212

 .

2 - Right Flange Shaft
3 - Seal

❑ For the right flange shaft
❑ Replace when the trans‐

mission is installed. Re‐

fer to

⇒ “1.3 Right Seal, Re‐

placing”, page 209

 .

4 - Bolt

❑ For left flange shaft to

the transmission

❑ Tightening specifica‐

tion. Refer to

⇒ “2.1 Overview - Differ‐

ential”, page 212

 .

5 - Left Flange Shaft
6 - Seal

❑ For the left flange shaft
❑ Replace when the trans‐

mission is installed. Re‐

fer to

⇒ “1.2 Left Seal, Replac‐

ing”, page 207

 .

1.2

Left Seal, Replacing

Special tools and workshop equipment required
♦ Slide Hammer Set - VW771-
♦ Slide Hammer Set - Hook - VW 771/37-
♦ Seal Installer - Flange Shaft - 3305-
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Torque Wrench 1332 40-200Nm - VAG1332-
