3

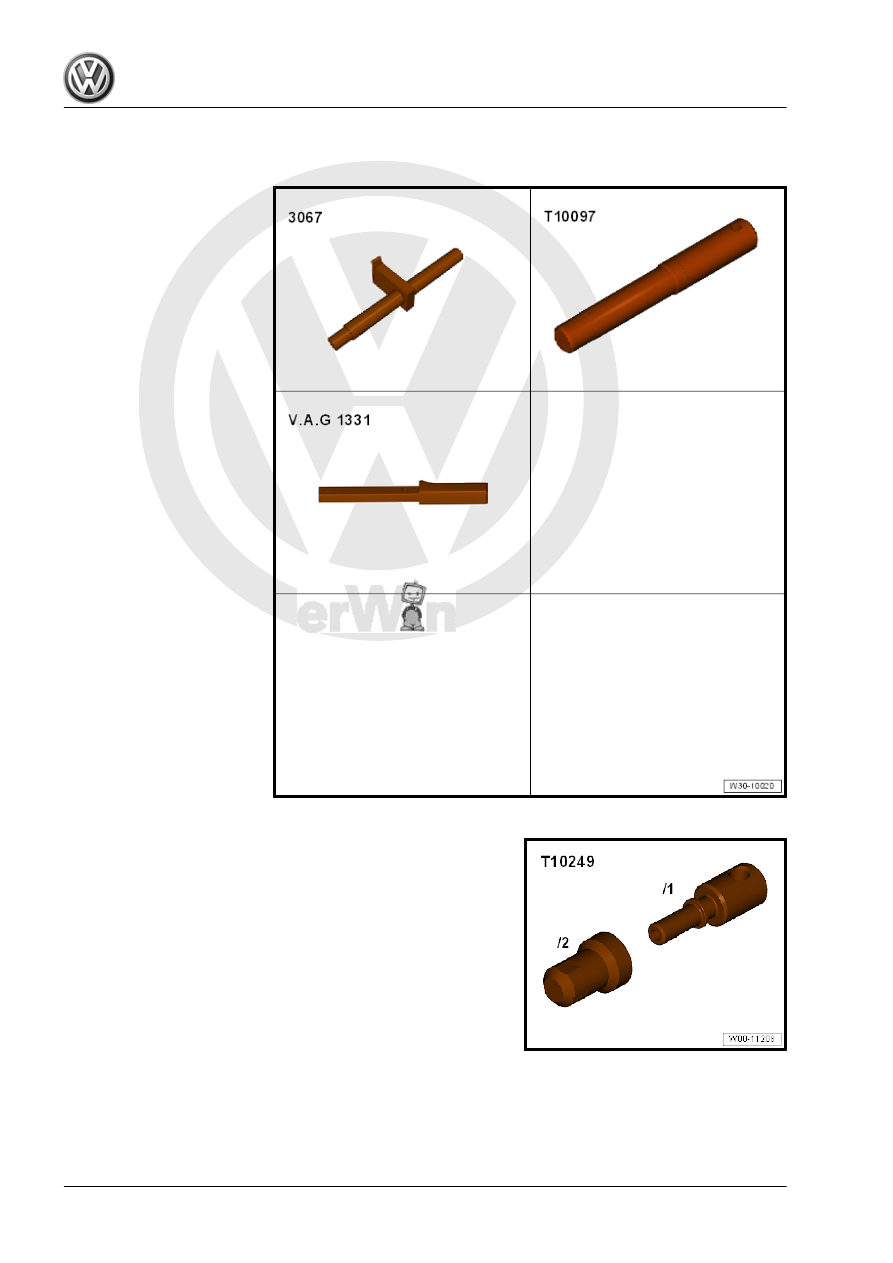

Special Tools

Special tools and workshop

equipment required
♦ Flywheel Retainer - 3067-
♦ Alignment Tool - Clutch

Plate - T10097-

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Sealing Tool - T10249-

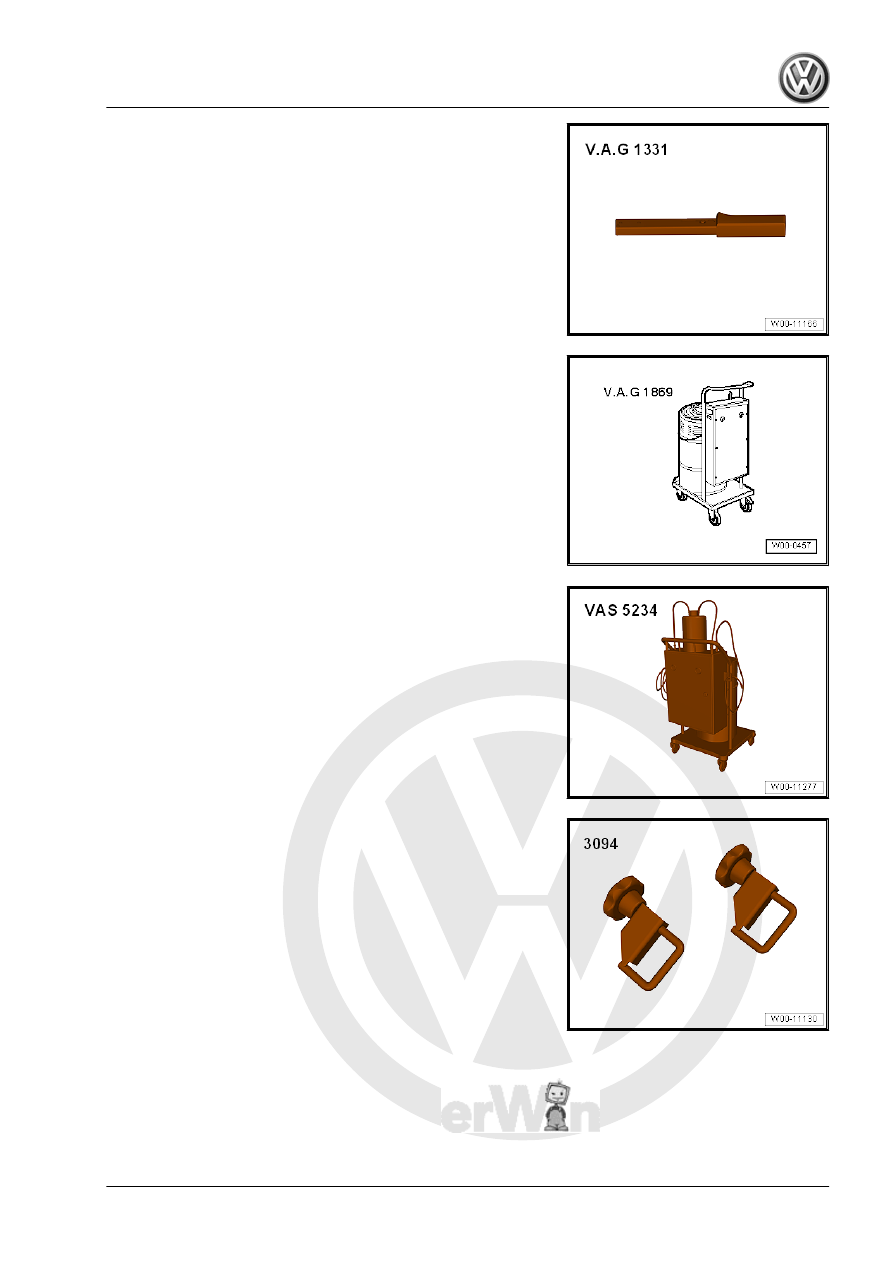

♦ Torque Wrench 1331 5-50Nm - VAG1331-

♦ Brake Charger/Bleeder Unit - VAG1869-

♦ Brake Charger/Bleeder Unit - VAS5234- or

♦ Hose Clamps - Up To 25mm - 3094-

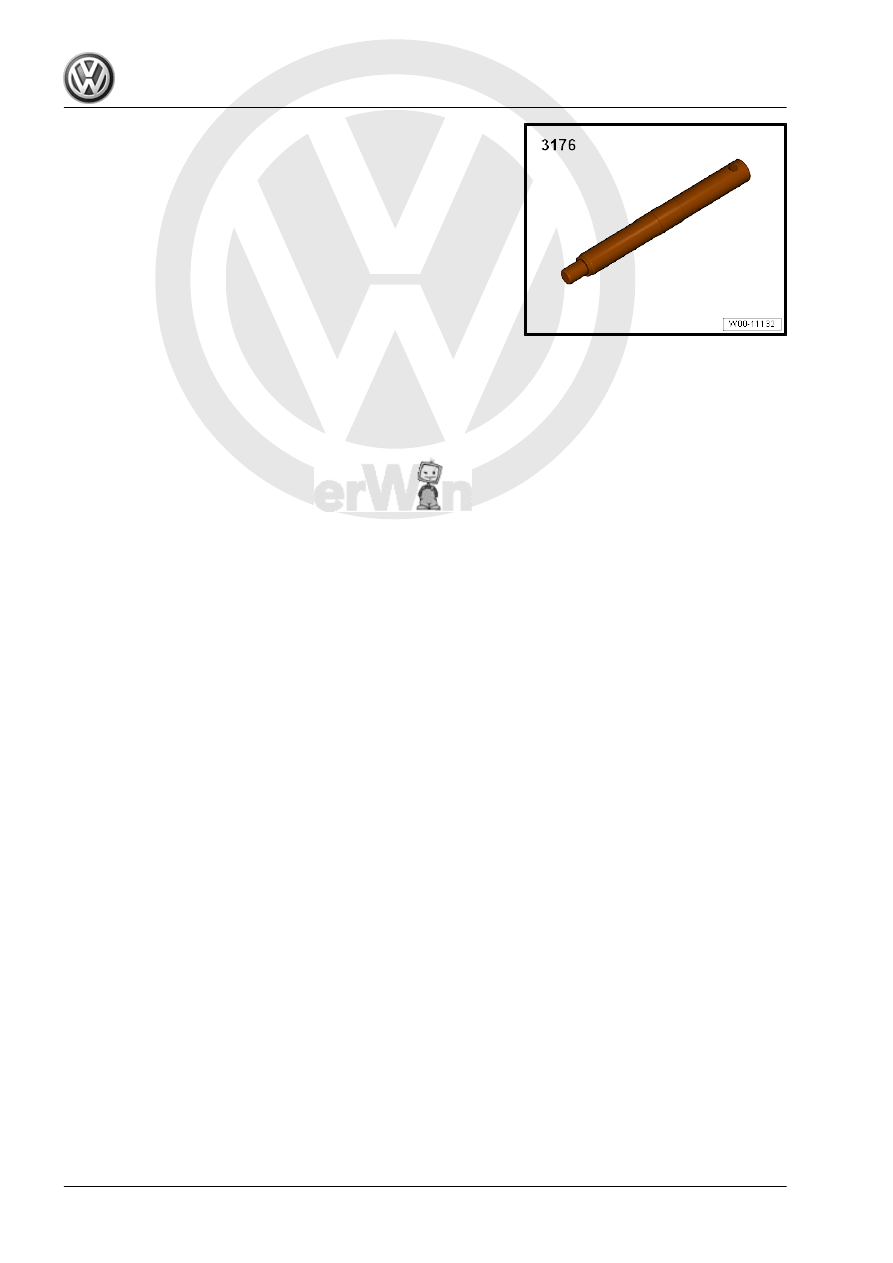

♦ Centering Pin - 3176- .

34 – Controls, Housing

1

Selector Mechanism

⇒ “1.1 Selector Mechanism Installation Position”, page 59
⇒ “1.2 Overview - Selector Mechanism”, page 60
⇒ “1.3 Overview - Shift Lever Knob and Cover”, page 62
⇒ “1.4 Gearshift Knob, Removing and Installingg”, page 62
⇒ “1.5 Selector Mechanism, Removing and Installing”,

page 63
⇒ “1.6 Selector Mechanism, Adjusting”, page 71
⇒ “1.7 Gearshift Mechanism, Checking”, page 74
⇒ “1.8 Selector Shaft Seal, Replacing”, page 74

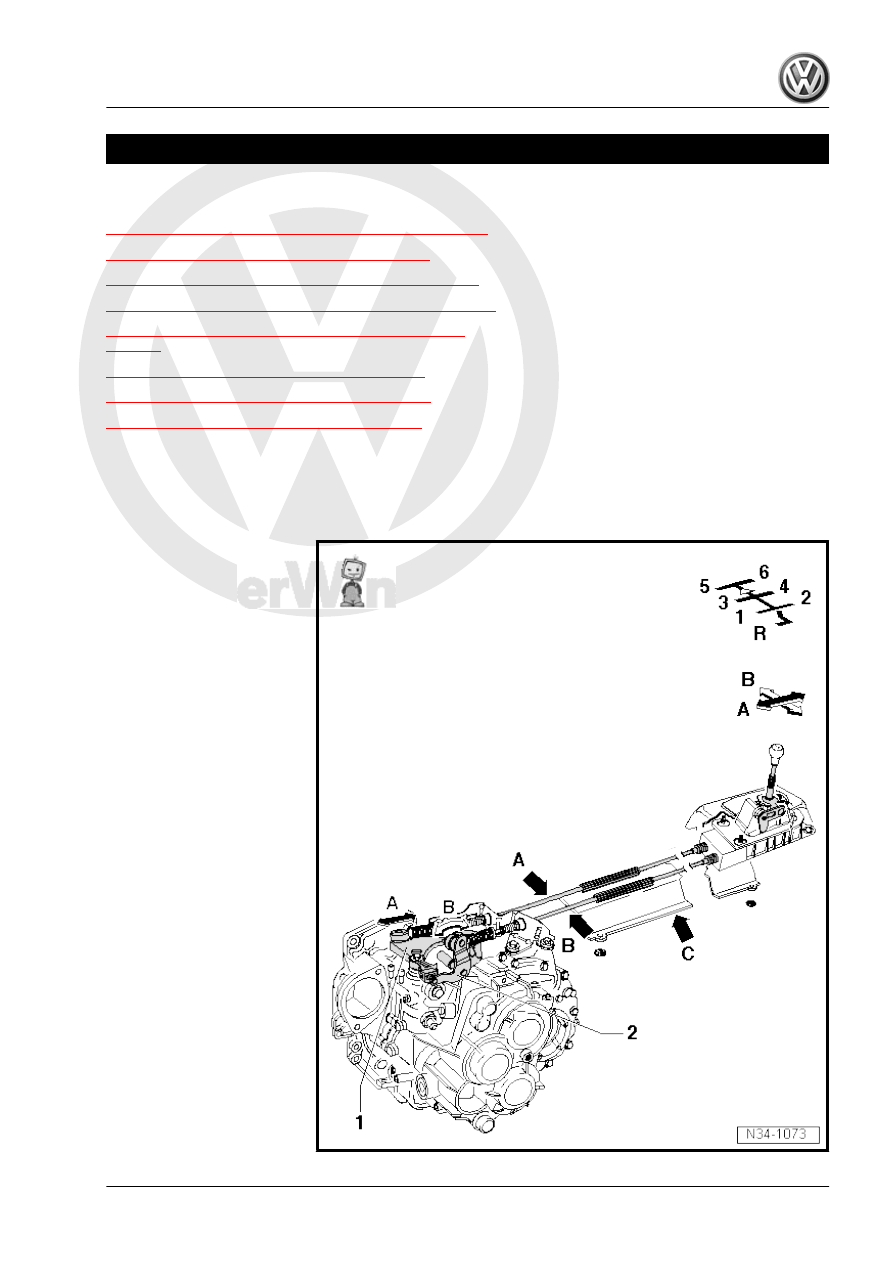

1.1

Selector Mechanism Installation Position

-Arrow A- Shift Lever Movement
-Arrow B- Selector Lever Movement

A - Shift Lever Cable
B - Selector Cable
C - Heat Shield

❑ Remove the shift lever

mechanism before re‐

moval

1 - Selector Lever
2 - Selector Relay Lever
