Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 484





4.2

Capacities

Manual Transmis‐

sion Capacity

Refer to ⇒  Fluid Capacity Tables; Rep.

Gr.  03

4.3

Gear Ratio Calculation

Example



6. Gear

Final drive

Drive gear

ZG1 = 46

ZA1 = 24

Driven gear

ZG2 = 33

ZA2 = 70

i = Z2 : Z1 (Z1 = number of teeth on the drive gear, Z2 = number

of teeth on the driven gear)
iG = gear ratio = ZG2 : ZG1 = 33 : 46 = 0.717
iA= axle ratio = ZA2 : ZA1 = 70 : 24= 2.917
itotal = total ratio = iG x iA = 0.717 x 2.917 = 2.091

5

Overview - Powertrain

⇒ “5.1 Overview - Powertrain, Front Wheel Drive”, page 9

5.1

Overview - Powertrain, Front Wheel Drive

Name
The -arrows- point in the direction of travel.

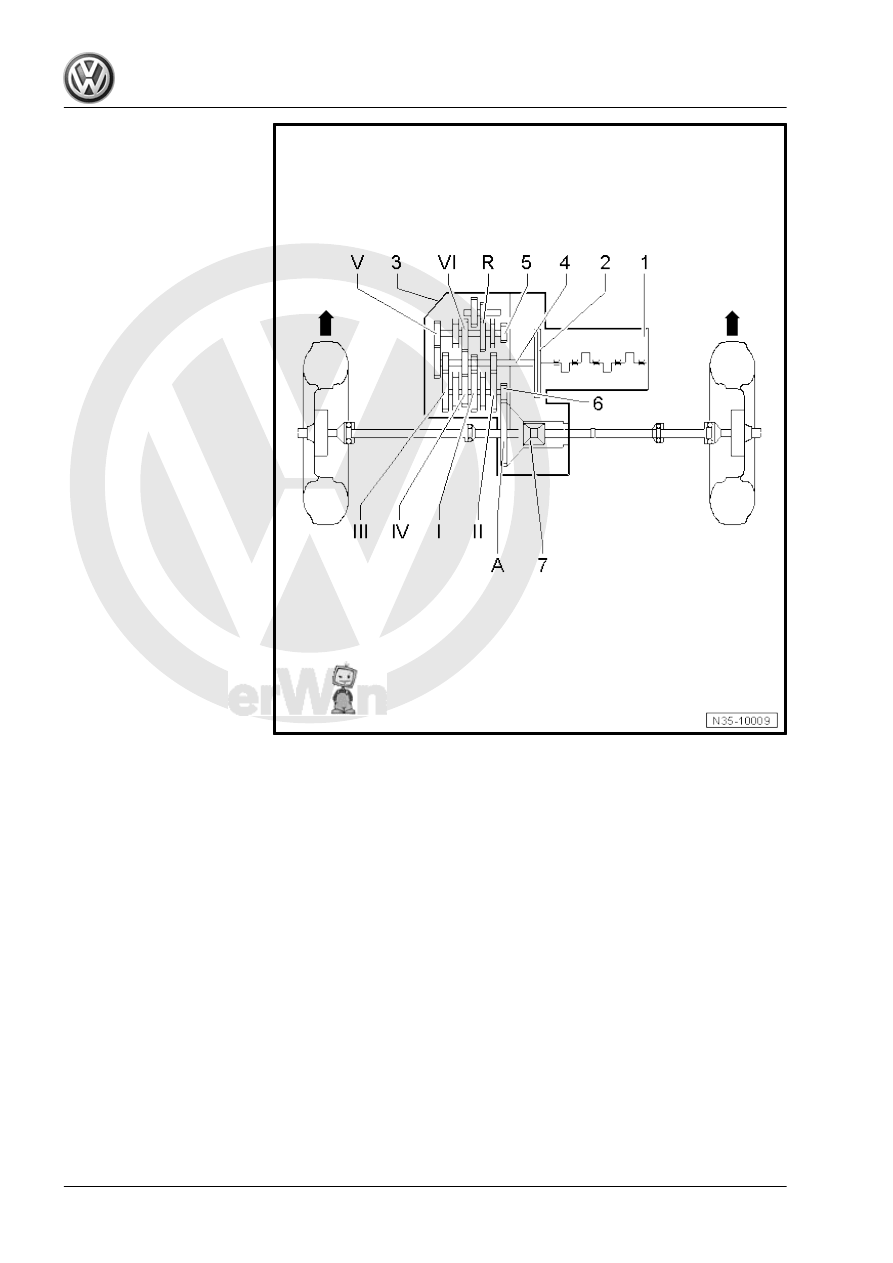

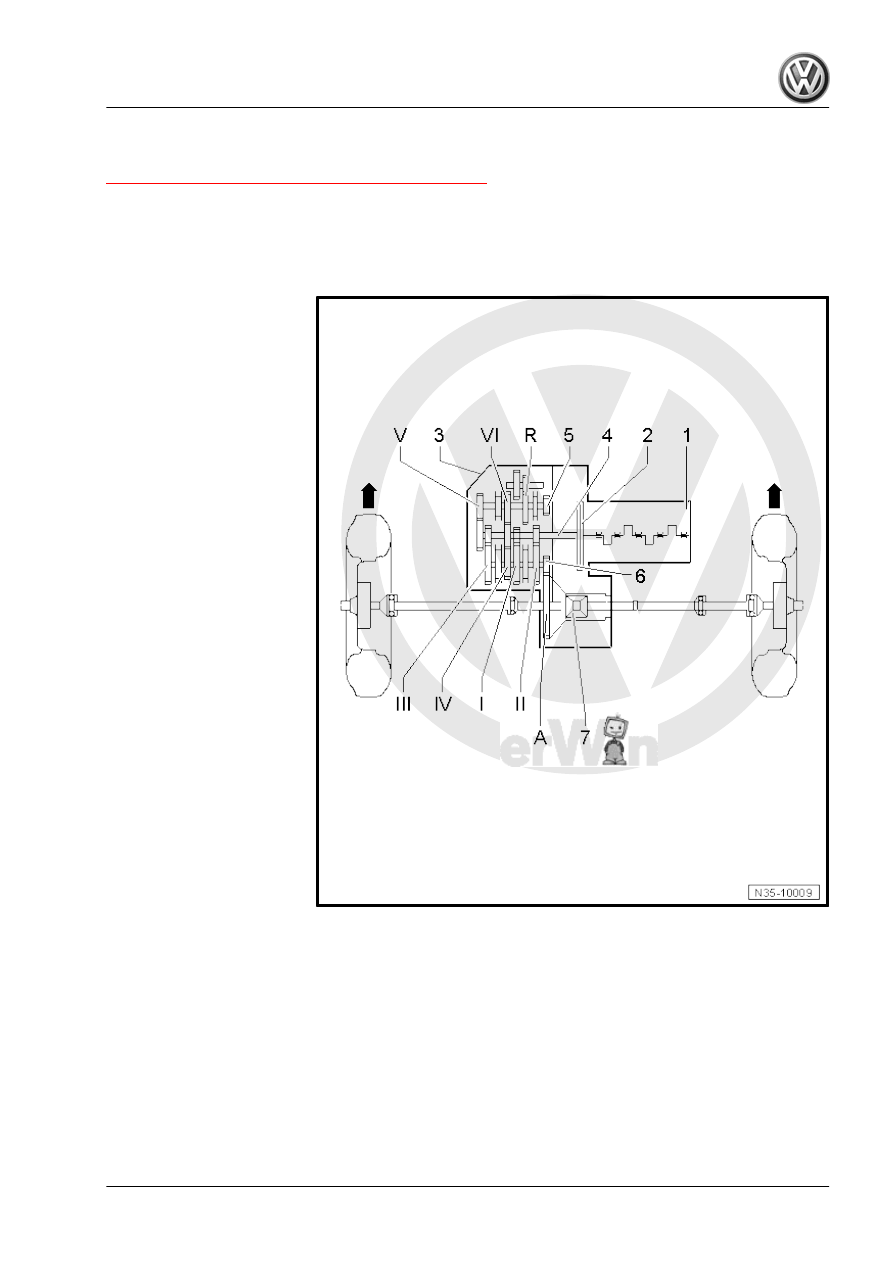

1 - Engine
2 - Clutch
3 - Manual Transmission
4 - Input Shaft
5 - 5th, 6th and Reverse Gear

Output Shaft
6 - 1st through 4th Gear Output

Shaft
7 - Differential

Ratio
The -arrows- point in the direction of travel.

I - 1st Gear
II - 2nd Gear
III - 3rd Gear
IV - 4th Gear
V - 5th Gear
VI - 6th Gear
R - Reverse Gear
A - Final Drive

6

Electrical Components

⇒ “6.1 Overview - Electrical Components Location”, page 11

6.1

Overview - Electrical Components Lo‐

cation

⇒ “6.1.1 Overview - Electrical Components Location, Manual

Transmission”, page 11
⇒ “6.1.2 Overview - Electrical Components Location, Clutch

Mechanism”, page 11

6.1.1

Overview - Electrical Components Location, Manual Transmission

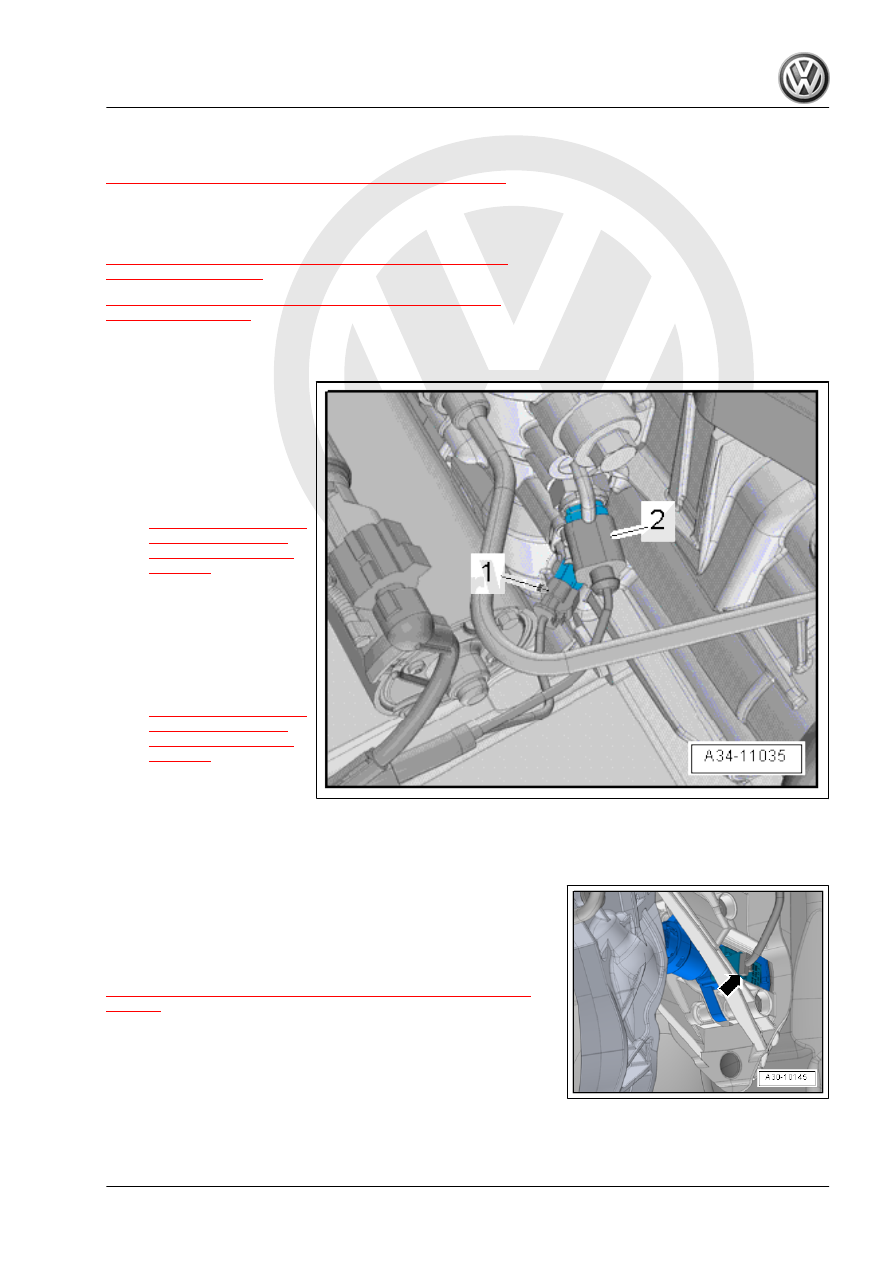

1 - Transmission Neutral Posi‐

tion Sensor - G701-

❑ Installed location: in the

area of the shift unit un‐

der the selector shaft

bracket.

❑ Removing and instal‐

ling. Refer to

⇒ “5.3 Overview - Trans‐

mission Housing and

Selector Mechanism”,

page 111

 .

2 - Back-Up Lamp Switch - F4-

❑ Installed location: In the

area of the shift unit un‐

der the selector shaft

bracket.

❑ Removing and instal‐

ling. Refer to

⇒ “5.3 Overview - Trans‐

mission Housing and

Selector Mechanism”,

page 111

 .

6.1.2

Overview - Electrical Components Lo‐

cation, Clutch Mechanism

Clutch Position Sensor - G476- -arrow-
Installed location: in the passenger compartment on the clutch

master cylinder.
Clutch Position Sensor - G476- , removing and installing. Refer

to

⇒ “1.15  Clutch Position Sensor G476 , Removing and Installing”,

page 37

 .
