3.3

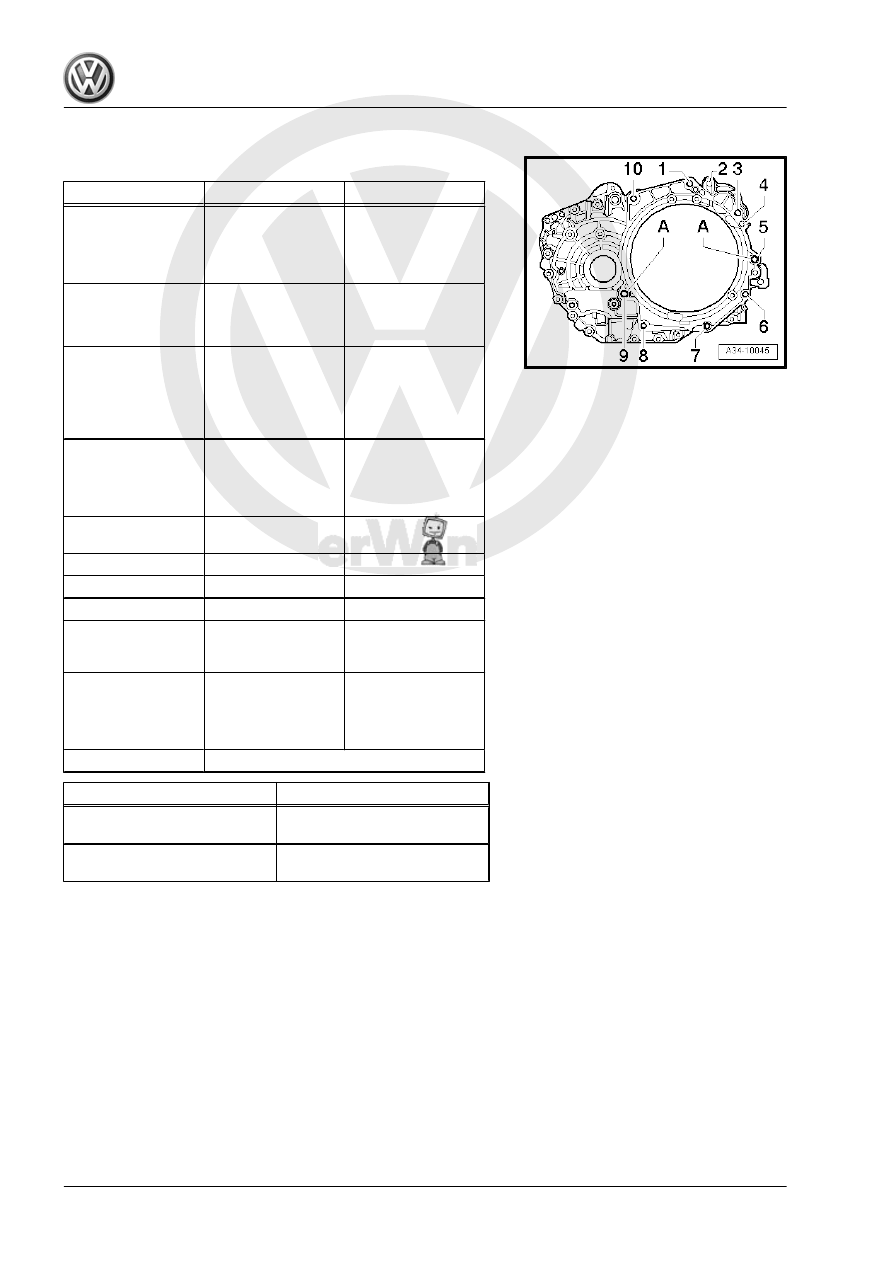

Transmission Tightening Specifications

Transmission to Engine

Item

Bolt

Nm

1

M12 x 55

80

• With Insert Tool -

18mm T10179:

“65 Nm”

2

M10 x 45

♦ Starter to trans‐

mission

40

3

M12 x 55

♦ Is accessible on‐

ly through the

opening in the

removed starter

80

4

M10 x 45

or M10 x 40

♦ Starter to trans‐

mission

40

5

M12 x 65

or M12 x 70

80

6

M10 x 50

40

7

M10 x 50

40

8

M10 x 50

40

9

M12 x 65

or M12 x 70

or M12 x 80

80

10

M12 x 55

80

• With Insert Tool -

18mm T10179:

“65 Nm”

A

Alignment sleeve for centering

Component

Tightening Specification

Cable bracket on the transmis‐

sion cover

10 Nm

Transmission Coolant Valve -

N488- bolts

9 Nm

4

Subframe Mount

⇒ “4.1 Overview - Subframe Mount”, page 97

 .

4.1

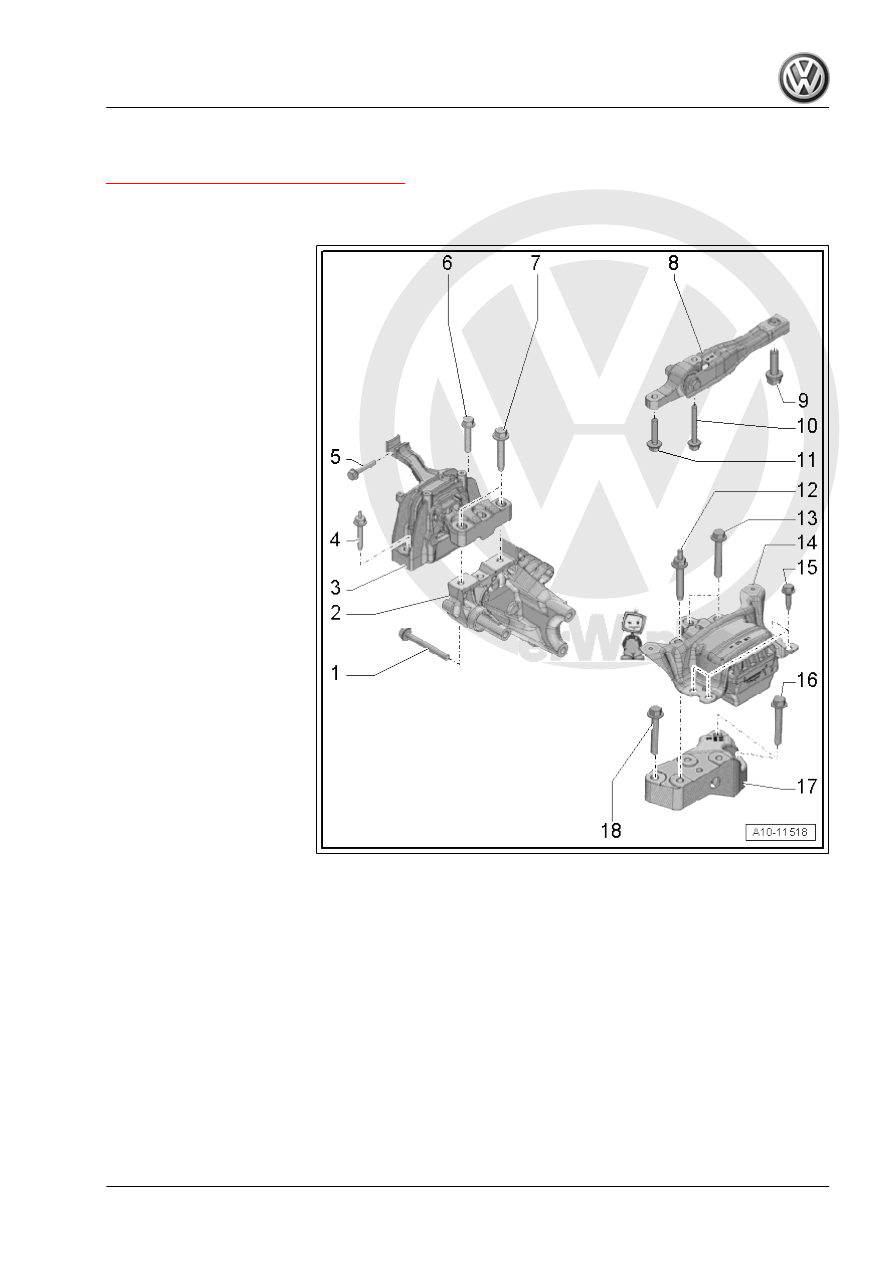

Overview - Subframe Mount

1 - Bolt

❑ For the tightening spec‐

ification. Refer to ⇒  En‐

gine Mechanical, Fuel

Injection and Ignition;

Rep. Gr.  10 ; Subframe

Mount; Overview - Sub‐

frame Mount .

2 - Engine Support

❑ Refer to ⇒  Engine Me‐

chanical, Fuel Injection

and Ignition; Rep. Gr.

10 ; Subframe Mount;

Overview - Subframe

Mount .

3 - Engine Mount

❑ Refer to ⇒  Engine Me‐

chanical, Fuel Injection

and Ignition; Rep. Gr.

10 ; Subframe Mount;

Overview - Subframe

Mount .

4 - Bolt

❑ For the tightening spec‐

ification. Refer to ⇒  En‐

gine Mechanical, Fuel

Injection and Ignition;

Rep. Gr.  10 ; Subframe

Mount; Overview - Sub‐

frame Mount .

5 - Bolt

❑ For the tightening spec‐

ification. Refer to ⇒  En‐

gine Mechanical, Fuel

Injection and Ignition;

Rep. Gr.  10 ; Subframe

Mount; Overview - Subframe Mount .

6 - Bolt

❑ For the tightening specification. Refer to ⇒  Engine Mechanical, Fuel Injection and Ignition; Rep. Gr.  10 ;

Subframe Mount; Overview - Subframe Mount .

7 - Bolt

❑ For the tightening specification. Refer to ⇒  Engine Mechanical, Fuel Injection and Ignition; Rep. Gr.  10 ;

Subframe Mount; Overview - Subframe Mount .

8 - Pendulum Support
9 - Bolt

❑ For pendulum support to subframe
❑ For the tightening specification. Refer to ⇒  Engine Mechanical, Fuel Injection and Ignition; Rep. Gr.  10 ;

Subframe Mount; Overview - Subframe Mount .

10 - Bolt

❑ For pendulum support to transmission

❑ Transmission with threaded insert. Refer to

⇒ Fig. ““Transmission with Threaded Insert (for Example Heli Coil) for Attaching the Pendulum Support”“ ,

page 99

❑ For the tightening specification. Refer to ⇒  Engine Mechanical, Fuel Injection and Ignition; Rep. Gr.  10 ;

Subframe Mount; Overview - Subframe Mount .

11 - Bolt

❑ For pendulum support to transmission
❑ Transmission with threaded insert. Refer to

⇒ Fig. ““Transmission with Threaded Insert (for Example Heli Coil) for Attaching the Pendulum Support”“ ,

page 99

❑ For the tightening specification. Refer to ⇒  Engine Mechanical, Fuel Injection and Ignition; Rep. Gr.  10 ;

Subframe Mount; Overview - Subframe Mount .

12 - Bolt

❑ 60 Nm + 90°
❑ Replace after removing
❑ For transmission mount to transmission bracket
❑ Tightening sequence. Refer to

⇒ page 99

 .

13 - Bolt

❑ 60 Nm + 90°
❑ Replace after removing
❑ Quantity: 2
❑ For transmission mount to transmission bracket
❑ Tightening sequence. Refer to

⇒ page 99

 .

14 - Transmission Mount

❑ Check the adjustment. Refer to ⇒  Engine Mechanical, Fuel Injection and Ignition; Rep. Gr.  10 ; Subframe

Mount; Subframe Mount, Checking Adjustment

❑ Adjusting. Refer to ⇒  Engine Mechanical, Fuel Injection and Ignition; Rep. Gr.  10 ; Subframe Mount;

Subframe Mount, Adjusting

15 - Bolt

❑ Transmission mount to chassis
❑ For the tightening specification. Refer to ⇒  Engine Mechanical, Fuel Injection and Ignition; Rep. Gr.  10 ;

Subframe Mount; Subframe Mount, Adjusting .

16 - Bolt

❑ 40 Nm + 90°
❑ Replace after removing
❑ For transmission bracket to transmission
❑ Tightening sequence. Refer to

⇒ page 99

 .

17 - Transmission Bracket

❑ Illustration does not correspond to version in vehicle

18 - Bolt

❑ 40 Nm 90°
❑ Replace after removing
❑ For transmission bracket to transmission
❑ Tightening sequence. Refer to

⇒ page 99

 .

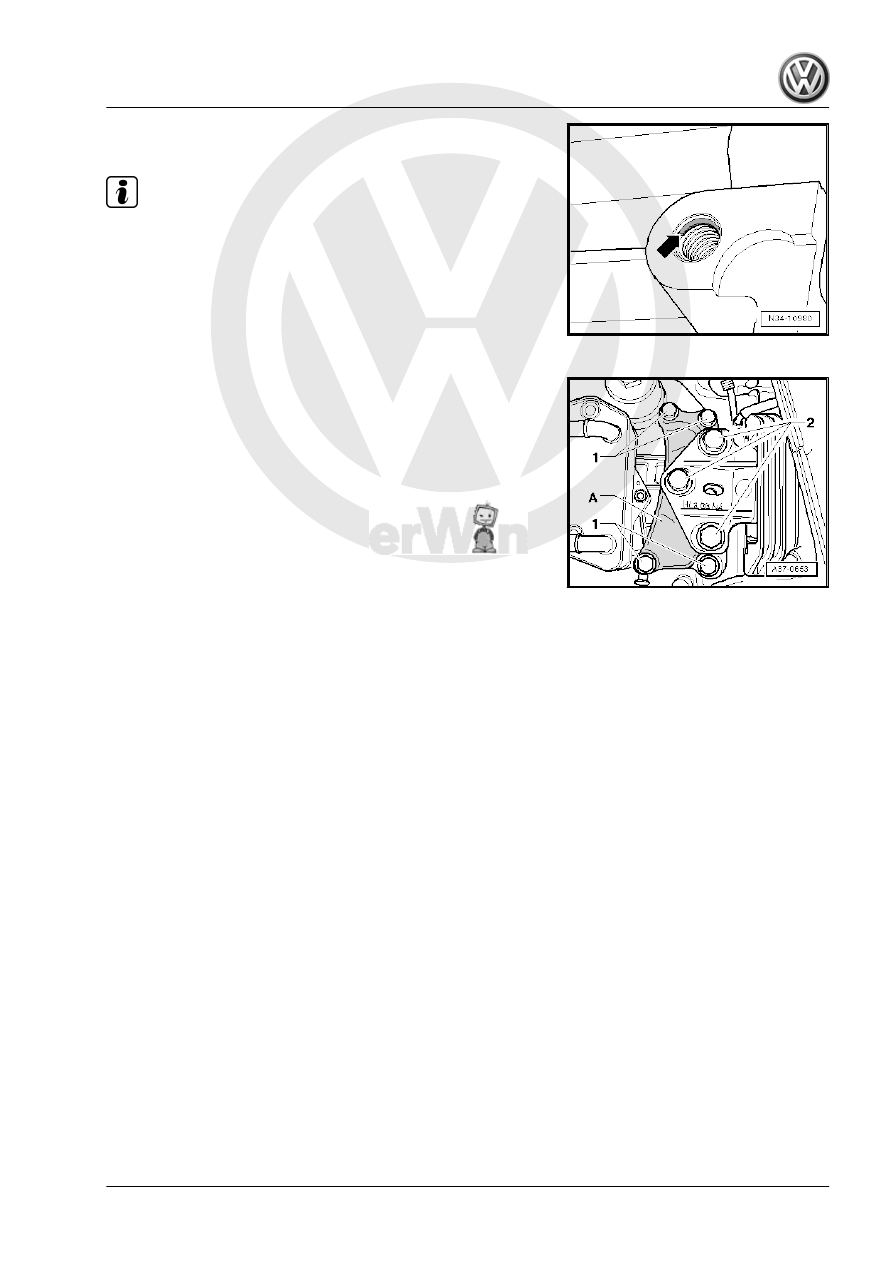

Transmission with Threaded Insert (for Example “Heli Coil”) for

Attaching the Pendulum Support

Note

♦

There are threaded inserts (for example “Heli Coil”) in the pen‐

dulum support fastening holes.

♦

Identified by: collar on the first thread -arrow-.

♦

Make sure to use the appropriate bolts and observe the tight‐

ening specification. Refer to ⇒  Engine Mechanical, Fuel In‐

jection and Ignition; Rep. Gr.  10 ; Subframe Mount; Overview

- Subframe Mount ..

Install the Left Subframe Mount as Follows:
– Replace all the bolts -1 and 2-.
– Install the new bolt first hand-tight.
– Install the bolts -1- in the transmission bracket -A-.
– Pry the transmission bracket -A- into the seat using a screw‐

driver while tightening the bolts -2-.
