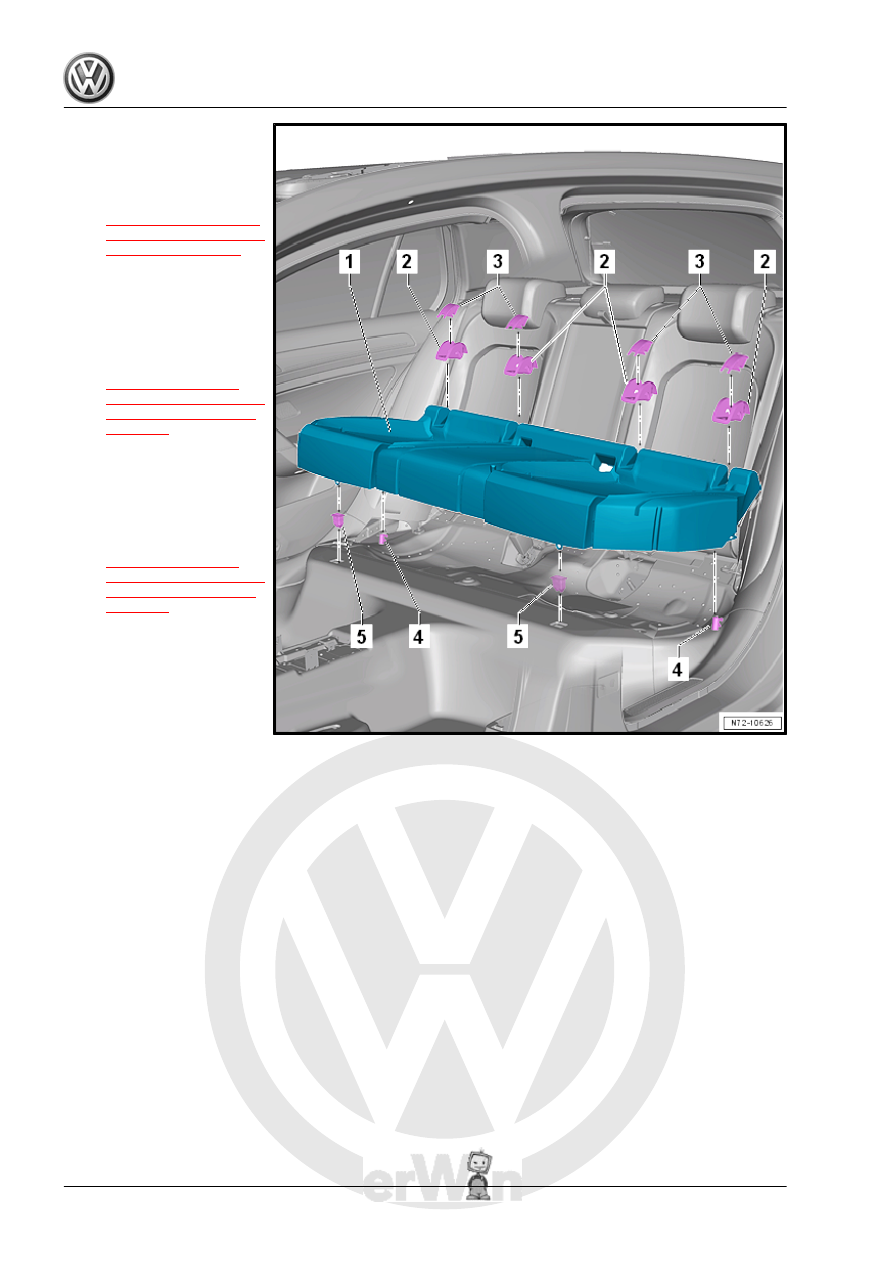

1 - Rear Bench Seat

❑ Allocation. Refer to the

Parts Catalog.

❑ Removing and instal‐

ling. Refer to

⇒ “3.7 Bench Seat/Sin‐

gle Seat, Removing and

Installing”, page 382

 .

2 - Guide

❑ For the LATCH child

seat anchor

❑ Quantity: 4
❑ Removing and instal‐

ling. Refer to

⇒ “2.2 LATCH Child

Seat Anchor Guide, Re‐

moving and Installing”,

page 123

 .

3 - Cover

❑ For the LATCH child

seat anchor

❑ Quantity: 4
❑ Removing and instal‐

ling. Refer to

⇒ “2.2 LATCH Child

Seat Anchor Guide, Re‐

moving and Installing”,

page 123

 .

4 - Hook

❑ Quantity: 2
❑ Engages in the rear

bench seat wire frame

5 - Grommets

❑ Quantity: 2
❑ For securing the rear bench seat
❑ Clipped into underbody
❑ Replace if damaged

3.2

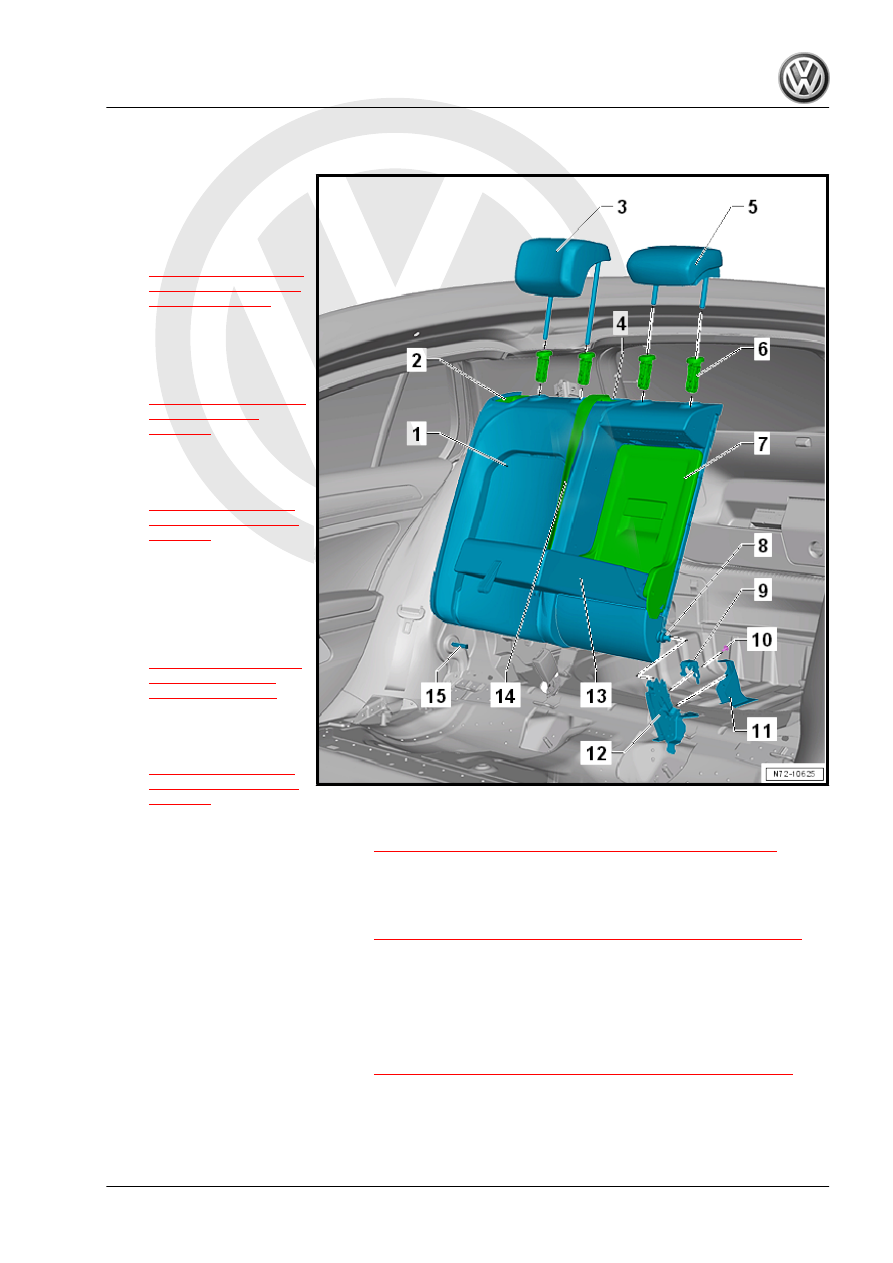

Overview - Rear Seat Backrest

1 - Rear Seat Backrest

❑ Allocation. Refer to the

Parts Catalog.

❑ Removing and instal‐

ling. Refer to

⇒ “3.8 Rear Seat Back‐

rest, Removing and In‐

stalling”, page 384

 .

2 - Locking Mechanism

❑ For the rear seat back‐

rest

❑ Overview. Refer to

⇒ “3.3 Overview - Lock‐

ing Mechanism”,

page 379

 .

3 - Outer Headrests

❑ Removing and instal‐

ling. Refer to

⇒ “3.14 Headrest, Re‐

moving and Installing”,

page 390

 .

4 - Rear Center Seat Belt

Guide

❑ Replace the entire seat

belt guide if damaged.

❑ Removing and instal‐

ling. Refer to

⇒ “1.4 Overview - Rear

Center Three-Point

Seat Belt”, page 94

 .

5 - Headrest in the Center

❑ Removing and instal‐

ling. Refer to

⇒ “3.14 Headrest, Re‐

moving and Installing”,

page 390

 .

6 - Headrest Guide

❑ Removing and installing. Refer to

⇒ “3.15 Headrest Guide, Removing and Installing”, page 390

 .

7 - Door

❑ For the pass-through opening
❑ Allocation. Refer to the Parts Catalog.
❑ Removing and installing. Refer to

⇒ “3.12 Pass-Through Door, Removing and Installing”, page 388

 .

8 - Inner Mounting Pin

❑ 13.5 Nm
❑ For the rear seat backrest

9 - Securing bracket

❑ for the center bracket
❑ Removing and installing. Refer to

⇒ “3.8 Rear Seat Backrest, Removing and Installing”, page 384

 .

10 - Screw

❑ 8 Nm

11 - Cover

❑ For the center bracket

❑ Removing and installing. Refer to

⇒ “3.8 Rear Seat Backrest, Removing and Installing”, page 384

 .

12 - Center Support

❑ Welded to the floor panel.

13 - Center Armrest

❑ Allocation. Refer to the Parts Catalog.
❑ Overview. Refer to

⇒ “3.4 Overview - Center Armrest”, page 380

 .

❑ Removing and installing. Refer to

⇒ “3.13 Center Armrest, Removing and Installing”, page 389

 .

14 - Rear Three-Point Seat Belt

❑ Removing and installing. Refer to

⇒ “1.8.7 Rear Three Point Seat Belt in Center, Removing and Installing”, page 113

 .

15 - Outer Pivot Pin

❑ Welded to the body

3.3

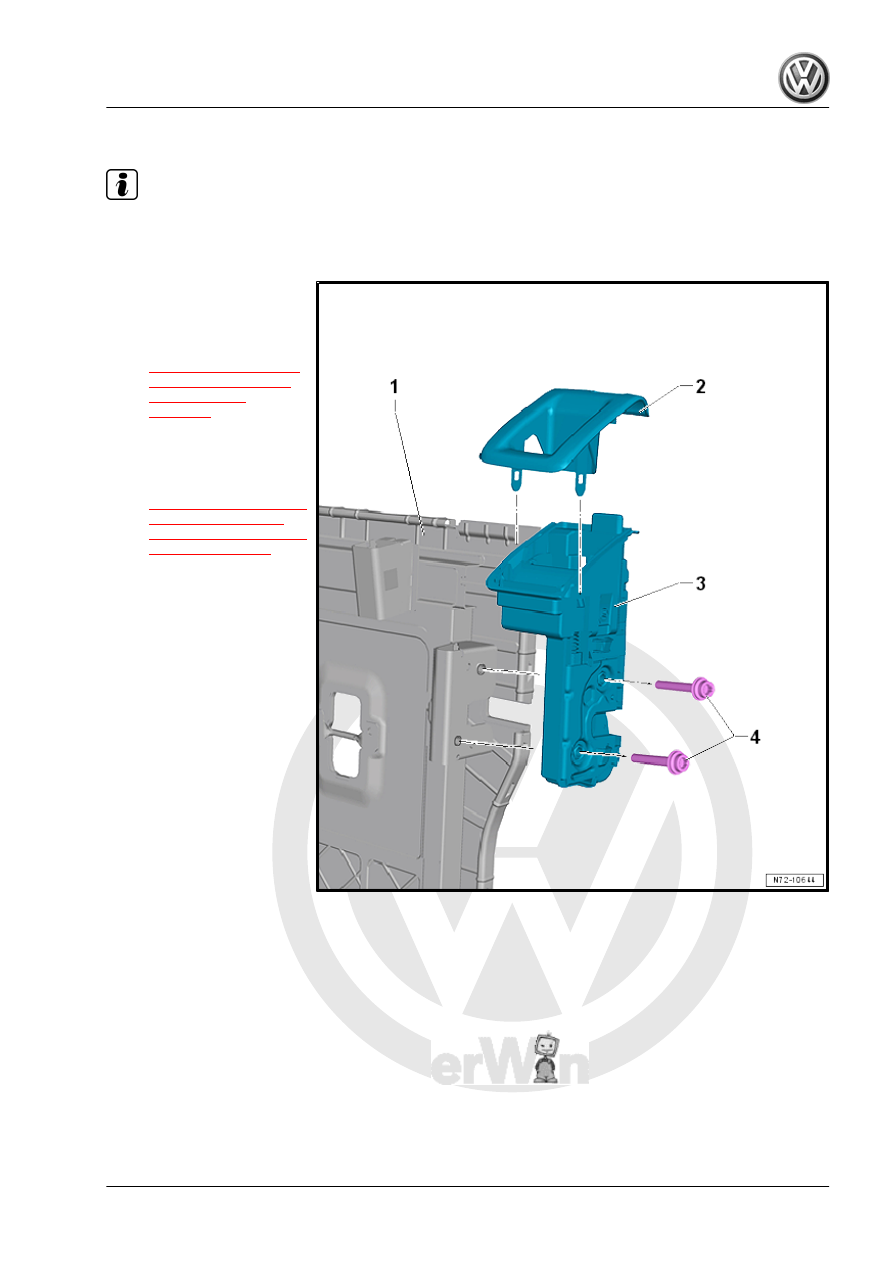

Overview - Locking Mechanism

Note

The overview shows the locking mechanism on the left 1/3 rear seat backrest. The locking mechanism on the

right 2/3 rear seat backrest is identical.

1 - Backrest Frame
2 - Locking Mechanism Trim

❑ Removing and instal‐

ling. Refer to

⇒ “3.9 Locking Mecha‐

nism Trim, Removing

and Installing”,

page 386

 .

3 - Rear Seat Backrest Locking

Mechanism

❑ Removing and instal‐

ling. Refer to

⇒ “3.10 Rear Seat Back‐

rest Locking Mecha‐

nism, Removing and In‐

stalling”, page 386

 .

4 - Screw

❑ 23 Nm
❑ Quantity: 2
