Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 407

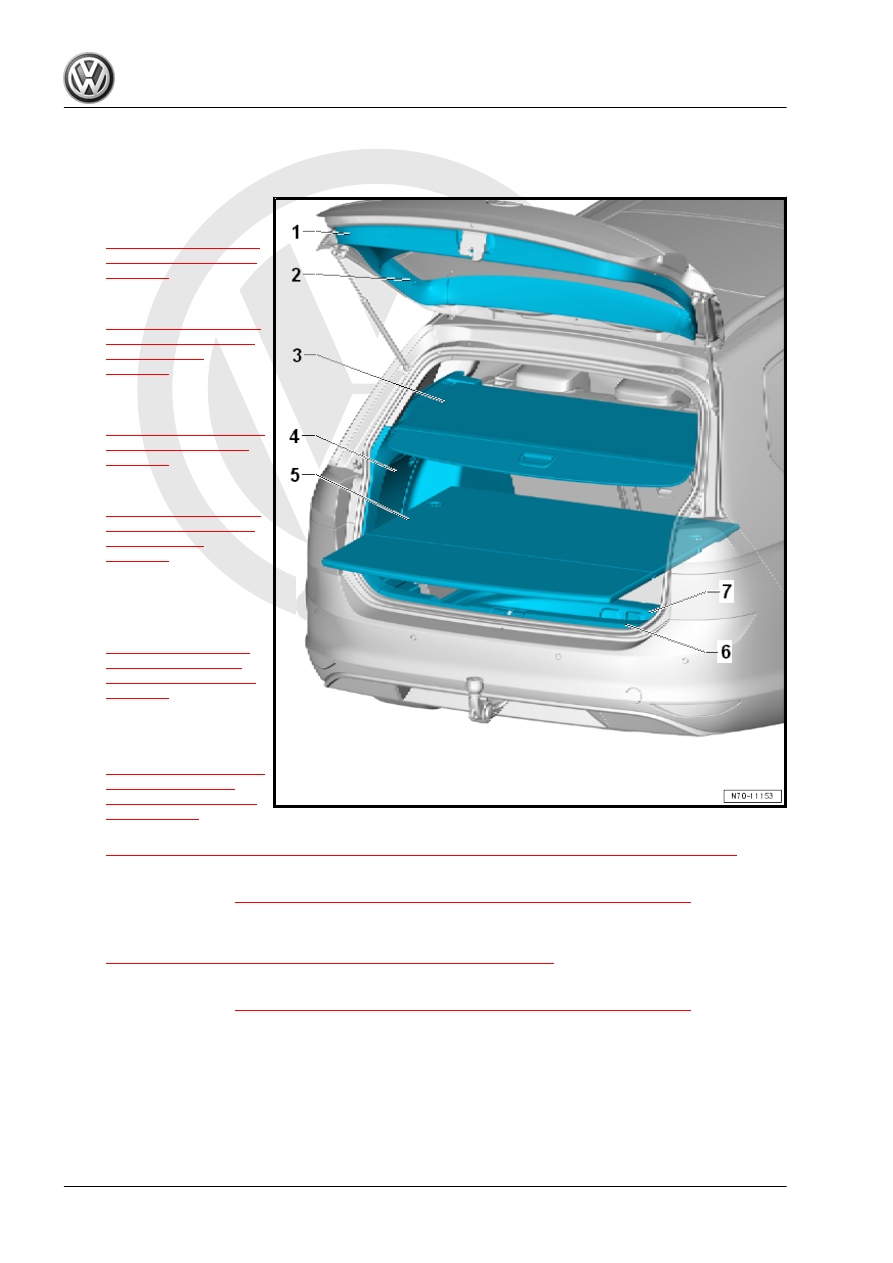

6.1.2

Component Location Overview - Luggage Compartment Trim Panels, Wag‐

on

1 - Rear Lid Lower Trim Panel

❑ Overview. Refer to

⇒ “6.6 Overview - Rear

Lid Lower Trim Panel”,

page 283

 .

❑ Removing and instal‐

ling. Refer to

⇒ “6.14 Rear Lid Lower

Trim Panel, Removing

and Installing”,

page 295

 .

2 - Rear Lid Upper Trim Panel

❑ Overview. Refer to

⇒ “6.5 Overview - Upper

Rear Lid Trim Panel”,

page 282

 .

❑ Removing and instal‐

ling. Refer to

⇒ “6.13 Rear Lid Upper

Trim Panel, Removing

and Installing”,

page 293

 .

3 - Luggage Compartment

Cover

❑ Removing and instal‐

ling. Refer to

⇒ “6.7 Luggage Com‐

partment Cover, Re‐

moving and Installing”,

page 283

 .

4 - Luggage Compartment

Side Trim Panel

❑ Overview. Refer to

⇒ “6.3.2 Overview - Lug‐

gage Compartment

Side Trim Panel, Wag‐

on”, page 279

 .

❑ Removing and installing. Refer to

⇒ “6.12.2 Luggage Compartment Side Trim Panel, Removing and Installing, Wagon”, page 291

 .

5 - Luggage Compartment Floor

❑ Overview. Refer to

⇒ “6.4.2 Overview - Luggage Compartment Floor, Wagon”, page 281

 .

6 - Rear Lid End Trim Panel

❑ Removing and installing. Refer to

⇒ “6.8 Lock Carrier Trim Panel, Removing and Installing”, page 284

 .

7 - Luggage Compartment Floor Covering

❑ Overview. Refer to

⇒ “6.4.2 Overview - Luggage Compartment Floor, Wagon”, page 281

 .

6.2

Overview - Rear Shelf Compartment

Note

The illustration shows the rear shelf compartment on the left side. The right side is similar.

1 - Rear Shelf Compartment

❑ Removing and instal‐

ling. Refer to

⇒ “6.9 Rear Shelf Com‐

partment, Removing

and Installing”,

page 285

 .

2 - Spreader Plug

❑ Replace damaged or

deformed spreader plug

3 - Screw

❑ 1.5 Nm

4 - Clip

❑ Insert in the rear shelf

compartment

❑ Remove the clips that

are still in the mounting

points on the body using

the Omega Clip Tool -

T40280-

❑ Replace damaged or

deformed retaining clips

5 - Screw

❑ 8 Nm

6.3

Overview - Luggage Compartment Side

Trim Panel

⇒ “6.3.1 Overview - Luggage Compartment Side Trim Panel, Se‐

dan”, page 278
⇒ “6.3.2 Overview - Luggage Compartment Side Trim Panel,

Wagon”, page 279

6.3.1

Overview - Luggage Compartment Side Trim Panel, Sedan

Note

The illustration shows the luggage compartment side trim panel on the left side. The right side is similar.

1 - Luggage Compartment

Side Trim Panel

❑ Removing and instal‐

ling. Refer to

⇒ “6.12.1 Luggage

Compartment Side Trim

Panel, Removing and

Installing, Sedan”,

page 289

 .

2 - Tie Down

❑ Removing and instal‐

ling. Refer to

⇒ “6.10 Tie Down, Re‐

moving and Installing”,

page 287

 .

3 - Screw

❑ 8 Nm

4 - Clip

❑ Quantity: 3
❑ Replace damaged or

deformed clips

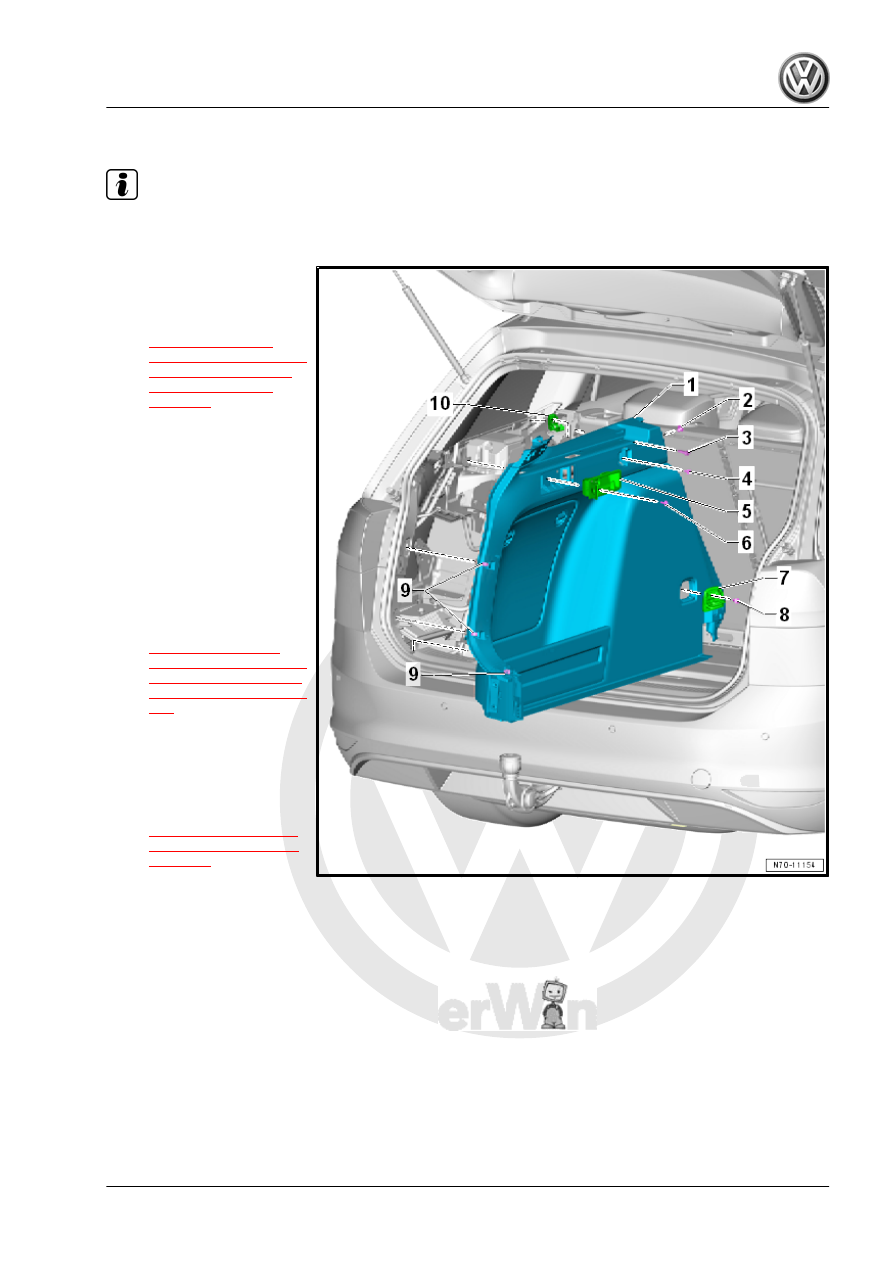

6.3.2

Overview - Luggage Compartment Side Trim Panel, Wagon

Note

The illustration shows the luggage compartment side trim panel on the left side. The right side is similar.

1 - Luggage Compartment

Side Trim Panel

❑ Removing and instal‐

ling. Refer to

⇒ “6.12.2 Luggage

Compartment Side Trim

Panel, Removing and

Installing, Wagon”,

page 291

 .

2 - Clip

❑ Replace damaged or

deformed clip

3 - Screw

❑ 1.5 Nm

4 - Screw

❑ 7 Nm

5 - Actuator for Backrest Re‐

mote Release

❑ Removing and instal‐

ling. Refer to

⇒ “3.18 Actuator for

Rear Seat Backrest Re‐

mote Release, Remov‐

ing and Installing”, page

394

 .

6 - Screw

❑ 7 Nm

7 - Tie Down

❑ Removing and instal‐

ling. Refer to

⇒ “6.10 Tie Down, Re‐

moving and Installing”,

page 287

 .

8 - Screw

❑ 8 Nm

9 - Clip

❑ Insert in the luggage compartment side trim panel
❑ Remove the clips that are still in the mounting points on the body using the Omega Clip Tool - T40280-
❑ Replace damaged or deformed retaining clips

10 - Bag Hooks

❑ Clipped into the luggage compartment side trim panel -1- from the rear
