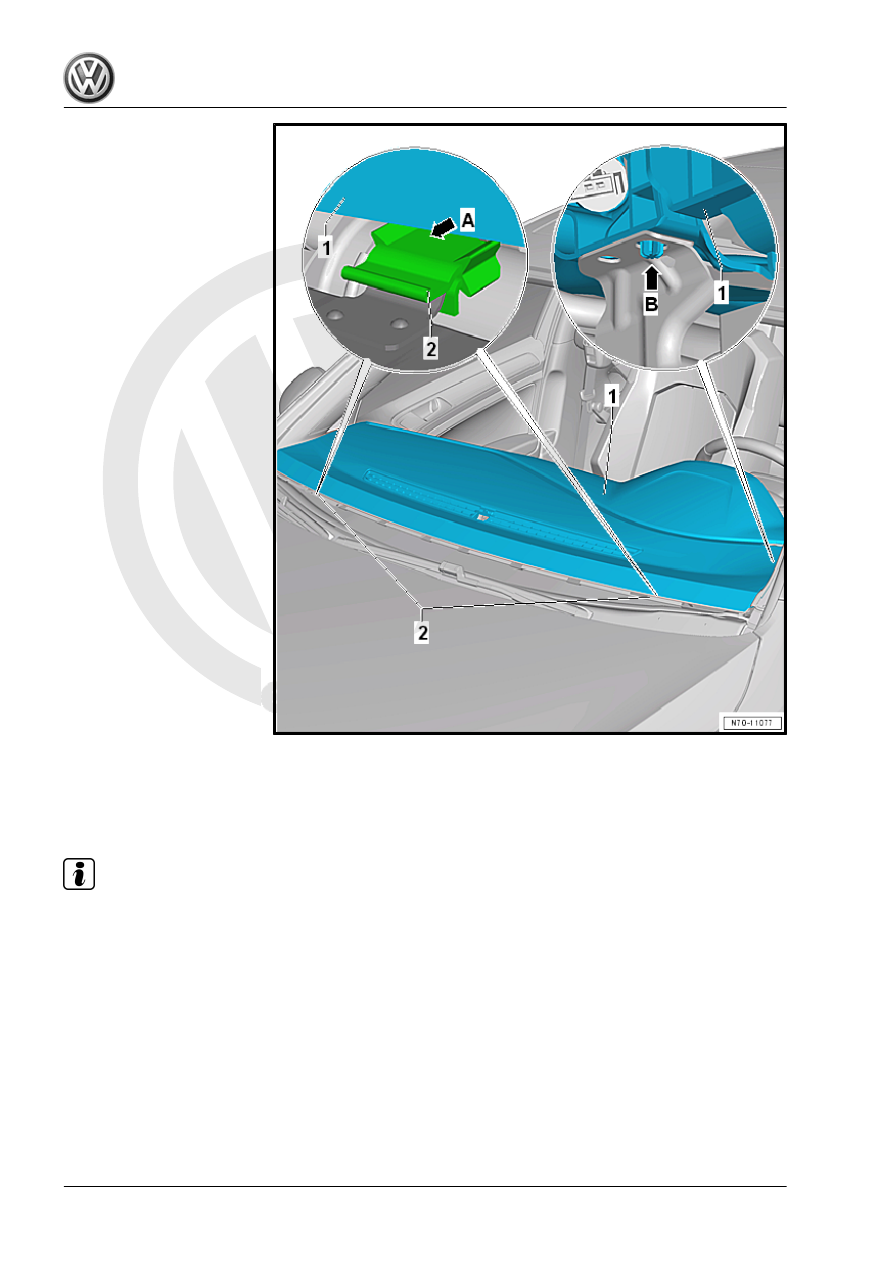

– Lift the instrument panel -1- until the left and right guide tabs

-arrow B- are free.

– At the same time, remove the instrument panel -1- from the

mounts -2- in the windshield transition area -arrow A-.

Note

A second technician is needed to remove the instrument panel.

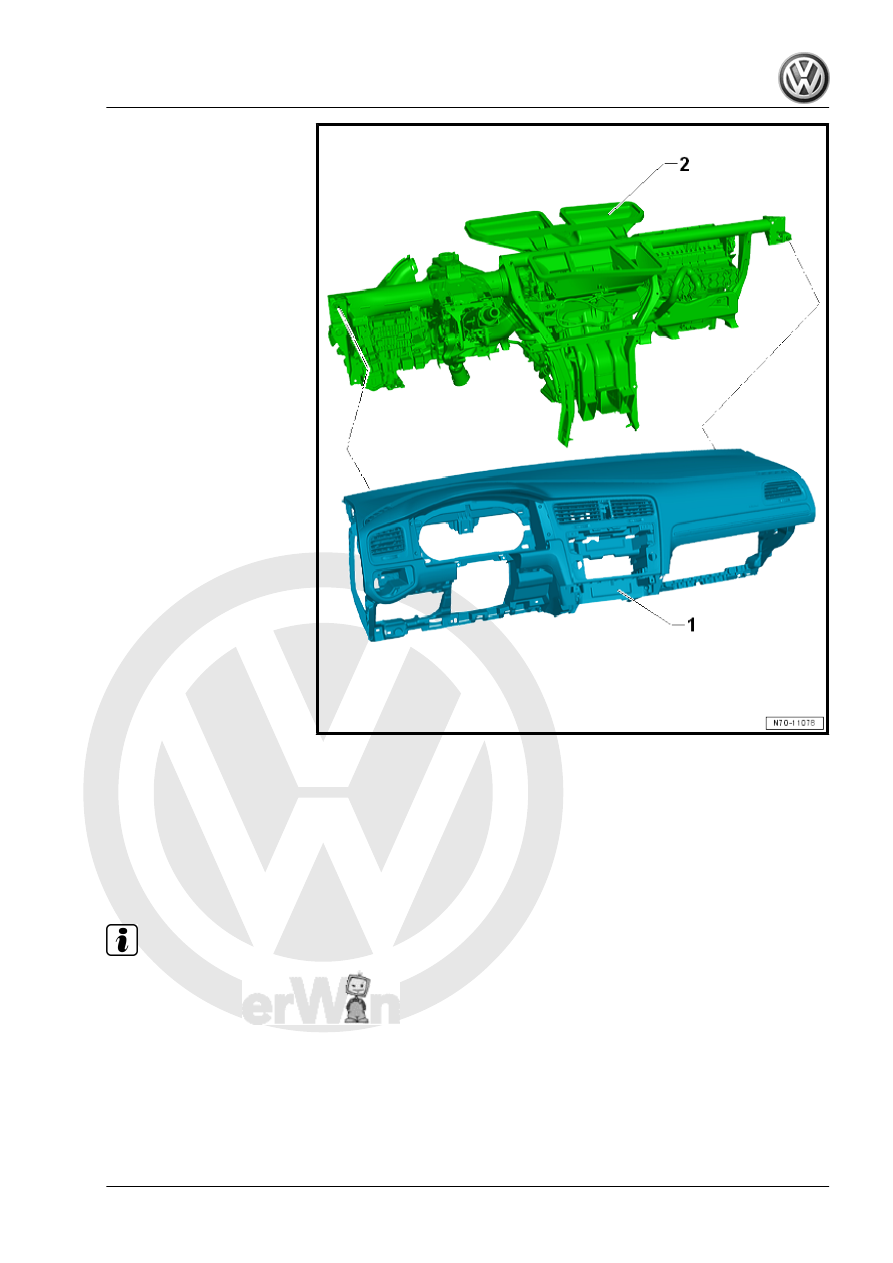

– Remove the instrument panel -1- from the instrument panel

central tube -2-.

– Disconnect the connector and free up the wiring harness from

the instrument panel.

– Carefully remove the instrument panel from the vehicle interior

and lay it on a soft surface.

Installing

Note

♦

Check all the fasteners for damage and replace if necessary.

♦

Follow the bolt sequence for securing the instrument panel in

the reverse order.

Install in reverse order of removal while paying attention to the

following:

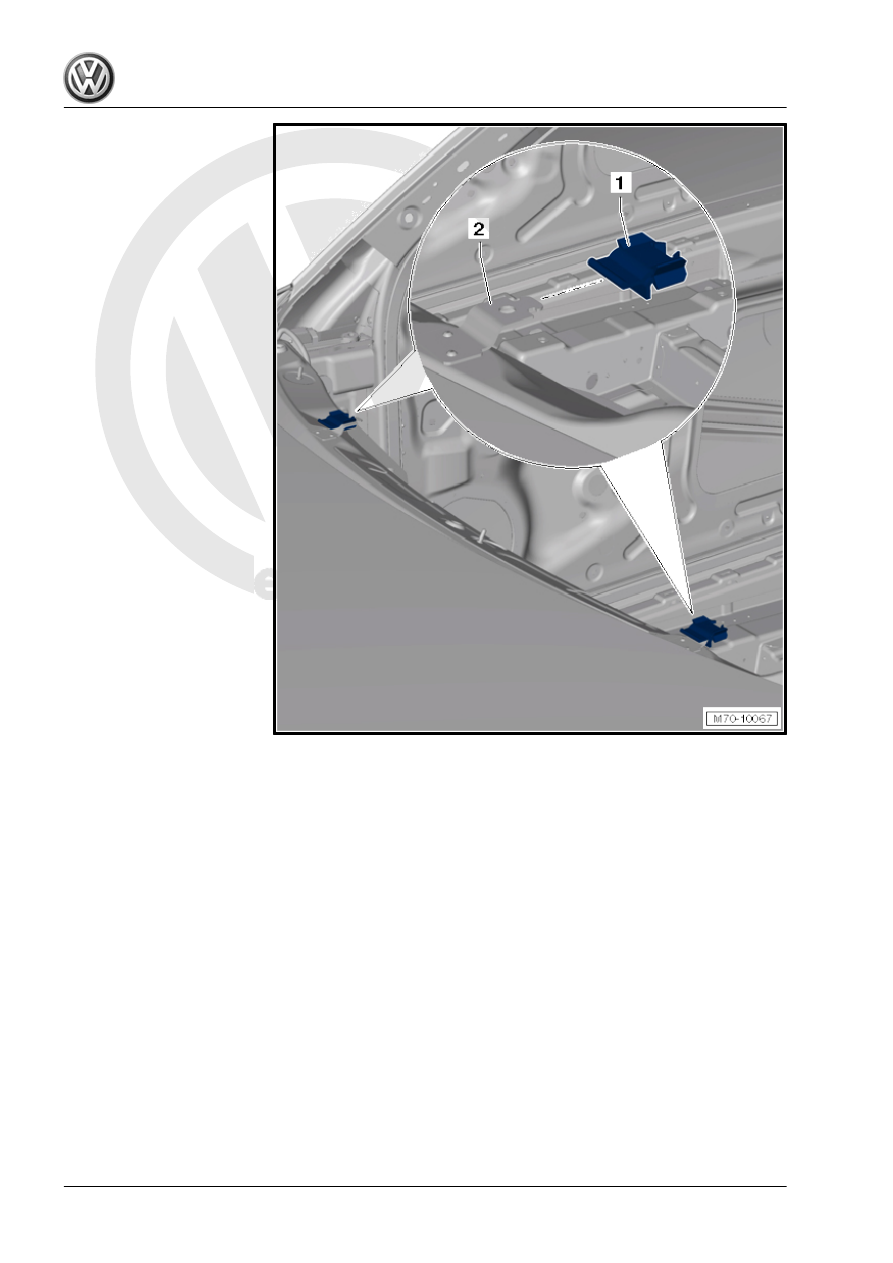

– Make sure that the mounts -1- are secured inside the body

-2- before installing the instrument panel.

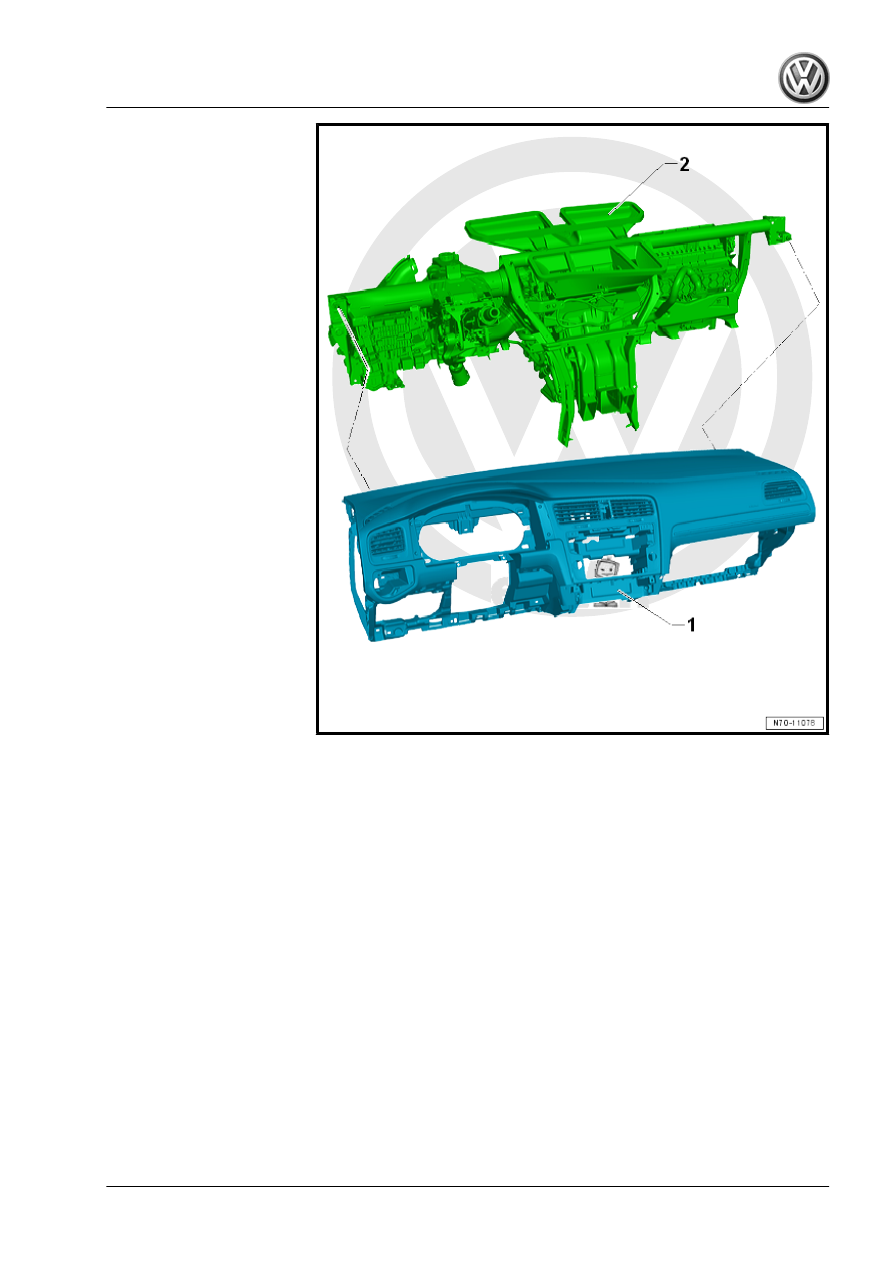

– Position the instrument panel -1- precisely on the instrument

panel central tube -2- with the help of a second technician.
