Front Seat Belt Latch, Removing and In‐

stalling

Removing
– Remove the front seat. Refer to

⇒ “2.10 Front Seat, Removing and Installing”, page 335

 .

– Disconnect the seat belt latch connector from the connector

station underneath the seat frame.

– Loosen the wire from the seat frame.

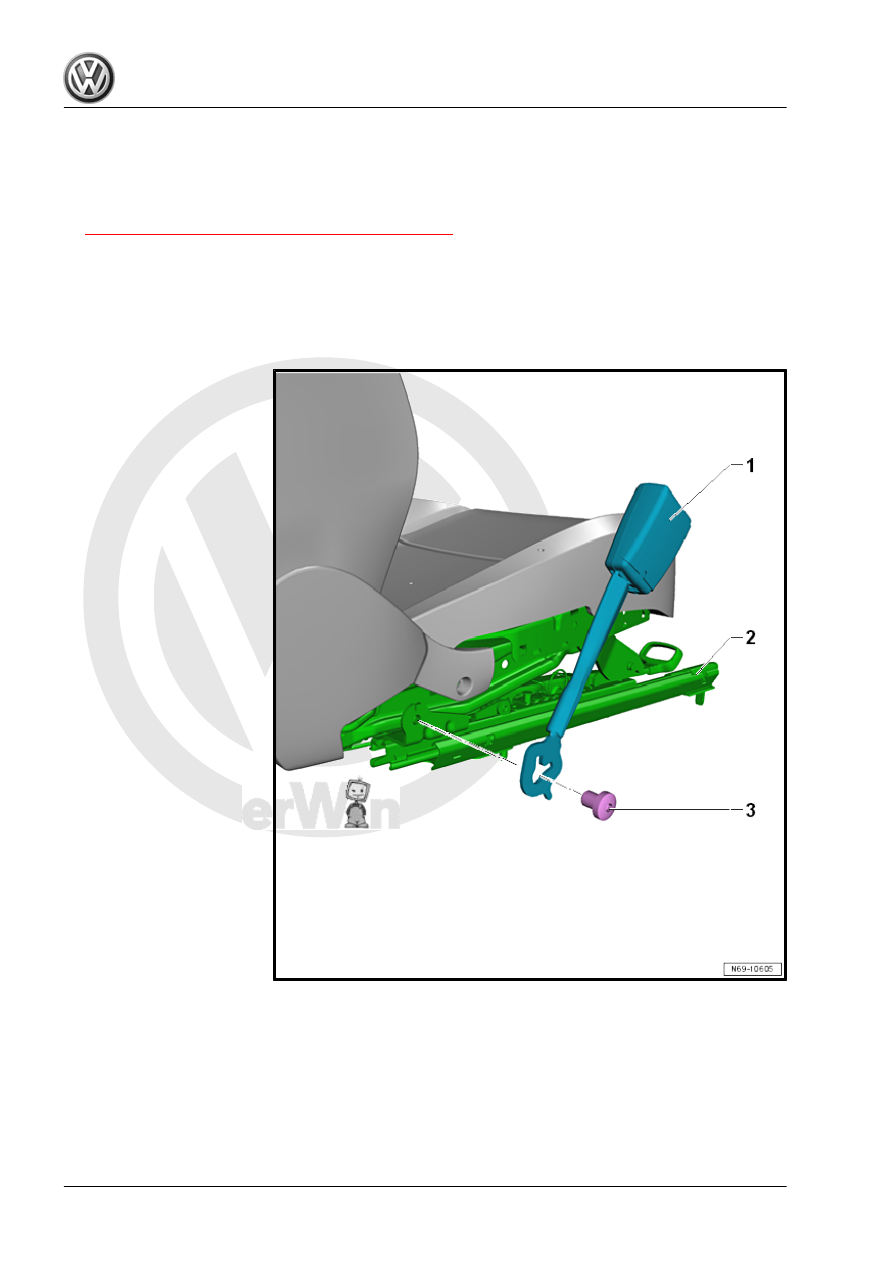

– Remove the bolt -3- and then remove the seat belt latch -1-

from the seat -2-.

Installing
Install in reverse order of removal while paying attention to the

following:

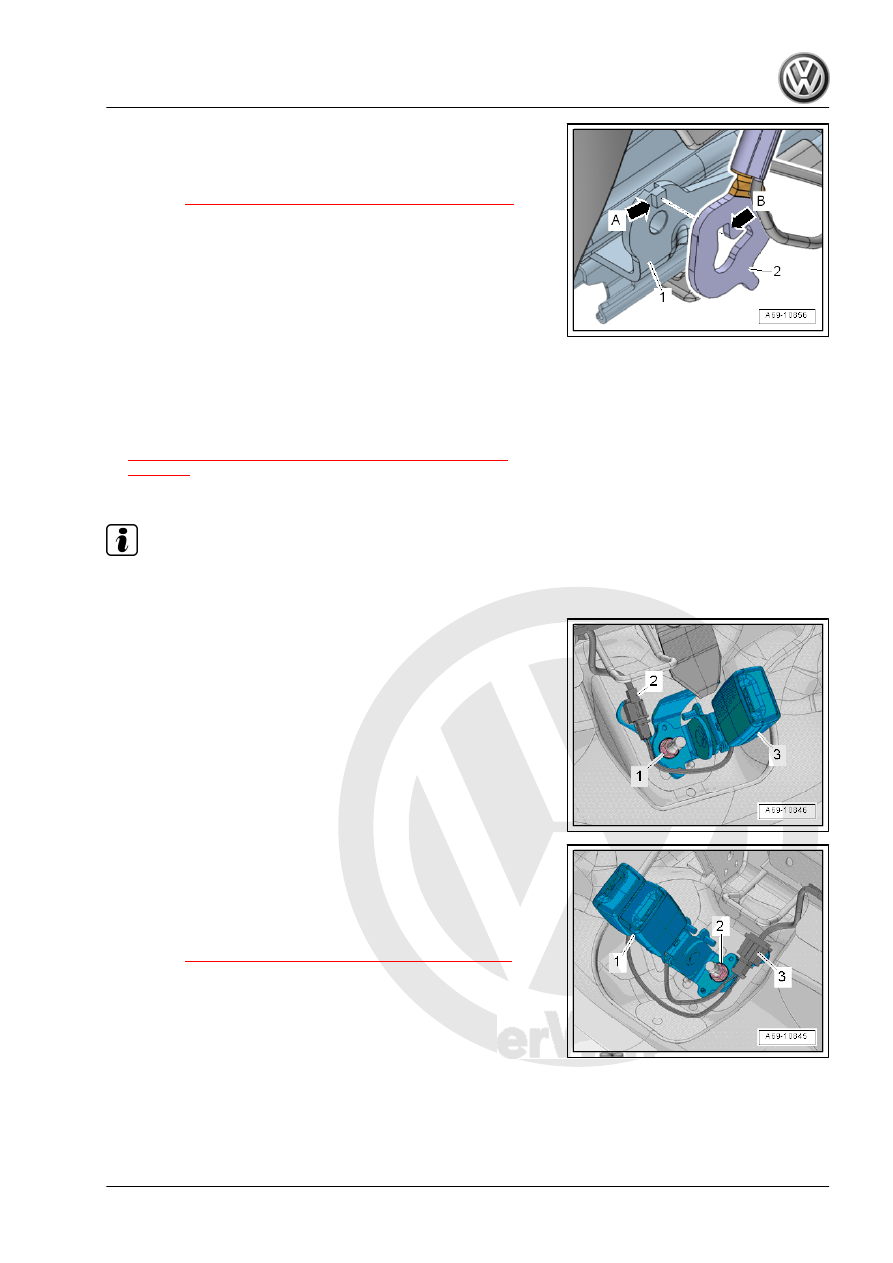

– Position the seat belt latch -2- so that the cut-out -arrow B-

lines up with the hole -arrow A- on the seat pan -1-.

Tightening Specifications
♦ Refer to

⇒ “1.5 Overview - Front Seat Belt Latch”, page 95

1.15

Rear Seat Belt Latch, Removing and In‐

stalling

Removing
– Remove the rear bench seat. Refer to

⇒ “3.7 Bench Seat/Single Seat, Removing and Installing”,

page 382

 .

Right: Seat Belt Latch with Belt End Fitting

Note

The seat belt latch with belt end fitting is a component of the rear

center seat belt.

– If equipped, disconnect the connector -2- for the seat belt

switch.

– Remove the nut -1-.
– Remove the seat belt latch -3- with the belt end fitting.
Left: Dual Seat Belt Latch
– If equipped, disconnect the connector -3- for the seat belt

switch.

– Remove the nut -2-.

– Remove the dual seat belt latch -1-.
Installing
Install in reverse order of removal.
Tightening Specifications
♦ Refer to

⇒ “1.6 Overview - Rear Seat Belt Latch”, page 97

2

Child Seat Anchors

⇒ “2.1 Overview - Rear Child Seat Anchors”, page 122
⇒ “2.2 LATCH Child Seat Anchor Guide, Removing and Instal‐

ling”, page 123
⇒ “2.3 Top Tether, Removing and Installing”, page 123

2.1

Overview - Rear Child Seat Anchors

Outer Seat Child Seat Anchor. Refer to

⇒ page 122

Center Seat Top Tether. Refer to

⇒ Fig. ““Center Seat Top Tether”“ , page 123

Outer Seat Child Seat Anchor

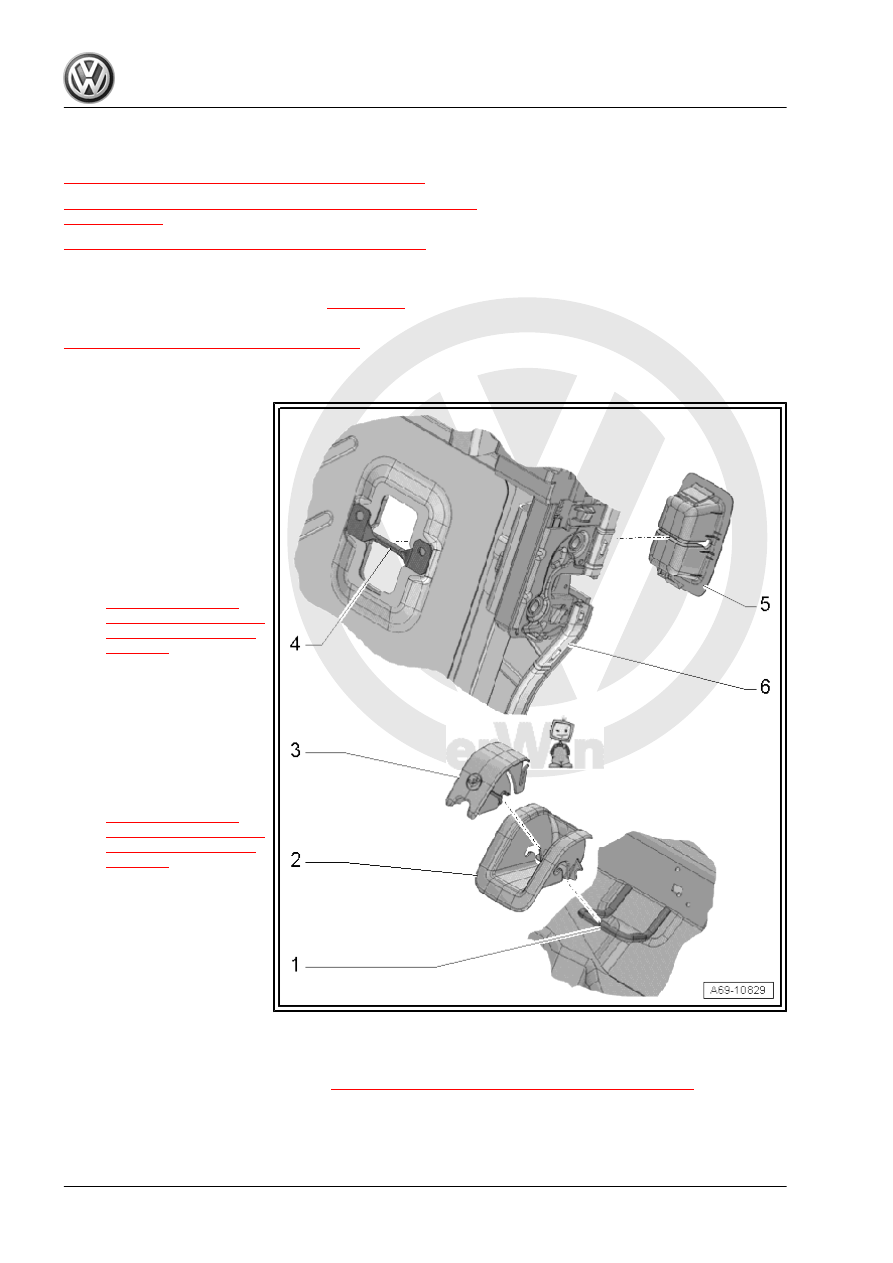

1 - LATCH Child Seat Anchor

❑ Quantity: 4
❑ Welded to the under‐

body

2 - Guide

❑ For the LATCH child

seat anchor

❑ Quantity: 4
❑ Removing and instal‐

ling. Refer to

⇒ “2.2 LATCH Child

Seat Anchor Guide, Re‐

moving and Installing”,

page 123

 .

❑ Must be secure on the

anchor

3 - Cover

❑ For the LATCH child

seat anchor

❑ Quantity: 4
❑ Removing and instal‐

ling. Refer to

⇒ “2.2 LATCH Child

Seat Anchor Guide, Re‐

moving and Installing”,

page 123

 .

❑ Must be secure on the

anchor

4 - Child Seat Anchor Top

Tether

❑ Quantity: 2
❑ Welded to the backrest

frame.

5 - Cover

❑ For Top Tether child seat anchor
❑ Quantity: 2
❑ Removing and installing. Refer to

⇒ “2.3 Top Tether, Removing and Installing”, page 123

 .

❑ Insert in the anchor and press on it until it engages audibly
❑ Can only be pushed in one position in the rear seat backrest

6 - Rear Seat Backrest

Center Seat Top Tether
1 - Top Tether
2 - Bolt, 8 Nm
3 - Cap

2.2

LATCH Child Seat Anchor Guide, Re‐

moving and Installing

Removing

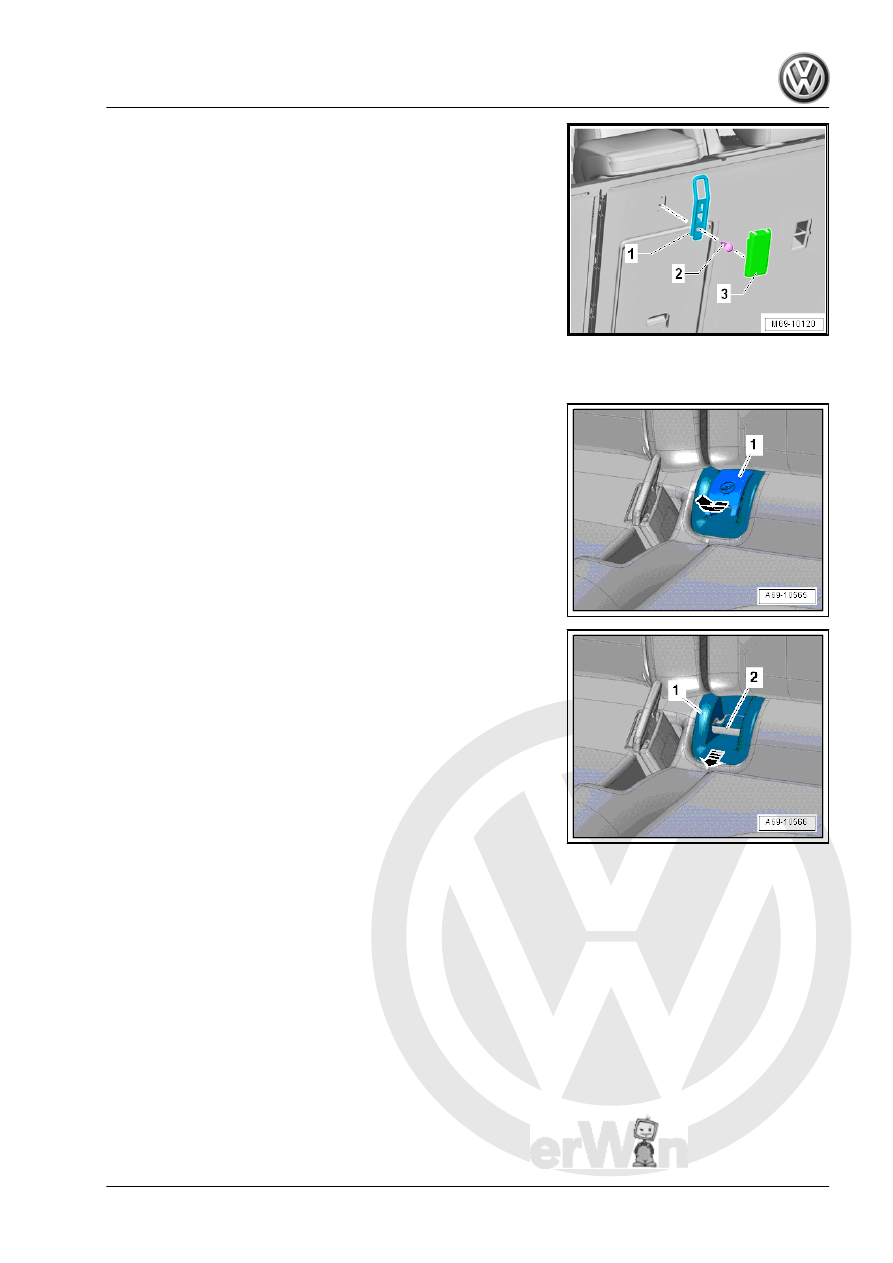

– Unclip and remove the cover -1- from the LATCH child seat

anchor -arrow-.

– Push the guide -1-, corresponding to cut-out, downward and

disengage it from the LATCH child seat anchor -2-.

– Remove the guide forward -arrow-.
Installing
Install in reverse order of removal.

2.3

Top Tether, Removing and Installing

Special tools and workshop equipment required
♦ Wedge Set - T10383-
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
