Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 329

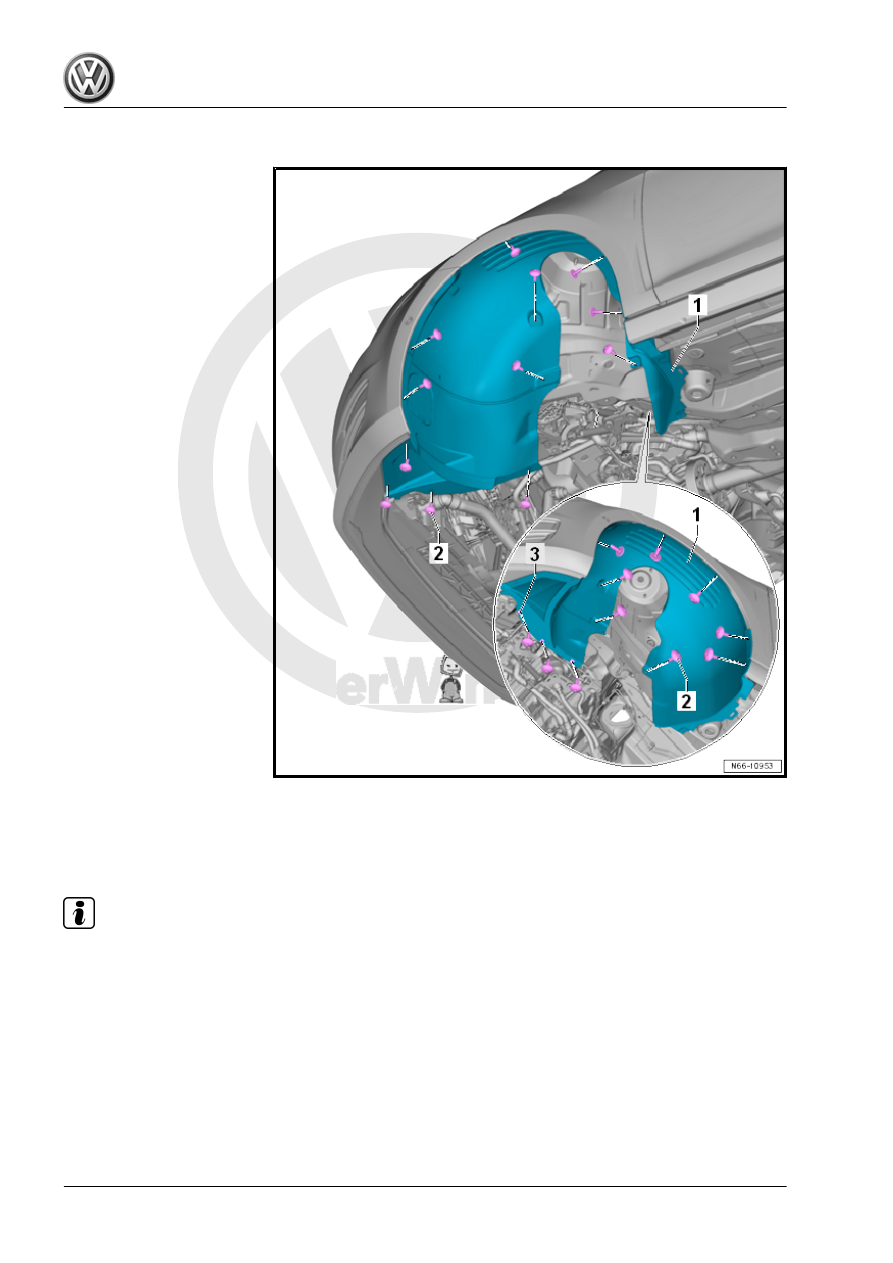

Removing

– Remove the bolts -2-.
– Remove the wheel housing liner -1- from the fender.
Installing

Note

Check the expanding nuts for damage and replace them if necessary.

– Push the front wheel housing liner -1- into the fender.
– Align the front wheel housing liner -1- with the front bumper

cover.

– Install the bolts -2- and tighten them.
Tightening Specifications

8.5

Rear Wheel Housing Liner, Removing

and Installing

Special tools and workshop equipment required

♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

Note

♦

The following describes the removal and installation of the left rear wheel housing liner. The right side is

identical.

♦

Depending on the model version, slight differences must be considered when removing and installing.

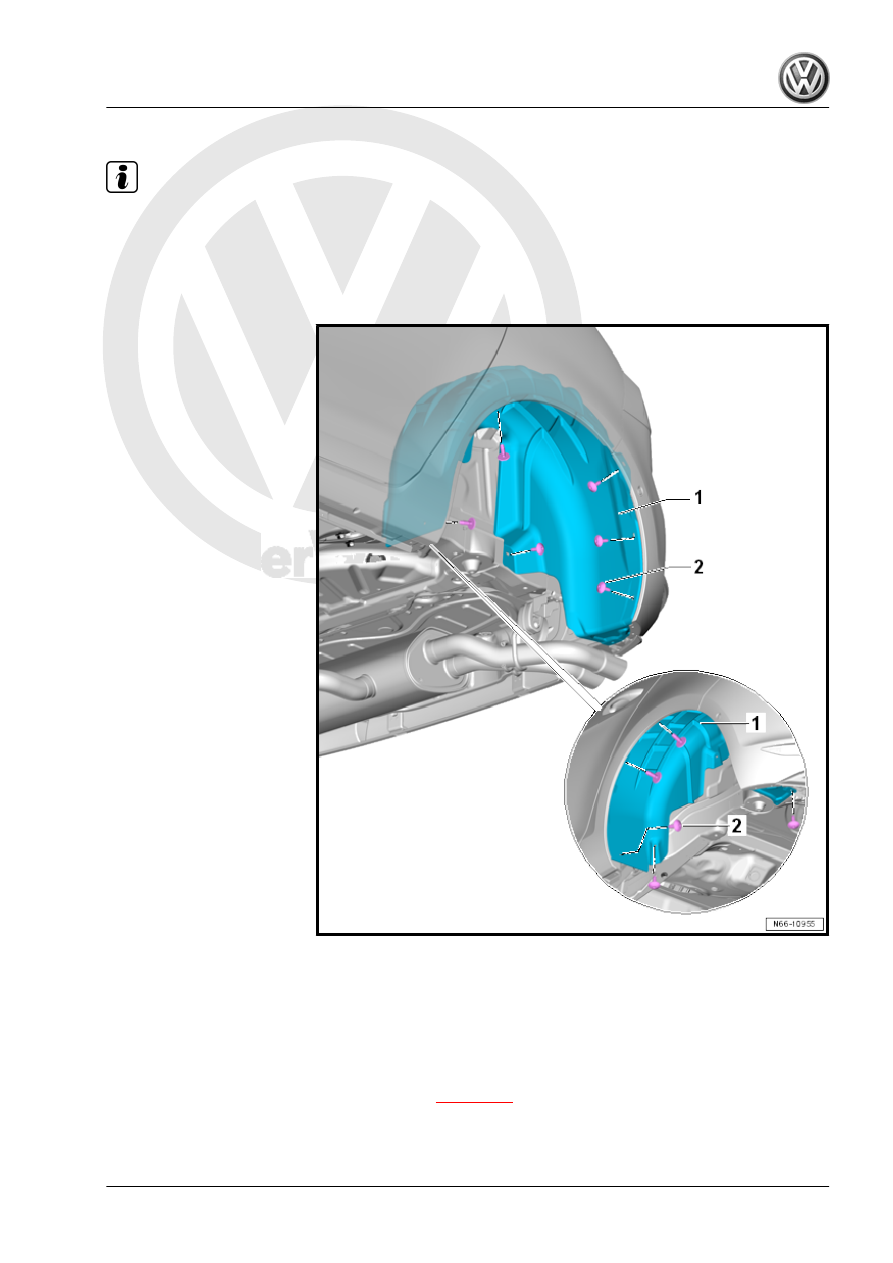

Removing

– Remove the wheel. Refer to ⇒  Suspension, Wheels, Steering;

Rep. Gr.  44 ; Wheels and Tires; Wheel Bolt Tightening Spec‐

ifications .

– Remove the bolts -2-.
– Remove the rear wheel housing liner -1- from the wheel hous‐

ing.

Sill panel cover, removing and installing. Refer to

⇒ page 447

 .

Installing

Note

Check the expanding nuts for damage and replace them if necessary -item 4-

⇒ Item 4 (page 446)

 .

– Install the rear wheel housing liner -1- in the wheel housing

without bending it.

– Install the bolts -2- and tighten them.
– Install the wheel. Refer to ⇒  Suspension, Wheels, Steering;

Rep. Gr.  44 ; Wheels and Tires; Wheel Bolt Tightening Spec‐

ifications .

Tightening Specifications

9

Name Badges and Emblems

⇒ “9.1 Dimensions - Rear Lid Name Badge and Emblem”,

page 451
⇒ “9.2 Dimensions - Fender Name Badges and Emblems”, page

454
⇒ “9.3 Front Emblems, Removing and Installing”, page 454
⇒ “9.4 Rear Emblem, Removing and Installing”, page 456
⇒ “9.5 Name Badges, Removing and Installing”, page 457

9.1

Dimensions - Rear Lid Name Badge and

Emblem

⇒ “9.1.1 Dimensions - Name Badge on the Rear Lid, except GTI”,

page 451
⇒ “9.1.2 Dimensions - Name Badge on the Rear Lid, GTI”,

page 453

9.1.1

Dimensions - Name Badge on the Rear Lid, except GTI

Note

Follow the assembly instructions when installing the name badges. Refer to

⇒ page 457

 .
