– Remove the mirror glass. Refer to

⇒ “7.3 Mirror Glass, Removing and Installing”, page 438

 .

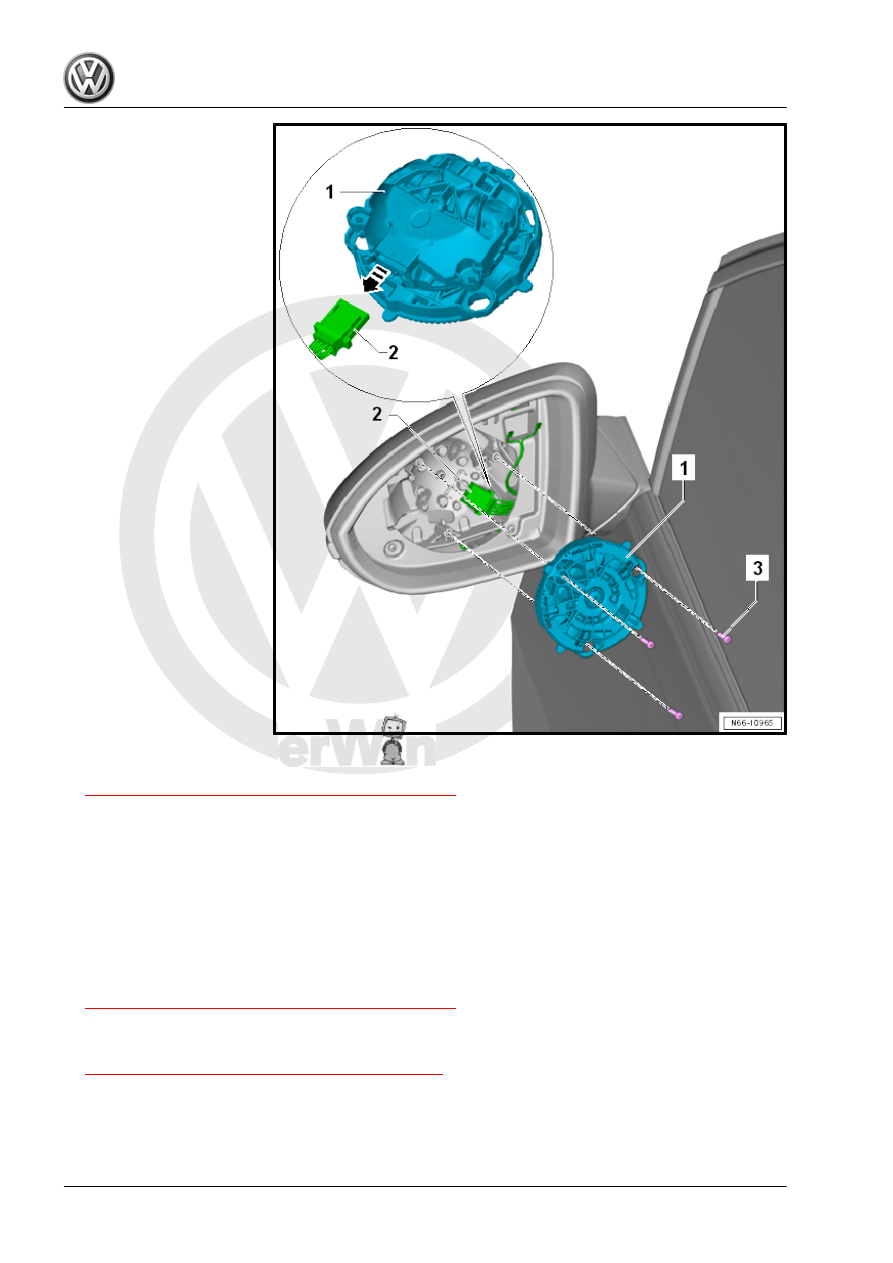

– Remove the screws -3- (quantity: 3) and remove the adjusting

unit -1- from the mirror base.

– Move the adjuster unit -1- to the side and disconnect the con‐

nector -2- in direction of -arrow-.

Installing
– Attach the connector -2- to the adjusting unit -1-.
– Mount the adjusting unit -1- on the mirror base and tighten the

screws -3- (quantity: 3).

– Install the mirror glass. Refer to

⇒ “7.3 Mirror Glass, Removing and Installing”, page 438

 .

Tightening Specifications
♦ Refer to

⇒ “7.1 Overview - Exterior Rearview Mirror”, page 435

7.4.2

Mirror Adjuster, Removing and Instal‐

ling, Version B

Special tools and workshop equipment required

♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

Note

The following describes the removal and installation of the left adjusting unit with motor. The right side is iden‐

tical.

Removing

Removing
– Remove the mirror glass. Refer to

⇒ “7.3 Mirror Glass, Removing and Installing”, page 438

 .

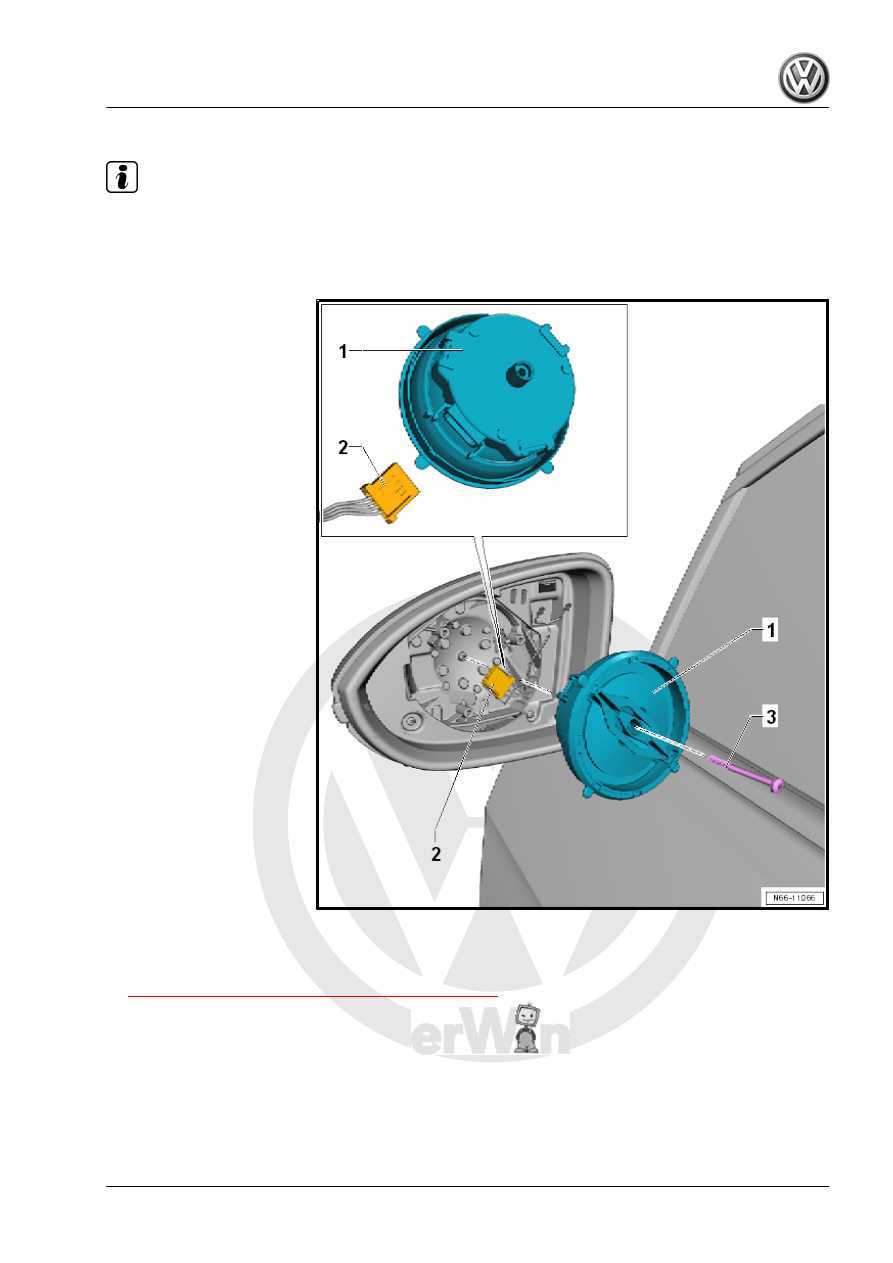

– Remove the screw -3- and remove the adjusting unit -1- from

the mirror base.

– Move the adjusting unit with the motor -1- to the side and dis‐

connect the connector -2-.

Installing
– Attach the connector -2- to the adjusting unit -1-.
– Mount the adjusting unit -1- on the mirror base and tighten the

screws -3- (quantity: 3).

– Install the mirror glass. Refer to

⇒ “7.3 Mirror Glass, Removing and Installing”, page 438

 .

Tightening Specifications
♦ Refer to

⇒ “7.1 Overview - Exterior Rearview Mirror”, page 435

7.5

Mirror Cap, Removing and Installing

Note

The following describes the removal and installation of the left mirror cap. The right side is identical.

Removing

– Remove the mirror glass. Refer to

⇒ “7.3 Mirror Glass, Removing and Installing”, page 438

 .

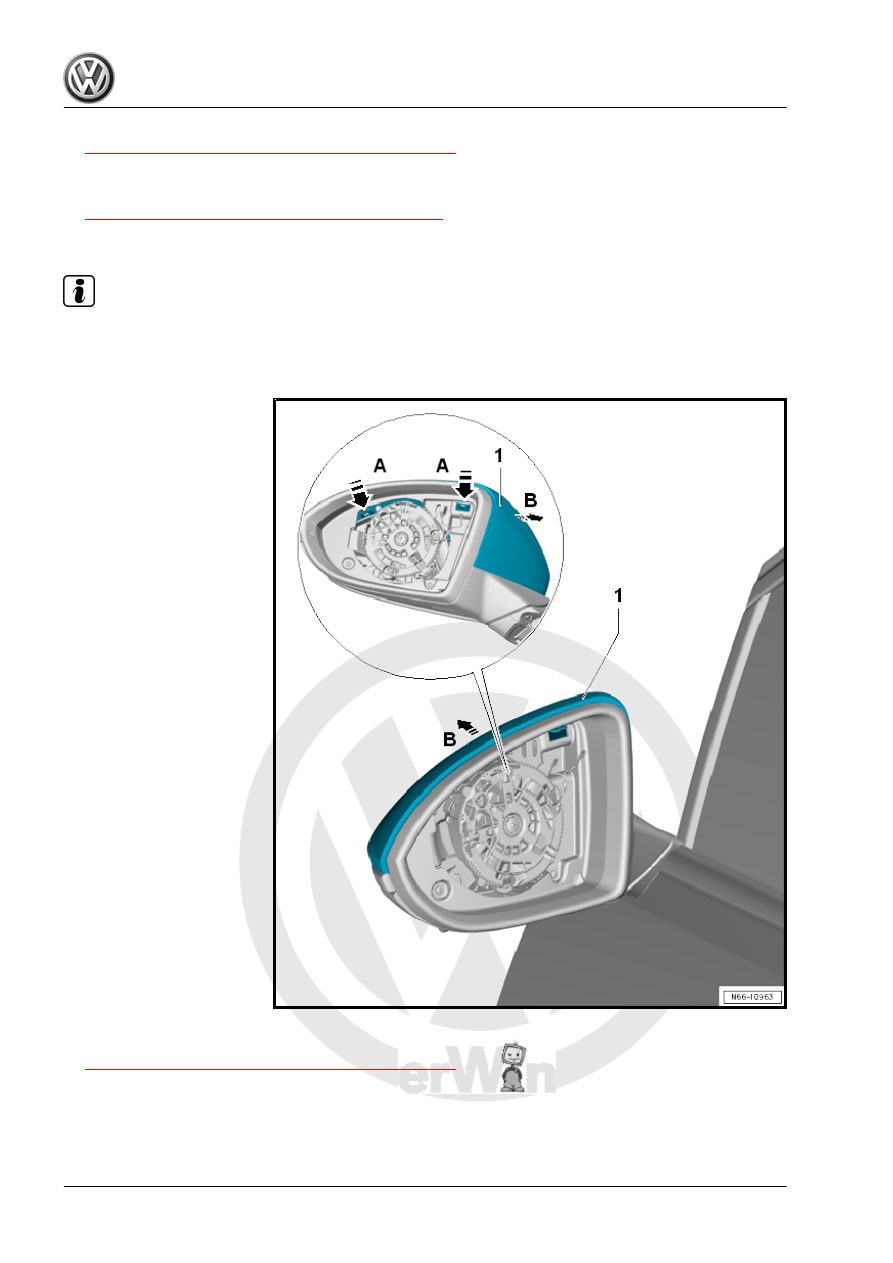

– Release the hooks in direction of -A arrows-.
– Remove the mirror cap -1- from the mirror base toward the rear

in the direction of -arrow B-.

Installing
– Position the mirror cap -1- and push on it until the hooks en‐

gage audibly.

– Install the mirror glass. Refer to

⇒ “7.3 Mirror Glass, Removing and Installing”, page 438

 .

7.6

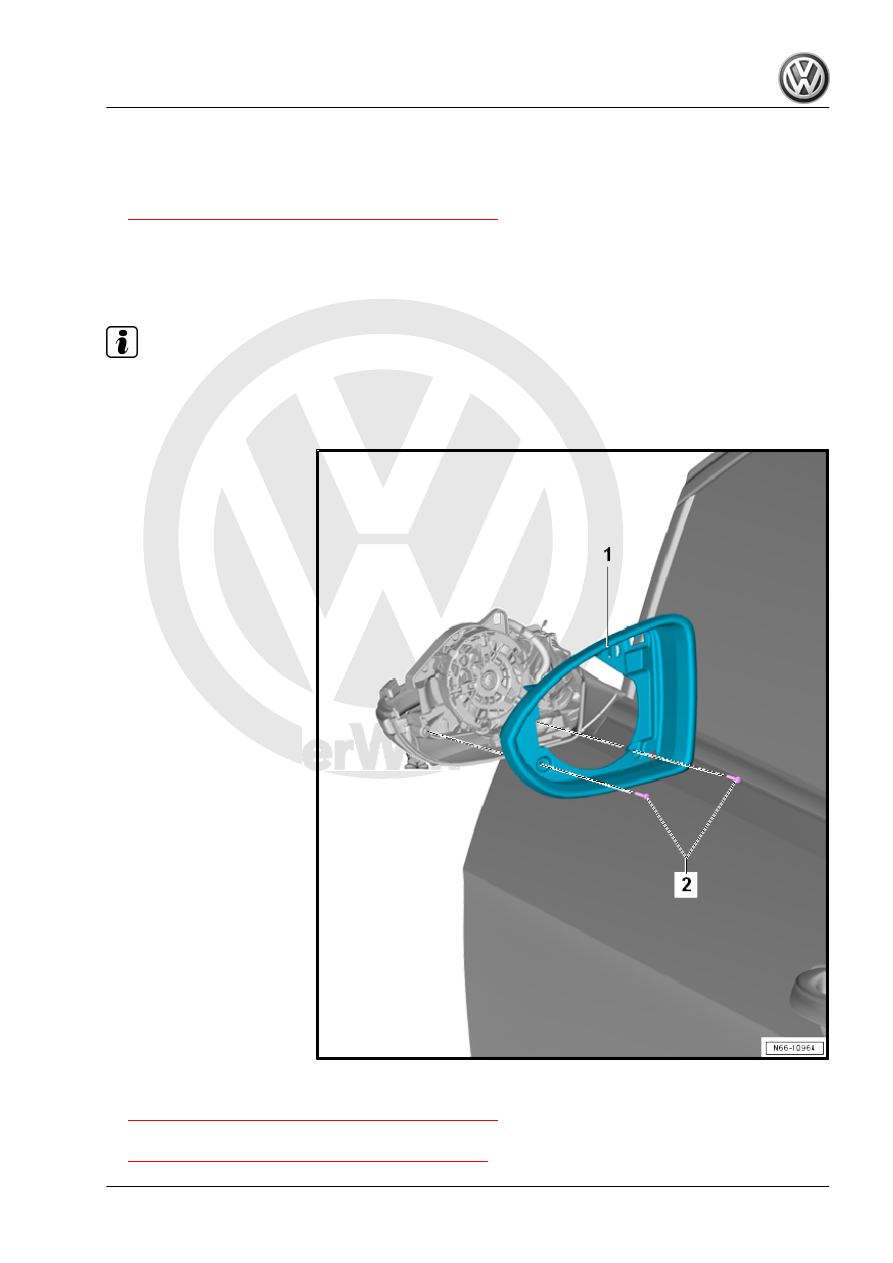

Mirror Trim, Removing and Installing

Special tools and workshop equipment required
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

Note

The following describes the removal and installation of the left mirror trim. The right side is identical.

Removing

– Remove the mirror glass. Refer to

⇒ “7.3 Mirror Glass, Removing and Installing”, page 438

 .

– Remove the mirror cap. Refer to

⇒ “7.5 Mirror Cap, Removing and Installing”, page 442

 .
