2

Rear Bumper

⇒ “2.1 Overview - Bumper Cover”, page 328
⇒ “2.2 Overview - Attachments”, page 331
⇒ “2.3 Overview - Impact Member”, page 335
⇒ “2.4 Overview - Guides”, page 336
⇒ “2.5 Bumper Cover, Removing and Installing”, page 337
⇒ “2.6 Impact Member, Removing and Installing”, page 343
⇒ “2.7 Bumper Cover, Servicing”, page 345
⇒ “2.8 Parking Aid Bracket, Installing”, page 345
⇒ “2.9 Parallel Parking Assist Bracket, Installing”, page 349

2.1

Overview - Bumper Cover

⇒ “2.1.1 Overview - Bumper Cover, Sedan”, page 328
⇒ “2.1.2 Overview - Bumper Cover, Wagon”, page 330

2.1.1

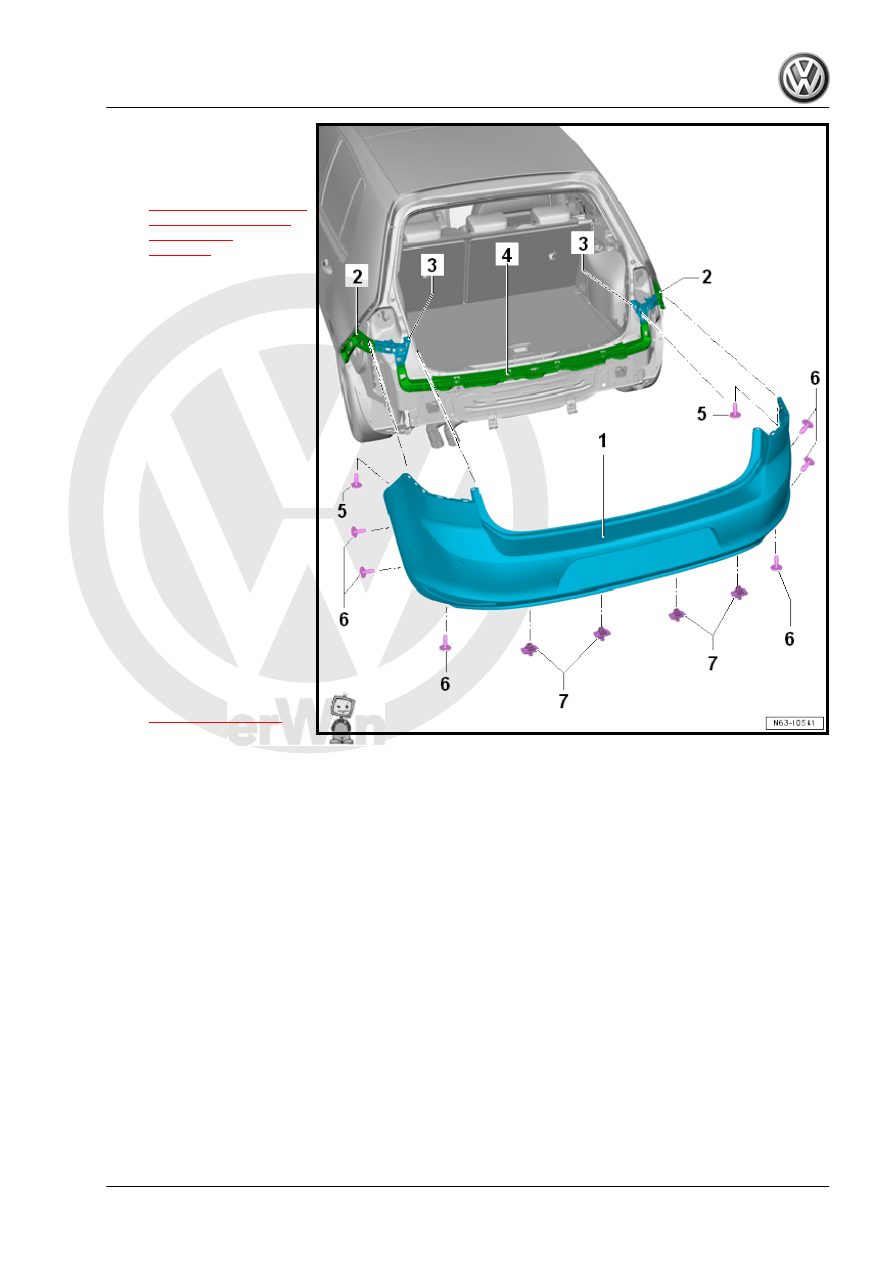

Overview - Bumper Cover, Sedan

Note

Depending on model version, there are minor differences in the bumper cover.

1 - Bumper Cover

❑ PP/EPDM material
❑ Removing and instal‐

ling. Refer to

⇒ “2.5.1 Bumper Cover,

Removing and Instal‐

ling, Sedan”,

page 337

 .

2 - Guide

❑ Right and left
❑ There are different ver‐

sions. Refer to the Parts

Catalog for the alloca‐

tion.

3 - Guide

❑ On the right and left

sides for the tail lamp

❑ There are different ver‐

sions. Refer to the Parts

Catalog for the alloca‐

tion.

4 - Center Guide
5 - Screw

❑ 2 Nm
❑ Pointing upward

6 - Bolt

❑ Quantity: 3 on each side
❑ Attached to the wheel

housing liner

❑ Tightening specification

-item 2-

⇒ Item 2 (page 446)

 .

7 - Expanding Rivet

❑ Quantity: 4

2.1.2

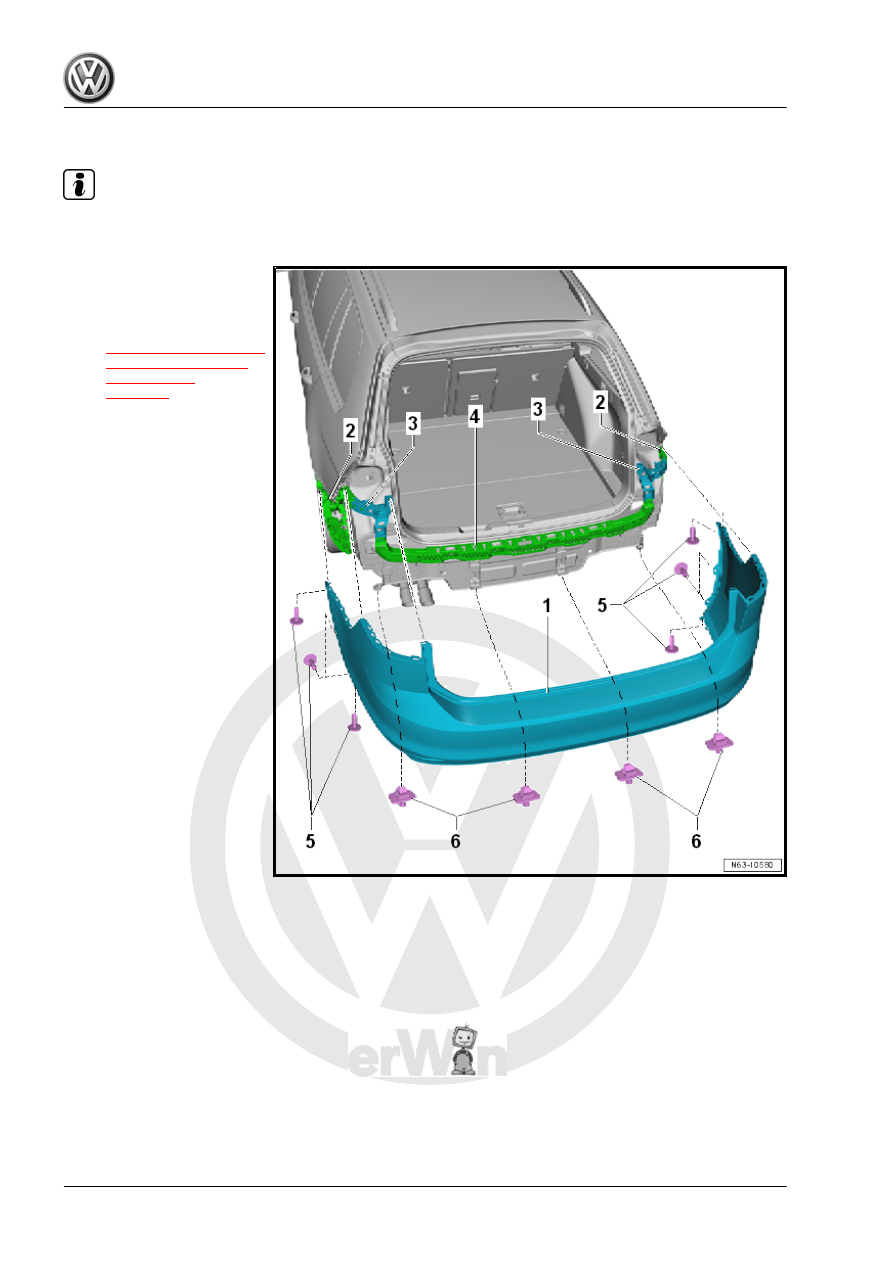

Overview - Bumper Cover, Wagon

Note

Depending on model version, there are minor differences in the bumper cover.

1 - Bumper Cover

❑ PP/EPDM material
❑ Removing and instal‐

ling. Refer to

⇒ “2.5.2 Bumper Cover,

Removing and Instal‐

ling, Wagon”,

page 341

 .

2 - Guide

❑ Right and left

3 - Guide

❑ On the right and left

sides for the tail lamp

4 - Center Guide
5 - Screw

❑ 2 Nm
❑ Quantity: 8

6 - Expanding Rivet

❑ Quantity: 4

2.2

Overview - Attachments

⇒ “2.2.1 Overview - Attachments, Sedan except GTI”,

page 331
⇒ “2.2.2 Overview - Attachments, Sedan GTI”, page 332
⇒ “2.2.3 Overview - Attachments, Wagon”, page 333

2.2.1

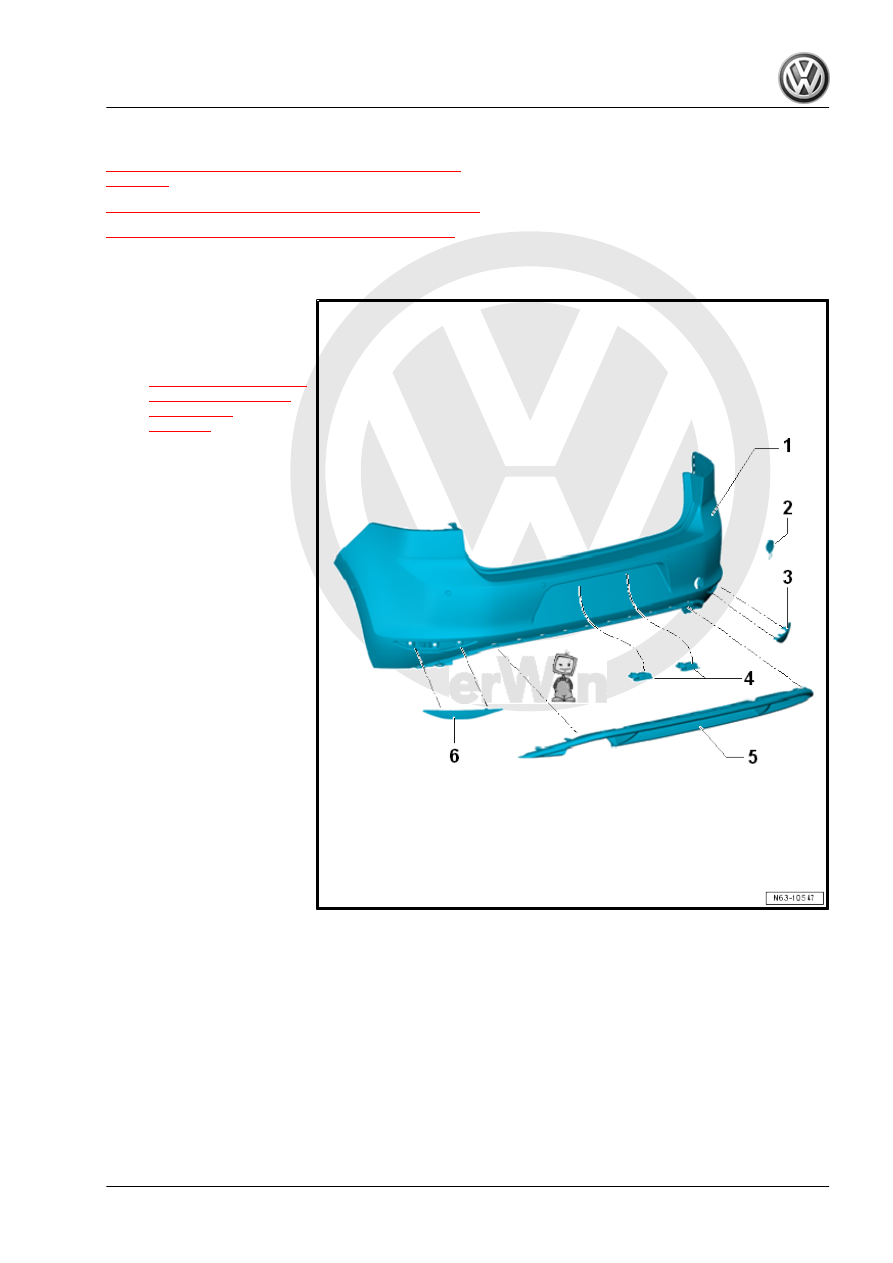

Overview - Attachments, Sedan except GTI

1 - Bumper Cover

❑ PP/EPDM material
❑ Removing and instal‐

ling. Refer to

⇒ “2.5.1 Bumper Cover,

Removing and Instal‐

ling, Sedan”,

page 337

 .

2 - Towing Eye Cap

❑ Engaged in bumper

cover

3 - Right Rear Reflector

❑ Secured in the bumper

cover

❑ To be removed only with

bumper cover removed

4 - License Plate Lamps

❑ Quantity: 2
❑ Removing and instal‐

ling. Refer to ⇒  Electri‐

cal Equipment; Rep. Gr.

94 ; License Plate

Lamp; Left and Right Li‐

cense Plate Lamp - X4- /

-X5- , Removing and In‐

stalling .

5 - Spoiler

❑ PC/ABS material
❑ Secured in the bumper

cover

❑ To be removed only with

bumper cover removed

❑ There are different ver‐

sions. Refer to the Parts

Catalog for the allocation.

6 - Left Rear Reflector

❑ Secured in the bumper cover
❑ To be removed only with bumper cover removed
